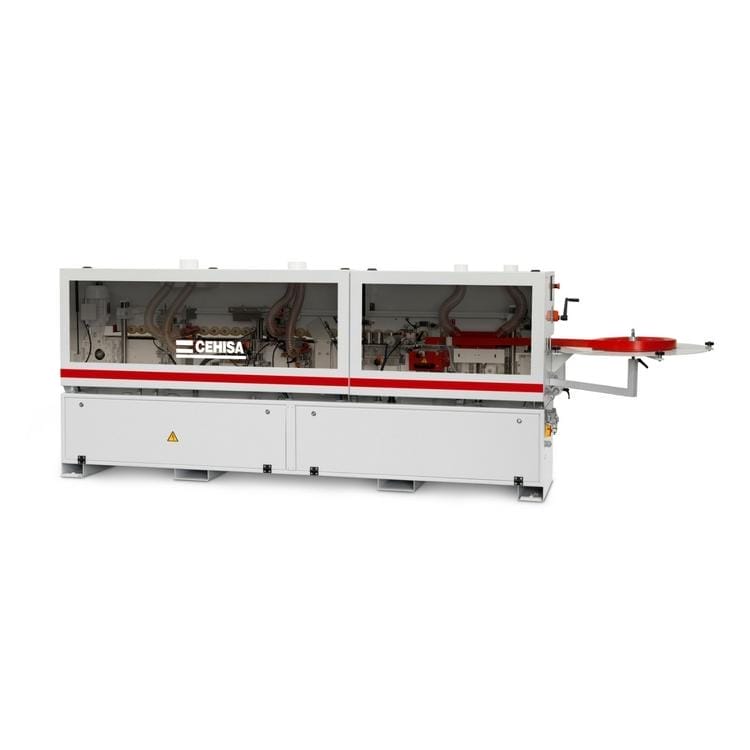

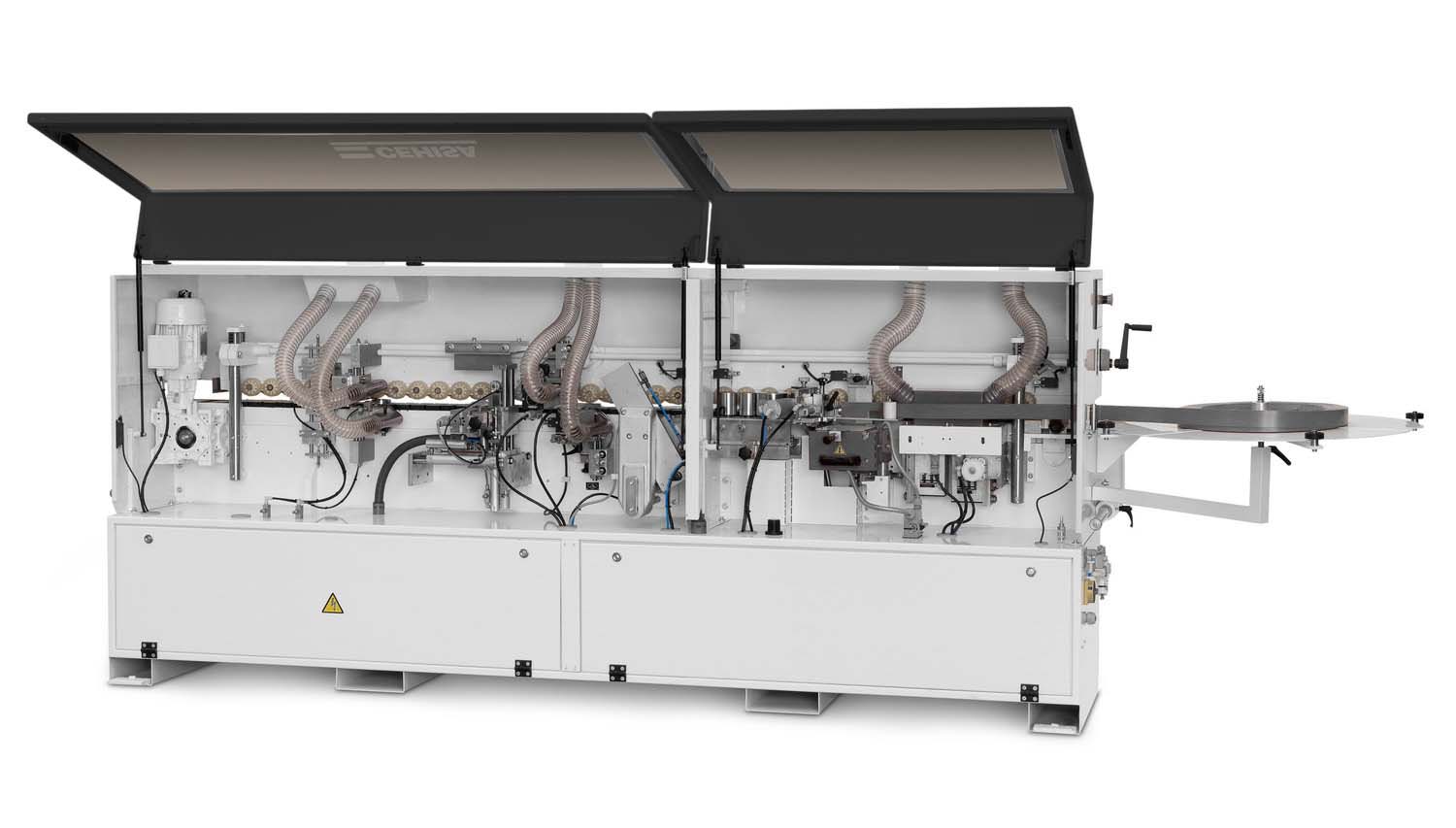

Cehisa Model Compact PCS Edgebander with Pre-Milling, Corner Rounding

Of all products in the COMPACT series, the Cehisa Model Compact PCS Edgebander with Pre-Milling, Corner Rounding is the most advanced, cutting-edge of them all. Combining the best of both worlds, this edgebander is compactly designed for accommodation in small workshops as well as large ones. No functionality is lost via the dense design as the components of other elite, top quality edgebanders can be found in this model.

 The effectiveness of the machining process has been greatly enhanced with this model thanks to the 10m/min drag chain speed, the ability to work 3mm thick edgebands and with both the corner rounding unit and the pre-milling unit.

Optionally, the infeed has been equipped with non-stick sprayers to make for stable machining that minimise the chances of any defects or imperfections. The outfeed has similarly been improved but with a cleaning spray which makes for a finished product like no other.

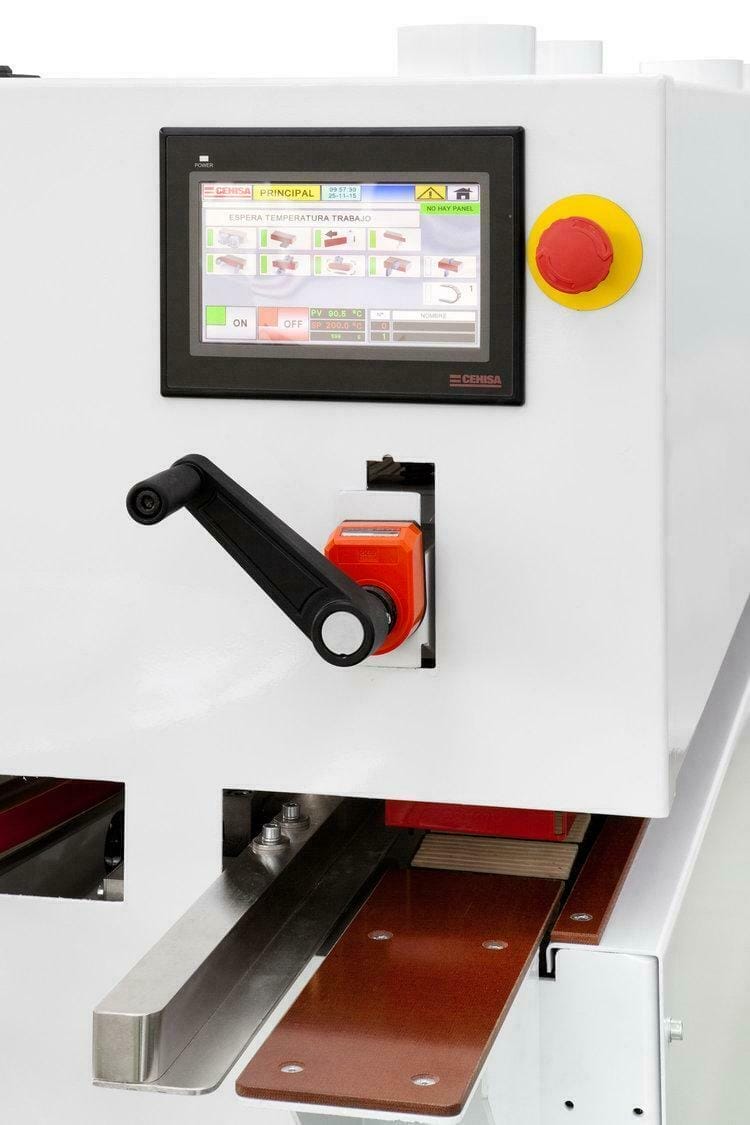

The ergonomically located LCD touchscreen and its simple to use, intuitive interface, functions and adjustments can be modified safely and with great ease.

Other Features Include:

• Hot Melt Glue Pot
• Edge Pressing Rollers
• End Trimming Unit
• Top and Bottom Radius Trimmers
• Profile Scrapers
• Glue Scrapers
• Buffers

Optional Features Included:

• Hot Melt EVA and PUR (adhesives)
• DUOMELT
• Infra red lamp
• Nesting tracers
• Cabin Lights
• Pneumatic on/off for Radius & Glue scrapers

Specifications

Edgebander material

Melamine, PVC, Polyester, Wood, Formica

10 mts/min. (8m/min with CR unit)

Thickness of edgebanding

0,4 – 3 mm

Thickness solid wood strips

up to 5mm

Thickness of the panel

10– 60 mm;

Min. Length of the panel

120 mm; 200 mm (using CR unit)

Min. Width of the panel

75 mm

Dimensions

3564 * 630 * 1370 mm

Net weight

945 Kg.

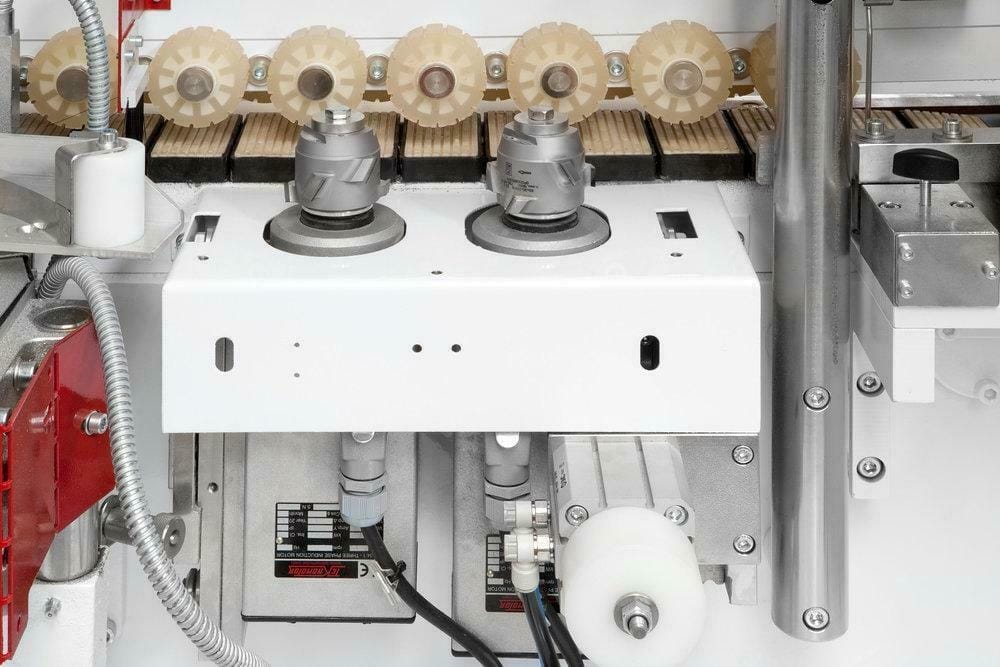

PF-12 PRE MILL. (diamond tools) H65mm

M2-NS GLUE UNIT

V-2 END TRIM

JC-2 T&B TRIM

CR-2 CORNER RND

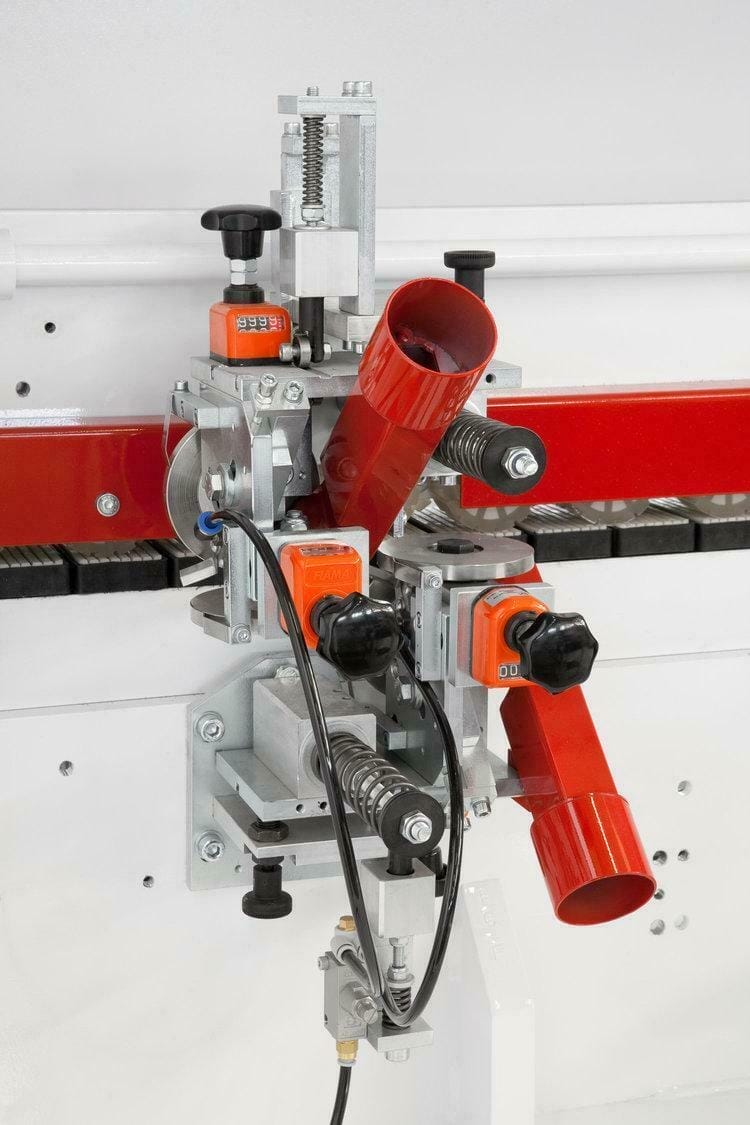

Radius scrapers

Glue scrapers

Buffers

Non-stick Agent spray at the infeed table

Cleaning Agent spray outfeed

Automatic positioning 2 pre-set positions included

Pneumatic on/off for Radius scrapers included

Pneumatic setting on/off for Glue scrapers included

DUOMELT Glue unit for fast and easy cleaning when changing from EVA to PUR and vice versa and different glue colours.Simple and efficient draining of the residual glue in the glue pot. Full Teflon coating of the whole assembly. 1.5kg capacity INCLUDED
