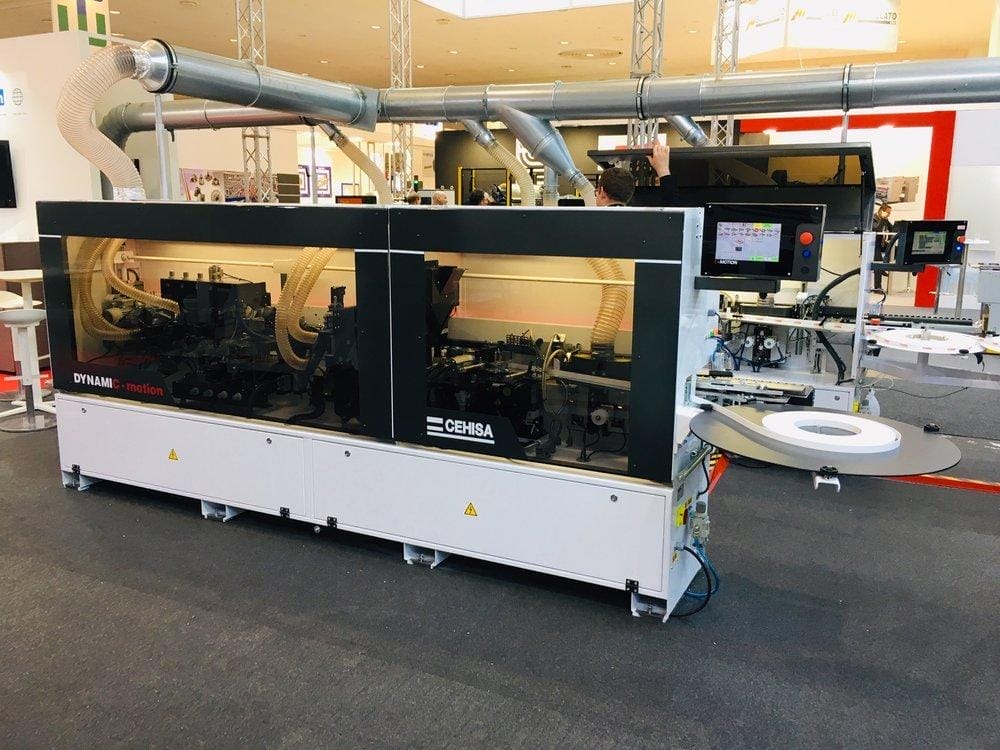

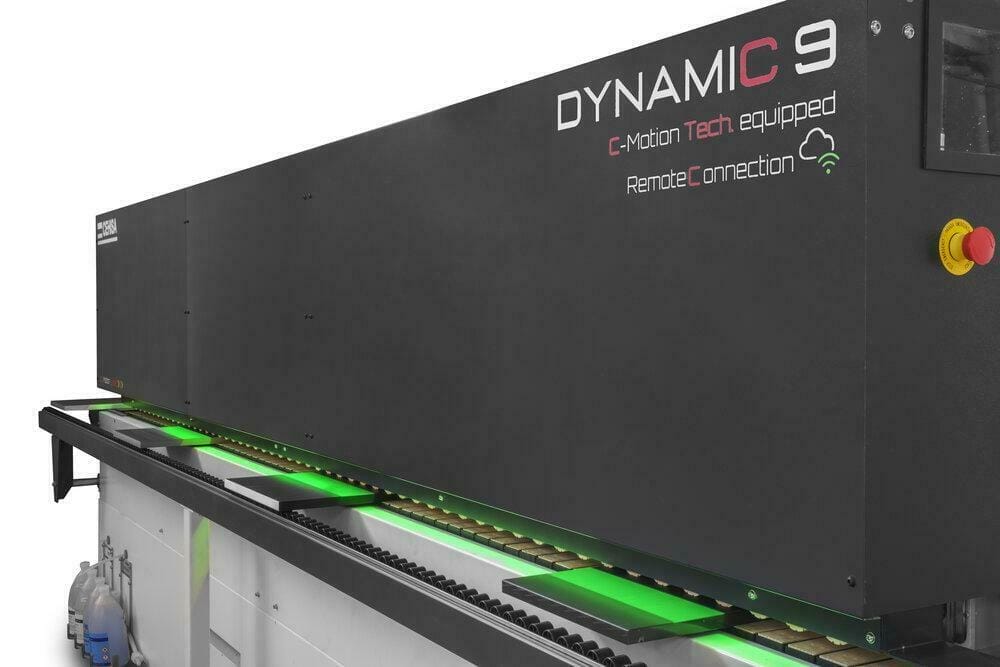

Cehisa Model Dynamic 9 C-Motion Automatic Edgebander

Introducing the modern generation of Cehisa’s edgebanders, the Cehisa Model Dynamic 9 C-Motion Automatic Edgebander features innovative technology that has been combined with a smart, compact design to offer maximum versatility, efficiency and reliability.

Featuring C-Motion technology, absolute precision is guaranteed when adjusting the various processes and operational groups. The incorporation of C-motion technology means that this edgebander has cutting-edge software with a highly intuitive interface that allows the adjustment of up to 18 axes – granting absolute command of the edgebander. A sure-fire way to produce super-high-quality finishes.

For effective machining suitable for professional craftsmen, this elite model of Cehisa edgebander includes a variety of functions including:

• An infeed fence with motorised axis control
• Pre-milling station (PF-2)
• Pressure roller station with motorised axis control

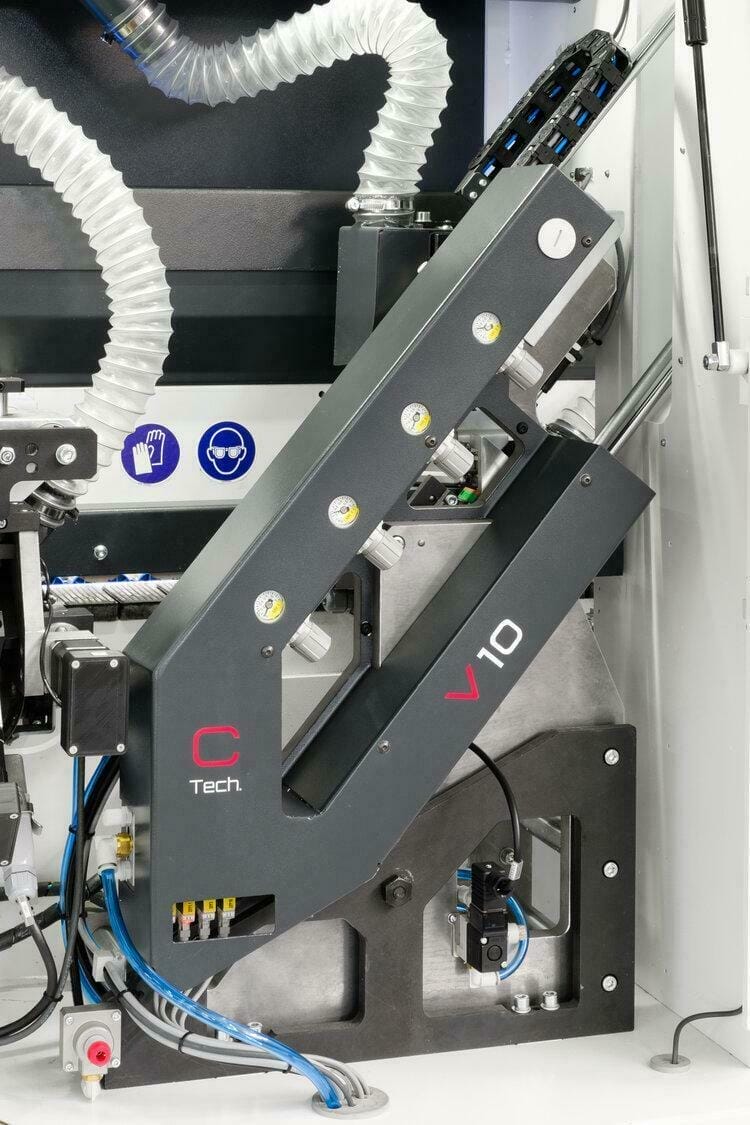

• 2 motor end trim with pneumatic tilting of saws (V-10N)
• Radius scraper with 6 motorised axis (RB-10M)
• Multi-profile radius tools on BC-6M and RB-10M
• Motorised pressure beam with encoder
• Pressure beam rollers with bearings
• Connectivity kit for remote control
• Automatic strip feed magazine (for up to 6mm lippings)
• A centralised dusting system

Optional Features Included:

• Glue Scraper with pneumatic activation
• Buffing unit

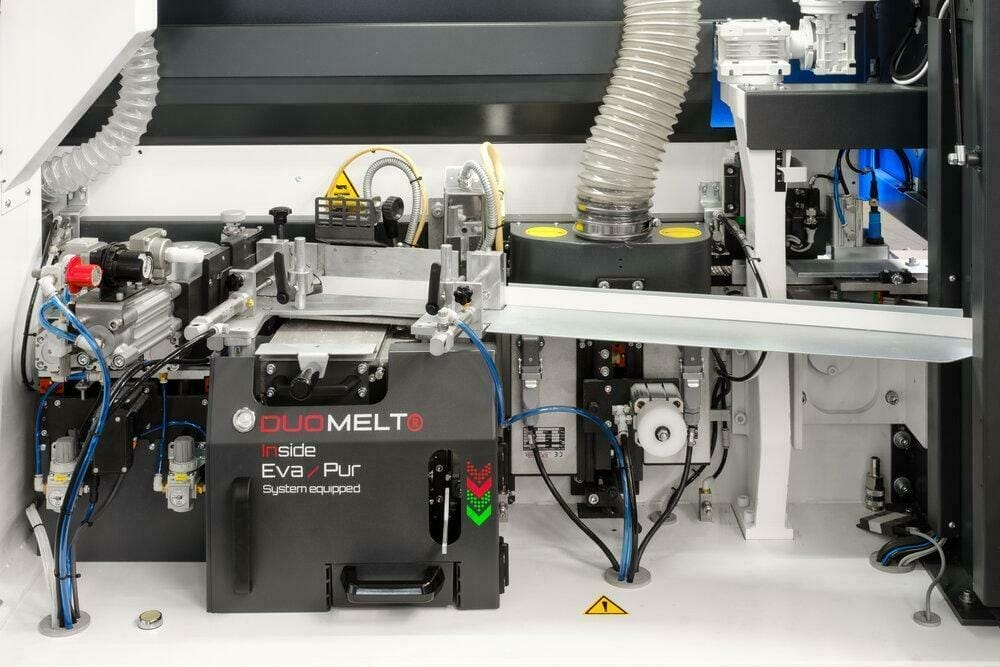

• Duo-melt pack
• New cylinder for interval improvement
• Non-stick agent spray
• Antistatic agent spray
• Cleaning agent spray
• Preheating at the entrance (infrared lamp)
• DIA tools H65mm on the pre-milling unit instead of H30mm
• Nesting tracers

Specifications

Infeed Fence with motorised axis control

Pre-Milling Station (PF-2)

Pressure Roller Station with motorised axis control

2 Motors End Trim with Pneum. tilting of saws (V-10N)

Top & Bottom Trim Station with 6 motorised axis   (BC-6M)

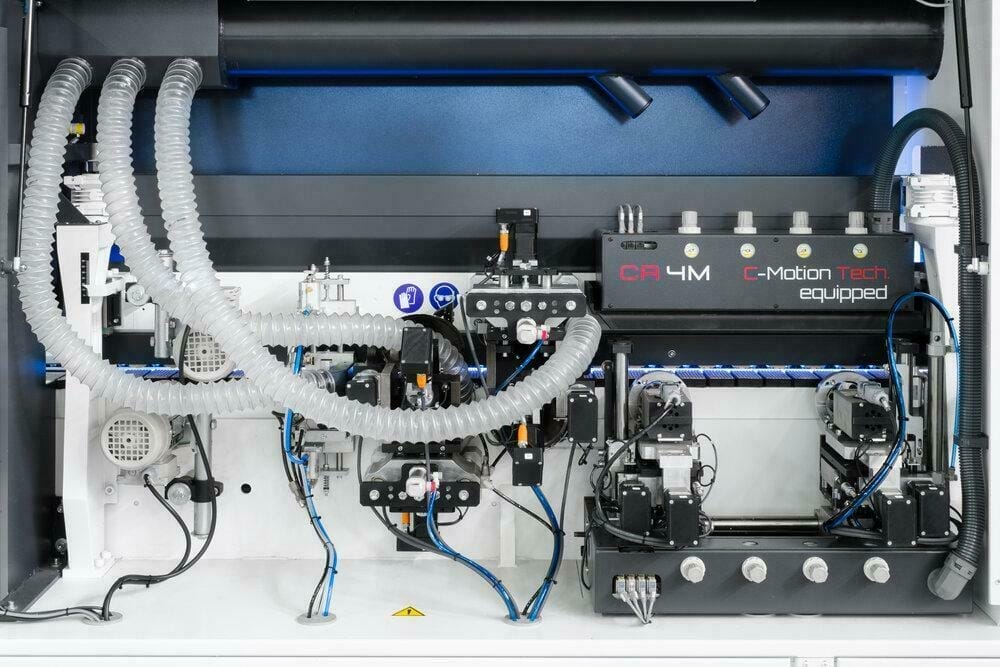

2 Motors Corner Rounding with 4 motorised axis (CR-3M)

Radius Scraper with with 6 motorised axis (RB-10M)

Multi profile radius tools on BC-6M and RB-10M

Motorised pressure beam with encoder

Pressure beam rollers with bearings

Connectivity Kit for remote control

Automatic strip feed magazine (for up to 6mm lipings)

Centralised dusting system

Options INCLUDED

Glue Scraper with Pneumatic activation (RR-8N)

Buffing Unit (PC-5)

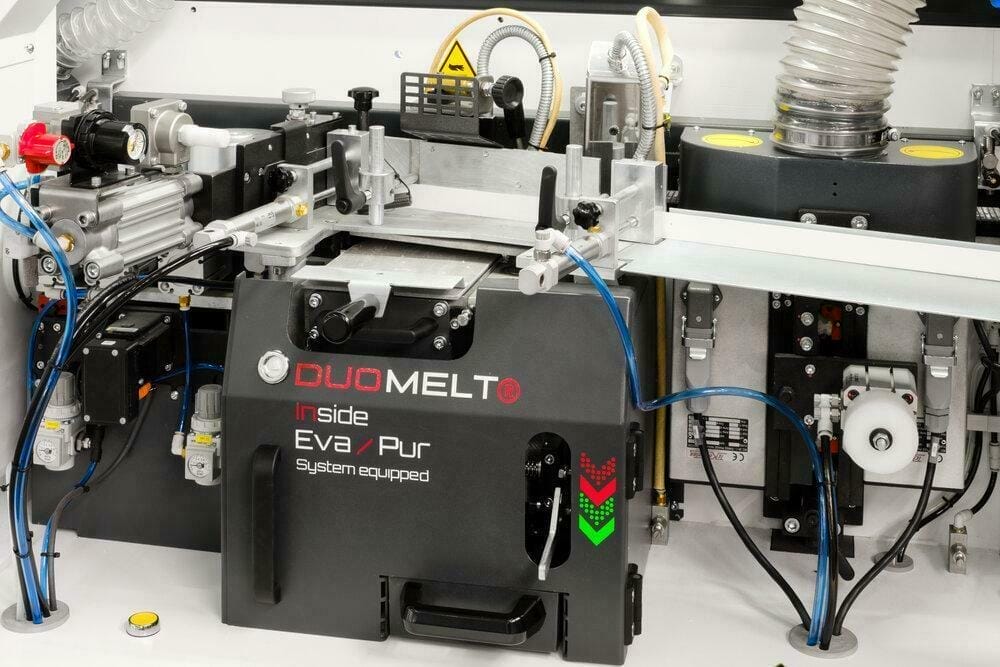

Duo-Melt Pack

New cylinder for interval improvement

Non-stick   agent spray at entrance

Antistatic   agent spray at middle

Cleaning agent spray at exit

Preheating at entrance (Infrared Lamp)

DIA tools H65mm on   Pre-milling unit instead of H30mm

Nesting tracers

LED Cabin Lights

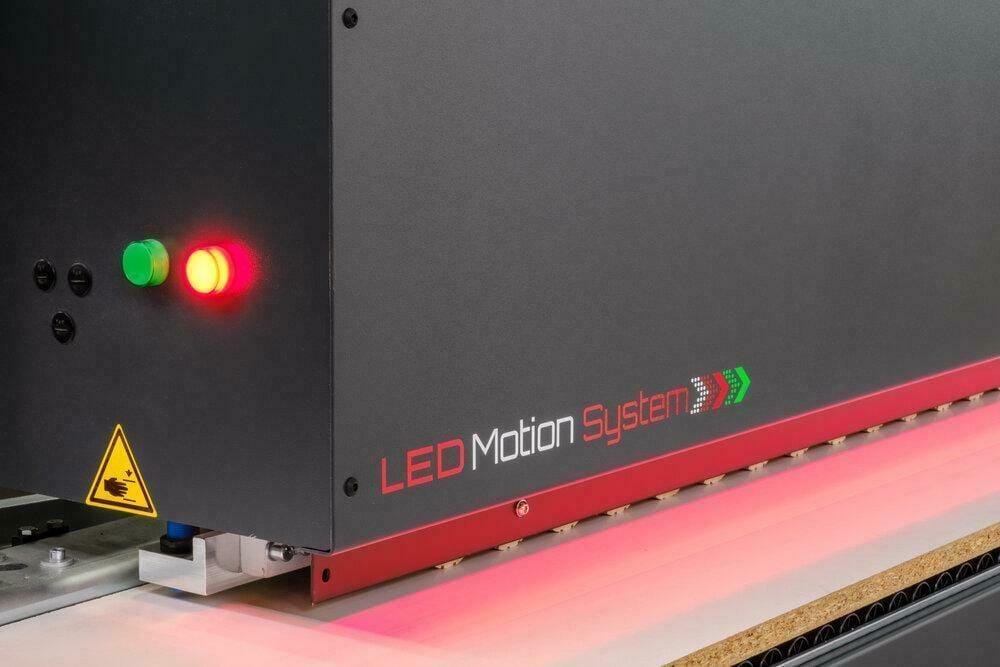

LED Motion system
