Cehisa Model PRO 12 Industry Line Edgebander

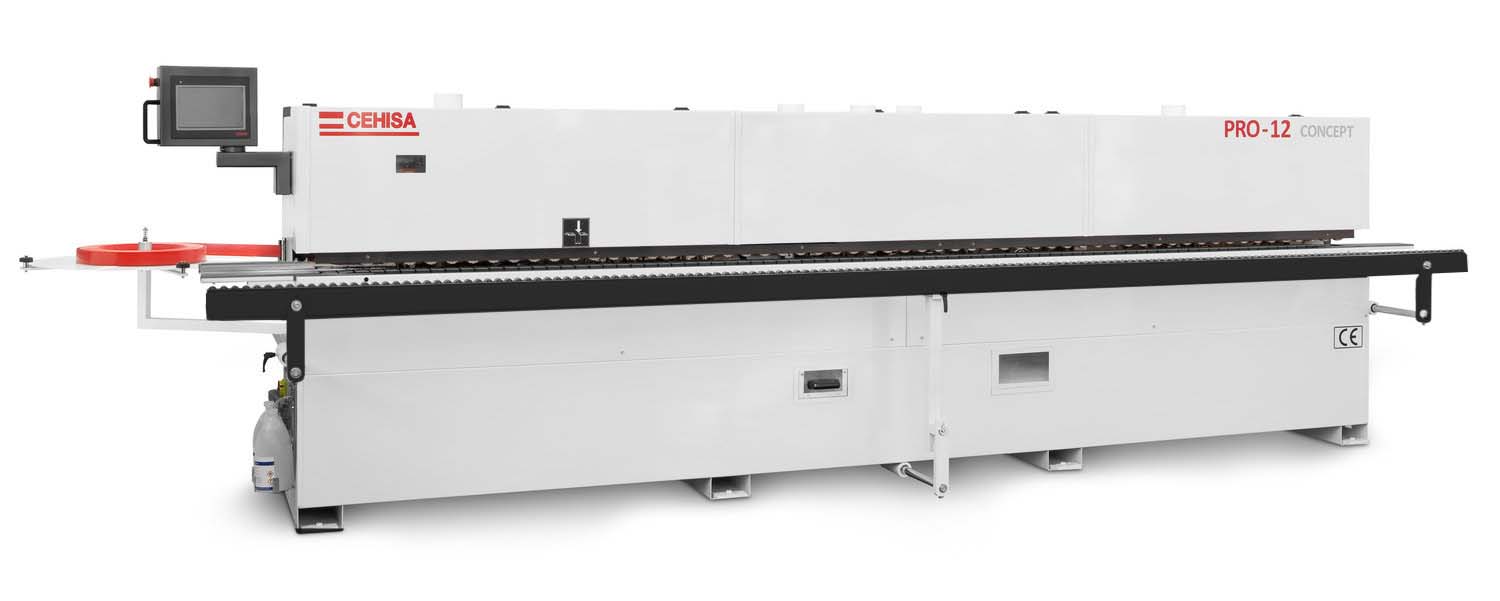

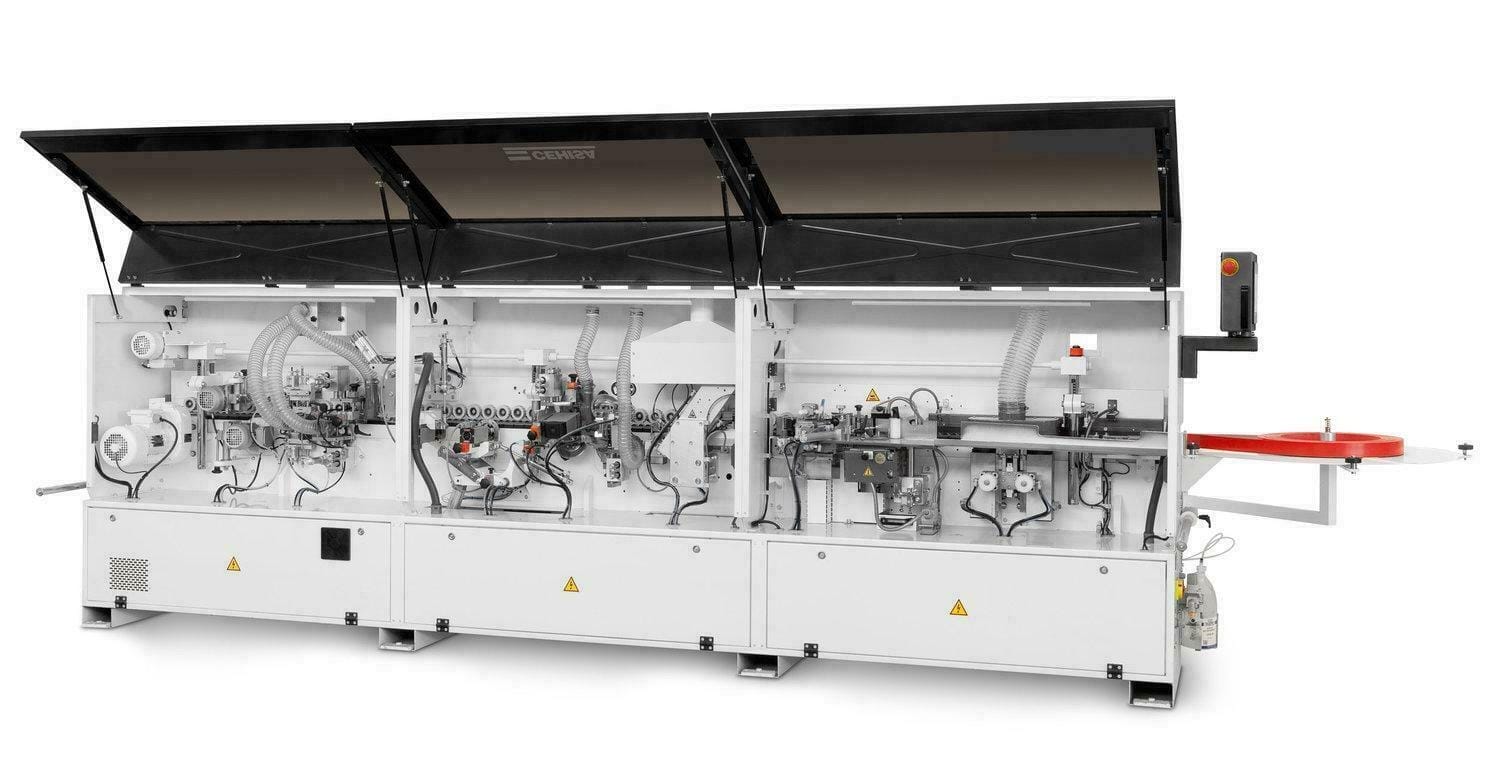

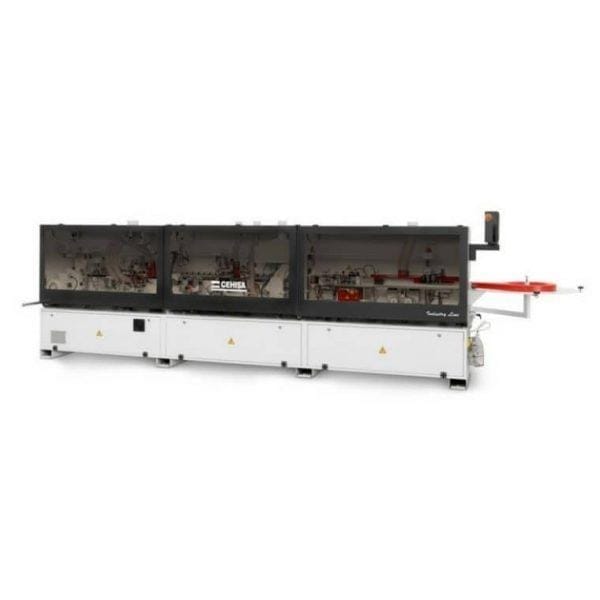

The advanced Cehisa Model PRO 12 Industry Line Edgebander is a heavy-duty, industrial edgebander capable of high capacity, highly effective edging performance. An excellent choice for demanding craftsmen and professional workshops.

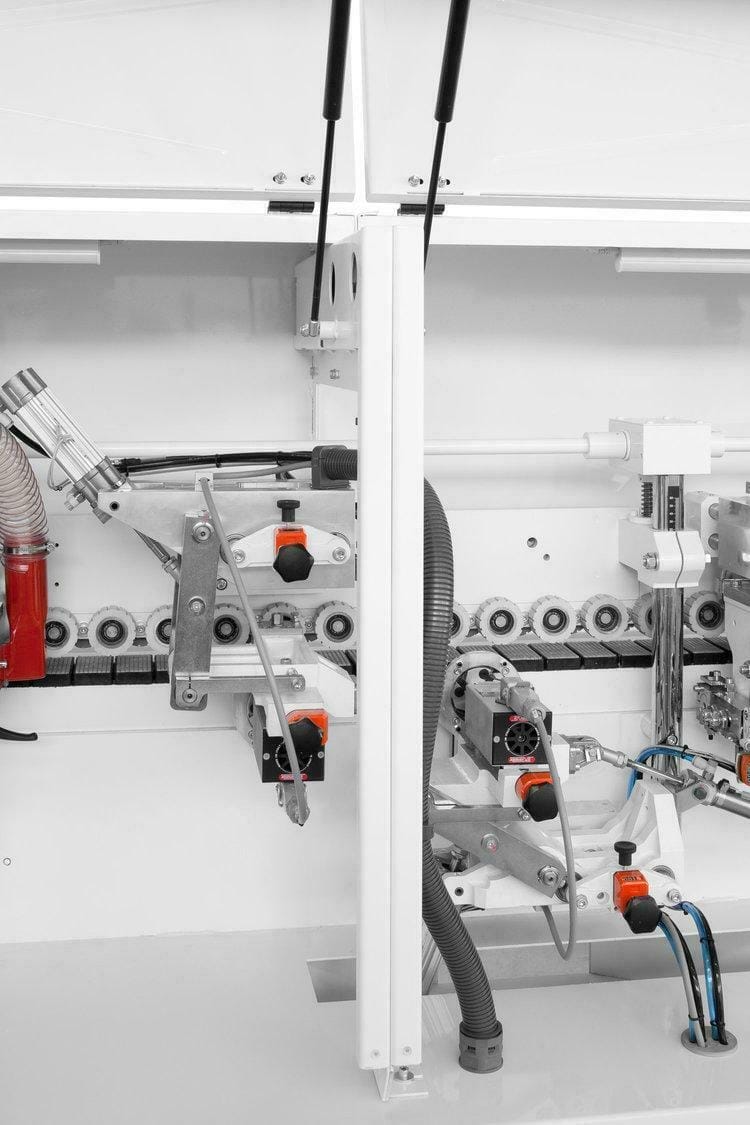

Composed of machine precision steel, the Pro 12 offers a great degree of rigidity which eliminates any disruptive vibrations. The rigidity of the solid steel frame makes great anchorage for the workgroups, some of which are mounted on the upper pressure beam.

Coated with high adhesion polymer, the transport chain is made with industrial patine making it both smooth (when in contact with the panel) and durable.

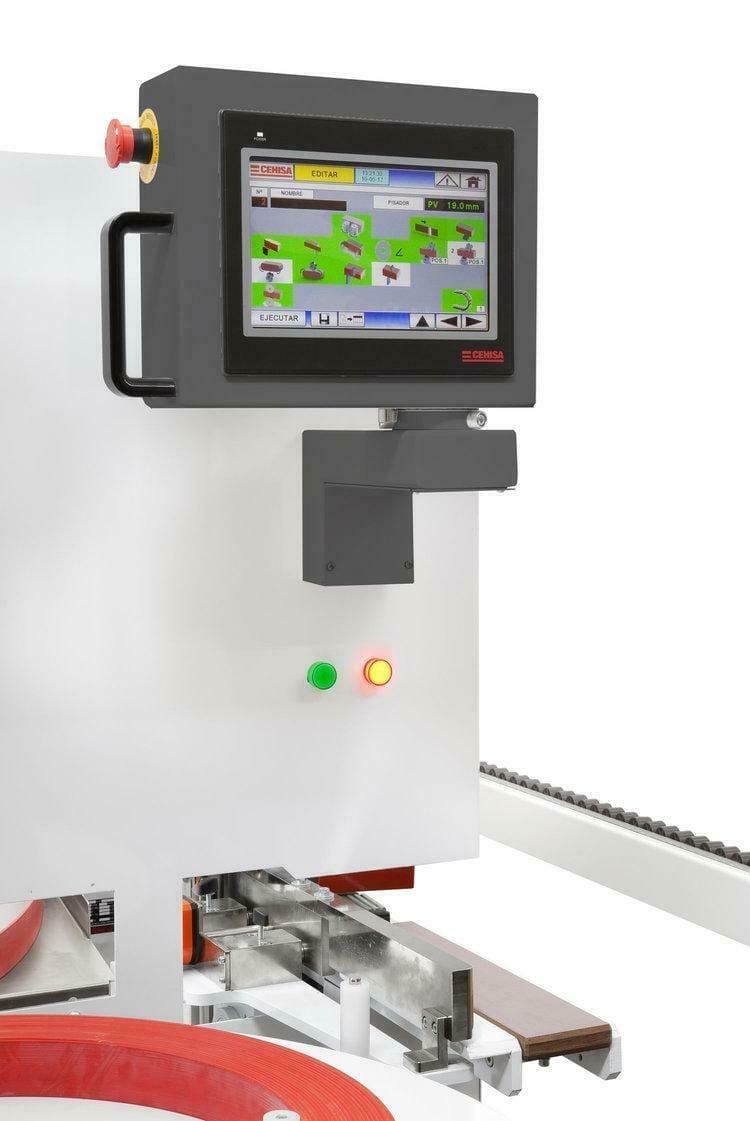

With the 10” control panel, all adjustments can be set with ease. The panel provides quick access and thorough monitoring of all functions including stop/start, program editing, parameters adjustments, alarm visualization and diagnostics.

Optional Features Include:

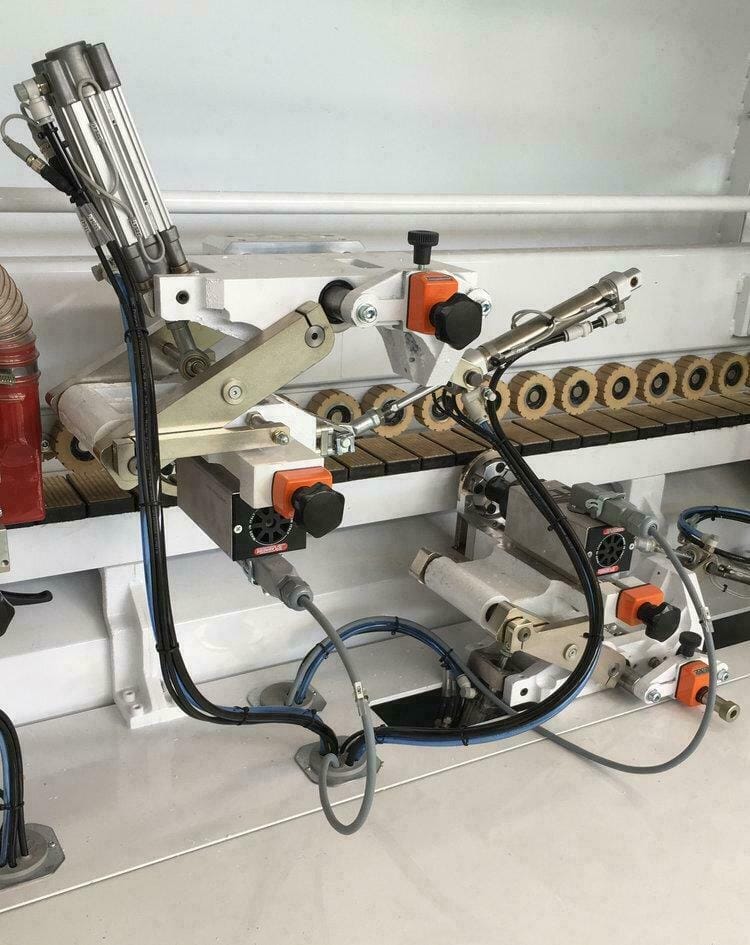

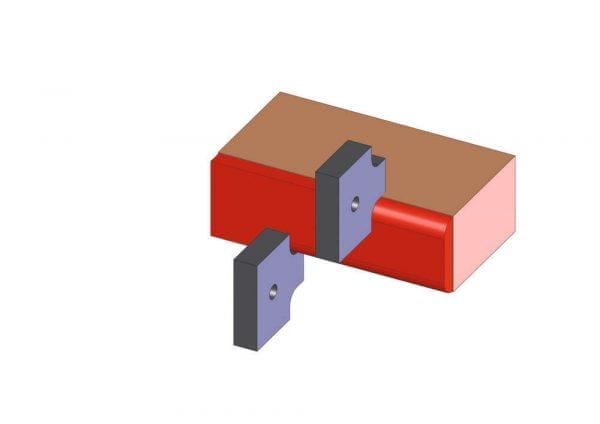

  • Glue Scraper with pneumatic activation
  • Buffing unit
  • Due-melt pack
  • New cylinder for interval improvement

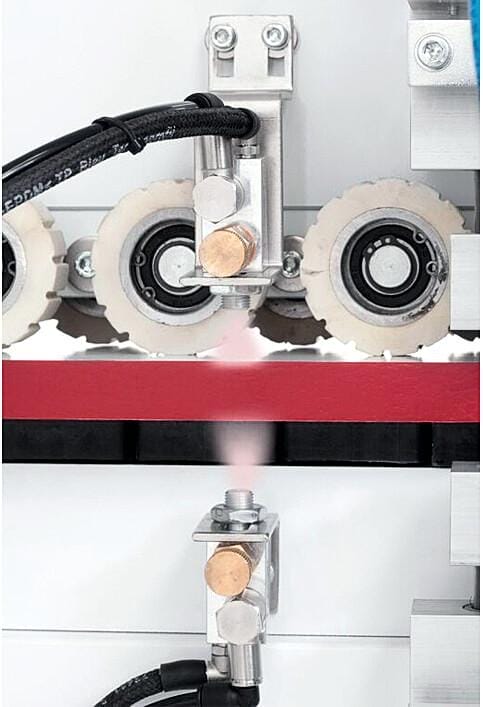

  • Non-stick agent spray
  • Antistatic agent spray
  • Cleaning agent spray
  • Preheating at the entrance (infrared lamp)
  • DIA tools H65mm on pre-milling unit instead of H30mm
  • Pneumatic tilting of V-7
  • Overcurrent protection
  • Automatic lubrication of the chain
  • LED cabin lights

£37,950.00

+VAT

Out of stock

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

The advanced Cehisa Model PRO 12 Industry Line Edgebander is a heavy-duty, industrial edgebander capable of high capacity, highly effective edging performance. An excellent choice for demanding craftsmen and professional workshops.

Composed of machine precision steel, the Pro 12 offers a great degree of rigidity which eliminates any disruptive vibrations. The rigidity of the solid steel frame makes great anchorage for the workgroups, some of which are mounted on the upper pressure beam.

Coated with high adhesion polymer, the transport chain is made with industrial patine making it both smooth (when in contact with the panel) and durable.

With the 10” control panel, all adjustments can be set with ease. The panel provides quick access and thorough monitoring of all functions including stop/start, program editing, parameters adjustments, alarm visualization and diagnostics.

Optional Features Include:

  • Glue Scraper with pneumatic activation
  • Buffing unit
  • Due-melt pack
  • New cylinder for interval improvement
  • Non-stick agent spray
  • Antistatic agent spray
  • Cleaning agent spray
  • Preheating at the entrance (infrared lamp)
  • DIA tools H65mm on pre-milling unit instead of H30mm
  • Pneumatic tilting of V-7
  • Overcurrent protection
  • Automatic lubrication of the chain
  • LED cabin lights

The advanced Cehisa Model PRO 12 Industry Line Edgebander is a heavy-duty, industrial edgebander capable of high capacity, highly effective edging performance. An excellent choice for demanding craftsmen and professional workshops.

Composed of machine precision steel, the Pro 12 offers a great degree of rigidity which eliminates any disruptive vibrations. The rigidity of the solid steel frame makes great anchorage for the workgroups, some of which are mounted on the upper pressure beam.

Coated with high adhesion polymer, the transport chain is made with industrial patine making it both smooth (when in contact with the panel) and durable.

With the 10” control panel, all adjustments can be set with ease. The panel provides quick access and thorough monitoring of all functions including stop/start, program editing, parameters adjustments, alarm visualization and diagnostics.

Optional Features Include:

  • Glue Scraper with pneumatic activation
  • Buffing unit
  • Due-melt pack
  • New cylinder for interval improvement
  • Non-stick agent spray
  • Antistatic agent spray
  • Cleaning agent spray
  • Preheating at the entrance (infrared lamp)
  • DIA tools H65mm on pre-milling unit instead of H30mm
  • Pneumatic tilting of V-7
  • Overcurrent protection
  • Automatic lubrication of the chain
  • LED cabin lights

Specifications

Automatic Edgebander PRO 12 Series
TECHNICAL DATA

Edgebander material
Melamine, PVC, Poliéster, Wood, Formica

Working speed

14 mts/min (9 mts/min with CR unit)

Thickness of edgebanding
0,4 – 3 mm

Thickness solid wood strips

Up to 8 mm (manual feed)/(op. auto. feed)

Thickness of the panel
10 – 60 mm

Min. Length of the panel
120 mm

Min. Width of the panel
75 mm

Dimensions
4967 * 680 * 1475 mm

Electrical connection
3 x 220V / 60 Hz

Net weight
1496 Kg.

Specifications

Automatic Edgebander PRO 12 Series
TECHNICAL DATA

Edgebander material
Melamine, PVC, Poliéster, Wood, Formica

Working speed

14 mts/min (9 mts/min with CR unit)

Thickness of edgebanding
0,4 – 3 mm

Thickness solid wood strips

Up to 8 mm (manual feed)/(op. auto. feed)

Thickness of the panel
10 – 60 mm

Min. Length of the panel
120 mm

Min. Width of the panel
75 mm

Dimensions
4967 * 680 * 1475 mm

Electrical connection
3 x 220V / 60 Hz

Net weight
1496 Kg.
