SCM Profiset 60EP Programmable Automatic Throughfeed Planer Moulder

POA

With all the cutting-edge features of the SCM Profiset 60EP Programmable Automatic Throughfeed Planer Moulder, this machine adds a programmable feature that allows for even more efficiency, safety, ergonomics and stability. A perfect choice for workshops that require efficient, high-quality planing but without the means to buy or accommodate a larger planer moulder that offers full functions.

Cost-effective, safe and efficient, the Profiset 60 makes for the effortless, yet high-quality planing of both small and large quantities of timber – thanks to the quick setting and adjusting action of the heads which makes the changeover from one size to another simple and effortless.

The machine comes complete with the standard resharpenable knife blocks and has the option of both light and heavy planing TERSA disposable knife cutter heads.

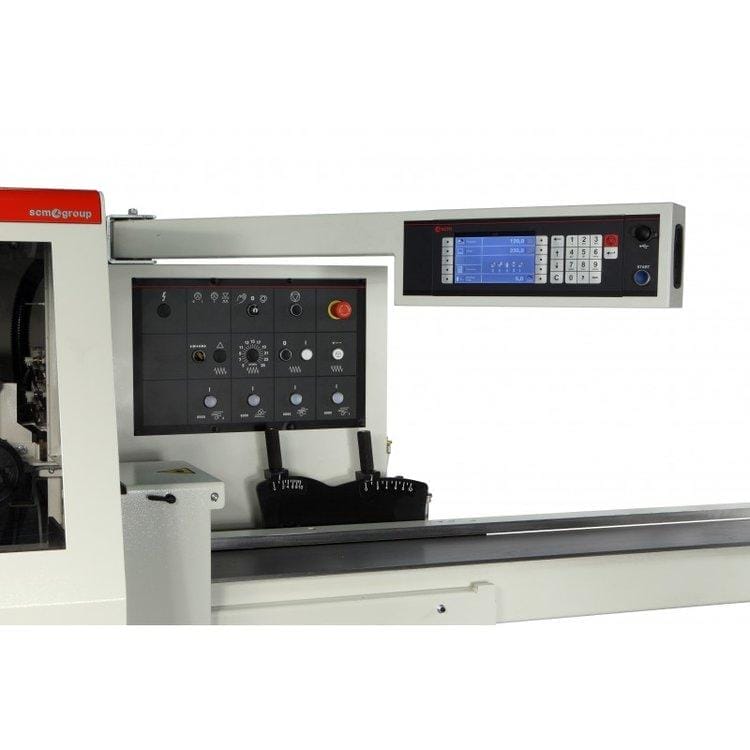

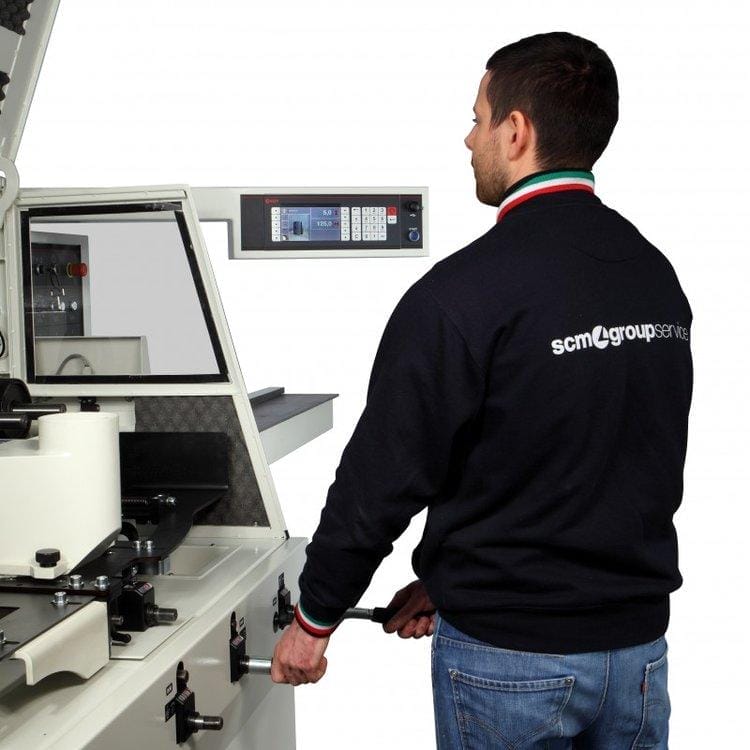

Ease-of-use and a great degree of control are within arms reach of the operator thanks to the ergonomically located control panels. This focus on ergonomics allows for a more efficient operating process and makes for smooth, stable movement of the workpiece.

The addition of electronic controls makes for the automatic positioning of the left vertical spindle and top horizontal spindle. Feed speed can also be programmed and adjusted with the controls which allow for more effective management of the feed speeds.

The gearbox feed drive system alongside the Cardan joints combines with the pneumatic pressure on the feed rollers. This guarantees excellent quality in performance and ensures a stable, powerful feeding process.

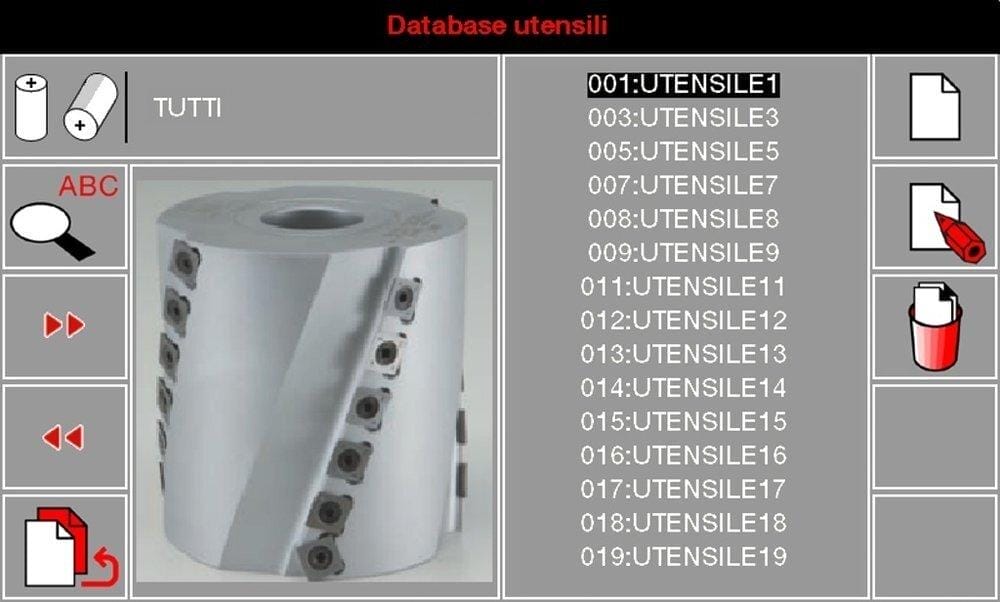

All perimeters and production settings can be easily adjusted with the user-friendly 7” LCD. This feature allows for a far greater degree of simplicity during operation and provides a significant boost to your productivity and efficiency.

Available on back-order

In Stock

Expected 20/05/2024

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

  • Capacity 230 x 120mm
  • Increased Motor Powers. Bot 7.5hp, R/L Vert 15hp shared, Top 10hp
  • Kit for minimum working width 15mm
  • Infeed pre-straightening table 2m
  • Tersa cutter blocks
  • “SET UP” Quick adjustment system
  • Variable feed speed 5-25 m/min
  • Pneumatic pressures
  • Easy Plus Electronic Controller 7″ LCD Display
  • CE Conformity
  • Quality construction
