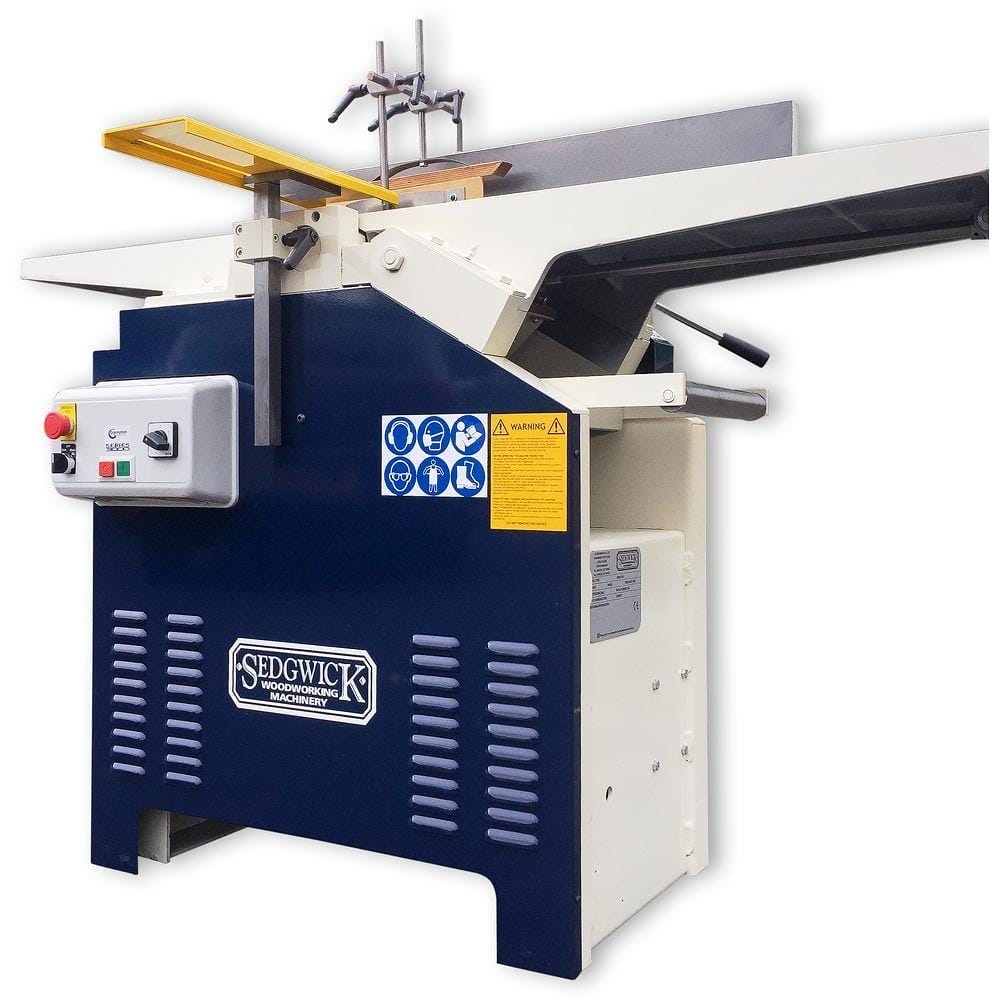

Sedgwick MB Planer Thicknesser 308mm

Original price was: £6,100.00.Current price is: £5,185.00.

With excellent, age-tested Sedgwick quality, the Sedgwick MB Planer Thicknesser 308mm is solid and highly durable, granting you many years of service with minimal maintenance. Great for smaller workshops – this cast iron planer thicknesser brings rear fixed tables into a compact, neatly designed structure.

The  TERSA cutter block makes for an exceptional finish and runs on sealed-for-life bearings. The cutterblock is driven by an industrial motor and heavy section vee belt which, combined with the centrifugal force of the large diameter block, provides vast power.

A dual-function chip collection hood is utilized which allows for the surfacing tables to remain in place whilst thicknessing – making for total avoidance of time-consuming changeovers. Additionally, the rear machine guard totally encloses the drive assembly but can be easily removed for any maintenance requirements.


  • Cutterblock diameter: 102mm
  • Length of worktable: 1500mm

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.


Technical Specifications

Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Dust Outlet Size


Machines Features



New Sedgwick MB Planer Thicknesser 308mm
CE Conformity
Tersa Cutterblock
Phase 3ph
Available also In Single Phase option
Maximum Working Width 308mm
Total Length Of Worktables 1500mm
Cutterblock Diameter 102mm
Tersa Knives , spiral cutterblock option
Aluminium Fence Measurements 750 x 120mm
Minimum/Maximum Working Thickness Maximum- 230mm
Feed Speed 4.5 & 7m/min ( 1 ph= 6m/min)
Table Movement Method Manual

  • size: 750 x 120 mm
  • Cutter block motor: 3 PHASE 3.0 kW (1 PHASE) 2.2 kW
  • Separate feed motor: 375 kW
  • Net Weight: 390 kg
  • Extraction outlet dia: 125 mm
  • Dimensions L x W x H: 1700 x 950 x 1265 mm
