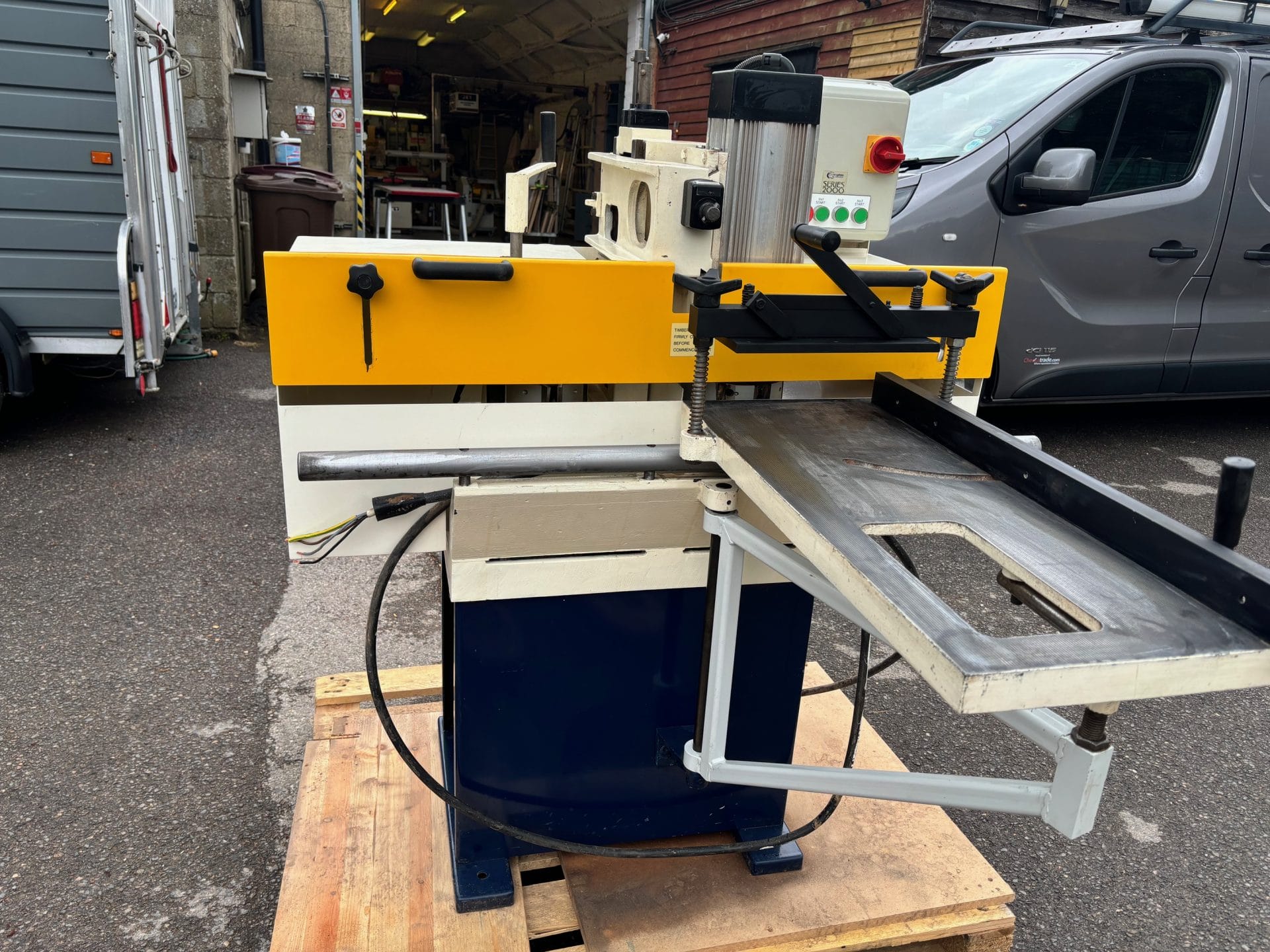

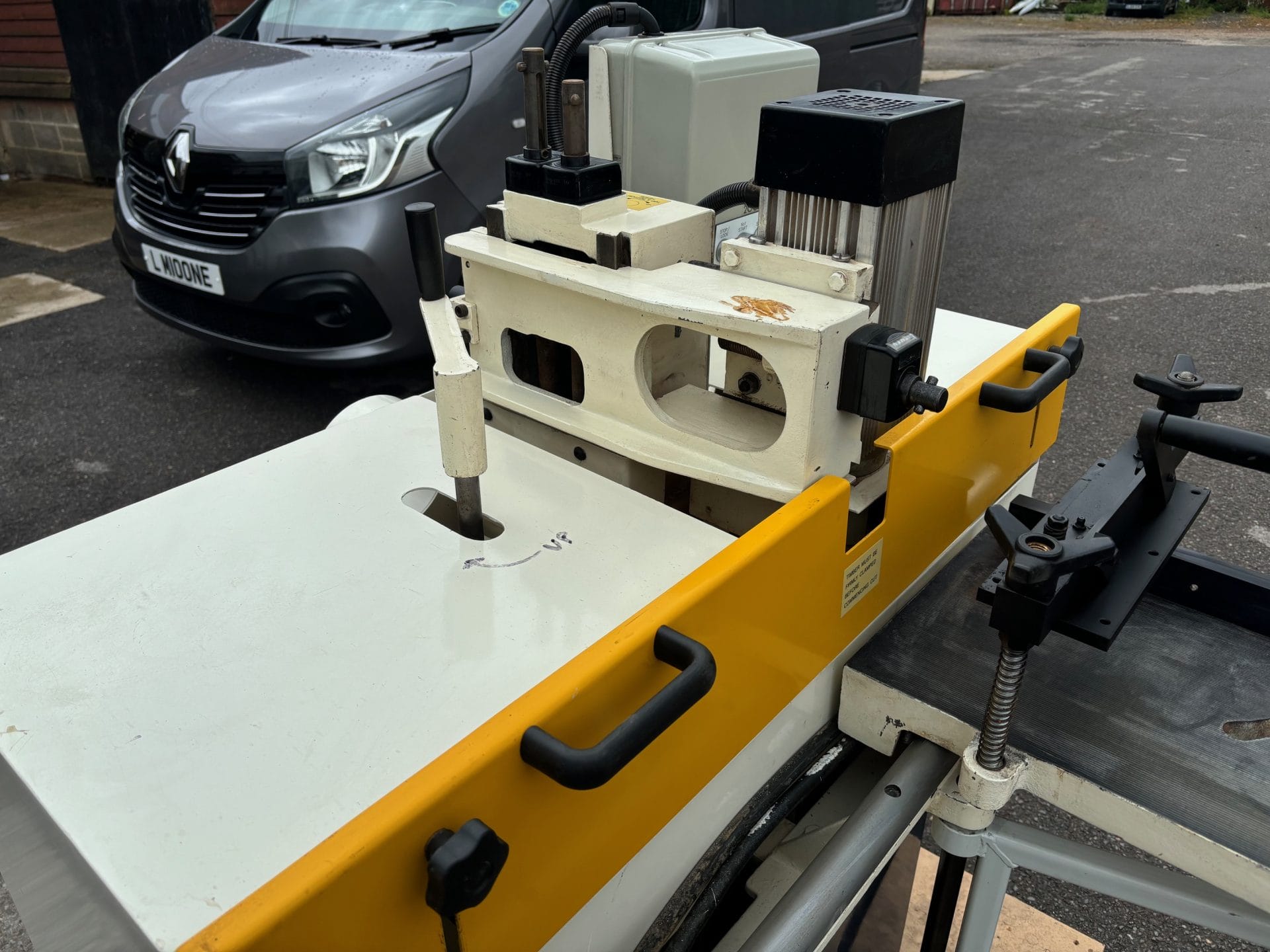

USED Sedgwick Model Tesh 3 Headed Tenoner. Choice of 2 available
£3,500.00
The Sedgwick TESH is a traditional three-head single end tenoner designed for accurate and repeatable joinery work. Built with a solid cast iron frame and simple mechanical setup, it provides reliable performance for producing tenons on doors, windows and frame components.
Product Features
- Three-head tenoner with two main heads and optional scribing unit
- Sliding table with fence and clamp for accurate work positioning
- Manual adjustment of tenon width, position and shoulder length
- Capable of producing scribed, stepped, angled and double tenons
- Heavy-duty cast iron construction for durability
- Smooth sliding table mounted on hardened steel rollers
- Simple setup for fast changeovers between jobs
- Adjustable cutterheads on dovetail slides for easy maintenance
- Built-in safety features including braking and emergency stop
- Designed for continuous workshop and production use
Description
The Sedgwick TESH is a heavy-duty three-head single end tenoner built for consistent and accurate joint production in joinery and furniture workshops. Designed and manufactured in the UK, it focuses on simplicity, durability and ease of use, making it a long-standing choice for both small workshops and larger production environments.
The machine operates using a sliding table system, where the workpiece is positioned against a fence and secured with a clamp before being passed through the cutterheads. Two main cutterheads machine the top and bottom cheeks of the tenon, while a third head, typically a scribing unit, improves accuracy and finish. Adjustments to tenon width, position and shoulder length are made through straightforward mechanical controls, allowing operators to quickly set up and repeat jobs with consistency.
Its versatile setup allows for a wide range of joint types, including standard, scribed, stepped and angled tenons, making it suitable for doors, windows and frame construction. The cast iron construction and sliding table mounted on hardened rollers provide the rigidity and smooth movement needed for accurate machining over long periods of use.
Overall, the TESH is a straightforward, dependable tenoner that prioritises reliability and precision without relying on complex automation.
