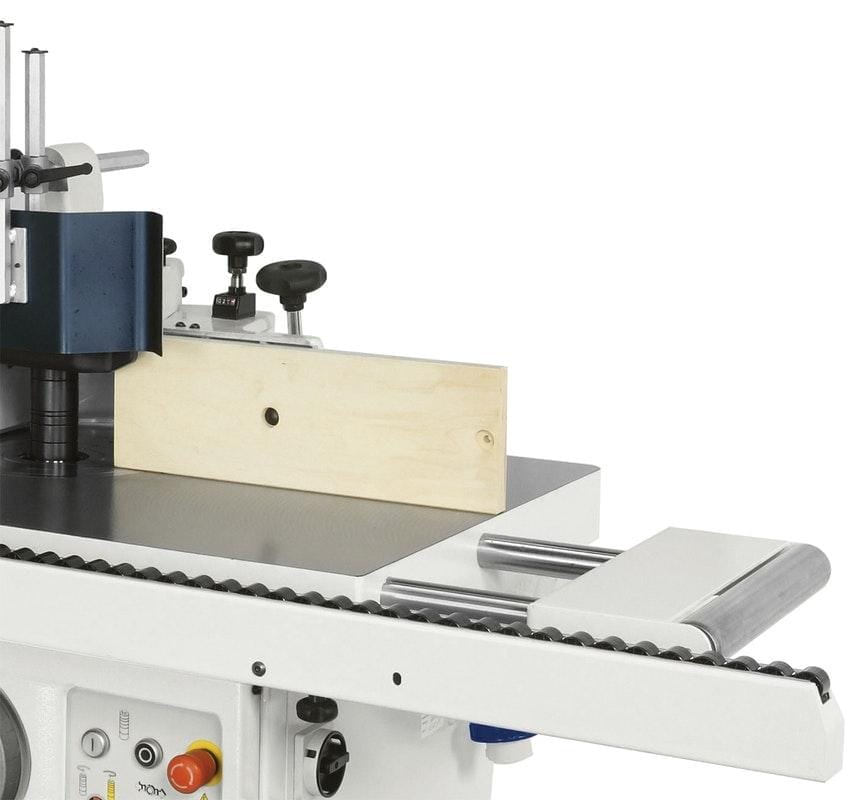

  • Sliding table on the Minimax T55 W Elite S Spindle Moulder with Sliding Table
  • Front shot of the Minimax T55 W Elite S Spindle Moulder with Sliding Table

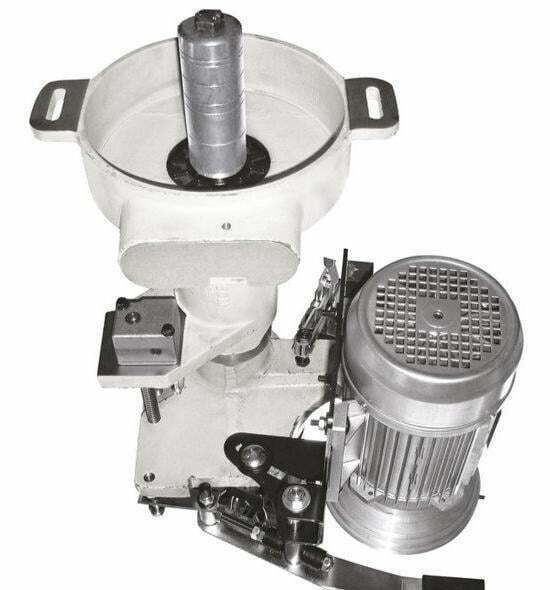

  • Component of the Minimax T55 W Elite S Spindle Moulder with Sliding Table

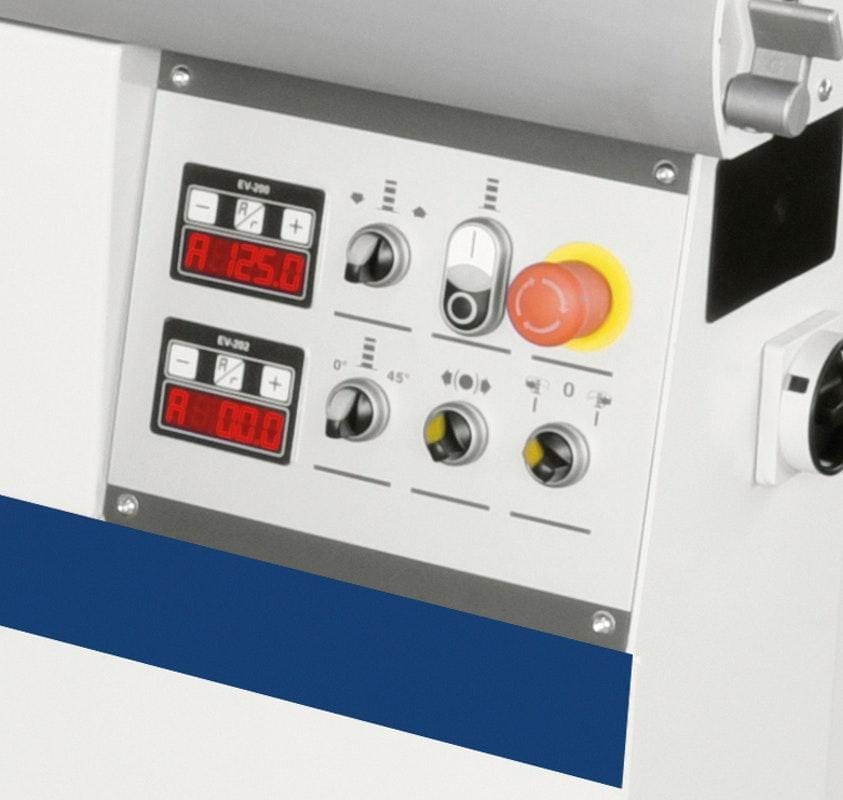

  • Control panel on the Minimax T55 W Elite S Spindle Moulder with Sliding Table
  • Component of the Minimax T55 W Elite S Spindle Moulder with Sliding Table

Minimax T55 W Elite S Spindle Moulder with Sliding Table

The Minimax T55 W Elite S Spindle Moulder with Sliding Table is a heavy-duty spindle moulder that comes complete with 4 spindle speeds and a brake motor. It also includes an LED spindle speed readout, reverse switch, adjustable spindle moulder fence with micro-adjustment and a ring-fence assembly. Its compact size makes it an excellent fit for smaller and medium-sized workshops and thanks to the large spindle moulder column made entirely of solid cast iron), this machine will last for years whilst requiring minimal maintenance.

The T55 ES comes standard with both a sliding table and tilt. The sliding table has hardened steel guideways and precision bearings – meaning it utilizes the same technology found in best selling table saws.

Category

£4,350.00

+VAT

Out of stock

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The Minimax T55 W Elite S Spindle Moulder with Sliding Table is a heavy-duty spindle moulder that comes complete with 4 spindle speeds and a brake motor. It also includes an LED spindle speed readout, reverse switch, adjustable spindle moulder fence with micro-adjustment and a ring-fence assembly. Its compact size makes it an excellent fit for smaller and medium-sized workshops and thanks to the large spindle moulder column made entirely of solid cast iron), this machine will last for years whilst requiring minimal maintenance.

The T55 ES comes standard with both a sliding table and tilt. The sliding table has hardened steel guideways and precision bearings – meaning it utilizes the same technology found in best selling table saws.

The Minimax T55 W Elite S Spindle Moulder with Sliding Table is a heavy-duty spindle moulder that comes complete with 4 spindle speeds and a brake motor. It also includes an LED spindle speed readout, reverse switch, adjustable spindle moulder fence with micro-adjustment and a ring-fence assembly. Its compact size makes it an excellent fit for smaller and medium-sized workshops and thanks to the large spindle moulder column made entirely of solid cast iron), this machine will last for years whilst requiring minimal maintenance.

The T55 ES comes standard with both a sliding table and tilt. The sliding table has hardened steel guideways and precision bearings – meaning it utilizes the same technology found in best selling table saws.

Specifications

  • Reverse Rotation
  • Device for angular cutting with 2 flip over stops
  • Speed readout via LEDs
  • 4kw (5.5hp) Motor
Max. Useful Spindle Length [mm] 125*
Spindle Moulder Speeds (at 50 Hz) [rpm] 3500/6000/8000/10.000
max. Tool Diameter When Profiling [mm] 210
max. Diam. 0f Tool Lowered Under the Table at 90° [mm] 240
Three-phase Motor 5kw (6,6hp)
Exhaust Outlets Diameter [mm] 120

Spindle Moulder With Sliding Table and Fixed or Tilting Spindle
Self-Braking Motor
Spindle Moulder Special Fence for Shaping Operations
Spindle Moulder Unit Adjustment Hand Wheels Ergonomically Positioned on the front of the Machine
Anodized Aluminium Alloy Carriage
Spindle Moulder Reverse Rotation
Spindle Moulder Speed Readout by LEDs
Adjustable Spindle Moulder Fence with Micrometric Adjustment
Device for Angular Cutting With 2 Flip-Over Stops

Specifications

  • Reverse Rotation
  • Device for angular cutting with 2 flip over stops
  • Speed readout via LEDs
  • 4kw (5.5hp) Motor
Max. Useful Spindle Length [mm] 125*
Spindle Moulder Speeds (at 50 Hz) [rpm] 3500/6000/8000/10.000
max. Tool Diameter When Profiling [mm] 210
max. Diam. 0f Tool Lowered Under the Table at 90° [mm] 240
Three-phase Motor 5kw (6,6hp)
Exhaust Outlets Diameter [mm] 120

Spindle Moulder With Sliding Table and Fixed or Tilting Spindle
Self-Braking Motor
Spindle Moulder Special Fence for Shaping Operations
Spindle Moulder Unit Adjustment Hand Wheels Ergonomically Positioned on the front of the Machine
Anodized Aluminium Alloy Carriage
Spindle Moulder Reverse Rotation
Spindle Moulder Speed Readout by LEDs
Adjustable Spindle Moulder Fence with Micrometric Adjustment
Device for Angular Cutting With 2 Flip-Over Stops
