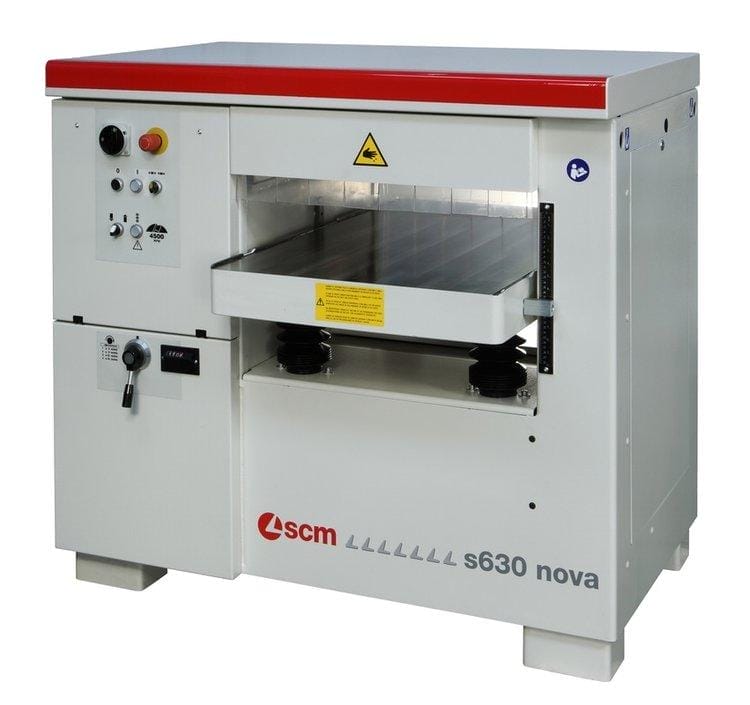

SCM Model S630 Nova Thickness Planer

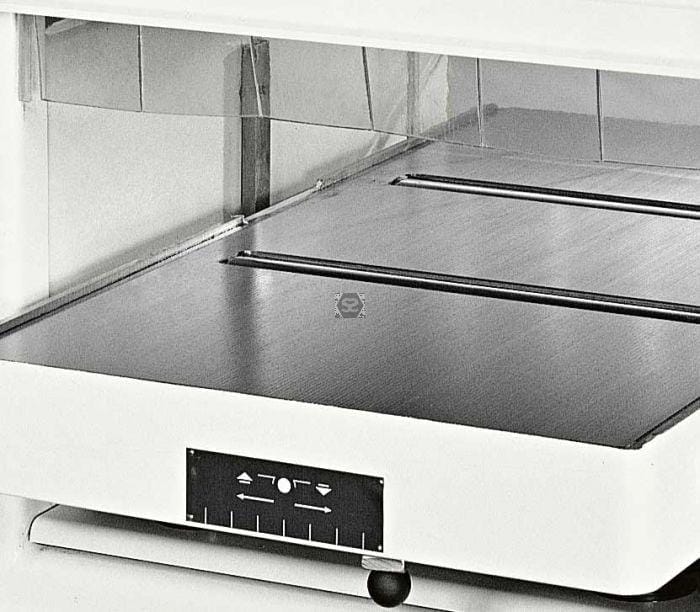

Thanks to heavily-ribbed, cast iron table and interchangeable feed rollers, the SCM Model S630 Nova Thickness Planer brings with it high degrees of flexibility, precision and solid rigidity.

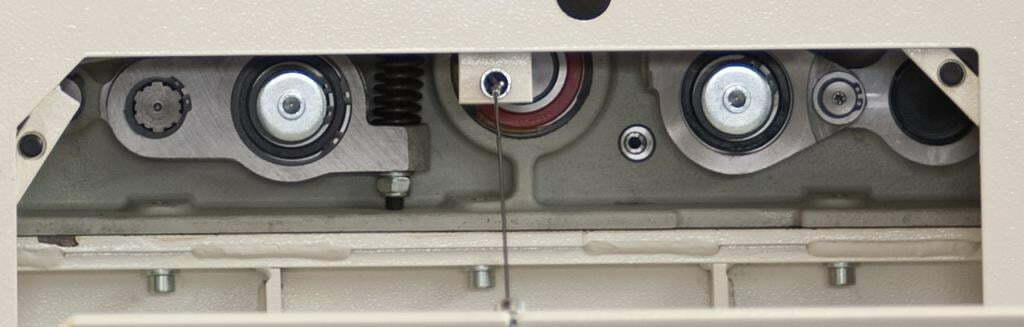

With a digital readout feature and powered rise and fall system, the table can be easily adjusted and set to meet the operator’s requirements. The 4 feed speeds of the S630 Nova make for versatile, accurate processing and a top-quality finish. The addition of interchangeable rollers with quick and easy changeover procedures allow for the operator to have a greater degree of control and more flexibility with the machine.
The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of the features creates greater stability for the table and eliminates the need for a lock-in-position feature.
£9,945.00
+VAT
Out of stock
Call 0845 274 3600
for more information
Part Exchange
If you are looking to swap out our older machine for a brand new model? Fill in this short form.
Thanks to heavily-ribbed, cast iron table and interchangeable feed rollers, the SCM Model S630 Nova Thickness Planer brings with it high degrees of flexibility, precision and solid rigidity.
With a digital readout feature and powered rise and fall system, the table can be easily adjusted and set to meet the operator’s requirements. The 4 feed speeds of the S630 Nova make for versatile, accurate processing and a top-quality finish. The addition of interchangeable rollers with quick and easy changeover procedures allow for the operator to have a greater degree of control and more flexibility with the machine.
The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of the features creates greater stability for the table and eliminates the need for a lock-in-position feature.
Thanks to heavily-ribbed, cast iron table and interchangeable feed rollers, the SCM Model S630 Nova Thickness Planer brings with it high degrees of flexibility, precision and solid rigidity.
With a digital readout feature and powered rise and fall system, the table can be easily adjusted and set to meet the operator’s requirements. The 4 feed speeds of the S630 Nova make for versatile, accurate processing and a top-quality finish. The addition of interchangeable rollers with quick and easy changeover procedures allow for the operator to have a greater degree of control and more flexibility with the machine.
The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of the features creates greater stability for the table and eliminates the need for a lock-in-position feature.
Specifications
Capacity 630 x 300 mm

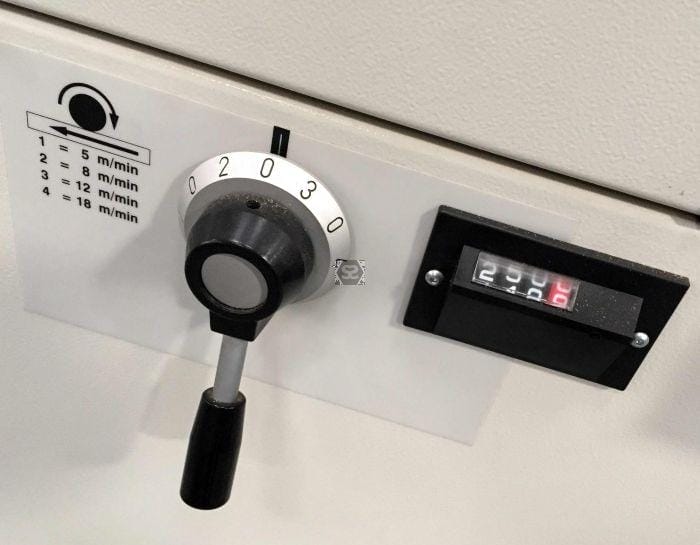

4 Feed speeds
4 Knife cutter block HSS Knives
7kw Main motor
Powered rise/fall with digital display
Interchangeable feed rollers
Included options
Tersa cutterblock
2 idle rollers in work table
Sectional steel infeed roller
Increased power 9k with auto star-delta
- Max working width 630mm
- Worktable dimensions 640 x 1000mm
- Working height (min / max) 3.0 / 300mm
- Cutterblock diameter 120mm
- Cutterblock speed 4500rpm
- No of knives 4
- Dimensions of standard knives 630 x 35 x 3mm
- Feed speeds 5- 8- 12 – 18 m/min
- Main motor power 7kW 9.5hp
- Maximum stock removal 8mm
- Minimum working length 260mm
- Minimum working width 10mm
- Dust exhaust diameter 150mm
- Prices reflect a basic machine, please call or email for a quotation for the various options offered
| Cutterhead working width | mm / inches | 520 / inches |
| With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives |
mm/n° mm |
120/4 520 x 30 x 3 |
| With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / n° of knives Dimension of standard knives |
mm/n° mm |
120/84 15 x 15 x 2.5 |
| Min. ÷ max. working height on thicknesser | mm / inches | 3.5 – 300 |
| Feed speed on thicknesser | m/min | 5/8/12/18 |
| Three-phase motor | Hp | 11 |
| Max. stock removal | mm | 8 |
- Worktable dimension mm 640×1000
- Working width mm 630
- Max. (min.) working height mm 300 (3,5)
- Min. working length mm 260
- Max. stock removal mm 8
- Cutterblock diameter (No. of knives) mm 120 (4)
- Cutterblock speed r.p.m. 4500
- Feed speed m/min 5-8-12-18
- Motor power KW (HP) 7 (9.5)
- Extraction outlet diameter mm 150
- Extraction flow rate m3/h 1300
- Machine net weight Kg 820
Specifications
Capacity 630 x 300 mm
4 Feed speeds
4 Knife cutter block HSS Knives
7kw Main motor
Powered rise/fall with digital display
Interchangeable feed rollers
Included options
Tersa cutterblock
2 idle rollers in work table
Sectional steel infeed roller
Increased power 9k with auto star-delta
- Max working width 630mm
- Worktable dimensions 640 x 1000mm
- Working height (min / max) 3.0 / 300mm
- Cutterblock diameter 120mm
- Cutterblock speed 4500rpm
- No of knives 4
- Dimensions of standard knives 630 x 35 x 3mm
- Feed speeds 5- 8- 12 – 18 m/min
- Main motor power 7kW 9.5hp
- Maximum stock removal 8mm
- Minimum working length 260mm
- Minimum working width 10mm
- Dust exhaust diameter 150mm
- Prices reflect a basic machine, please call or email for a quotation for the various options offered
| Cutterhead working width | mm / inches | 520 / inches |
| With TERSA Straight-knife Cutterhead: Cutterblock diameter / n° of standard knives Dimensions of standard knives |
mm/n° mm |
120/4 520 x 30 x 3 |
| With XYLENT Spiral Helical Cutterhead: Cutterblock diameter / n° of knives Dimension of standard knives |
mm/n° mm |
120/84 15 x 15 x 2.5 |
| Min. ÷ max. working height on thicknesser | mm / inches | 3.5 – 300 |
| Feed speed on thicknesser | m/min | 5/8/12/18 |
| Three-phase motor | Hp | 11 |
| Max. stock removal | mm | 8 |
- Worktable dimension mm 640×1000
- Working width mm 630
- Max. (min.) working height mm 300 (3,5)
- Min. working length mm 260
- Max. stock removal mm 8
- Cutterblock diameter (No. of knives) mm 120 (4)
- Cutterblock speed r.p.m. 4500
- Feed speed m/min 5-8-12-18
- Motor power KW (HP) 7 (9.5)
- Extraction outlet diameter mm 150
- Extraction flow rate m3/h 1300
- Machine net weight Kg 820
