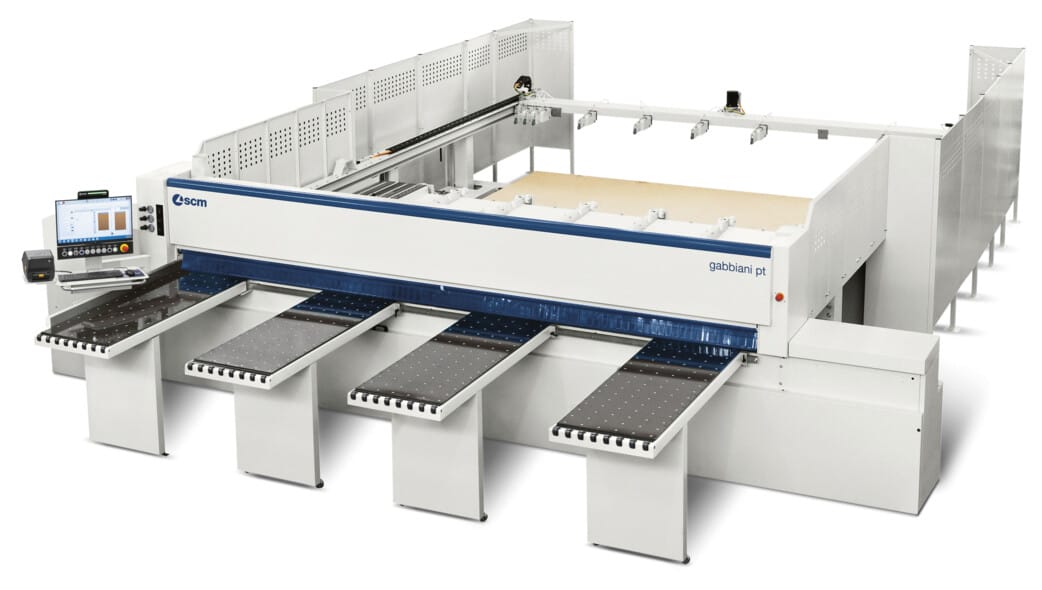

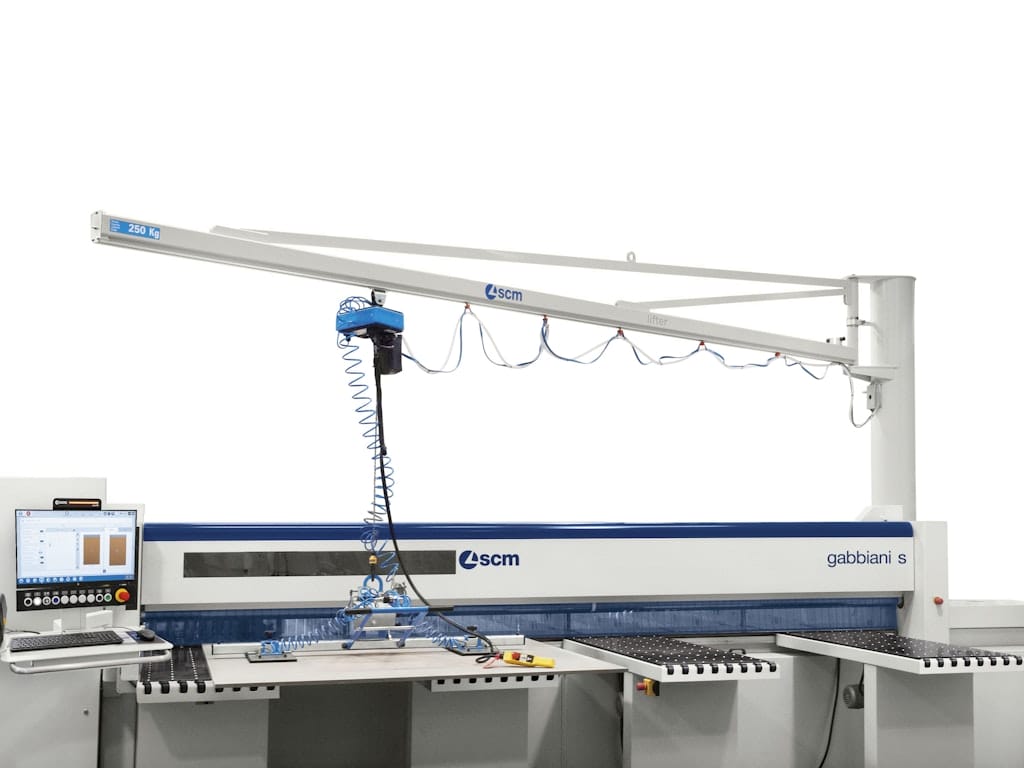

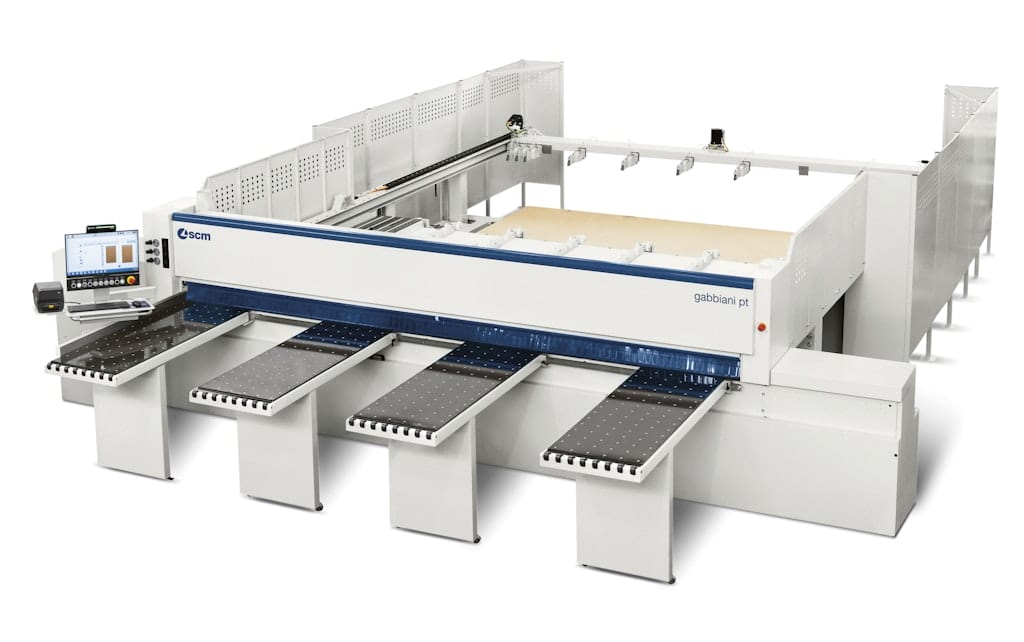

Gabbiani pt
POA
Product Features
Specifications
Technical data
| gabbiani pt 80 | ||
| Cutting length | mm | 3300/3800/4300 |
| Cutting depth on platform | mm | 1850/2200 |
| Max. height of panel stack on platform with support beams | mm | 600 |

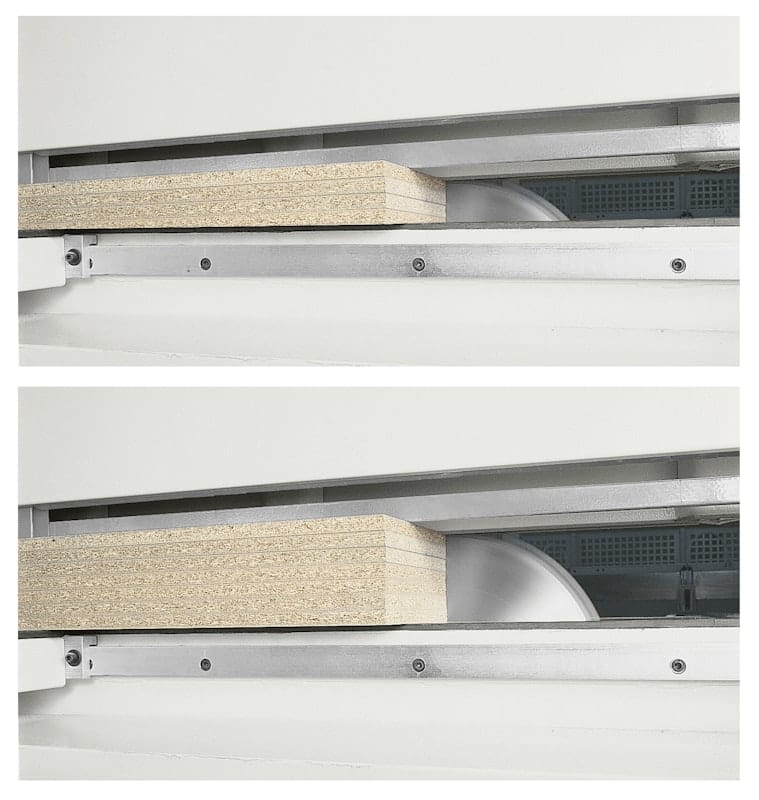

| Blade projection | mm | 80 |
| Saw carriage variable speed | m/min (opt.) | 0 – 120 |
| Pusher variable speed | m/min (opt.) | 0 – 70 |
| Main blade motor S6 – 40% | kW (opt.) | 7 (9) (11) |
| Scoring unit blade motor 50 Hz | kW | 1,5 |
| Main blade / scorer speed 50 Hz | rpm | 4650/5850 |

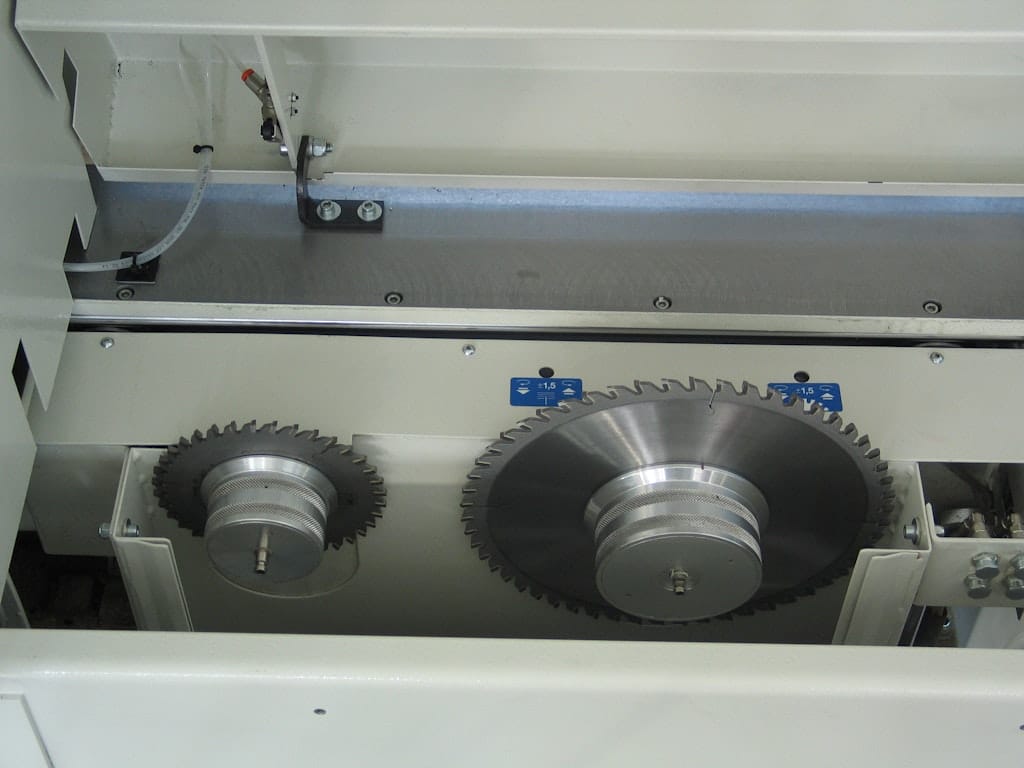

| Main blade / scorer blade diameter | mm | 340/200 |

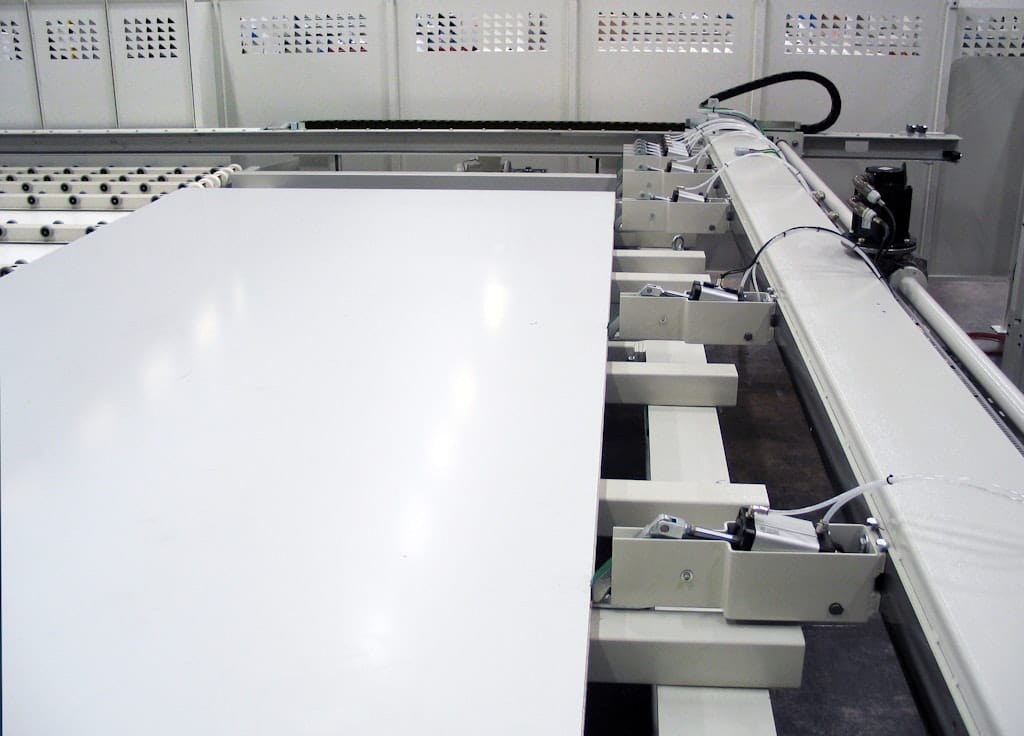

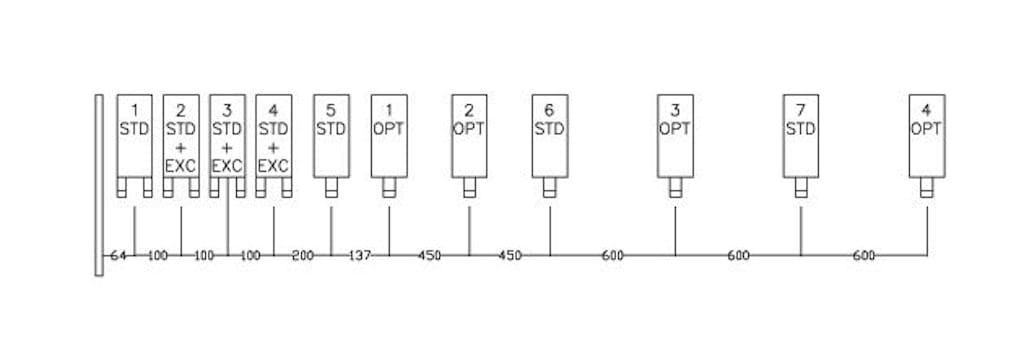

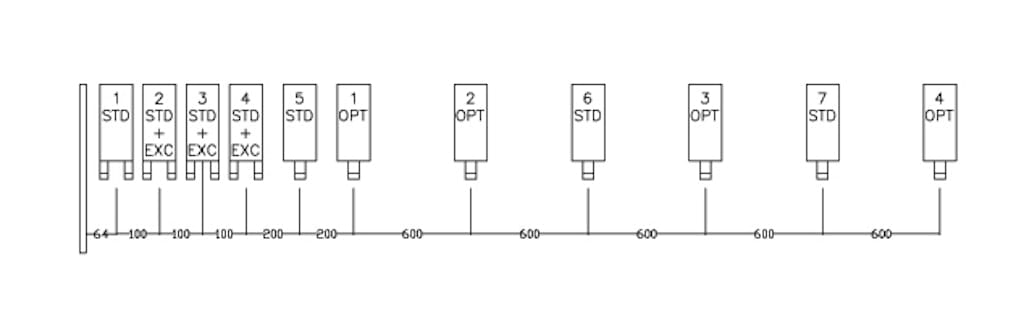

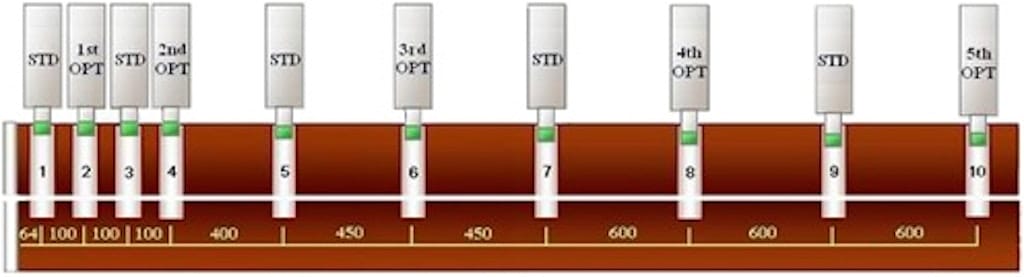

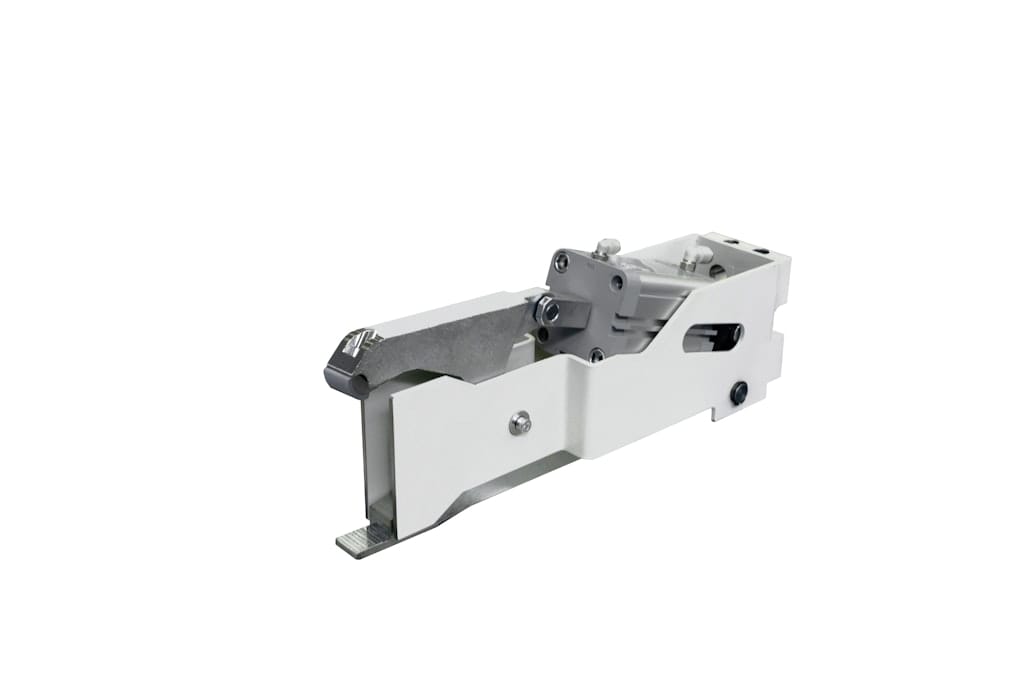

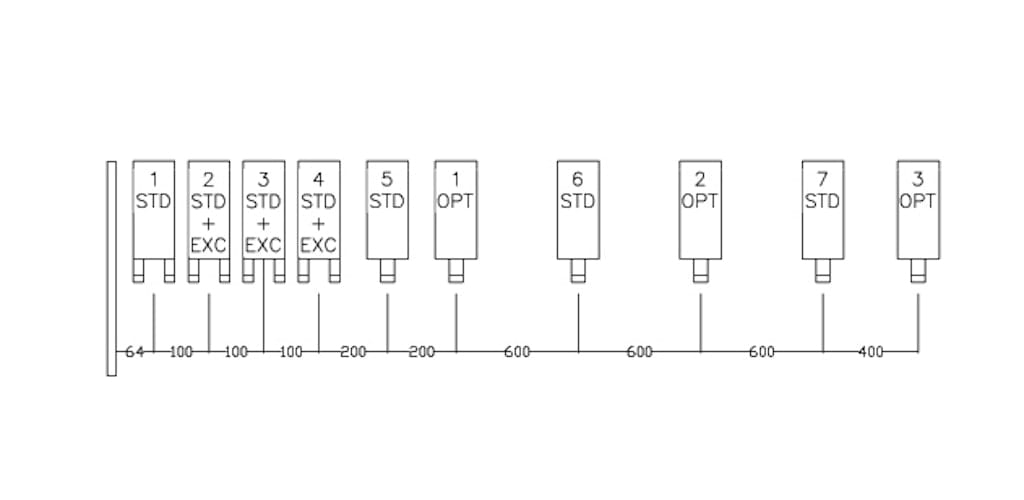

| Number of clamps | std | 5 |
