SCM Gabbiani GT2 Beam Saw
£0.00
SCM Gabbiani GT2 Beam Saw delivers high-speed, precise cutting for wood and panel materials in demanding environments. Advanced guides, electronic blade control, and Flexcut pushers ensure efficient, high-quality results. Sturdy loading platform and quick tool changes maximise productivity and ease of use.
Product Features
- High speed cutting up to 170 m/min
- Prismatic guides with recirculating spheres
- Smooth, low friction linear movement
- Precision saw carriage for high-quality finishes
- Electronically controlled blades
- Flexcut 1/D and 1/S system
- Dual pushers with independent strokes
- Simultaneous multi-bar processing
- Single or dual gripper configuration
- Sturdy loading platform with trapezoidal screws
- Parallel lifting of panel stacks
- High load capacity across materials and sizes
- Rapid tool change with saw-set system
- Electronic adjustment for accuracy
Description
The SCM Gabbiani GT2 Beam Saw guarantees an unbeatable price-to-performance ratio. This advanced beam saw is characterised by its speed, precision, flexibility and productivity, making it an excellent choice for woodworkers of all types. Durability is assured as the G2 is designed to sustain high performance in an industrial setting.
The addition of prismatic guides with recirculating spheres guarantees maximum linearity and minimum friction. Boosted productivity with high speeds that can be reached during the feeding stroke and return stroke (up to 170 m/min).
The saw carriage includes advanced technology capable of producing very high-quality finishes with great precision and high speeds. The blades are controlled electronically.
Flexcut 1/D and 1/S gives an efficiency advantage via the two pushers with independent strokes. Machining cycle times are drastically reduced thanks to the simultaneous processing of several bars with different cuts. 1/S is fitted with a single gripper giving two independent cutting axes at a low price. 1/D assures excellent flexibility via the mobile unit being fitted with two grippers. The second gripper can be excluded – guaranteeing a wide variability in the width of the strips that can be gripped.
The sturdy loading platform makes for excellent ease of use. It runs on 4 large trapezoidal screws and ensures parallel lifting of the stacks of panels – avoiding downtime and achieving maximum productivity. As well as this, it maximises the load capacity in any material and format.

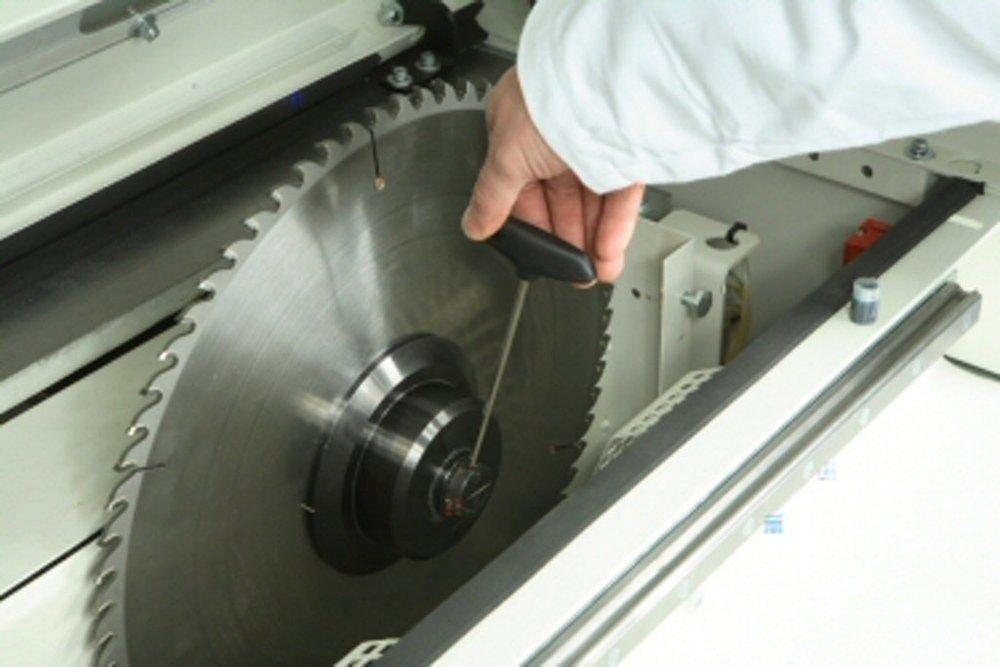

Additionally, tool changing has been greatly simplified and can be executed swiftly thanks to the “saw-set”. The electronic settings allow for fast and precise tool adjustments – boosting both ease of use and productivity.
Specifications
Cutting dimension mm3200/3800/4500
Blade projectionmm115128
Max. height of panel stack on lifting table mm600
Main blade motor powerkW (Hp)7,5 (11 – 15 – 18)-
Max. motor power 100 Hz with Inverter (option)kW (Hp)-15 (18)
Saw carriage variable speed (option)m/min0 – 150 (0 – 170)
Pusher variable speed m/min80
Kit for plastic materials cutting Available

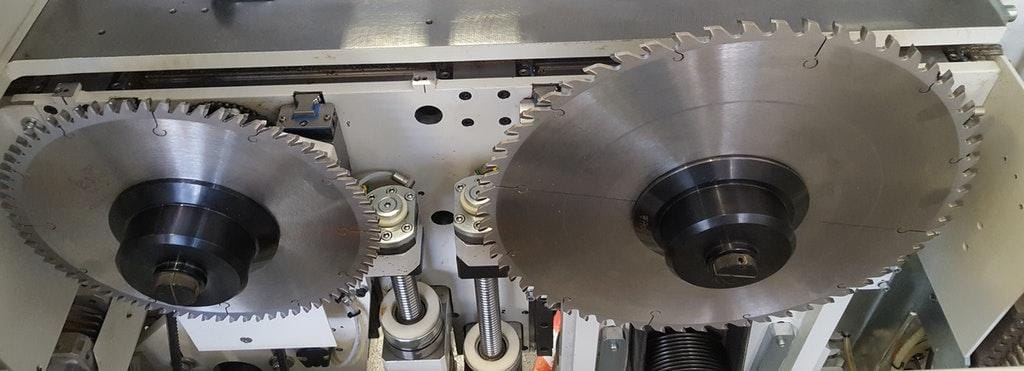

HI-TRONIC Vertical stroke device Available
FLEXCUT devices1/S1/S – 1/D
Number of clamps (3 of which with frontal side aligner) std6
