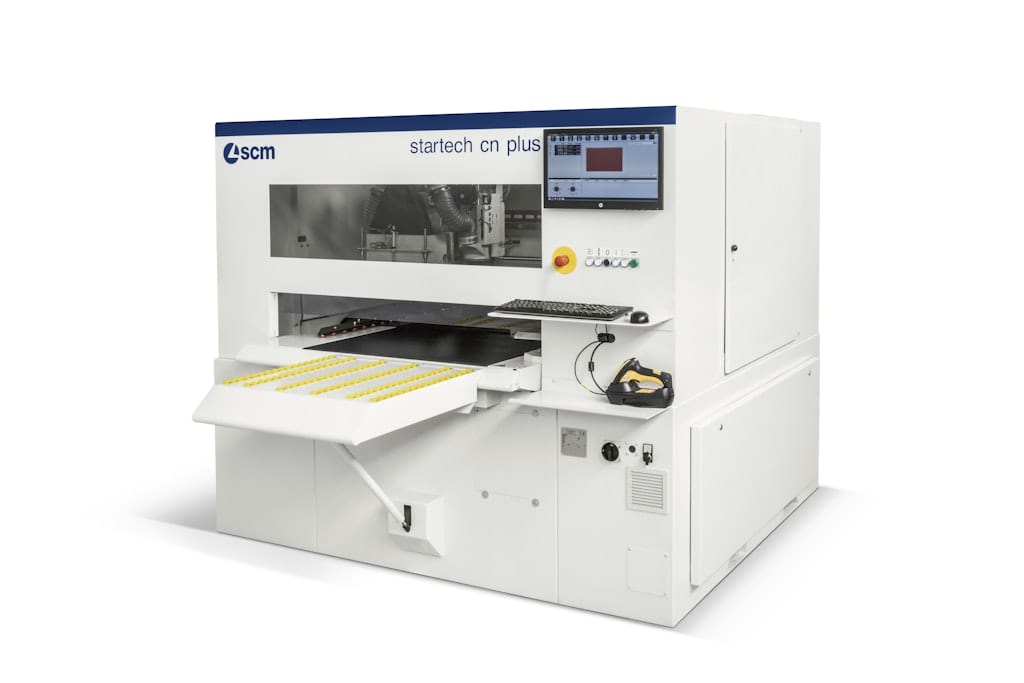

• SCM Startech CN Drilling Machine, SCM, Boring Machine

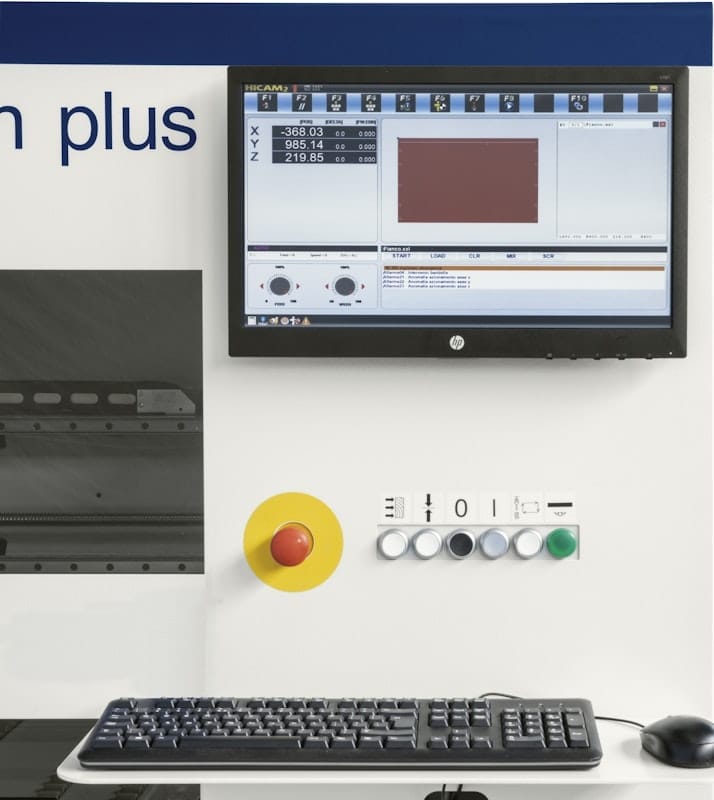

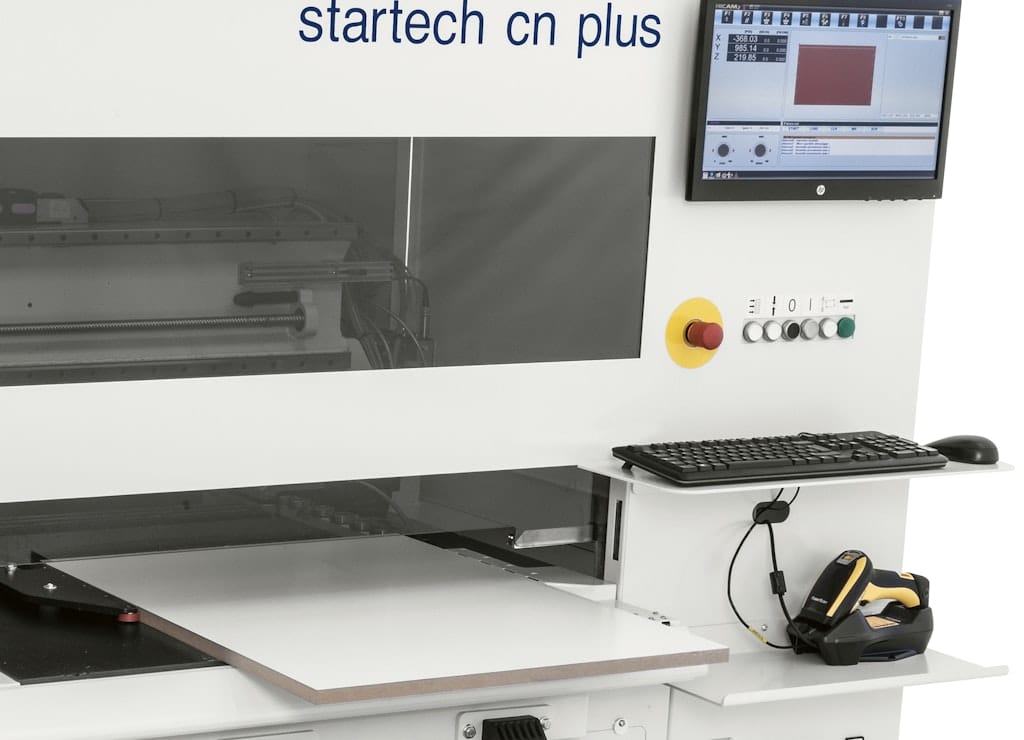

  • Touch screen controls for the SCM Startech CN Drilling Machine

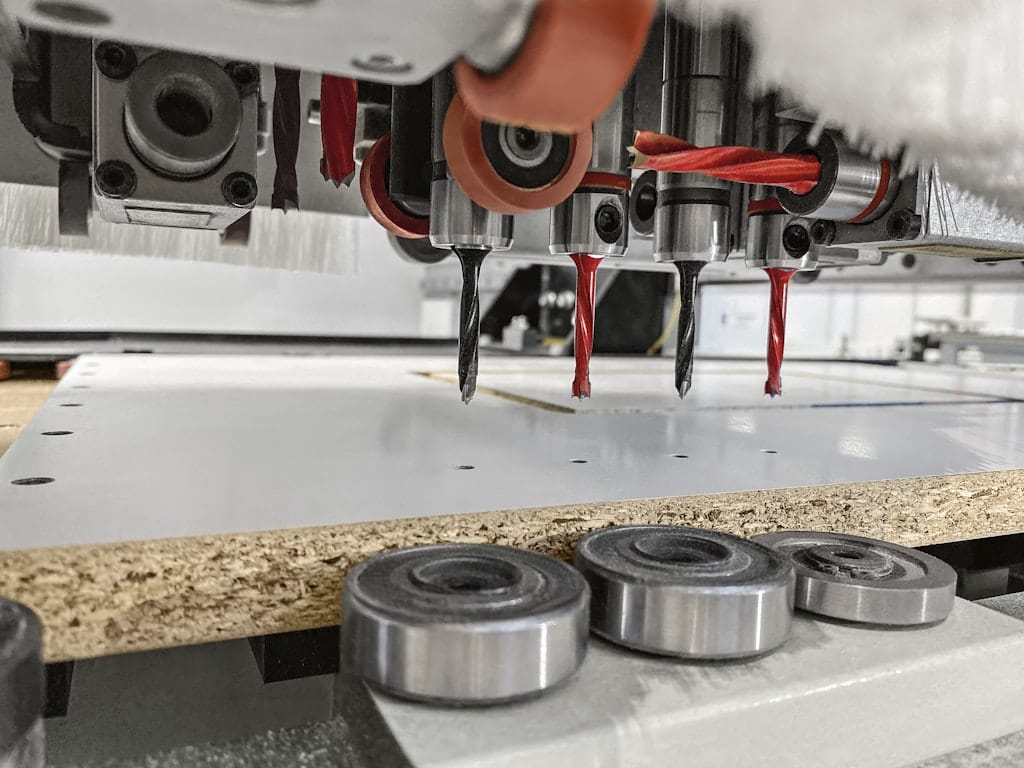

  • Final product machined via the SCM Startech CN Drilling Machine

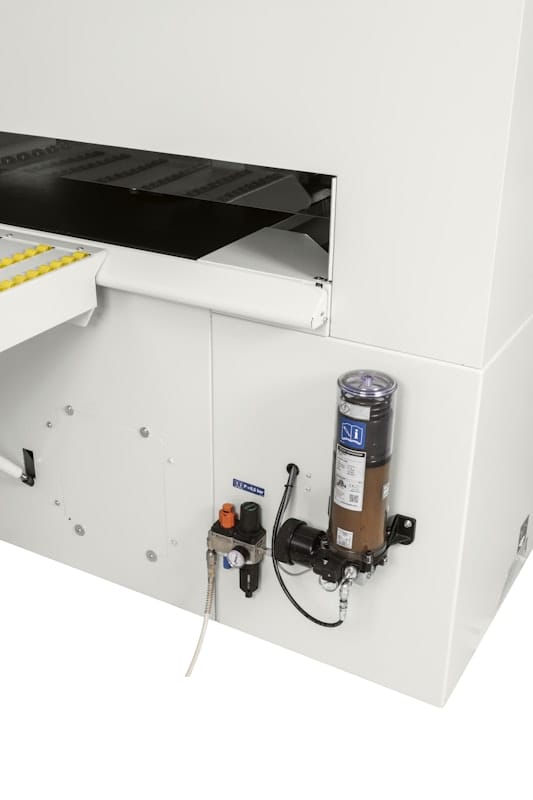

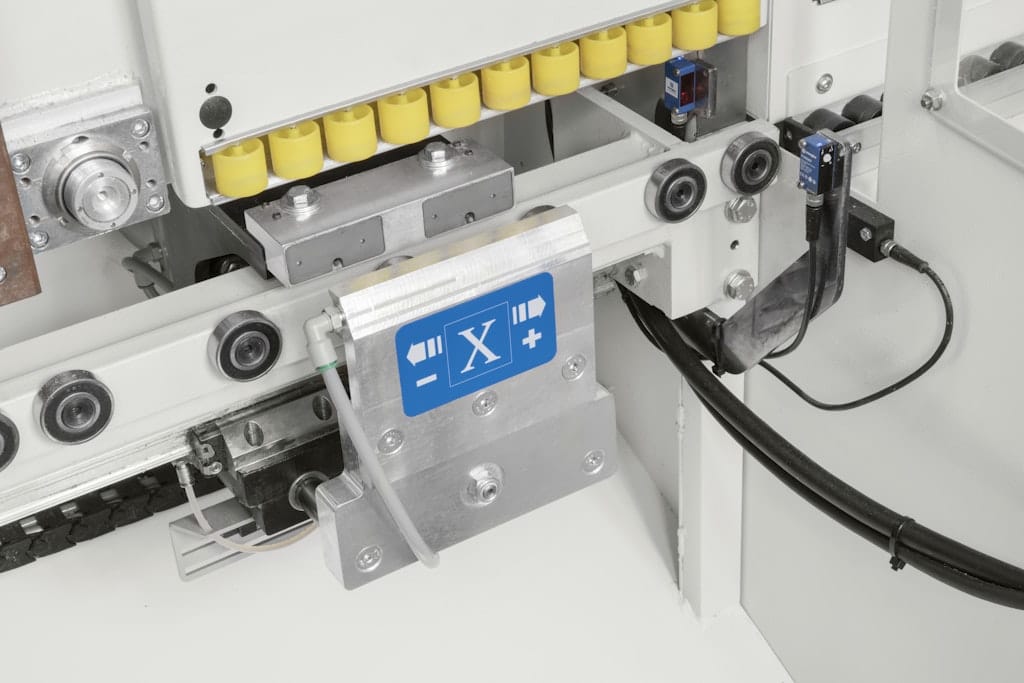

  • Component of the SCM Startech CN Drilling Machine

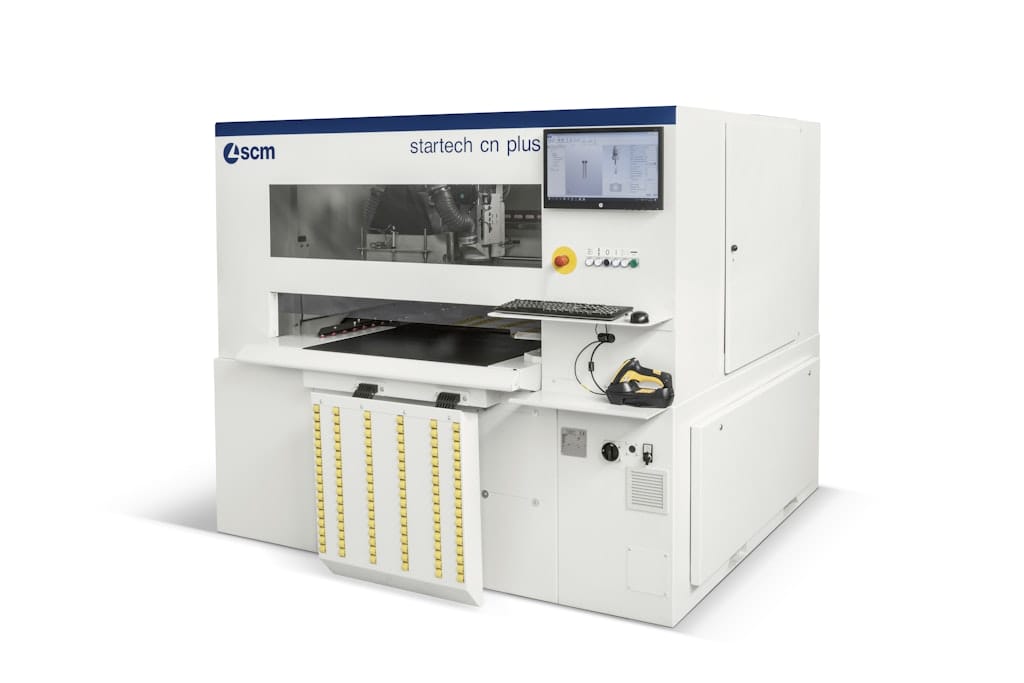

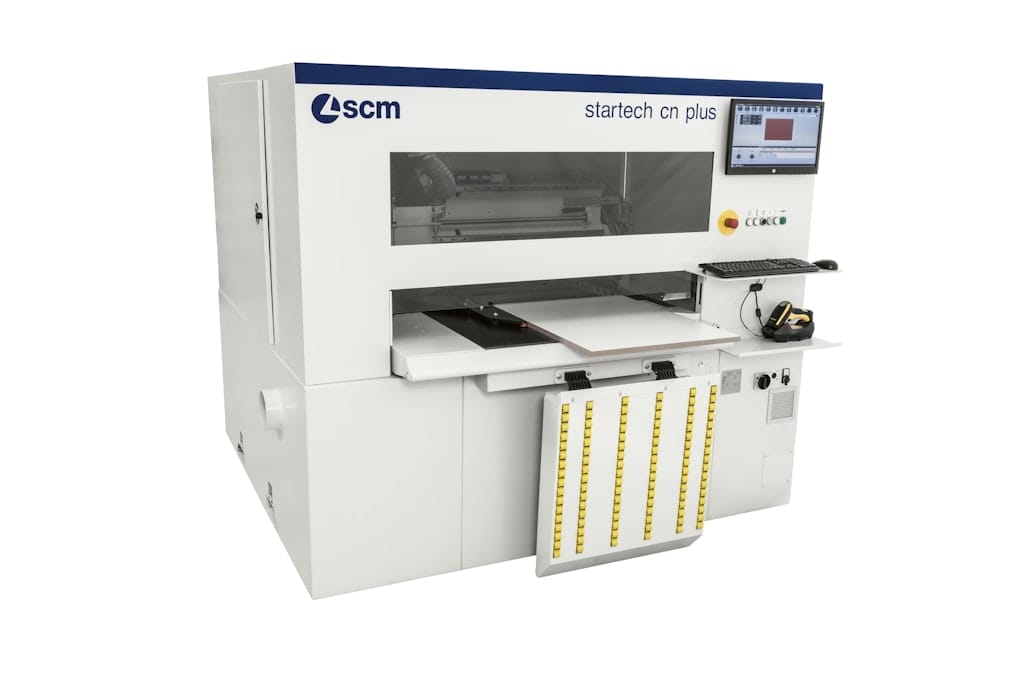

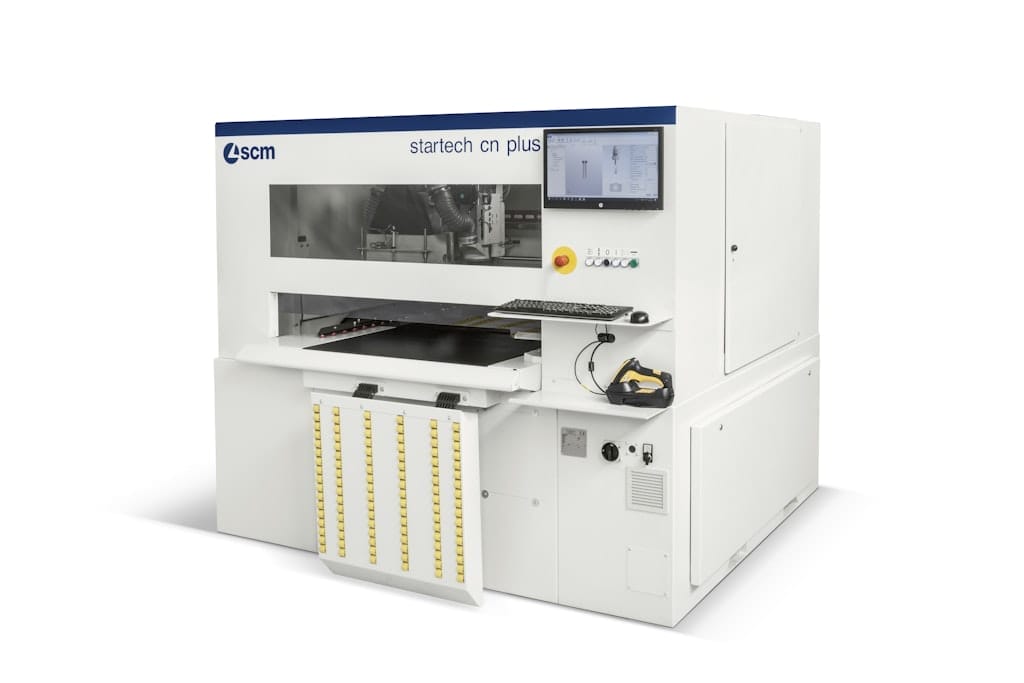

  • Front shot of the SCM Startech CN Drilling Machine
  • Front shot of the SCM Startech CN Drilling Machine

SCM Startech CN Drilling Machine

The SCM Startech CN Drilling Machine has been specially designed for smaller and space-cautious, mid-sized workshops. It is, however, ideal for larger companies who produce customised products.

The base structure of the machine is made of tubular welded steel to create a large support surface for the work tables. The machine is raised solidly upon 3 self-levelling supports, making for comfortable, ergonomic operation. Thanks to the rigid steel used, the machine is incredibly durable and reliable.

With a 7” touch-screen, LCD display, any disruptions or errors will be swiftly highlighted thanks to the self-diagnosis/signalling systems in place. Various drilling programmes can be imported by USB making for a flexible operating process that can be tailored towards the operator’s requirements and preferences.

Categories ,

POA

+VAT

Request Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The SCM Startech CN Drilling Machine has been specially designed for smaller and space-cautious, mid-sized workshops. It is, however, ideal for larger companies who produce customised products.

The base structure of the machine is made of tubular welded steel to create a large support surface for the work tables. The machine is raised solidly upon 3 self-levelling supports, making for comfortable, ergonomic operation. Thanks to the rigid steel used, the machine is incredibly durable and reliable.

With a 7” touch-screen, LCD display, any disruptions or errors will be swiftly highlighted thanks to the self-diagnosis/signalling systems in place. Various drilling programmes can be imported by USB making for a flexible operating process that can be tailored towards the operator’s requirements and preferences.

The SCM Startech CN Drilling Machine has been specially designed for smaller and space-cautious, mid-sized workshops. It is, however, ideal for larger companies who produce customised products.

The base structure of the machine is made of tubular welded steel to create a large support surface for the work tables. The machine is raised solidly upon 3 self-levelling supports, making for comfortable, ergonomic operation. Thanks to the rigid steel used, the machine is incredibly durable and reliable.

With a 7” touch-screen, LCD display, any disruptions or errors will be swiftly highlighted thanks to the self-diagnosis/signalling systems in place. Various drilling programmes can be imported by USB making for a flexible operating process that can be tailored towards the operator’s requirements and preferences.

Specifications

– horizontal drilling in “X”, up to 16 mm minimum quota in Y
– grooving up to 14 mm minimum quota in “Y”
– vertical drilling depth or through drilling to be carried out with quota higher
than 80 mm in “Y”
– 50 mm maximum horizontal drilling quota with respect to the panel surface
(upper surface), without possibility to exceed the workpiece maximum
thickness with the bit.
– integrated blade unit with:
* Tool attachment = 35 mm drill
* blade = 100mm maximum diameter; 5 mm maximum thickness

Max panel dimensions X-Y-Z 3050 x 800 x 50mm
Min panel dimensions X-Y-Z 300 x 90 x 10mm
Drilling/blade working area mm 0x800 / 0x800
X axis stroke 750mm
Max. speed X-Y axes m/min 2

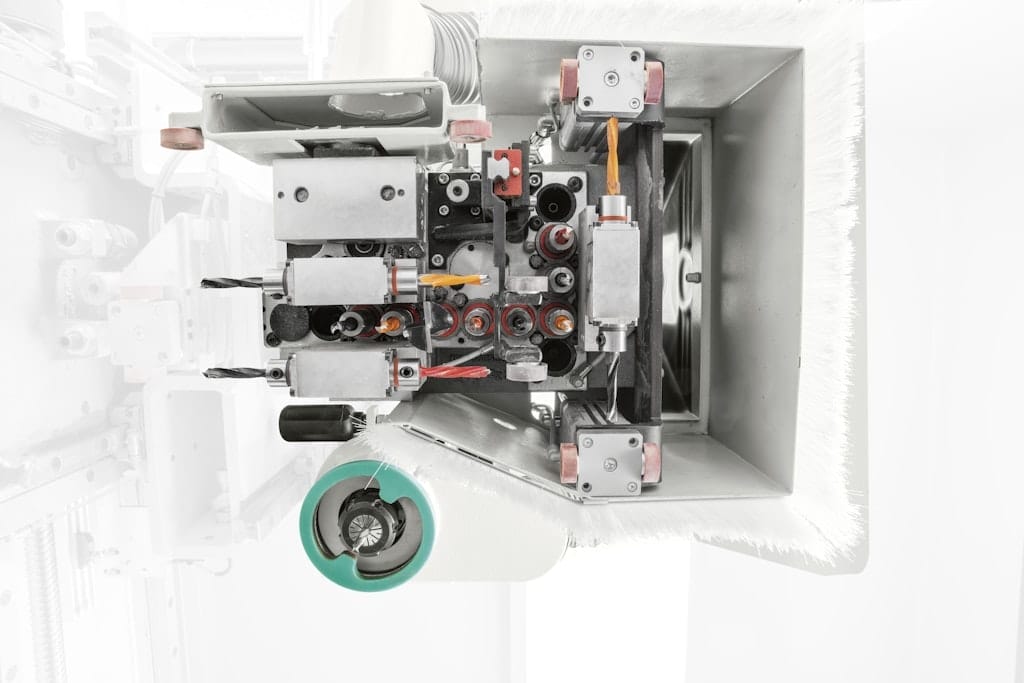

F10 L DRILLING HEAD
Vertical spindles no. 7 (4X+3Y)
EASY MOTION Working Table
CAD/CAM programs import
Horizontal spindles along Y/X axis no. 2 (1+1)/1
Blade, diameter/thickness mm 100/5
Motor power kW (hp) 1,5 (2)
Spindles rotation speed 3350rpm
Blade rotation speed 4300rpm
Air pressure 6Bar
Compressed air pressure 90 N/L
Extraction air consumption 1200 m3/h
Dust Outlets diameter 80mm

Specifications

– horizontal drilling in “X”, up to 16 mm minimum quota in Y
– grooving up to 14 mm minimum quota in “Y”
– vertical drilling depth or through drilling to be carried out with quota higher
than 80 mm in “Y”
– 50 mm maximum horizontal drilling quota with respect to the panel surface
(upper surface), without possibility to exceed the workpiece maximum
thickness with the bit.
– integrated blade unit with:
* Tool attachment = 35 mm drill
* blade = 100mm maximum diameter; 5 mm maximum thickness

Max panel dimensions X-Y-Z 3050 x 800 x 50mm
Min panel dimensions X-Y-Z 300 x 90 x 10mm
Drilling/blade working area mm 0x800 / 0x800
X axis stroke 750mm
Max. speed X-Y axes m/min 2

F10 L DRILLING HEAD
Vertical spindles no. 7 (4X+3Y)
EASY MOTION Working Table
CAD/CAM programs import
Horizontal spindles along Y/X axis no. 2 (1+1)/1
Blade, diameter/thickness mm 100/5
Motor power kW (hp) 1,5 (2)
Spindles rotation speed 3350rpm
Blade rotation speed 4300rpm
Air pressure 6Bar
Compressed air pressure 90 N/L
Extraction air consumption 1200 m3/h
Dust Outlets diameter 80mm
