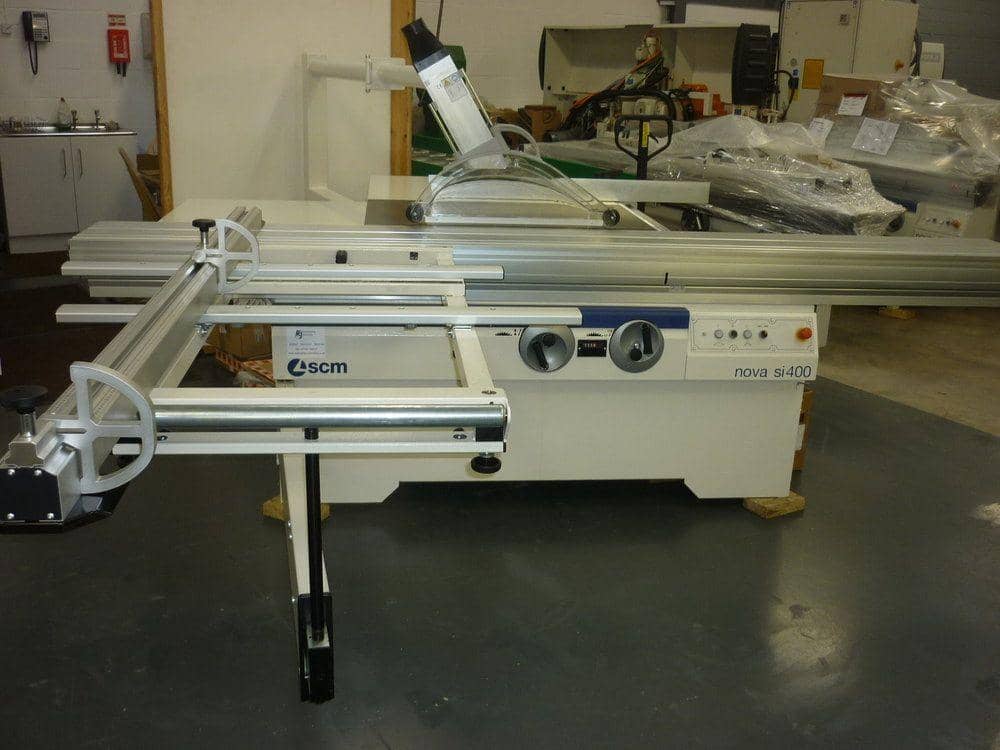

SCM SI400 Nova 3.2m Panel Saw

With SCM’s high-quality engineering, the SCM SI400 Nova 3.2m Panel Saw with stop-start buttons integrated in carriage is a durable, powerful machine capable of high-precision cutting. With optional features available, the machine is adaptable and flexible.

The closed-loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.

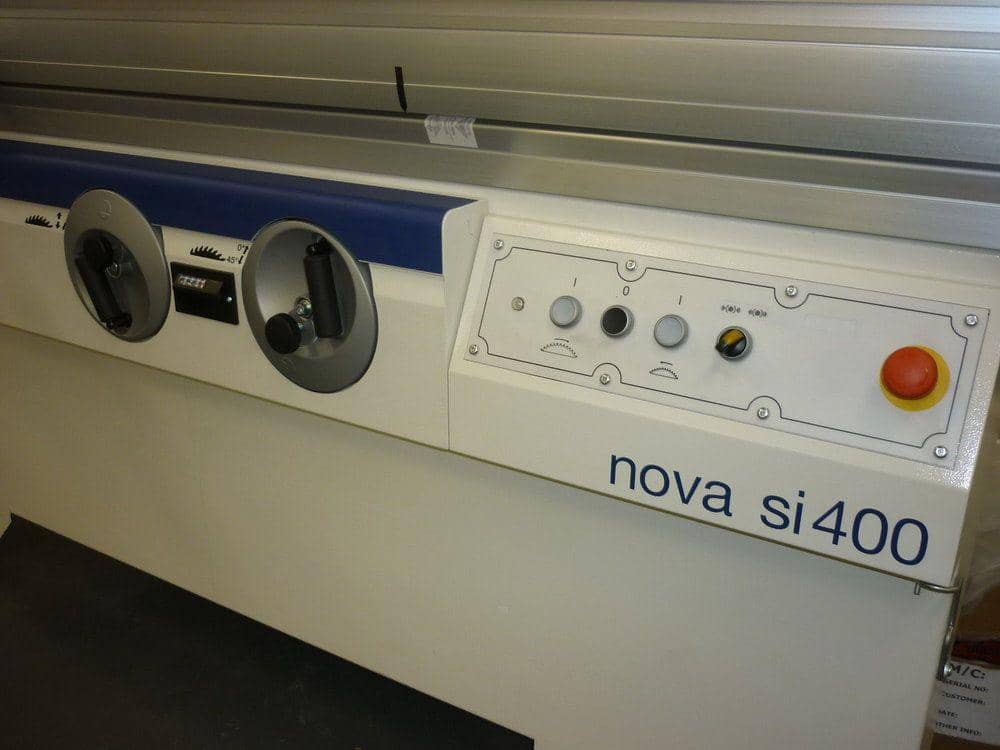

With sliding bearings running on hardened steel guides, smooth movement during operation is guaranteed. The wide section of the carriage and its closed reticular geometry provides additional rigidity and minimum deflection. Thanks to the dedicated gearbox, fully protected from dust – ease of use is inherent with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel.

With a 3.2m panel saw – machining is more flexible, more efficient and more productive.

Specifications

ova 3.2m Panel Saw
CE Conformity
Max. Cutting Height At 90° 140mm (With 400mm Blade)
Blade Tilt (Degrees) 45°
Max. Cutting Height At 45° 97mm (With 400mm Blade)
Blade Lift & Tilt Manual
Rip Fence Capacity 1270mm
CrossCut Capacity 3200mm
Main Motor Power 7.0kw (9.5hp)
Main Blade Rotation Speed (RPM) 3700
Scoring Unit Rotation Speed (RPM) 8500
Scoring Blade Motor Power 0.75hp
Overhead Saw Guard With Dust Extraction Included

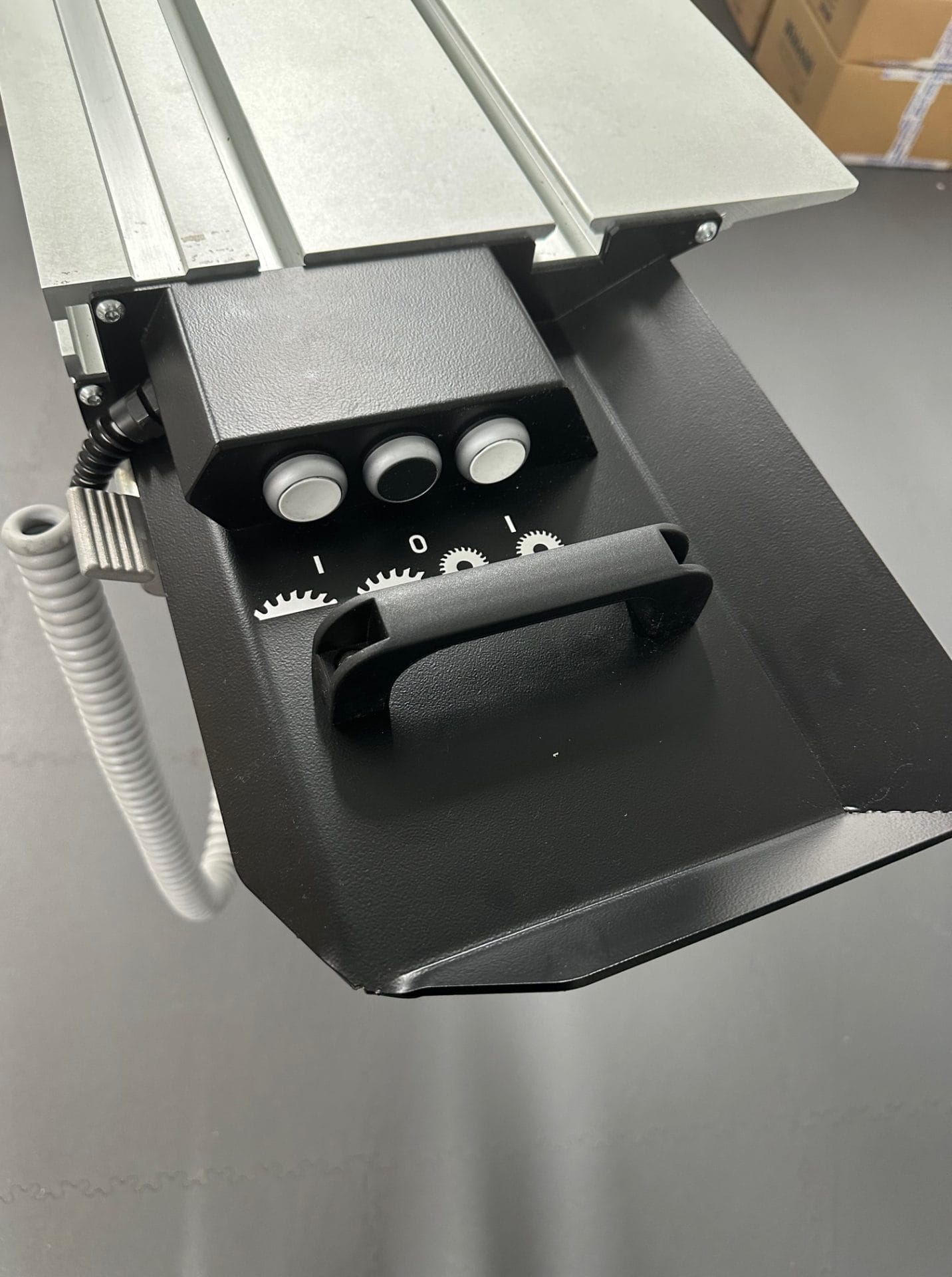

Version with start/stop push buttons integrated in-carriage

Max. saw blade diameter with mounted scorer
mm / inches
400 / 16

Maximum saw blade projection from table to 90°/45°
mm / inches
140/97 5.5/3.8

Cutting width on rip fence (Rip capacity)
mm / inches
1270 / 50

Max squaring stroke of sliding table saw
mm / inches
3200 / 126

Three-phase motor
Hp
11

Independent scoring motor
Hp
1

Blade tilt
degrees
0 – 45
