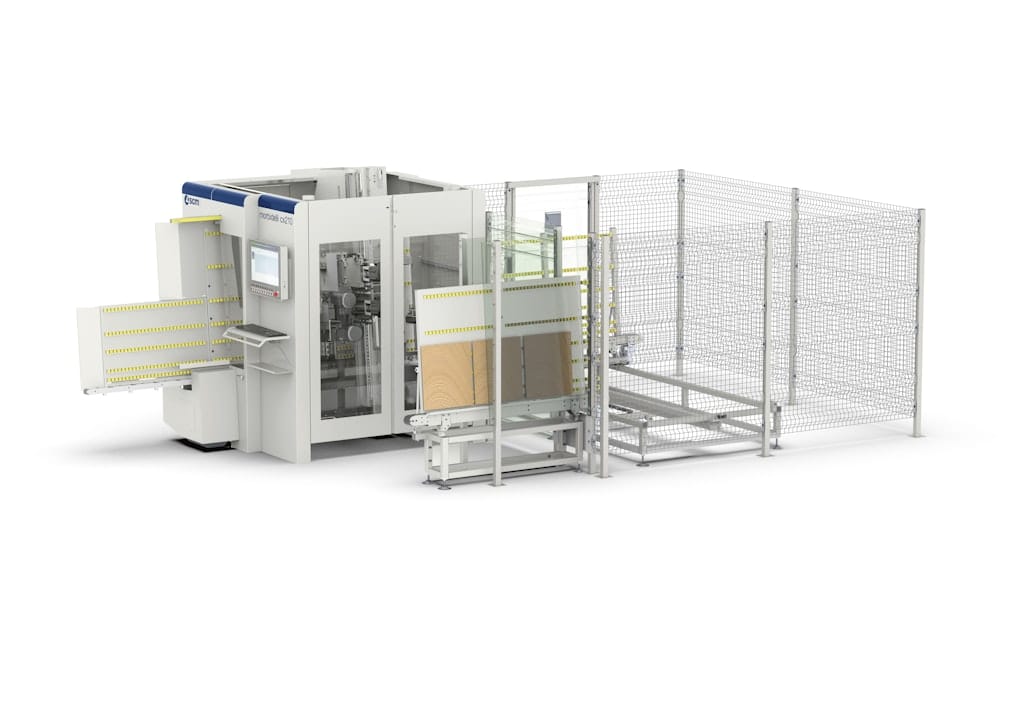

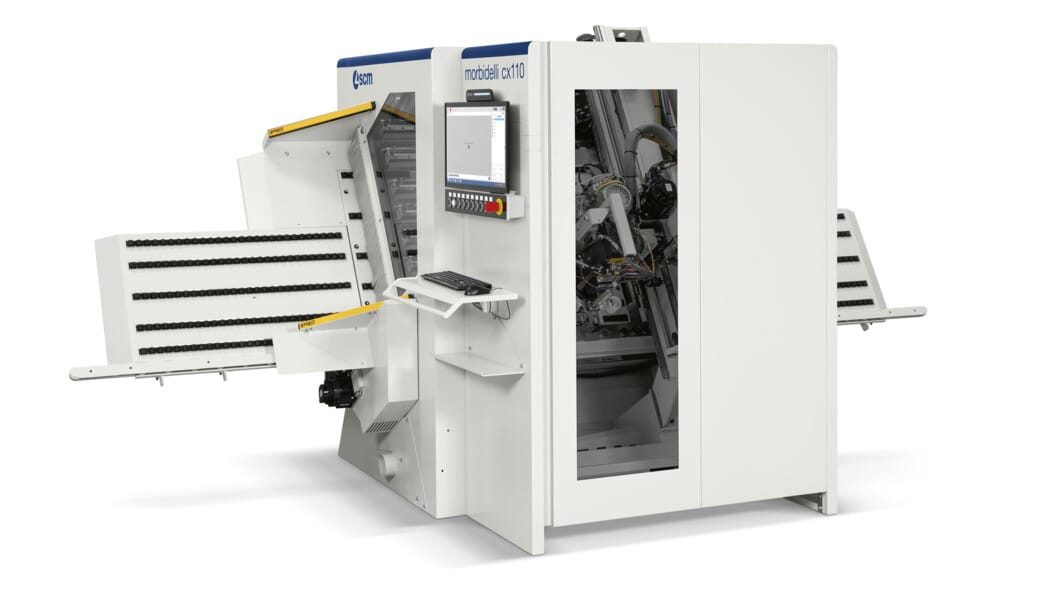

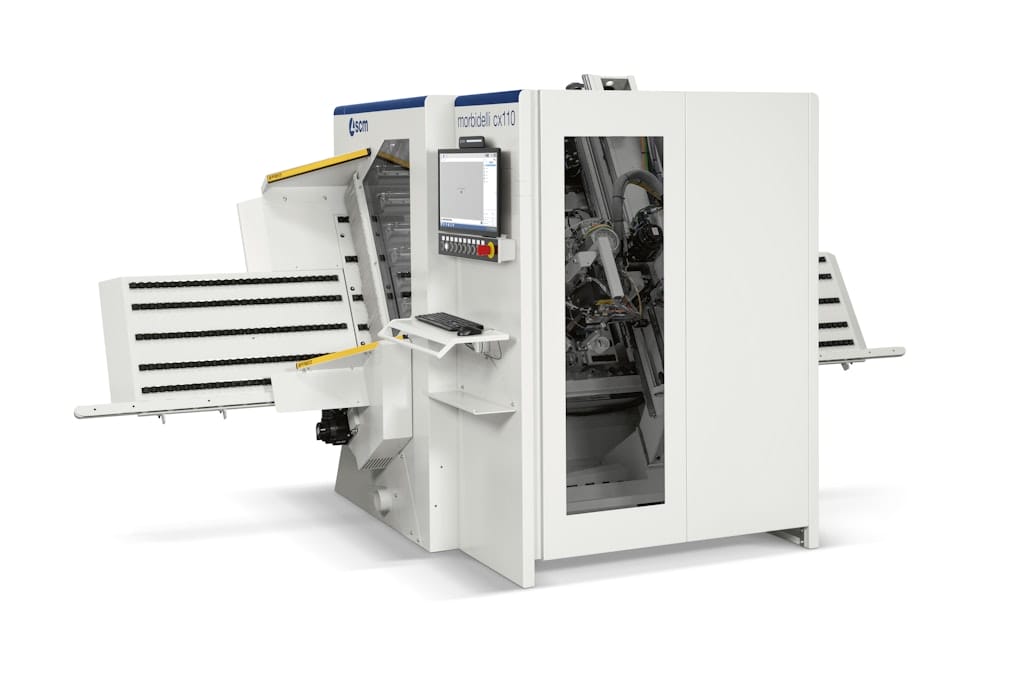

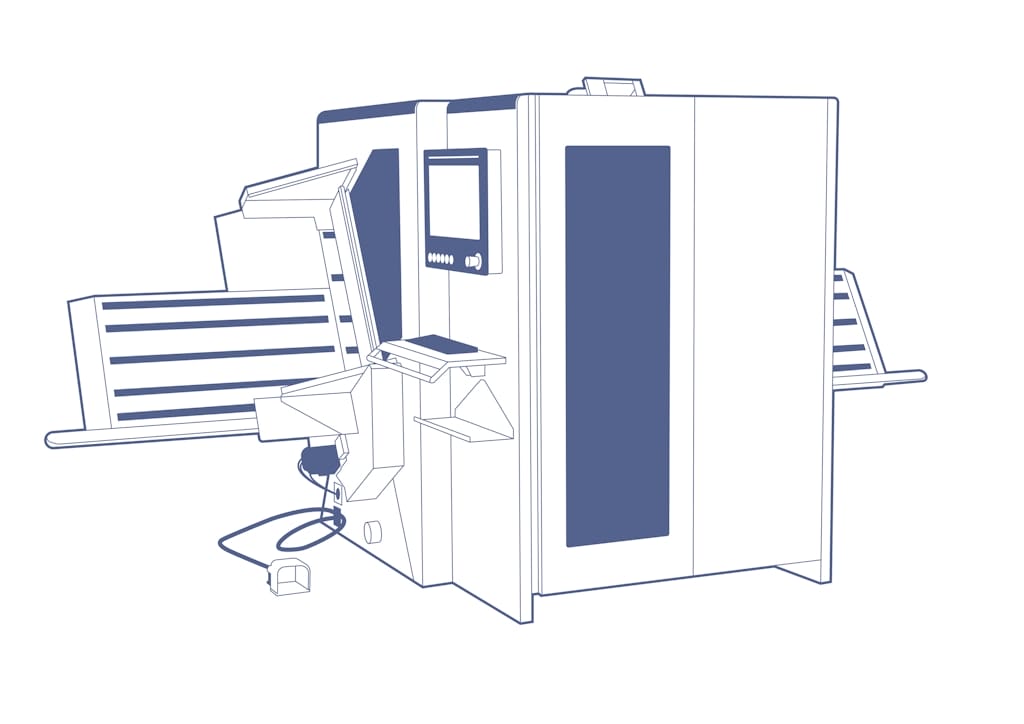

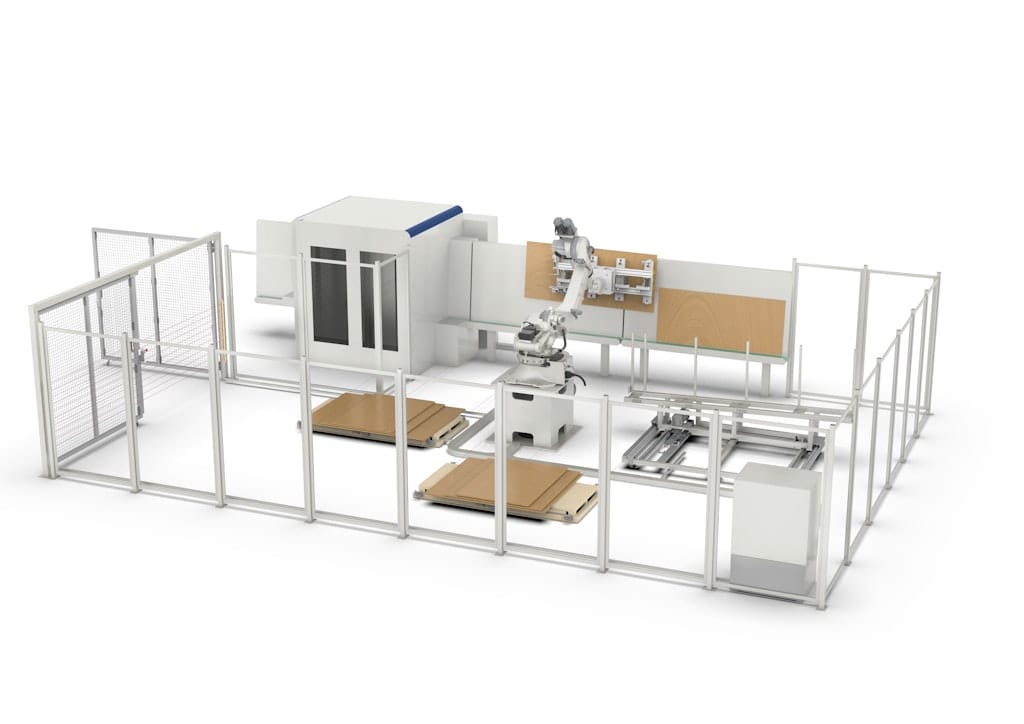

Morbidelli cx110
POA
Product Features
Specifications
Technical data
| AXES | ||||
| Panel length min./max. | mm | 200 / 3050 | ||
| Panel width min./max. | mm | 50 / 950 | ||
| Panel thickness min./max. | mm | 8 / 60 | ||
| Panel weight max. | kg | 60 | ||
| Max. axes X-Y-Z speed | m/min | 50 – 40 – 30 | ||
| 3D PROBE copying system | / | std. | ||

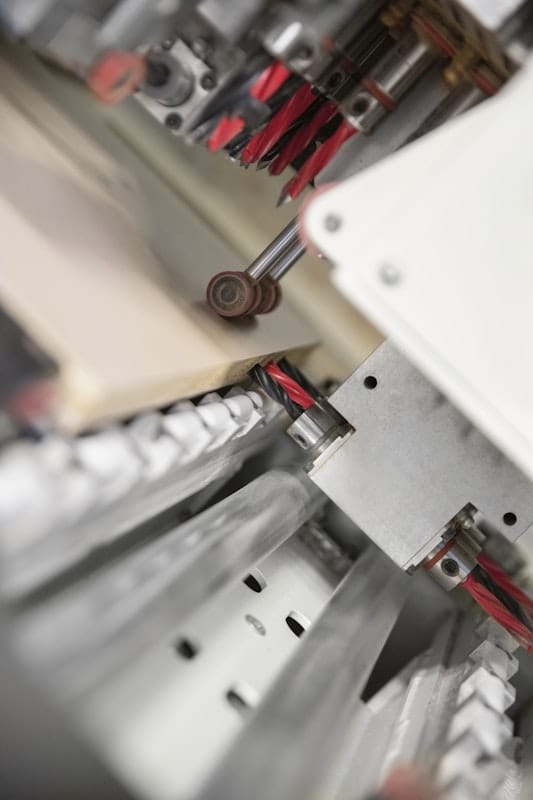

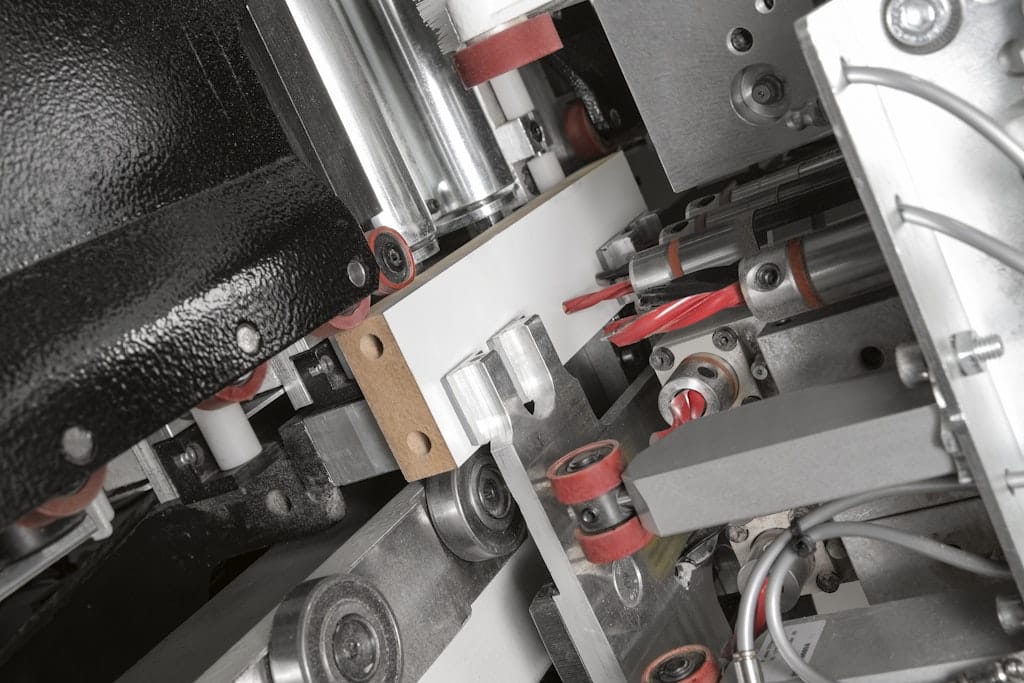

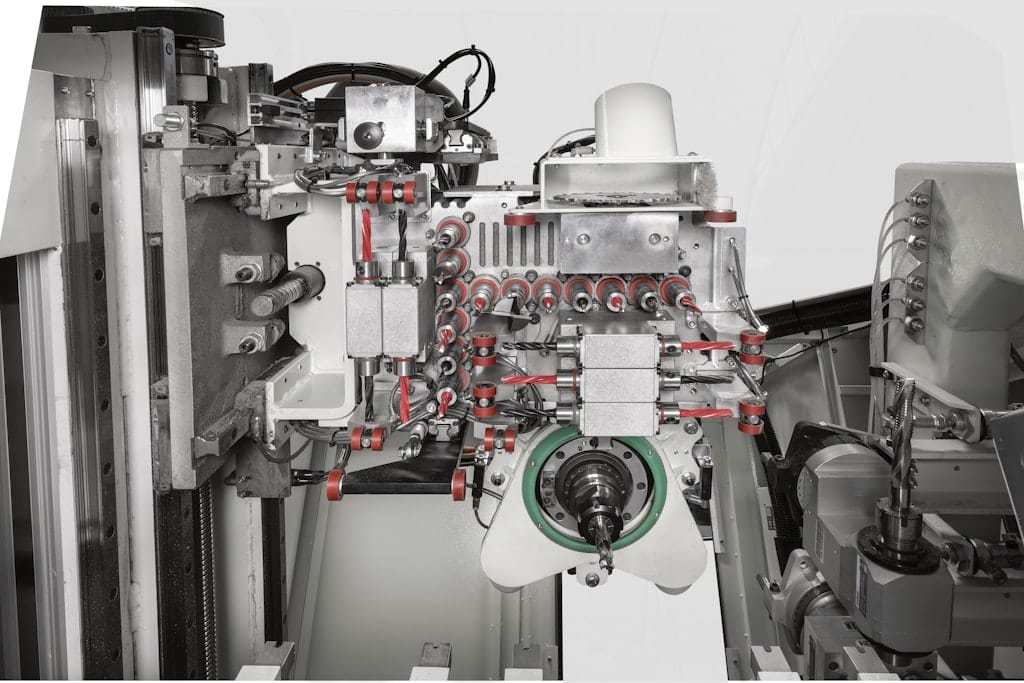

| F19L DRILLING HEAD | ||||
| Vertical spindles | no. | 13 | ||
| Horizontal spindles | no. | 6 (4X+2Y) | ||
| Rotation speed | rpm | 4200 (up to 3000 / 8000 with Inverter) | ||
| Integrated saw-blade in X | Ø rpm | 125 5000 (up to 10.000 with inverter) | ||
| F23L DRILLING HEAD | ||||
| Vertical spindles | no. | 13 | ||
| Horizontal spindles | no. | 10 (6X+4Y) | ||
| Rotation speed | rpm | 4200 (up to 3000 / 8000 with Inverter) | ||
| Integrated saw-blade in X | Ø rpm | 125 5000 (up to 10.000 with inverter) | ||

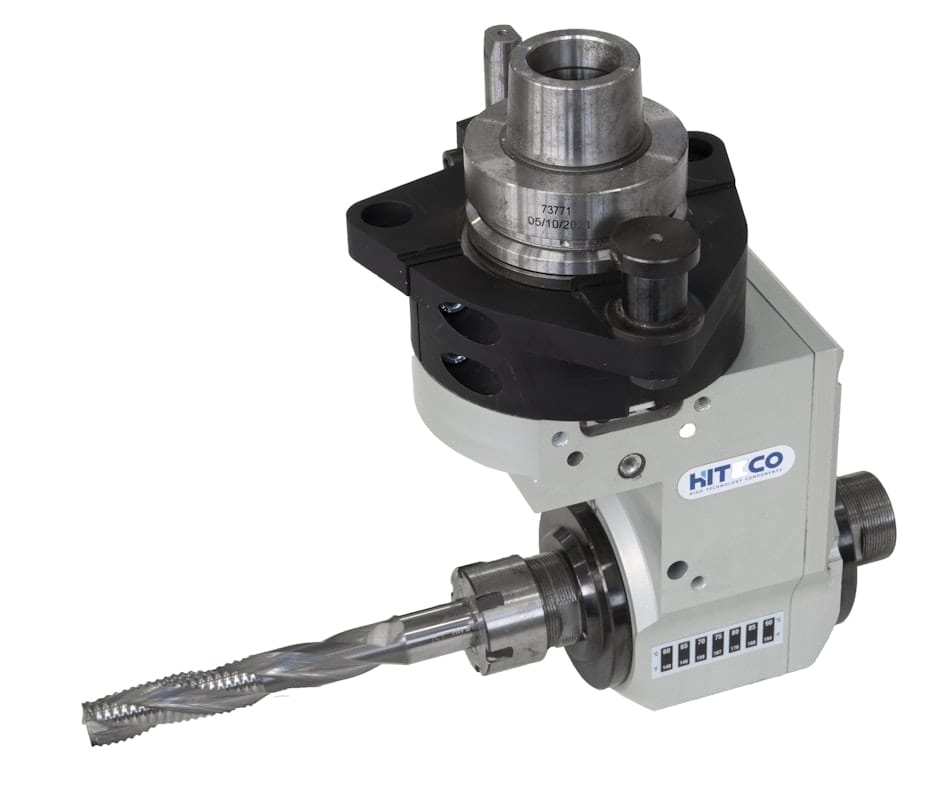

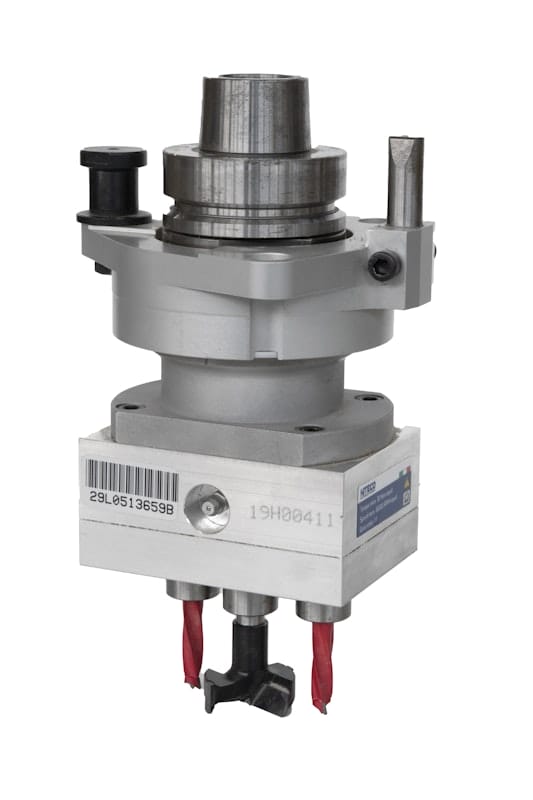

| ROUTING UNIT (opt.) | ||||
| ER32 electrospindle | kW (hp) rpm | 5,5 (7,5) 1500 / 18.000 | ||
| HSK63-F electrospindle | kW (hp) rpm | 7,5 (10,2) 1500/24.000 | ||

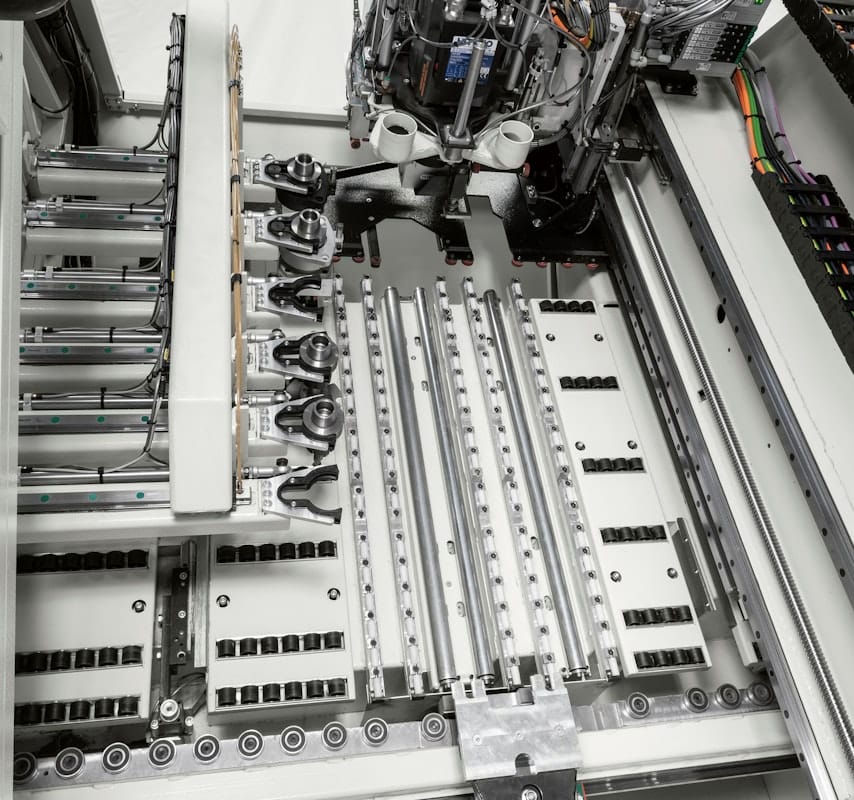

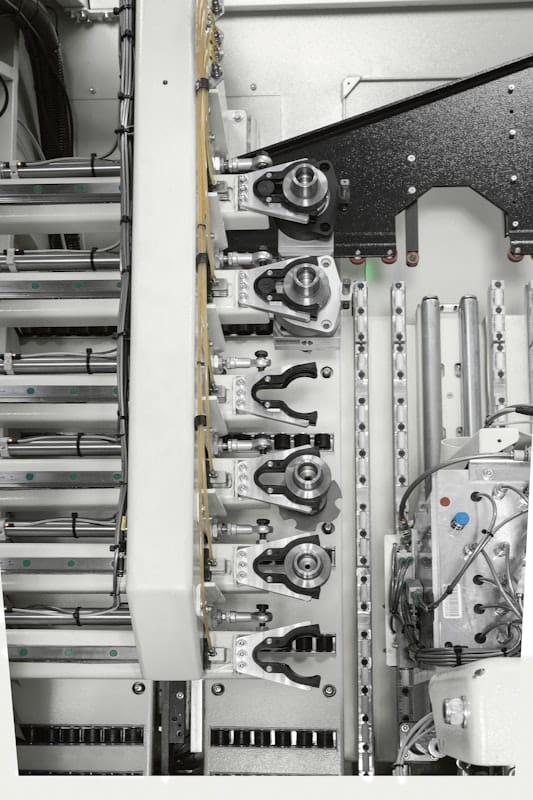

| Tool changer | / | HSK63-F a 6 positions | ||
