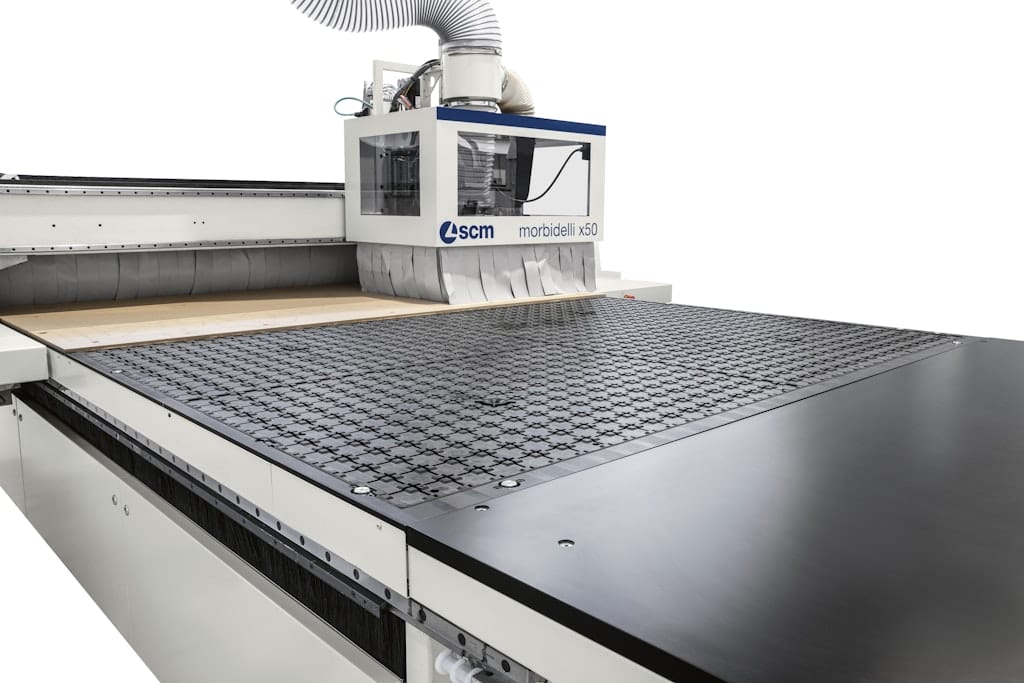

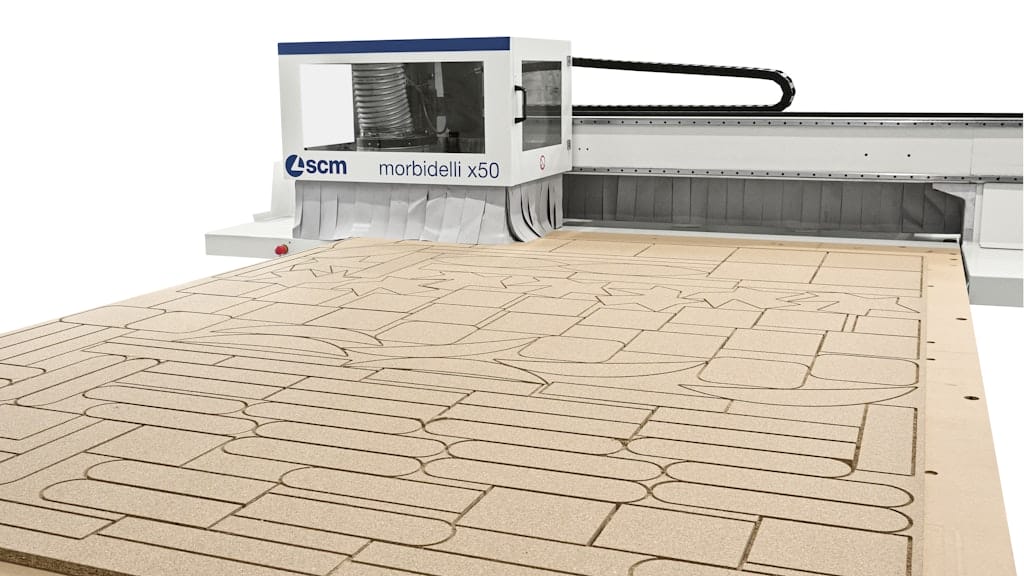

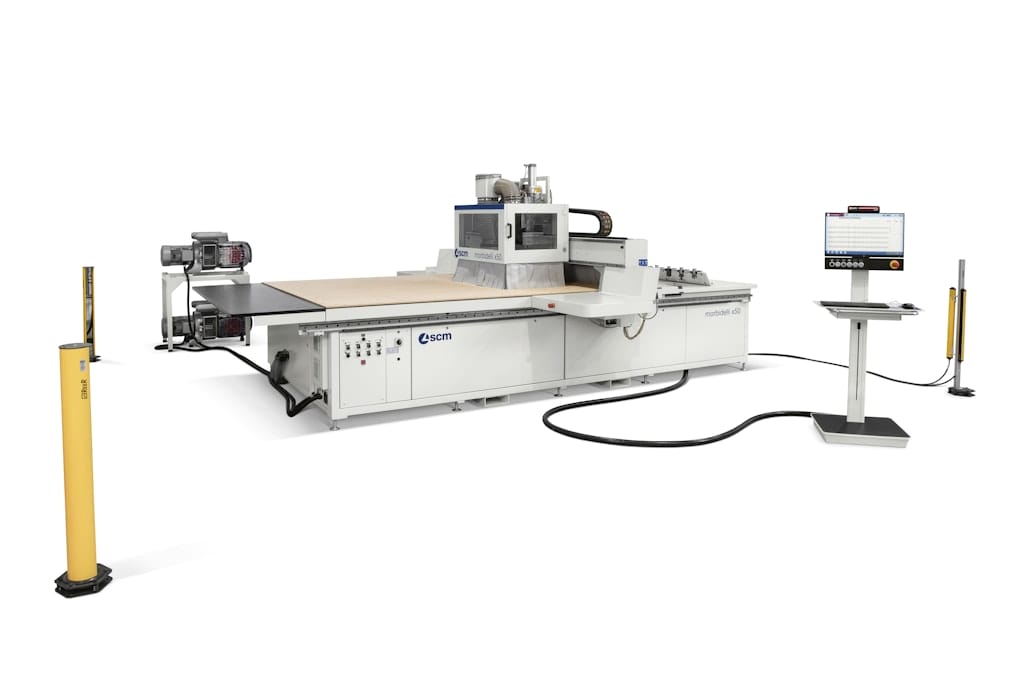

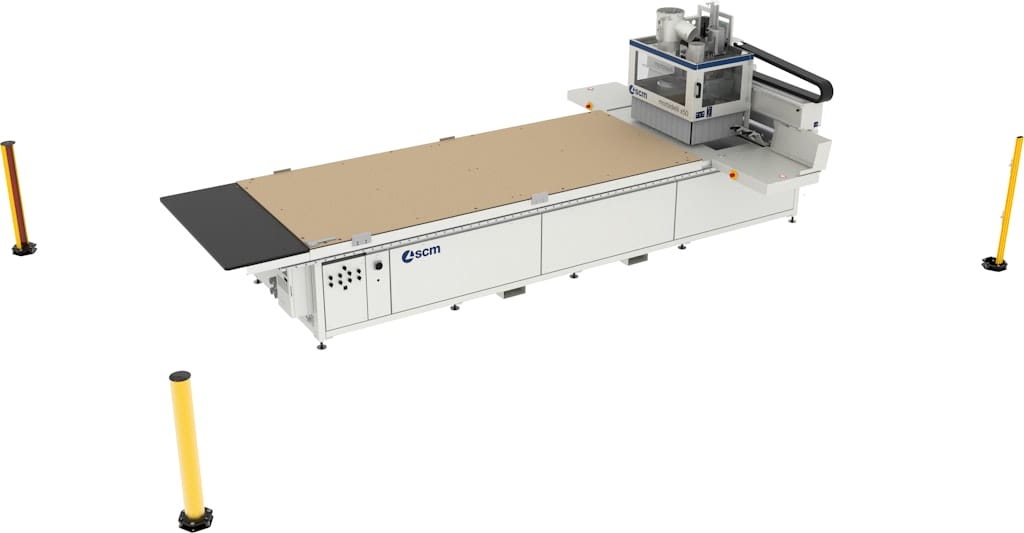

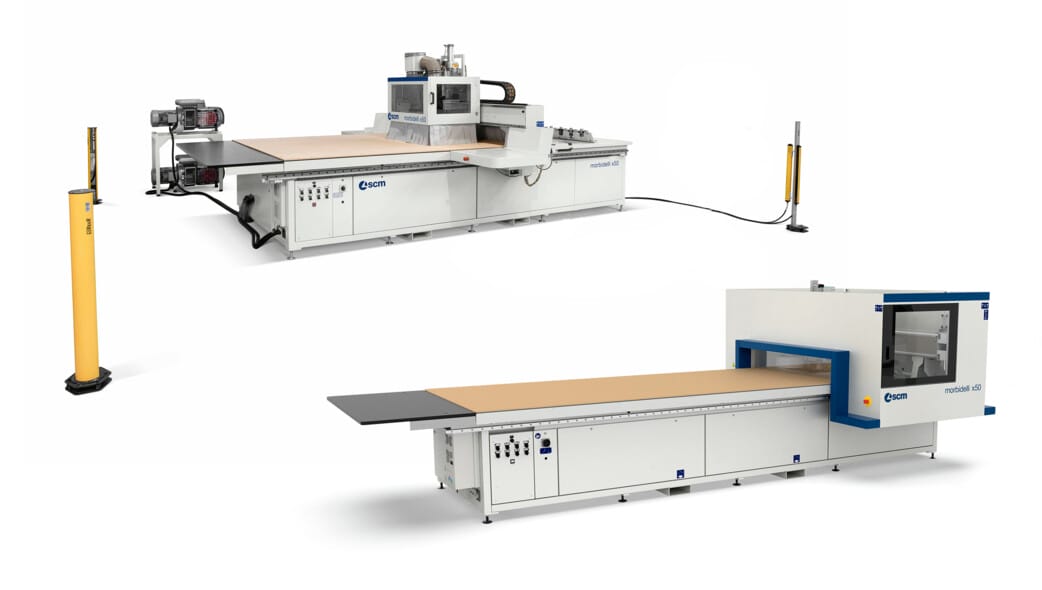

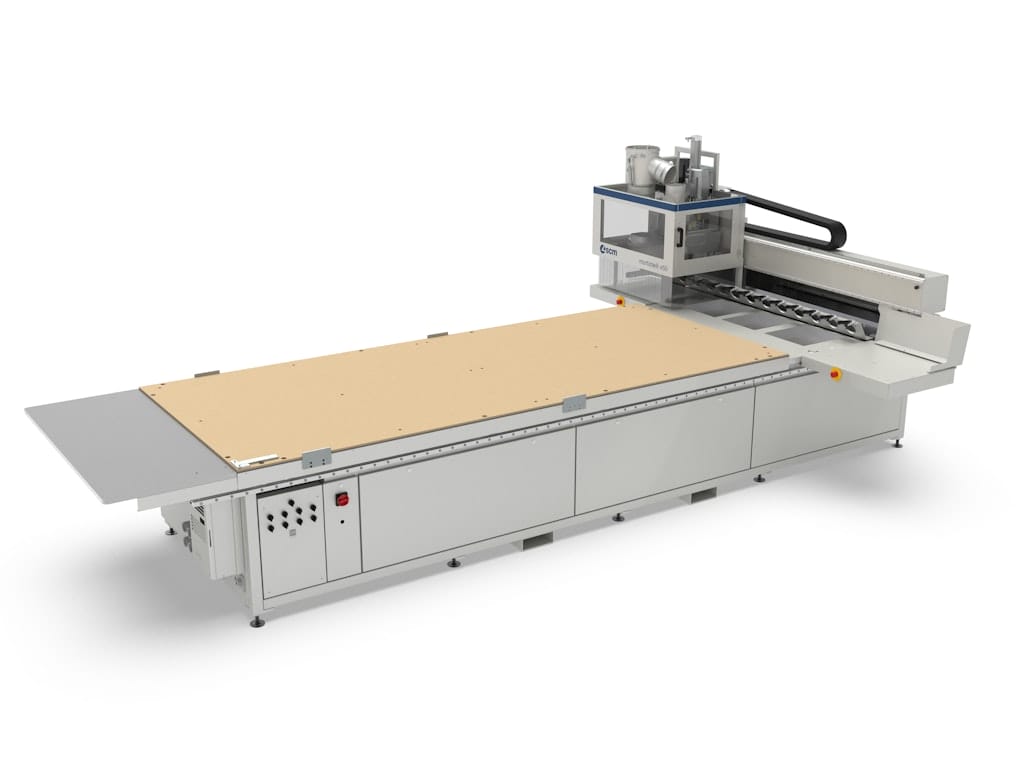

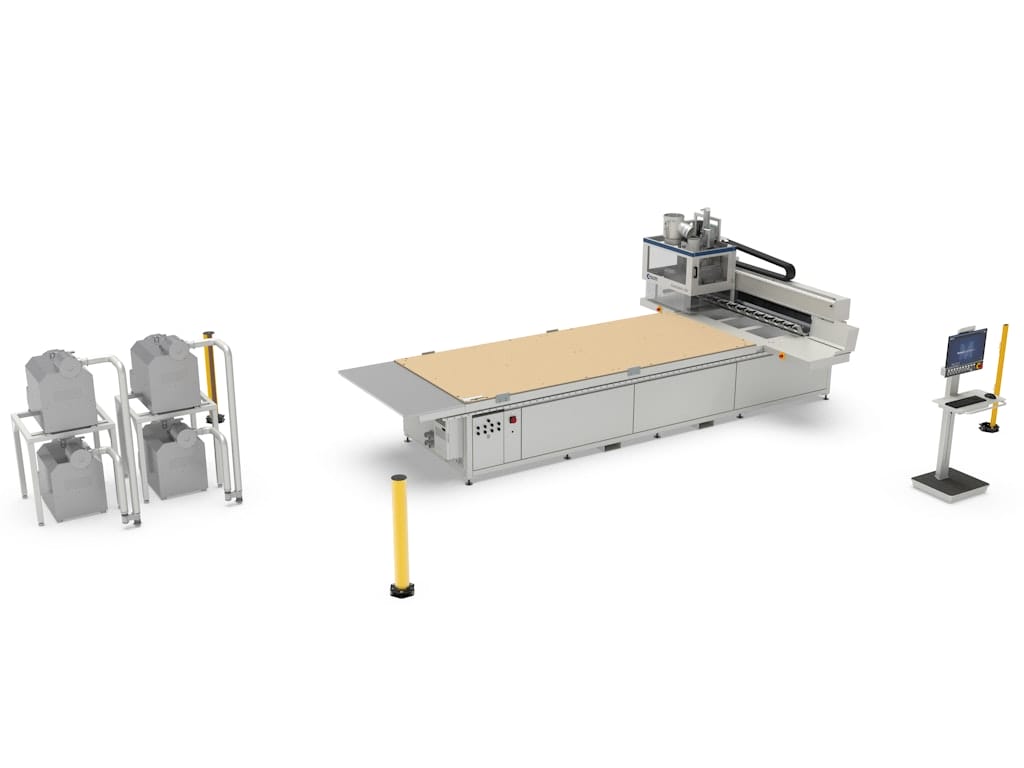

Morbidelli x50
POA
Product Features
Specifications
Technical data
| morbidelli x50 | ||||
| Working areas | ||||
| X-Y axes dimensions | mm (inches) | 2556×1296 (100×51) 3756×1596 (147×62,8) 3756×1896 (147×74,6) 3156×2216 (124×87) 4356×2216 (171×87) | ||
| Axes | ||||
| Vectorial speed X-Y axes “PRO-SPEED” version | m/min (ft/min) | 57 (186) | ||
| Vectorial speed X-Y axes “PRO-SPACE” version | m/min (ft/min) | 47 (155) | ||
| Z-axis panel passage | mm (inches) | 140 (5,5) | ||

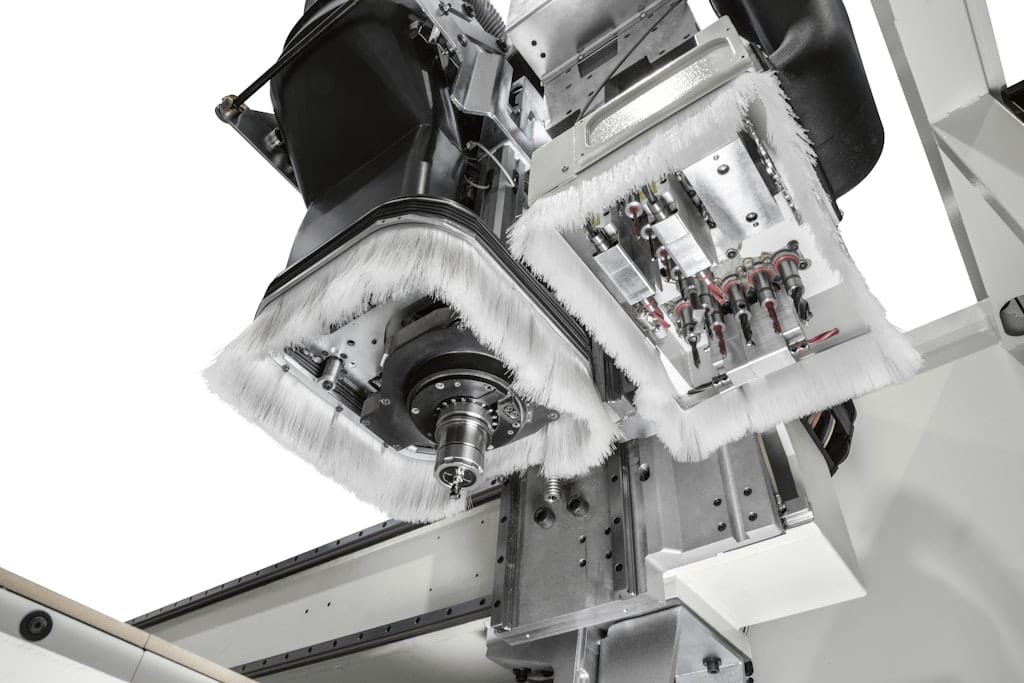

| Routing unit | ||||
| 3 axis motor power (up to) | kW (hp) | 9,5 (12,2) | ||
| Rotation speed (up to) | rpm | 24000 | ||

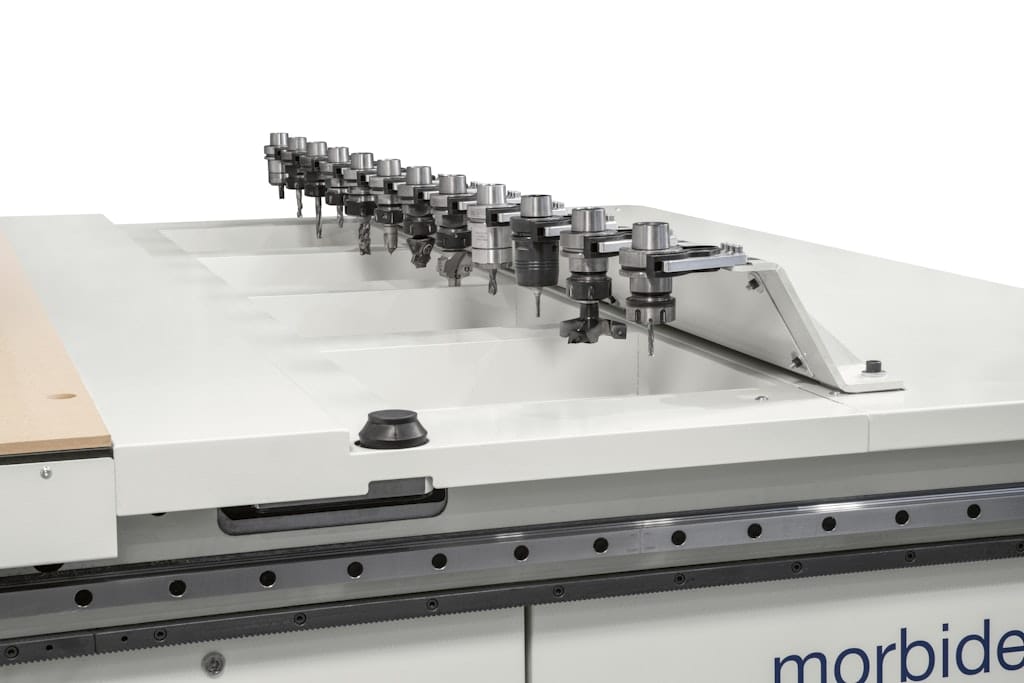

| Available tools on tool changer (up to) | positions | 12 | ||

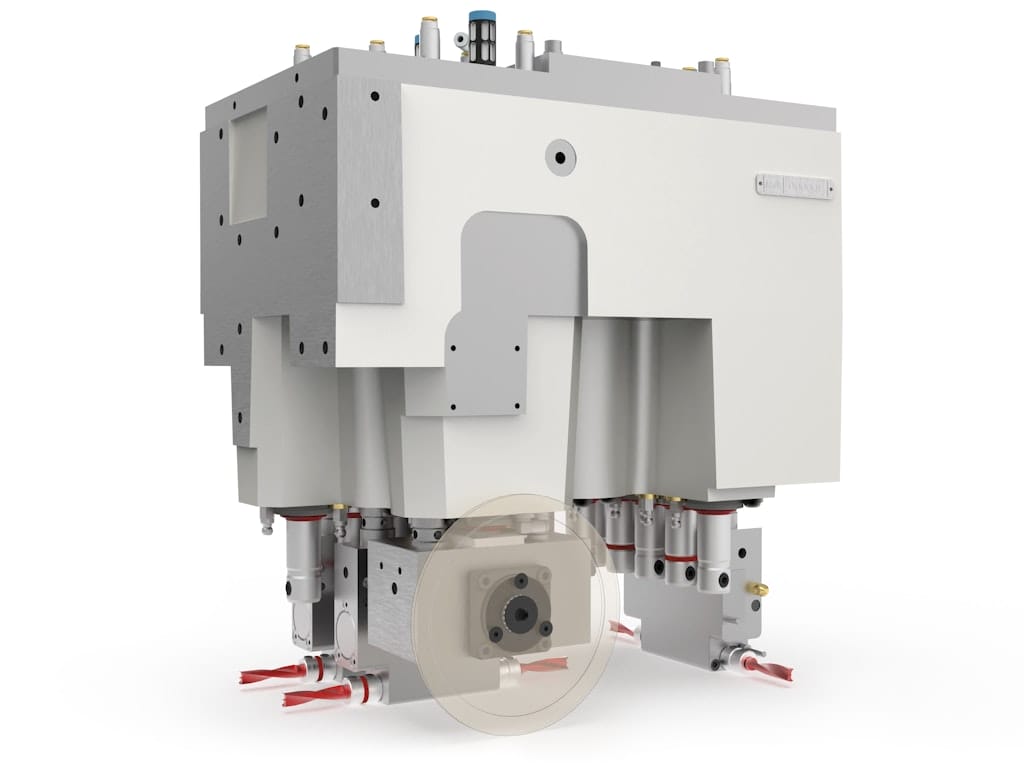

| Drilling unit | ||||
| Independent vertical spindles (up to) | n. | 12 | ||
| Independent horizontal spindles (up to) | n. | 6 | ||
| Rotation speed (up to) | rpm | 8000 | ||
| Integrated blades (up to) | n. | 1 | ||
| Integrated blade in X, diameter | mm (inches) | 125 (4,9) | ||
