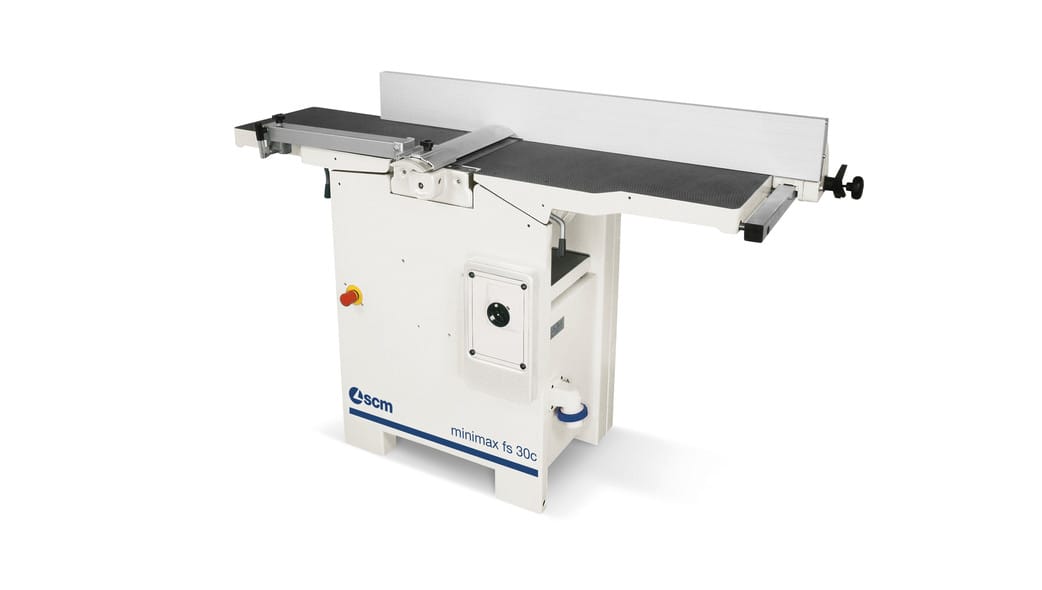

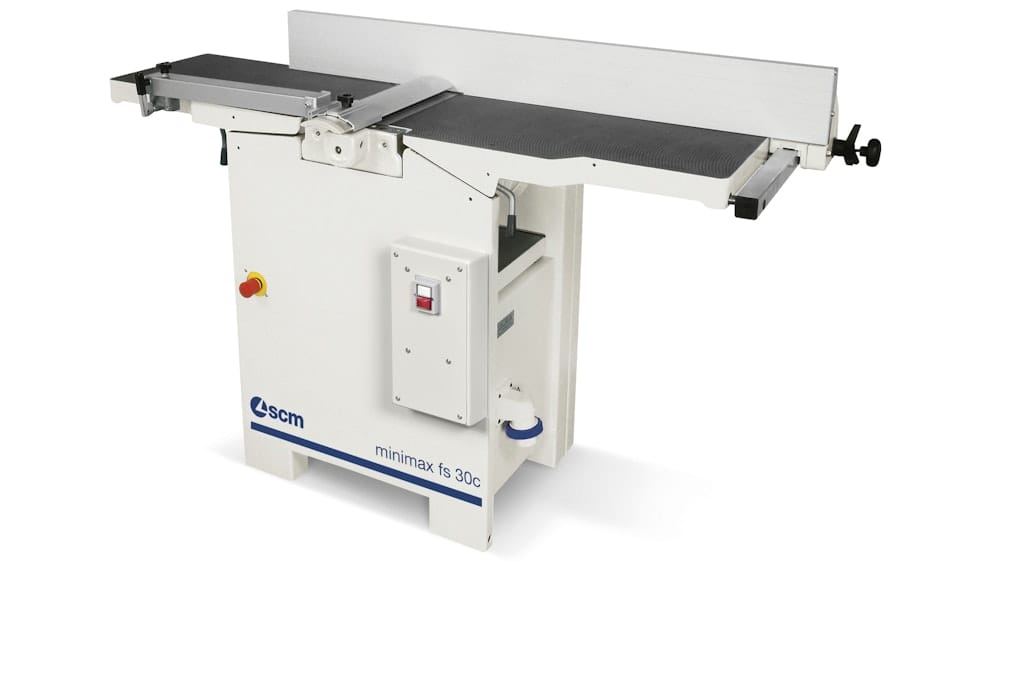

Minimax fs 30c

POA

Specifications

Technical data

fs 30c
Cutterhead working width	mm / inches	300 / 12

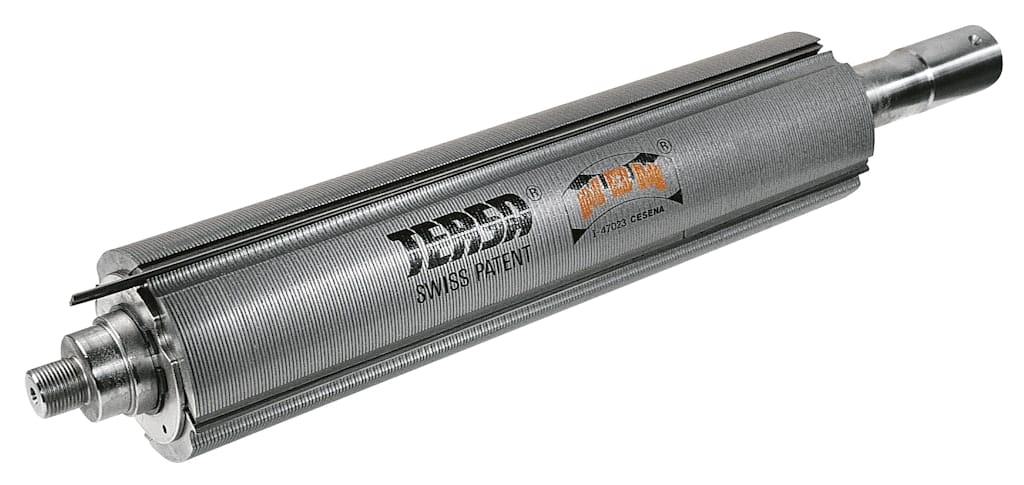

With TERSA Straight-knife Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives	mm / n° mm	72 / 3 330 x 30 x 3

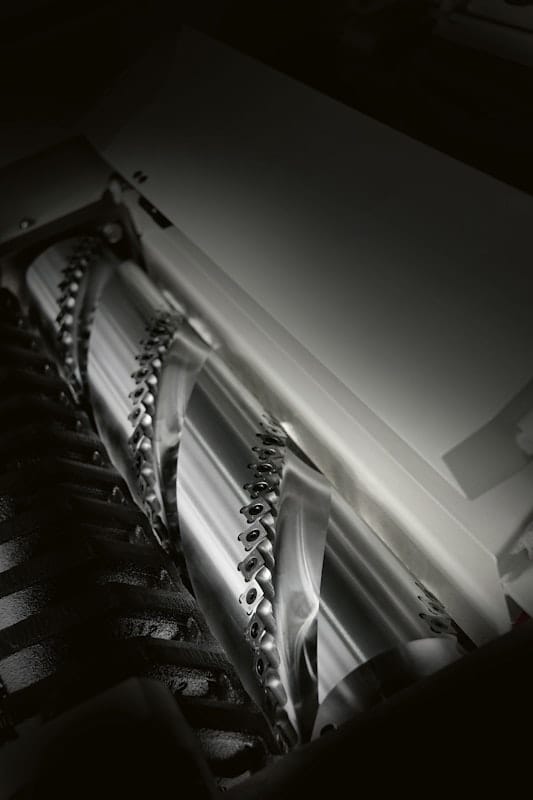

With XYLENT Spiral helical Cutterhead: Cutterblock diameter / no° of standard knives Dimension of standard knives	mm / n° mm	72 / 48 15 x 15 x 2.5
Max. stock removal	mm	4
Jointer table length	mm / inches	1510 / 59.5
Planer table dimensions	mm / inches	300 x 585 / 12 x 22
Planer feed speed	m/min	7
Min. – max. planer working height	mm / inches	3 – 230 / 0.12 – 9
Single-phase motor	Hp	4.8
Fence Tilt	degrees	0 – 45
