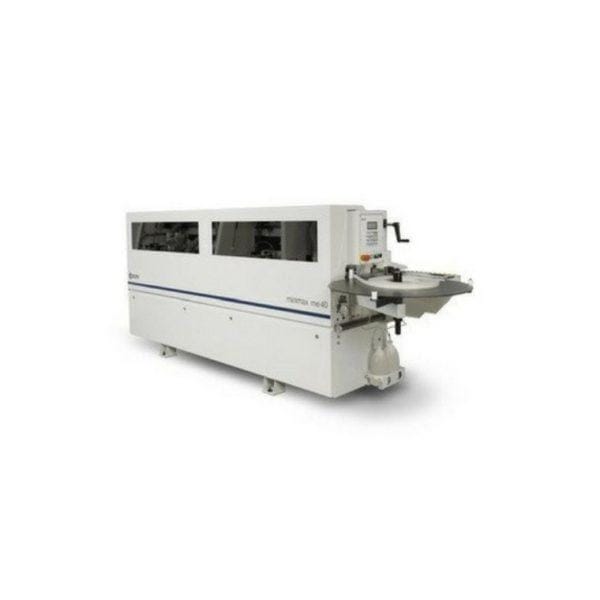

Minimax Model ME40T Edgebander with Pre-Milling

Offering high levels of efficiency and effectiveness, the SCM Minimax Model ME40T Edgebander with Pre-Milling is a top-quality edgebander that offers the expert standards of SCM’s engineering. With highly effective features, this edgebander guarantees a flawless final product suitable for the most demanding craftsmen.

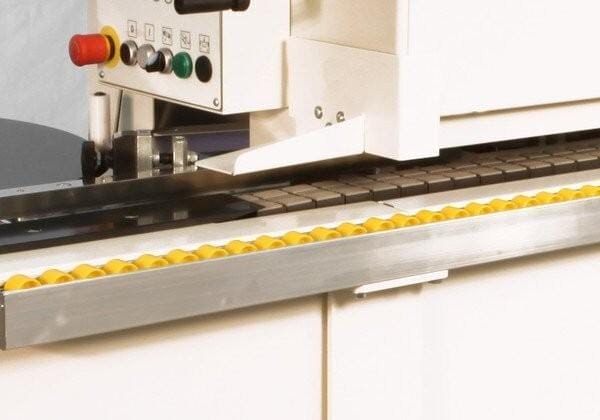

For boosted productivity, the 9m/min panel feed speed makes for more stable, steadier machining and minimises the chances of any errors or defects within the feeding process. The panel position can be monitored via the encoder which allows for a greater degree of control for the operator.

Thanks to the simple usability and centralized management of the control panel, all adjustments, settings and functions can be handled with ease and all contribute to granting the operator an excellent degree of control over the machine. This makes for an advanced machining process where the operator is capable of performing demanding and complex work with greater ease. Additionally, the control panel assists the operator through maintenance, cleaning, diagnostics and more.

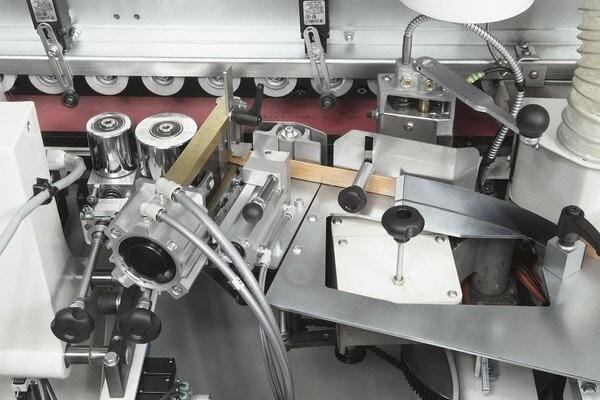

The glue is applied evenly with haste and is prevented from burning thanks to the automatic decrease of temperature when the machine temporarily halts. The addition of a self-lubricating glue pot makes for more efficient operating as the need for manual lubrication is eliminated. Accompanied by electrical resistance, the glue spreading roller provides a uniformed, balanced glue spread at the maximum working temperature.

With the pre-milling unit, the machining process has been greatly enhanced making for an excellent, refined finished product fit for the most demanding of consumers.

Specifications

Technical data

Work Table dimensionsmm3465 x 710
Work Table heightmm875
Thickness of rolled edges mm0,4 ÷ 3
Thickness of edges in stripsmm5
Min. ÷ max. panel height mm8 ÷ 50
Min. panel length/width with rolled edges mm 190 / 110
Feed speed/min9
Feed motor powerkW0,55
Pneumatic operating pressure bar6,5
Operating temperature°C20 ÷ 190

glue pot unit

Motor powerkW0,18
Glue capacity kg~ 0,8
pre-milling unit
Motor powerkW2,2
Blade rotation speedrpm9.000
No. 2 diamond cutters Ø 80 mm H=56 Z2
Stock removal fino 3 mm
end cutting unit
Motor powerkW0,19
Blade Ø 125 mm Z20
Blade rotation speedrpm12.000

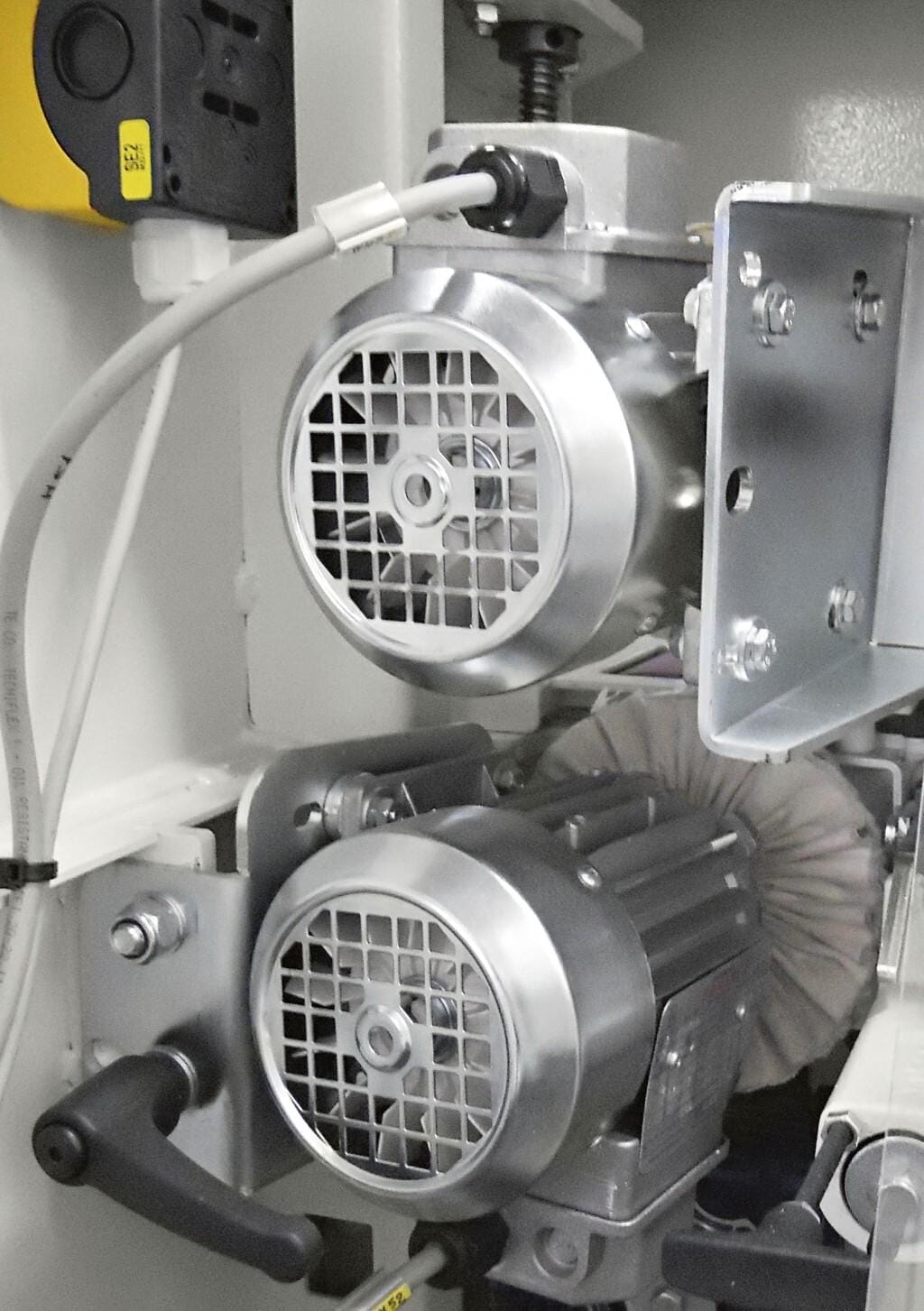

trimming unit

Upper/lower motor powerkW2 x 0,35
Widia cutters Ø 55,3 mm Z3
Cutters rotation speedrpm12.000
Vertical/horizontal copiers rotating/rotating
Complete with.
Automatic edge feeding device
Panel Edge heating
Kit for rapid glue pot substitution
Radius edge scrapers
Glue scrapers
Anti-adhesive unit infeed fitted before the pre-milling unit
Spray-mist device for edge finishing fitted before glue scrapers.
