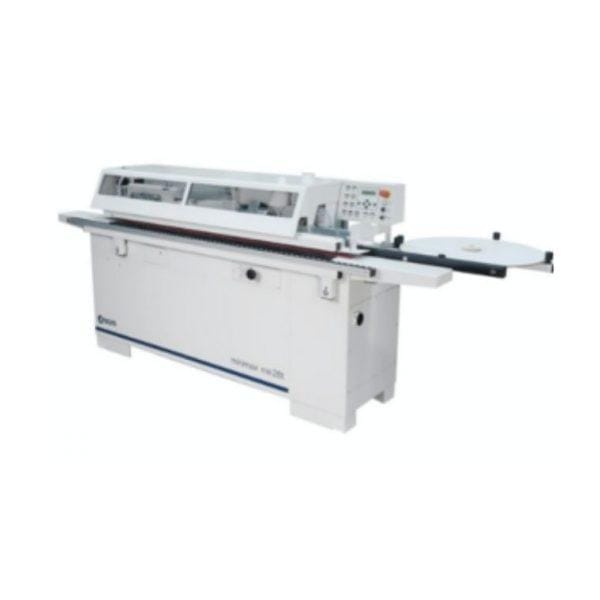

SCM Minimax Edgebander Model ME28T-RC Version with Pre-milling Unit

POA

Flexible, sturdy yet compact – the SCM Minimax Edgebander Model ME28T-RC Version. Pre-milling is a robust edgebander equipped with a pre-milling unit to make quick, expert work of your workload. The unmatched quality of SCM is made an example of with this professional machine.

With the cutter and independent asynchronous, a perfect, exact finish is guaranteed and will satisfy the most demanding of craftsmen. A perfect finish is also ensured by the panel conveying track which provides an incredibly smooth, linear movement of the panel, minimising the chances of defects and inaccuracies.

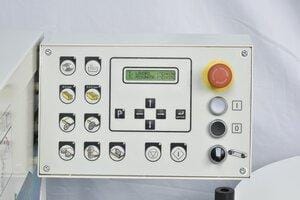

Thanks to the simple usability and centralised management of the control panel, all adjustments, settings and functions can be handled with ease and all contribute to granting the operator an excellent degree of control over the machine. This makes for an advanced machining process where the operator is capable of performing demanding and complex work with greater ease. Additionally, the control panel assists the operator through maintenance, cleaning, diagnostics and more.

The pre-milling unit makes for a smoother, defect-free panel edge and makes for a more effective glueing process. Once complete, the seamless look of the finished product will be greatly accredited to the pre-milling machine.

Out of stock

In Stock

Expected 14/06/2024

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Automatic edge bander with glue pot and pre-milling unit to edge band, with great flexibility, with melamine edges, PVC and ABS up to 3 mm and wooden strips up to 5 mm.
Work table dimensions mm 2800 x 570
Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3
Max. thickness of edges in strips mm5
Min. ÷ max. panel height mm12 ÷ 50
Min. panel length/width mm190/110
Feed speed m/min7

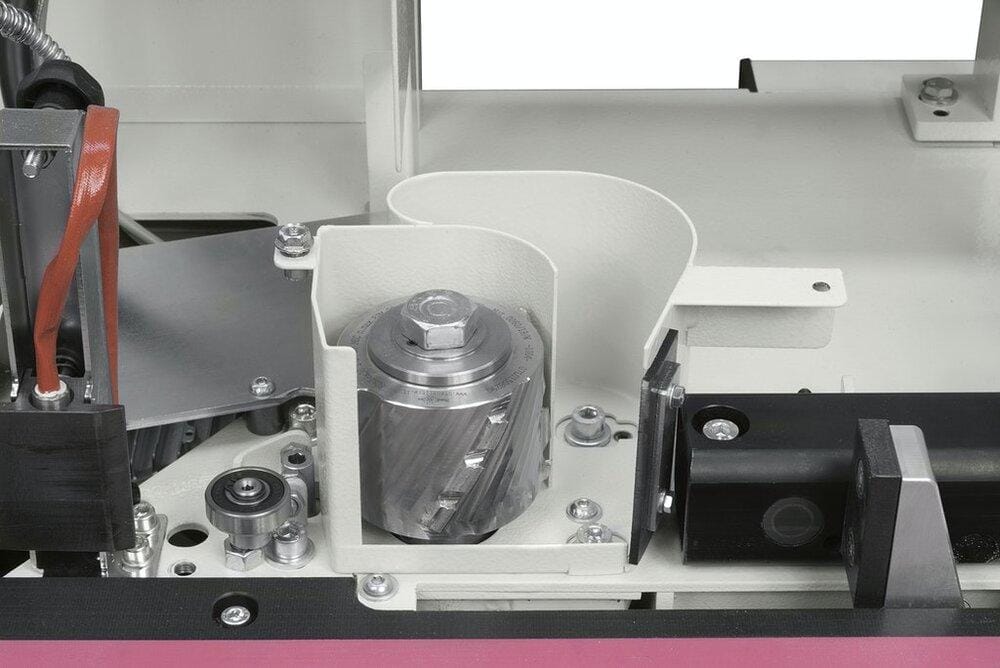

Pre-milling

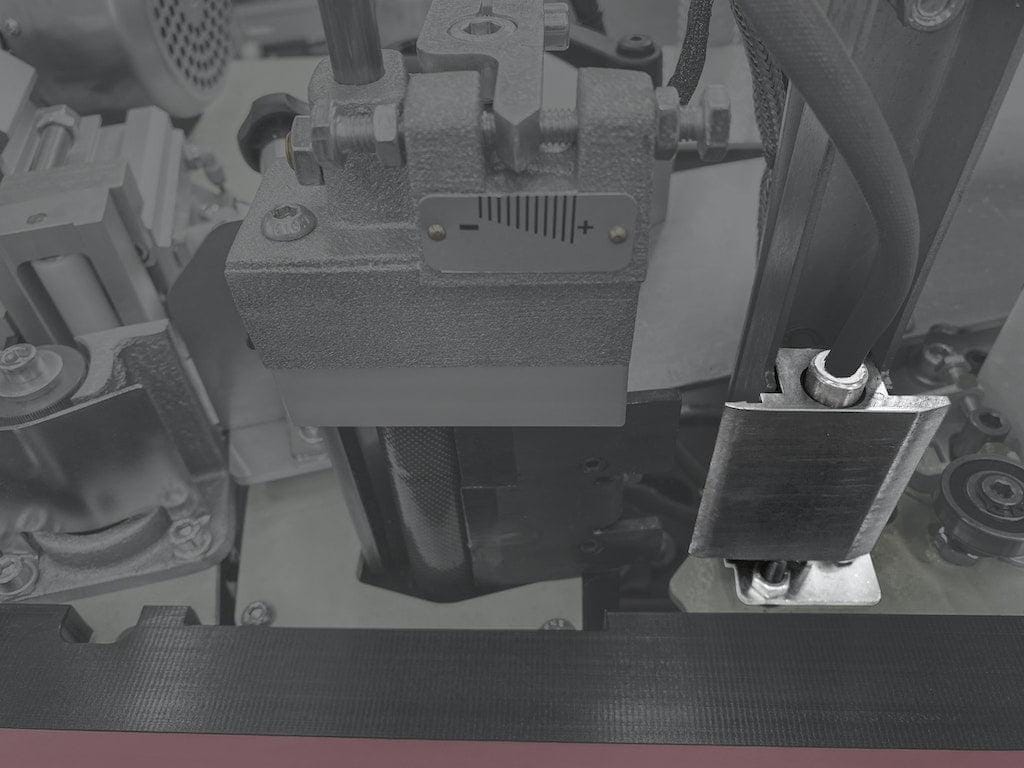

Heated infeed fence

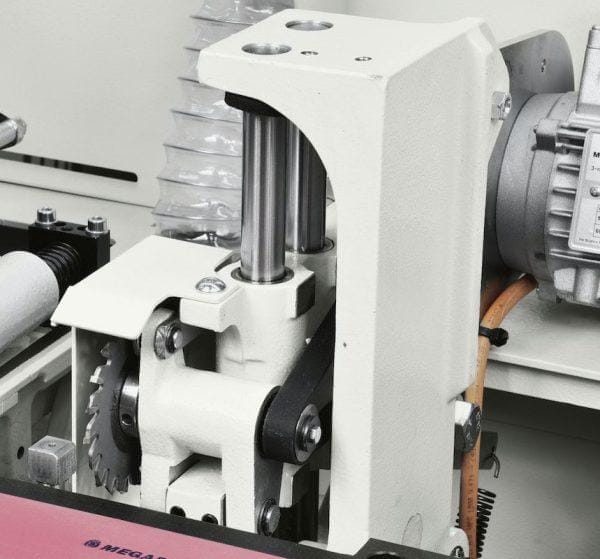

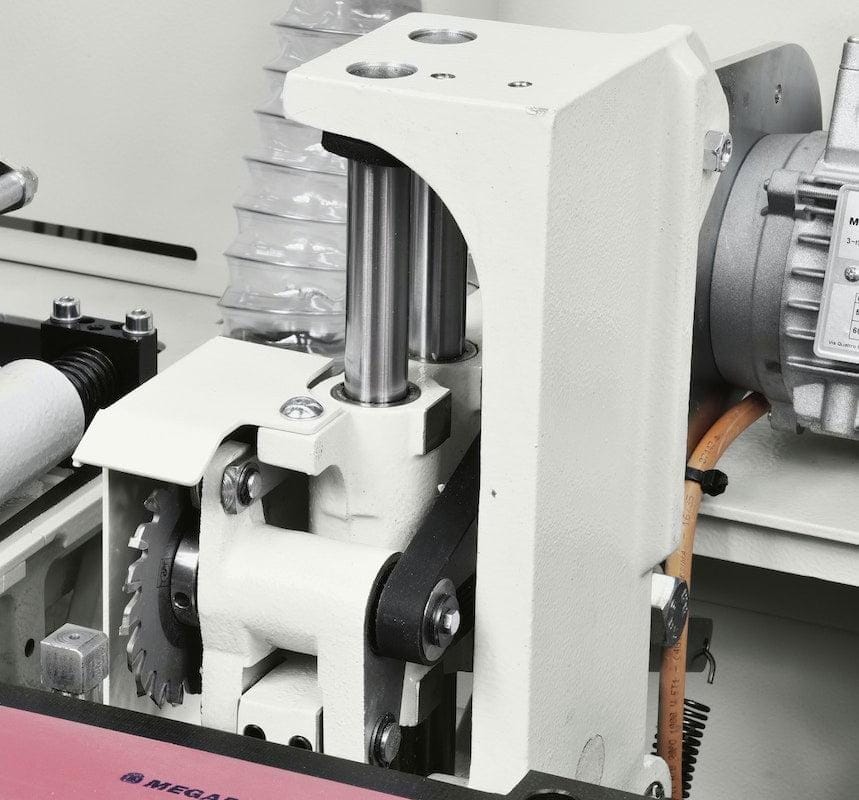

End Saw unit WITH RADIUS FUNCTION
Inline top + bottom trimming unit

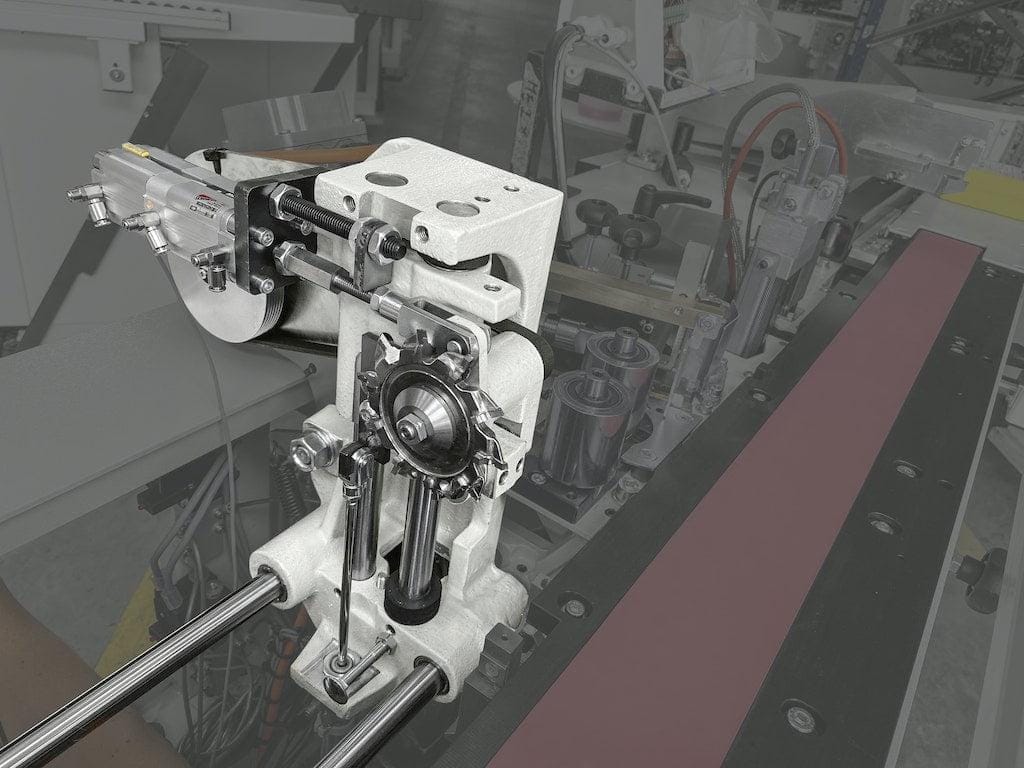

Radius scraping
Flat glue scraping
Edge kit to apply 5mm lippings

Additional Information
