SCM Centauro R800-RVP210 Bandsaw Resaw
Original price was: £22,950.00.£19,950.00Current price is: £19,950.00.

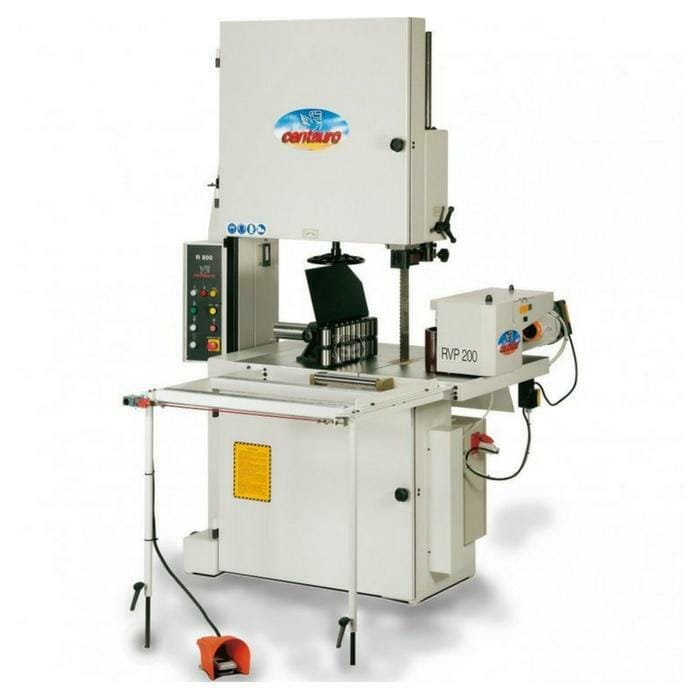

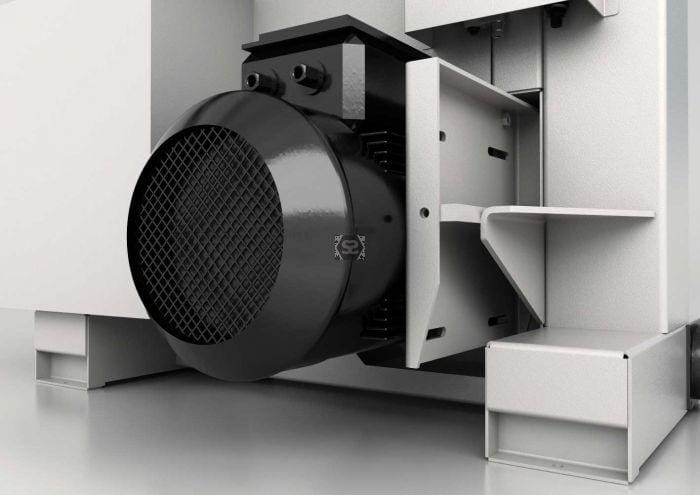

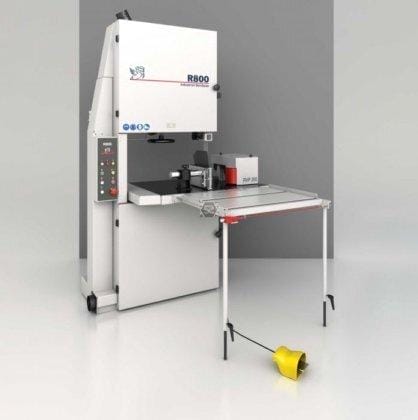

The SCM Centauro R800-RVP210 Bandsaw Resaw is a heavy-duty bandsaw resaw machine composed of solid cast iron wheels, a massive 15kW motor, reliable safety features and a flexible tilting table. The R800 comes as a completely solid, rigid, electric-welded steel structure that will give you years upon years of top-quality service.

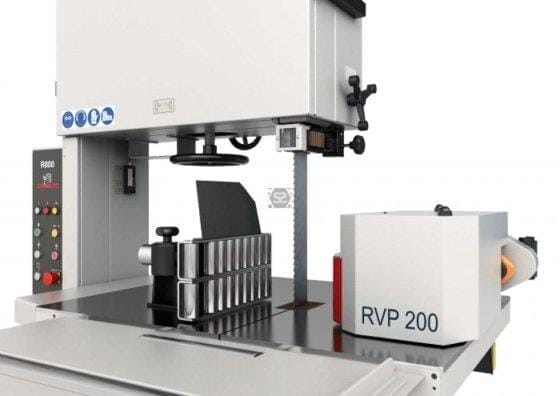

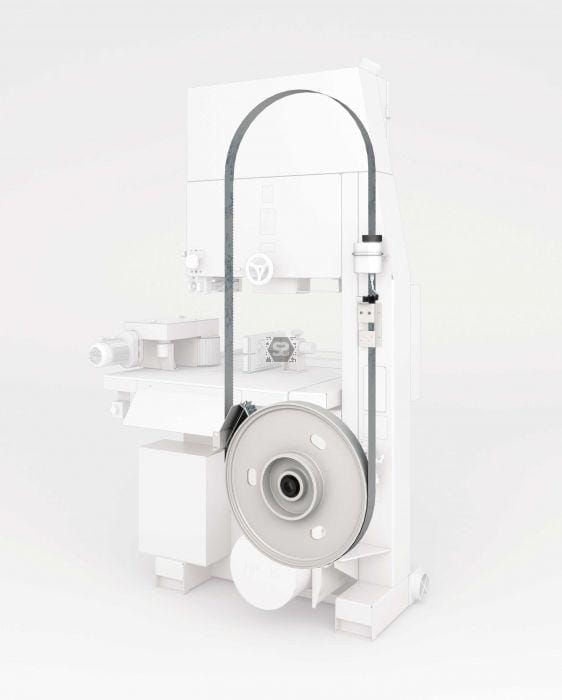

The operator is granted an excellent level of control via the RVP 210 feeder that has semi-automatic opening/closing with a foot pedal. The cast-iron disc band wheels are thickened to ensure maximum cutting efficiency. The wheels are also mounted on sealed bearings for total protection.
Features include:
- Pneumatic wheel braking
- Motor protection switch

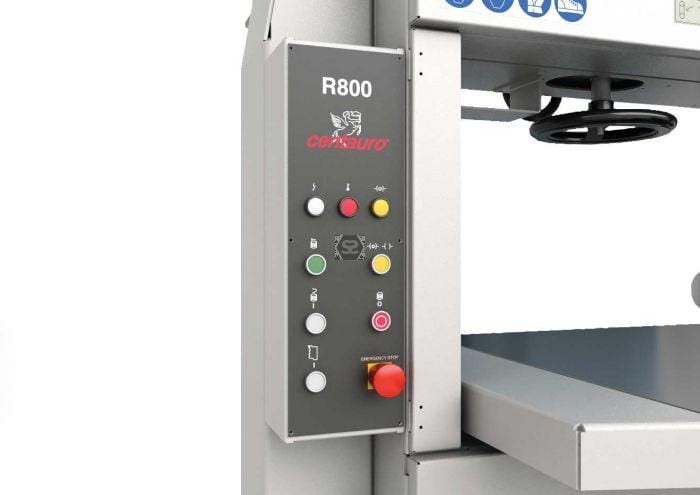

- Front and rear emergency pushbuttons
- Front infeed rollers with emergency protection cable (supplied exclusively with the CE version of feeder)
- Safety micro-switches to doors
- Safety micro-switches to footbrake
- Steel table capable of tilting up to 15 degrees

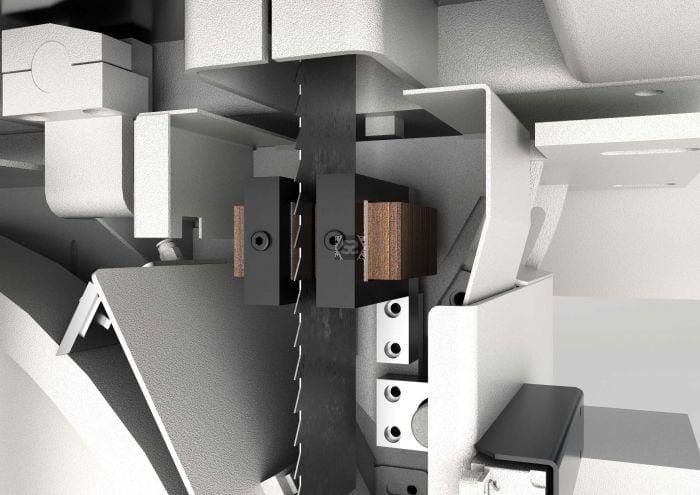

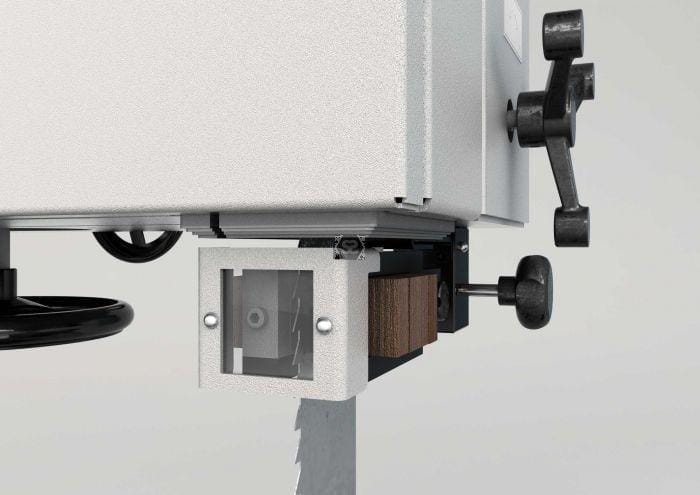

- Top and bottom guide with wooden blocks
- Friction rack-pinion and telescopic blade guard
- Cleaning scrapers on wheels
- Saw blade tension indicator
- Saw blade cleaning felt with diesel-oil tank
Product Features
Specifications
Wheel diameter 800 mm
Max under guides 400 mm
Max Opening Blade to Feed 190 mm
Max Opening – Blade to Fence 210 mm
Max Blade Width 80 mm
Blade Length 5530-5380 mm (18’1″)
Blade Speed 28.5 m/min
Table Height 950 mm
Floor Area 2220 x 1550 mm
Weight 700 kg/td>
Air Pressure 6-8 Bar
motor Power 15kw 20hp
Feeder Type RVP 210
Height of Feed Roller 160 mm
Diameter of Roller 237 mm
Feed Speed 3.5-35m/min
Overall height of machine 2480mm
