SCM Class PX350i Panel Beam Saw with Mobile Carriage – Tilting Blade

Original price was: £26,890.00.Current price is: £23,700.00.

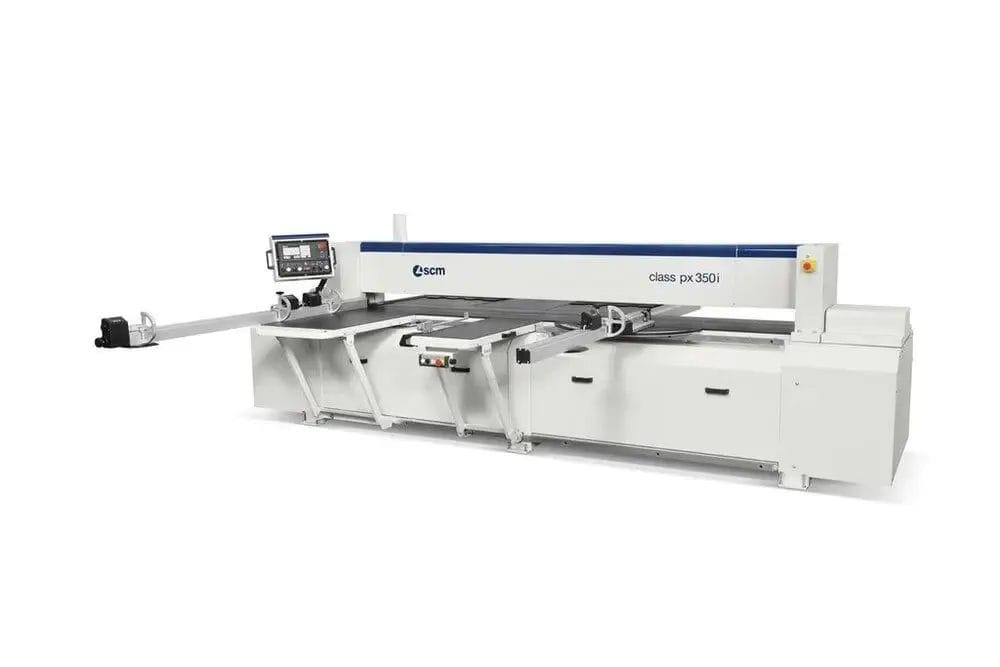

The heavy-duty SCM Class PX350i Panel Beam Saw with Mobile Carriage – Tilting Blade is a high-end panel saw that delivers outstanding levels of robustness, functionality, design and ergonomics.

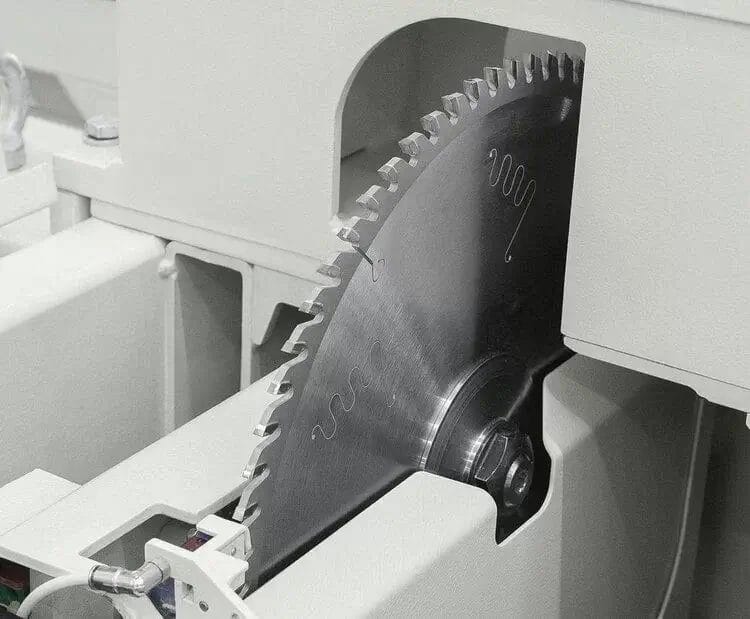

With the brand-new saw unit, veneered and wood panels can be cut flawlessly with ease.

The telescopic squaring fence is both highly ergonomic and sturdy, it makes for simpler, more effective squaring of panels up to 2500x3000mm.

With the help of the “Ready” mobile control panel, adjustments can be made easily and ergonomically based on your preferences.

Ensuring quick and precise positioning of the workpiece, the double-powered, programmed rear stop makes for stable machining and vastly minimises the chances of a defective finish.

Browse our other panel saws here.

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

  • Beam Stroke 2600, 3200 or 3800mm
  • Cutting Width to the Rear 1300mm
  • Max Blade 350mm
  • Max Depth of Cut 105mm
  • Blade Tilting 0 – 45°
  • Max Feed Speed of the Carriage 40m/min
  • Extended rear table with double motorised stops now standard
  • increased motor power 7.5kw now standard
  • 1350mm x 400mm mobile front extra support table now standard

OPTIONS AVAILABLE

  • 3200mm Squaring fence with 2 x LCD STOPS
  • Mitre Fence attachment
maximum squaring strokemm260032003800
blade tiltingmm0÷46
maximum saw blade diameter (cutting)mm350
maximum saw blade diameter (engraving + cutting)mm300
max. saw blade projection (D350) from table at 90°/45mm105/72
max. saw blade projection (D300) from table at 90°/45°mm80/50
blade rotation speedgiri/min4000
cutting width on rear fencemm1300
Other technical features
three-phase motor7,5 kW 50 Hz
(5,5 kW 60 Hz)
exhaust hoods diametermm120 (1) – 100 (2)
overall dimensionsmmL 3859
L 3196
H 1368
L 4459
L 3196
H 1368
L 5059
L 3196
H 1368
