SCM Panel Saw Model Nova Si X

POA

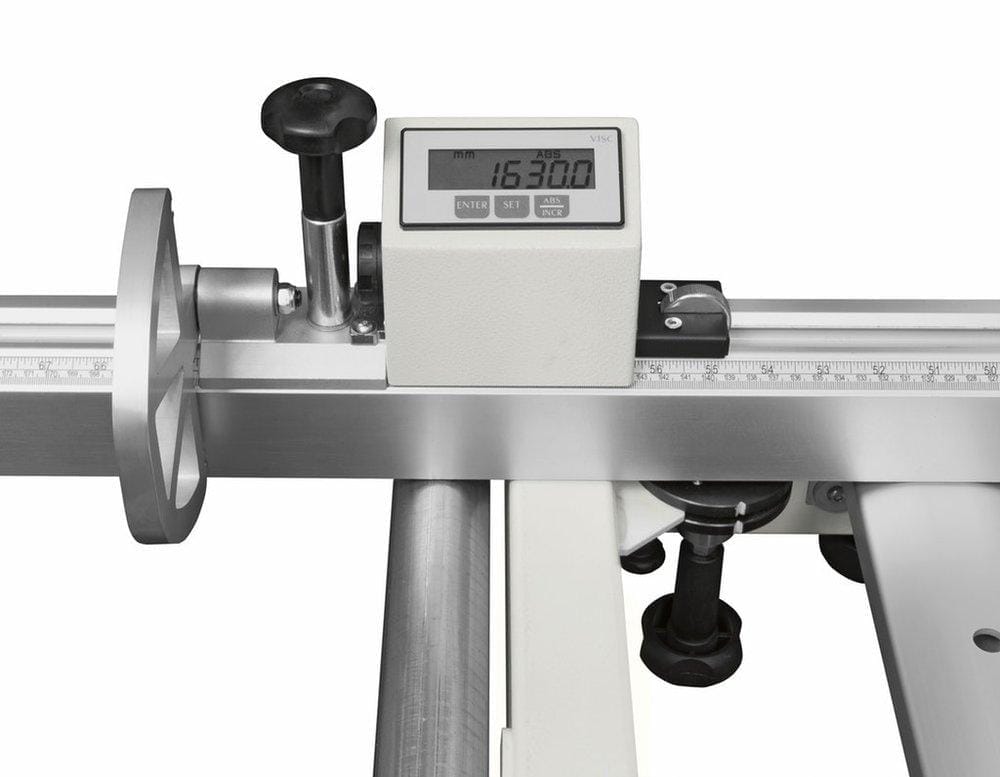

For ease of use and ergonomics, the SCM Panel Saw Model Nova Si X features a manual lifting and tilting function for the saw unit, all located on the operator’s side of the machine. The mechanical readout for the saw tilt makes for excellent precision when cutting and also makes for easy, simple cutting.

For ease of use and ergonomics, this panel saw features a manual lifting and tilting function for the saw unit, all located on the operator’s side of the machine. The mechanical readout for the saw tilt makes for excellent precision when cutting and also makes for easy, simple cutting.

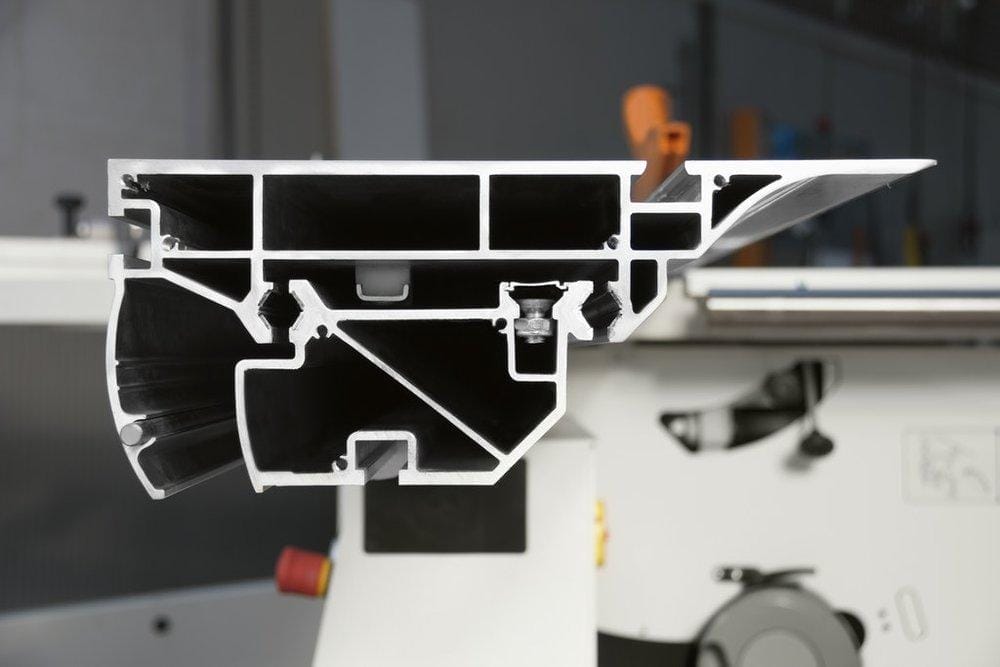

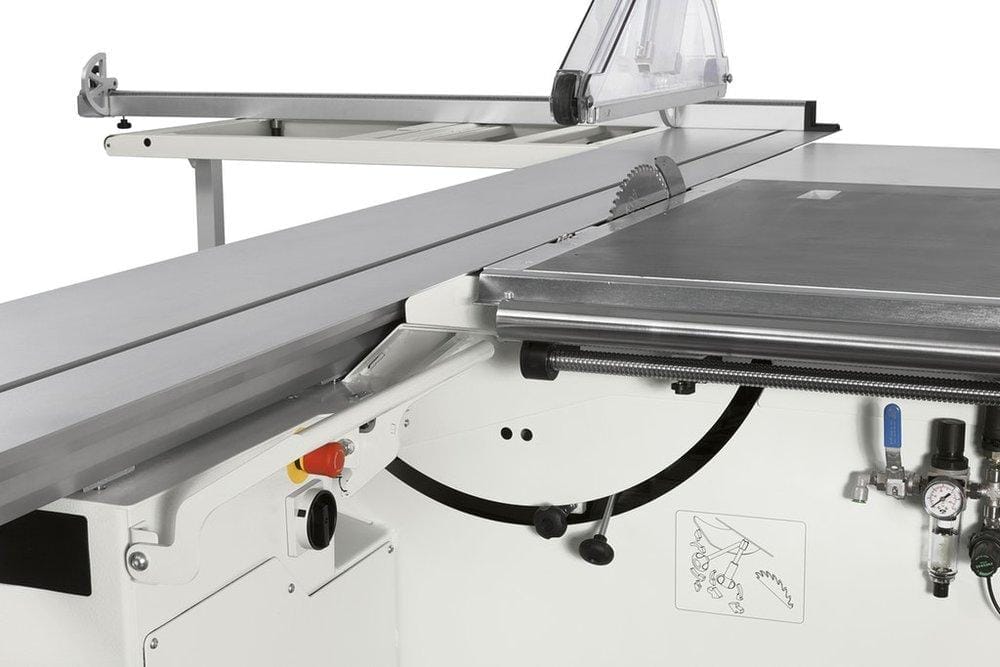

The 360mm wide sliding table allows for optimal support of workpieces in a range of sizes. The guides are secured with aluminium riveting instead of glue as a means to prevent any sliding issues caused by the thickness of the glue.

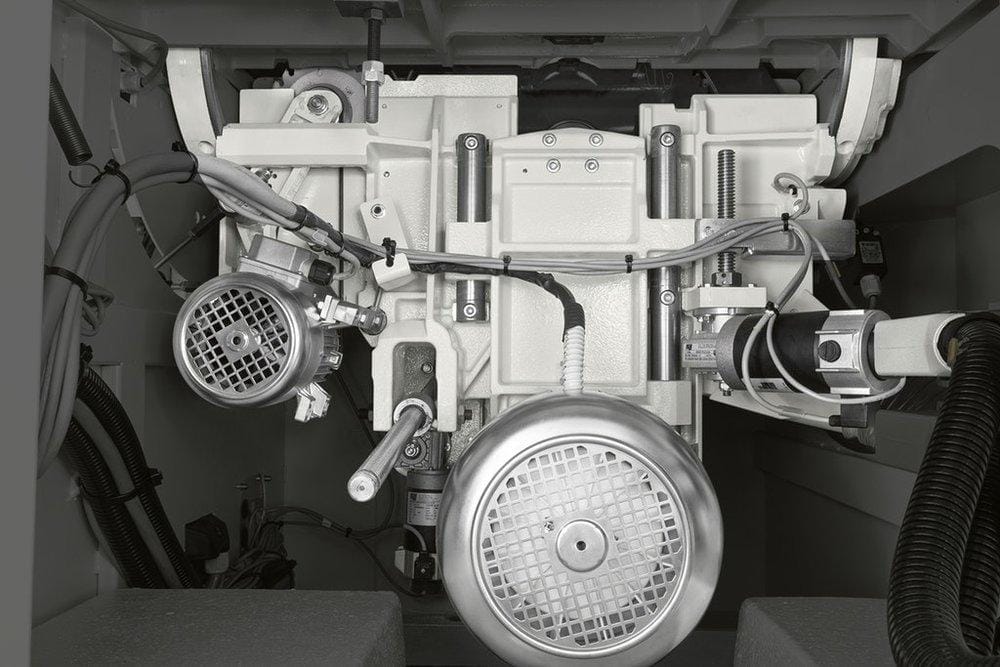

The closed loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.

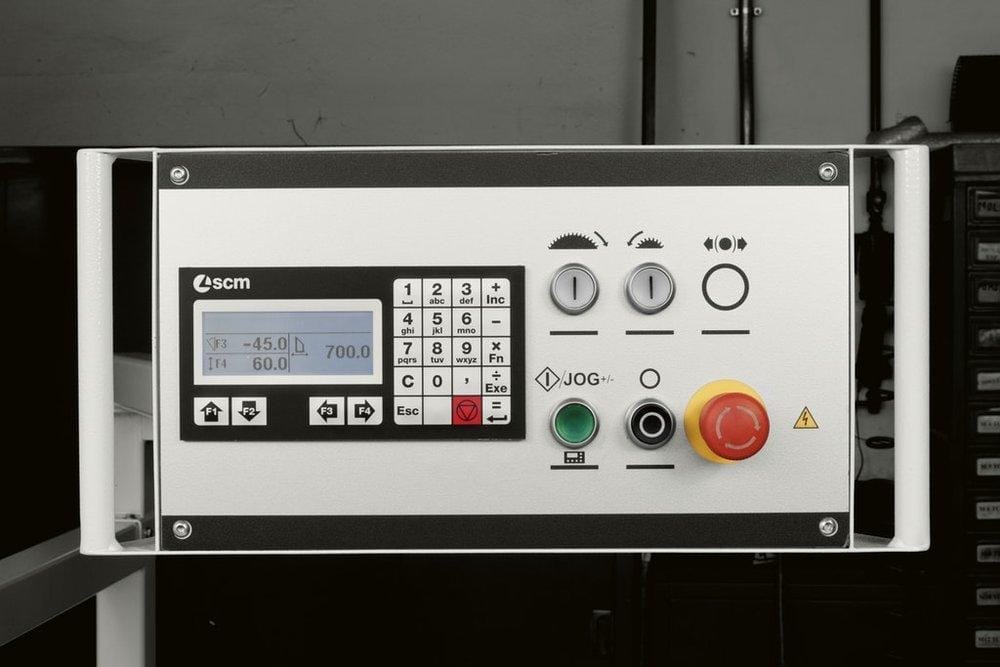

Settings and adjustments can be easily controlled thanks to the 4” LCD screen.

Browse our other panel saws here.

Out of stock

In Stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Maximum saw blade diameter
with scoring unit installed mm 400
Max. sawblade projection from table at 90°/+45°/-45°mm 136/97/60
Cutting width on parallel fence mm 1270
Squaring stroke mm 3200÷ kW7

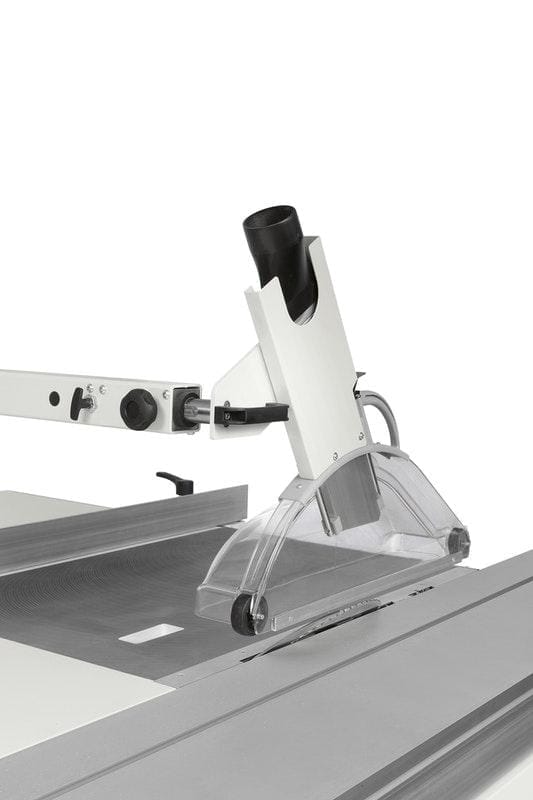

  • (overhead guard shown is optional)
  • Sliding table return 3200mm
  • Maximum blade diameter 315mm d=30mm
  • Scoring blade diameter 120mm d=20mm
  • Main motor power 7 hp
  • Scoring motor power 1.0 hp
  • Ripping capacity 1270mm
  • Sliding table return 3200mm
  • Main blade speed 4000rpm
  • Scoring blade speed 8500rpm
  • Blade tilt 0 – 45 degree
  • Max cutting height @ 90 100mm[315mm blade]Max cutting height @ 45
  • 70mm[315mm blade]
  • Diameter of base exhaust 120mm
  • Diameter of sawguard exhaust 60mm on riving knife;
  • 80mm on overhead guard opt.extra
  • Diameter of guard exhaust tba
  • Machine weight 800kg
  • Support legs only present on machine with 1500mm right hand extension
