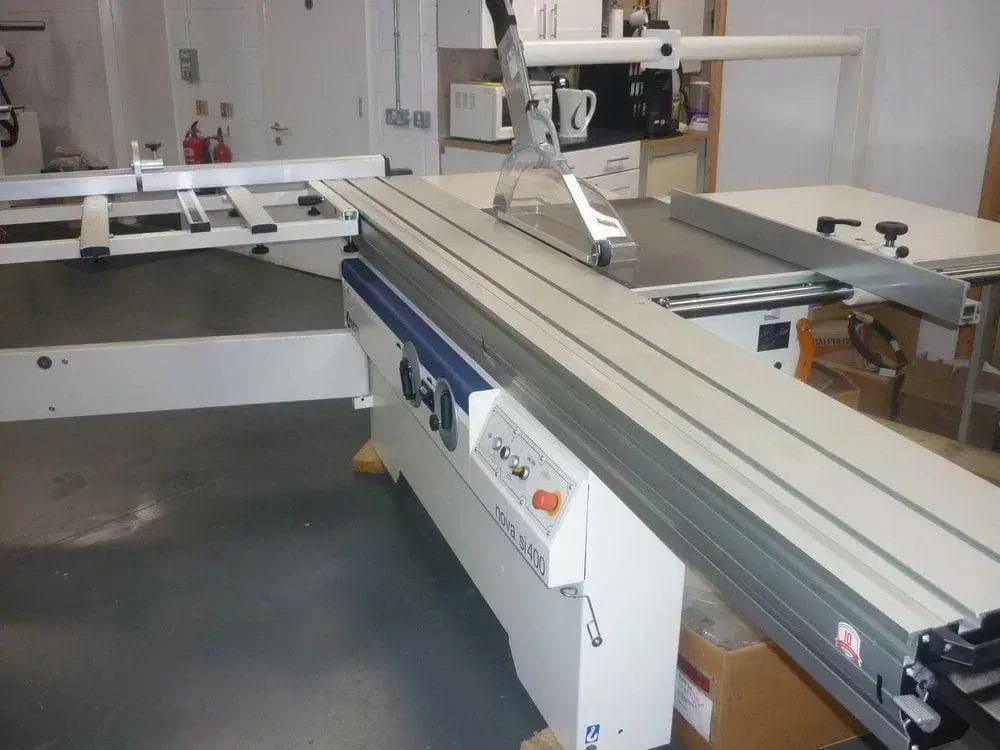

SCM SI300 Nova 3.2m Panel Saw

For professional workshops and demanding craftsmen, the SCM SI300 Nova 3.2m Panel Saw is a powerful and robust machine capable of handling heavy workloads.

The closed-loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.

With sliding bearings running on hardened steel guides, smooth movement during operation is guaranteed. The wide section of the carriage and its closed reticular geometry provides additional rigidity and minimum deflection. Thanks to the dedicated gearbox, fully protected from dust – ease of use is inherent with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel.

With a lengthened sliding table, machining is more flexible, more efficient and more productive.

Specifications

• Blade controls mounted on the front of the machine
• 7.5HP Main motor
• Overhead Guard
• Digital readout for blade tilt position

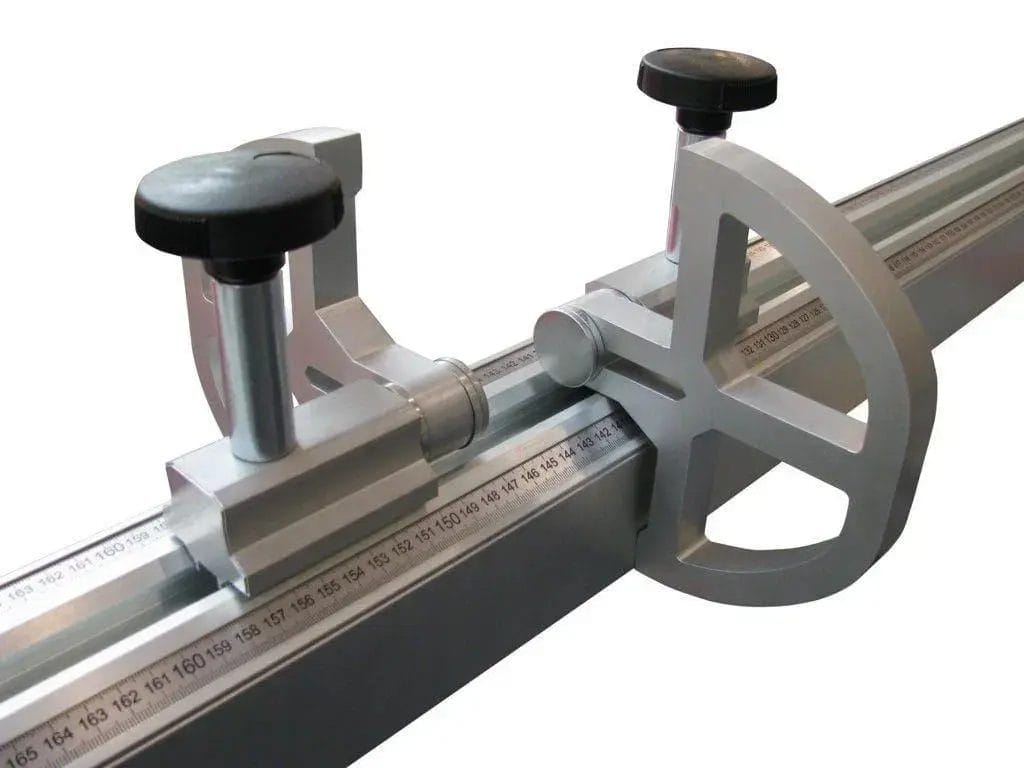

• Telescoping crosscut fence with 3200mm capacity and two flip stops
• External scoring adjustments with memory stops
• Separate motor for scoring

– squaring capacity 3200 x 3200mm
– blade tilt 45 deg
– max cut height 100mm @ 90 deg
– max cut height 70mm @ 45 deg
– motor power main blade 7.5Hp
– motor power scoring saw 1Hp
– saw blade 315mm
specification includes
3200mm Sliding Carriage
Independently powered scoring motor
Ripping capacity on parallel fence 1250mm
Overhead saw guard
