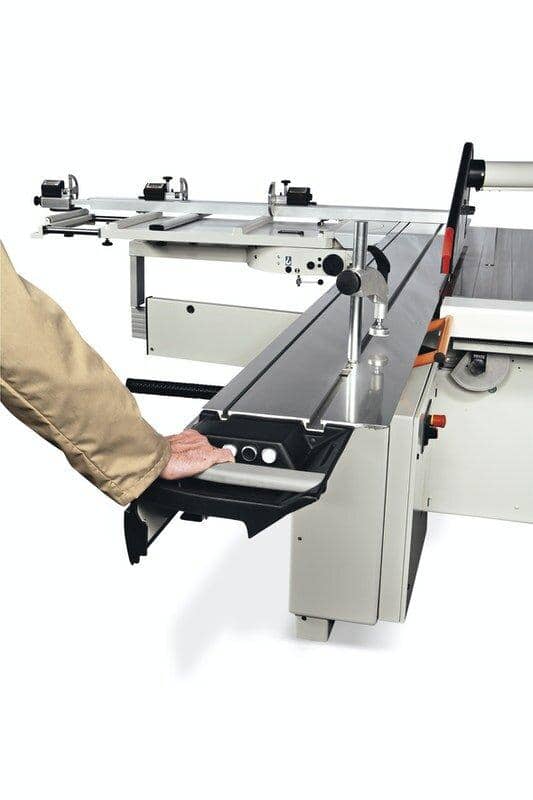

SCM SI400 EP Class Eye-S Programmed Sliding Table Panel Saw

POA

Superior technology combined with an ease of use.

Main functions:

  • Connectivity among machines belonging to the same company network and 4.0 Industry preset
  • Sharing of work programs and tools database
  • Activity monitoring and reporting on the use of the machine
  • Connectivity with SCM Thundercut (optimizer/sequencer App)
  • Self-diagnosis, tele-service and link to troubleshooting

Advantages

New suspended protection:

  • vertical sliding of the protection hood through “cage ball guide” (ricircolo di sfere)
  • wheels on protection hood to facilitate the overriding of the workpieces
  • improved suction capacity
  • cutting line laser projector

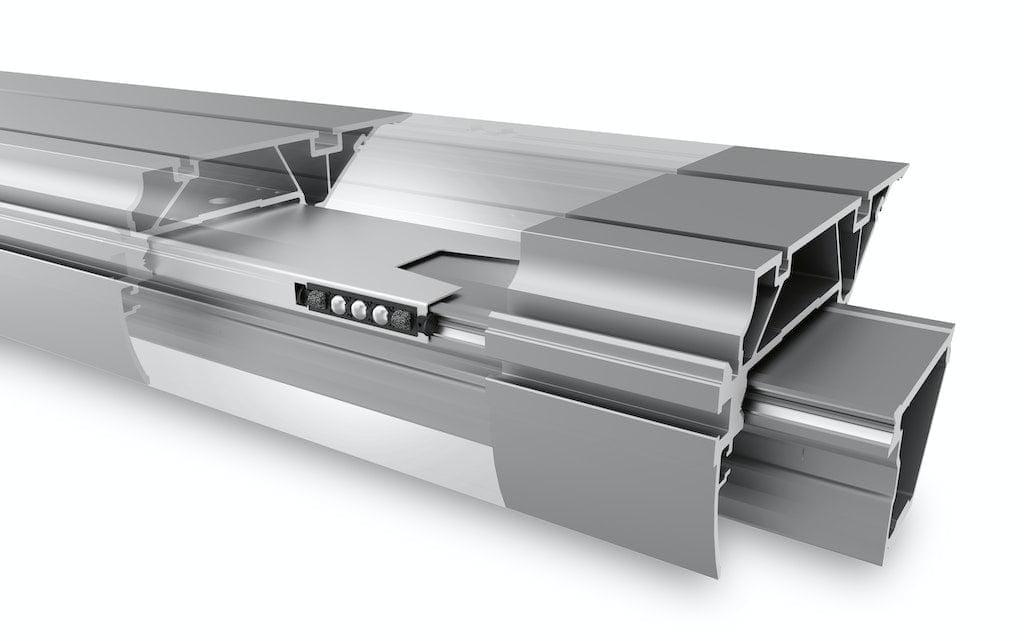

Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).

“eye-S” console
The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 10” colour touchscreen display and the Maestro active user interface.

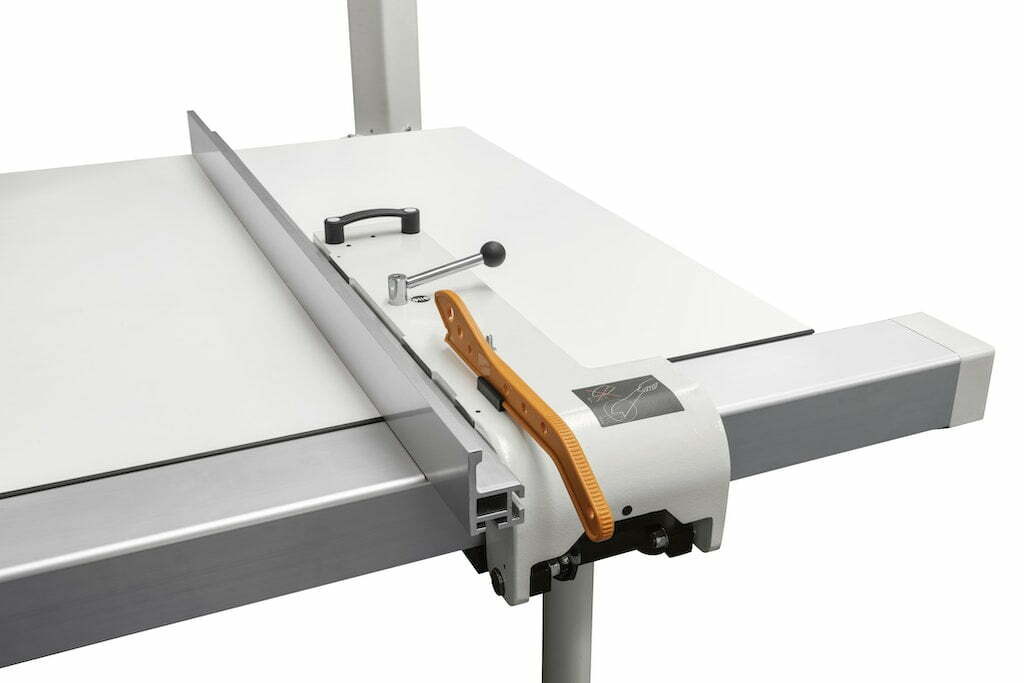

Speed and precision ensured by the motorised programmable rip fence mounted on a recirculating ball screw mechanism with sliding on linear guides.

Class si 400ep
Max. saw blade diameter with mounted scorermm / inches400 /
Maximum saw blade projection from table to 90°/45°mm / inches140/
Cutting width on rip fence (Rip capacity)mm / inches1600 /
Max. squaring stroke of sliding table sawmm / inches3200 /
Three-phase motorHp12

EYE-S VERSION

eye-S 3 UP PLUS CE and USA/Canada version Complete with:

 mobile control panel easy to be reached from operator’s side

 “eye-S 10” electronic control

 direct control of the following working axes with manual, manual incremental, semi-automatic, automatic mode: * main blade lifting * saw blades unit tilting, * parallel fence movement,

 operator’s help function for the carrying out of complex cutting

 storage capacity up 1000 programs with relevant picture

 storage capacity up 1000 different tools with relevant picture

 cut sequencer of the pre-loaded parametric working programs

 environment for the creation and storage of the new sequenced working programs

 automatic acquisition of work quotas from the Thundercut App

 USB port

 pre-set for network connection

 Powered parallel fence controlled by CN

 position readout on encoder

 adjustment by means of recirculating ball screws

 continuously adjustment by means of pushbuttons or automatic positioning

 Possibility of incremental positioning

 Automatic set up

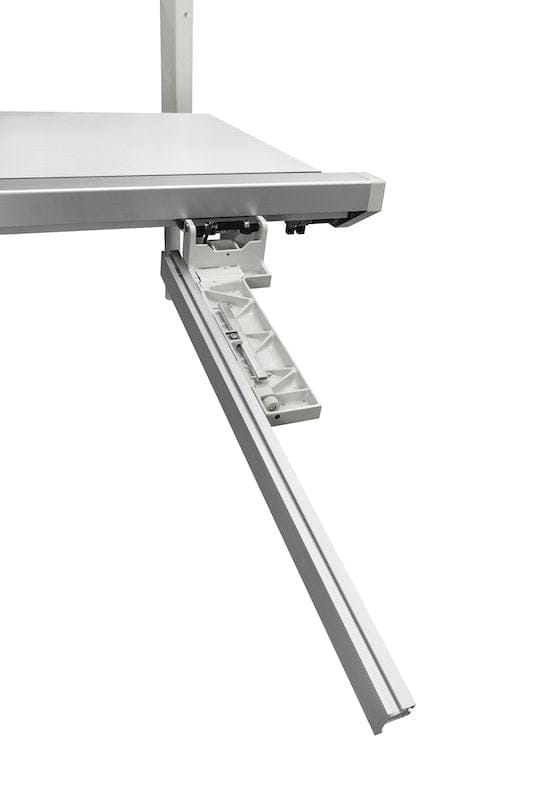

 total exclusion of fence under the worktable

 1600mm cutting width

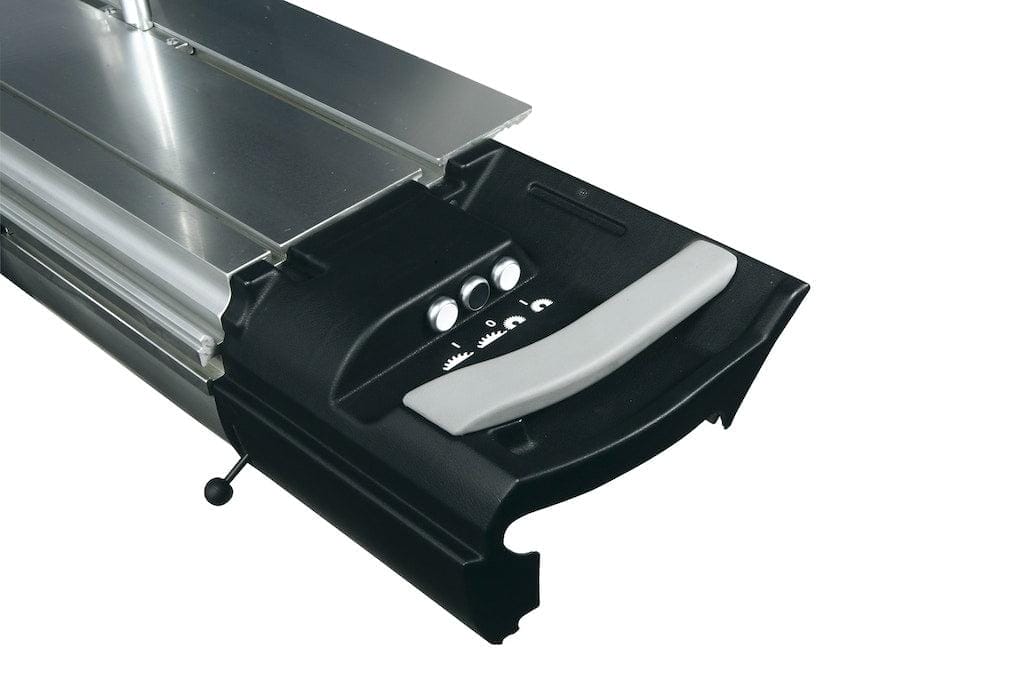

 Start/stop pushbuttons Motor start/stop pushbuttons on the sliding carriage for saw and scoring – S

ADDITIONAL OPTIONS INCLUDED

2 AXIS SCORING UNIT

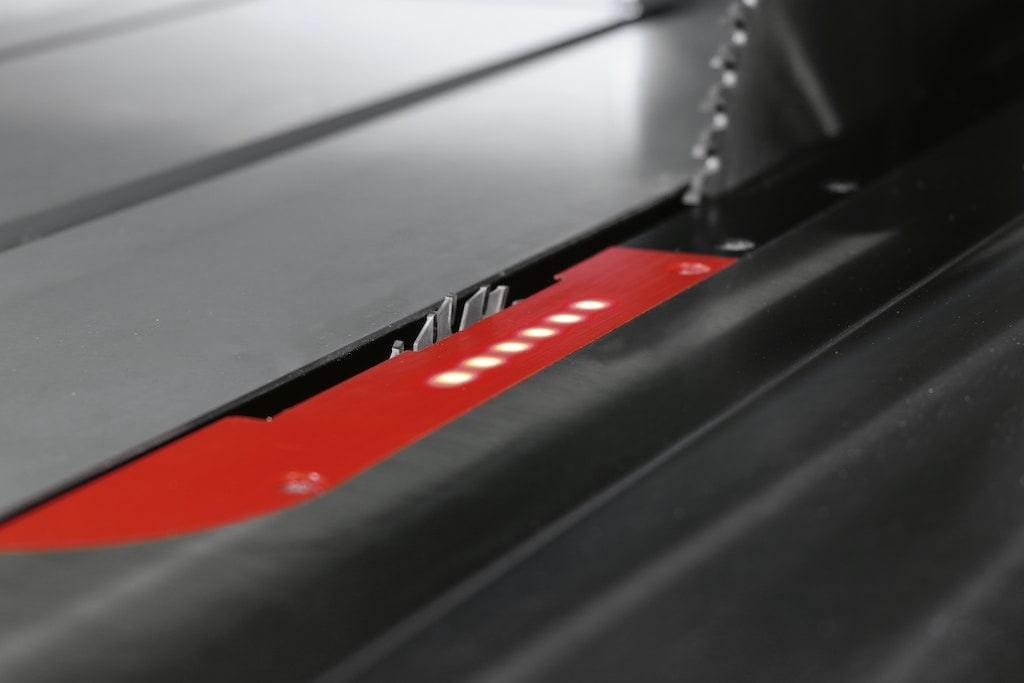

LED SCORING LIGHT

3 X LCD STOPS TO SQUARING FENCE

UPRATED 9KW – 12HP MAIN MOTOR

Out of stock

In Stock

Expected 28/10/2023
