SCM Profiset 40 4 Sided Planer

£15,550.00

Combining a spindle moulder, planer and thicknesser all in one safe and ergonomic machine – the high-quality and robustness of SCM’s engineering are present more than ever in the SCM Profiset 40 Planer. Without taking up a great deal of space, the Profiset 40 is an excellent choice for smaller to mid-sized workshops.

Cost-effective, safe and efficient, the Profiset 40 makes for the effortless, yet high-quality production of straight-planed, profiled timber and more. Feeding has been greatly improved with the addition of an idle roller placed on the outfeed table – a standard feature of industrial machines. The feed speed can be set with ease with one push of a button.

Ease-of-use and a great degree of control are within arms reach of the operator thanks to the ergonomically located control panels. This focus on ergonomics allows for a more efficient operating process and makes for smooth, stable movement of the workpiece.

The addition of electronic controls makes for the automatic positioning of the left vertical spindle and top horizontal spindle. Feed speed can also be programmed and adjusted with the controls which allows for more effective management of the feed speeds.

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

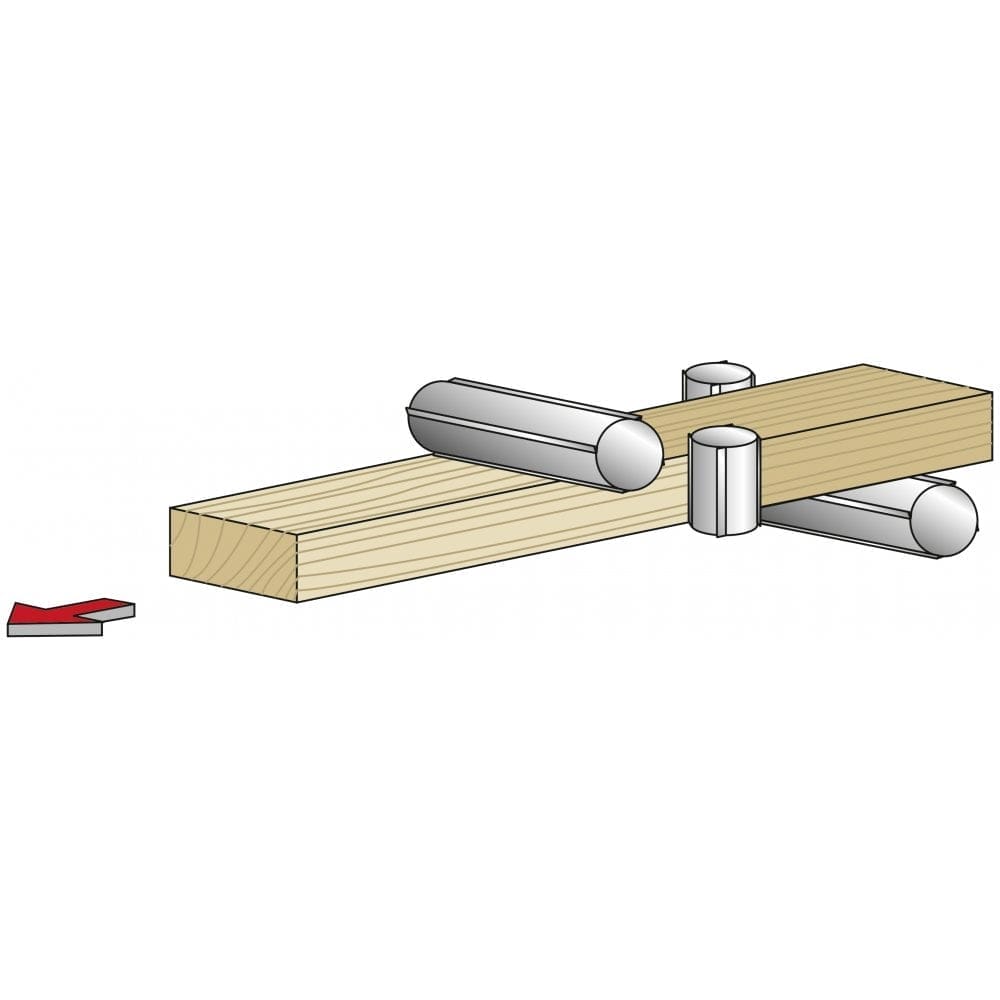

  • Automatic 4 head through feed planer
  • Capacity 180 x 105mm
  • Powered feeding group before surfacer
  • Tersa cutter block
  • 1.7m infeed table (2.3m option available)
  • Min Working width 23mm
  • Max working width 180mm
  • Min working height 6mm
  • Max working height 105mm
  • Feed speed 6-12m/min
  • Spindle speed 6000 rpm
  • Spindle dia 35mm
  • Infeed table length 1700mm
  • Motor 1 & 2 10hp
  • Feed motor 1hp
Min./max. working width (finished section)mm25 (15 opt.)/230
Min./max. working height (finished section)mm6/120
Feed speedm/min
Feed speed (variable with inverter)m/min5/25
Spindles speedrpm6000
Axial adjustment of spindles with respect
to the worktable
mm40

Additional Information
