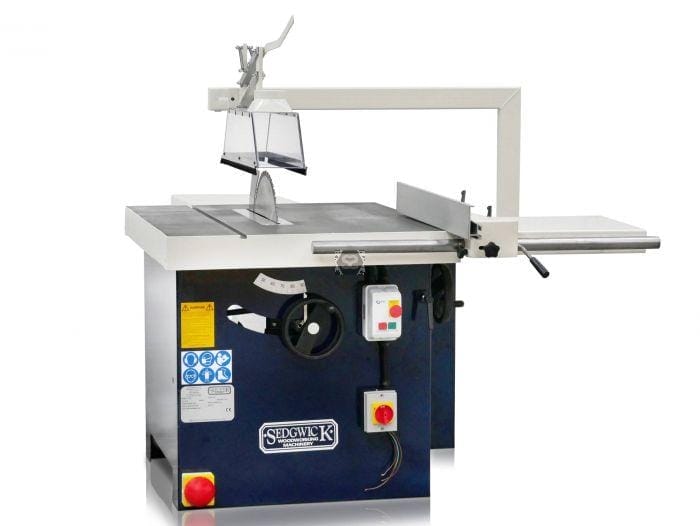

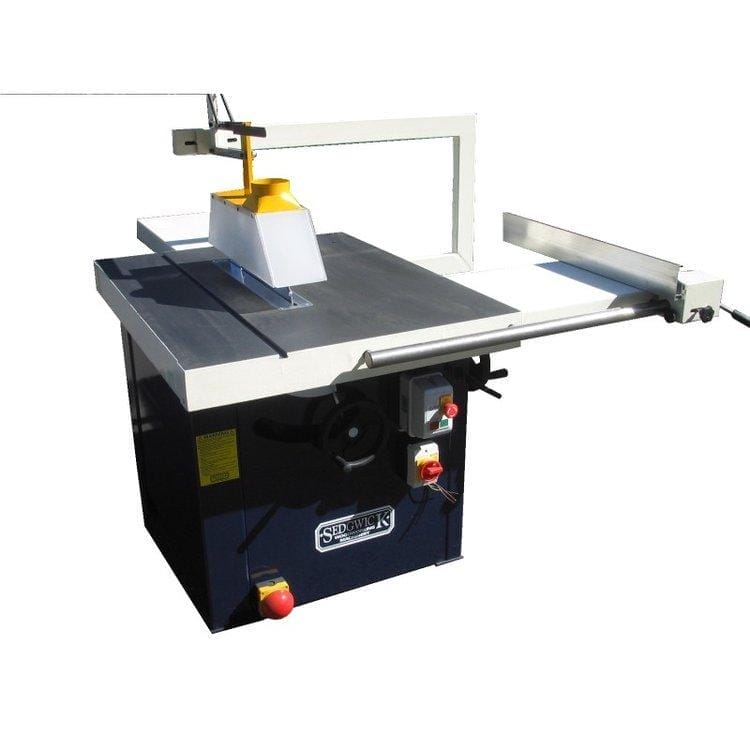

Sedgwick TA450 Tilting Arbor Sawbench

Original price was: £7,100.00.Current price is: £6,035.00.

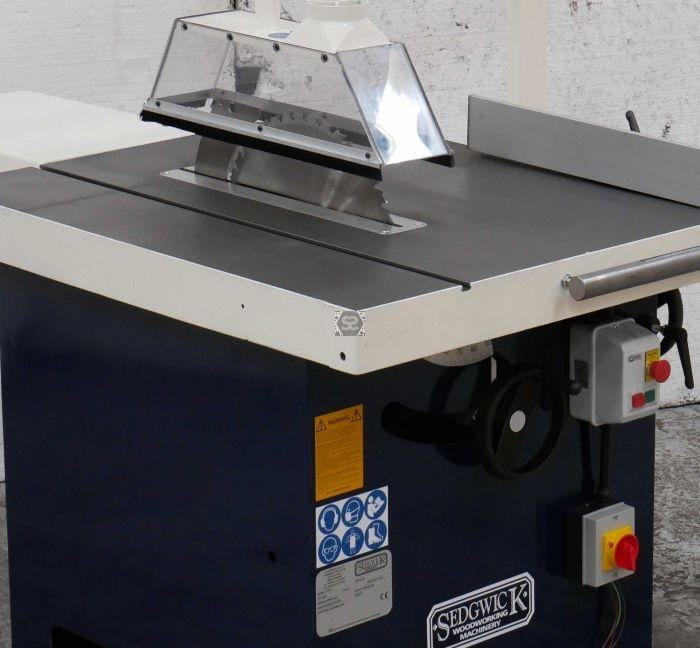

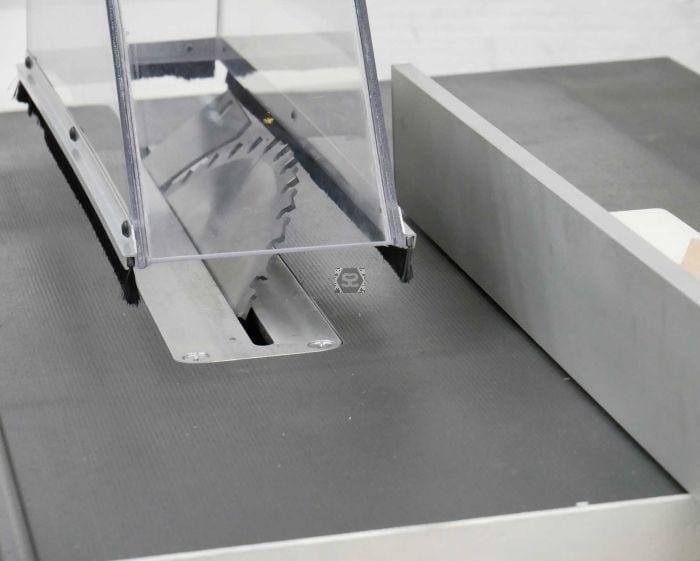

Packing both a tilting arbour and a reliable, high-powered 7.5hp induction motor, the Sedgwick TA450 Tilting Arbor Sawbench is a heavy-weight saw bench that few competitors can match. As well as robust construction, precision engineering and top-quality components – the latest feature is an impressive overhead crown guard, making for safe operation and efficient work.

The cast iron rip fence slides freely along its graduated rail and locks in rigidly while the conveniently positioned handwheels allow for the precise adjustment of height and tilt. The spindle is powered via a highly efficient motor with a three belt drive whilst minimal maintenance is guaranteed by the bearings.

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

CE Conformity

3phase

Max. Cutting Height At 90° 155mm (450mm Blade)

Blade Tilt (Degrees) 90-45° Max.

Cutting Height At 45° 105mm

Blade Lift & Tilt Manual

Rip Fence Capacity 915mm

Cross Cut Capacity 620mm

Main Motor Power 5.5KW (7.5HP)

Main Blade Rotation Speed (RPM) 3000

Basic Machine Weight 425kg



  • Maximum saw blade diameter 450mm
  • Blade dimensions 30mm bore, 14mm pin @ 25mm ctrs
  • Maximum depth of cut @ 90 155mm
  • Maximum depth of cut @ 45 105mm
  • Spindle speed 3000rpm
  • Tilting blade 0 – 45 degrees
  • Motor power 5.5kw (S1) 7.5hp
  • Voltage 415v
  • Size of main table 1125 x 1000mm
  • Height of table 855mm
  • Distance saw to fence 915mm
  • Fence with micro adjustment 825 x 75mm
  • Dust extraction outlet to base 125mm
  • Dust extraction outlet to guard 102mm
  • Total air volume required 1445cmh
  • Weight of machine 575kg
  • Machine equipped as standard with:
  • tct saw blade;
  • CE regulations to European standards;
  • emergency kick-switch
  • Optional accessories:
  • Crosscut table
  • Table size 600 x 350mm
  • Distance saw to fence 620mm
  • Weight 25kg
  • Panel sizing table
  • Table size 950 x 1000mm
  • Distance saw to crosscut fence 1220mm
  • Weight of panel sizing table 95kg
  • Right hand extension table
  • Table size 800 x 600mm
  • Distance saw to rip fence 1220mm
  • Weight of right hand
  • extension table 25kg
  • Rear take-off table
  • Table size 800 x 700mm
  • Weight of rear take-off table 15kg
  • Other recommended accessories:
  • SW4504430 – Spare tct saw blade
