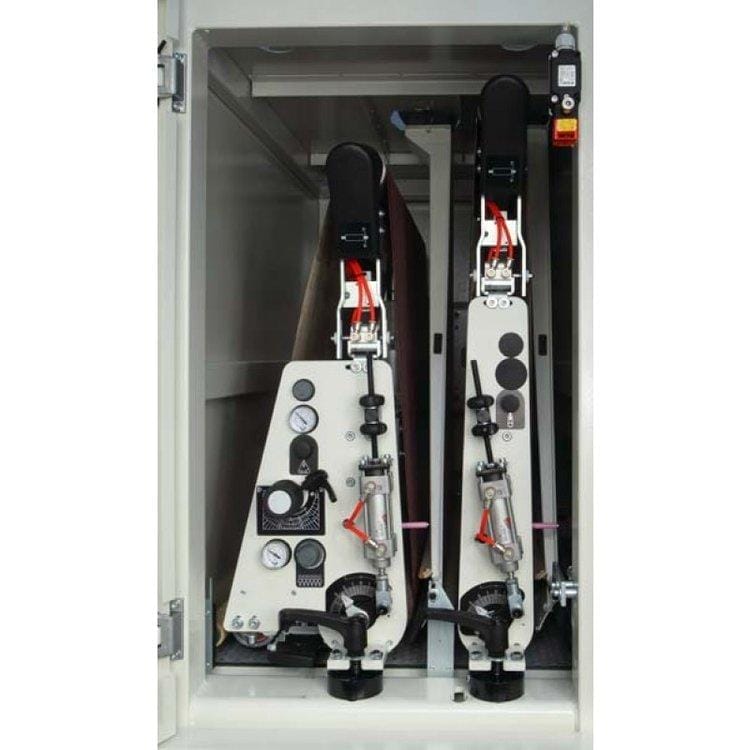

  • Component of the SCM DMC SD30 110 Twin Belt Roller - Combined Roller-Pad Sander

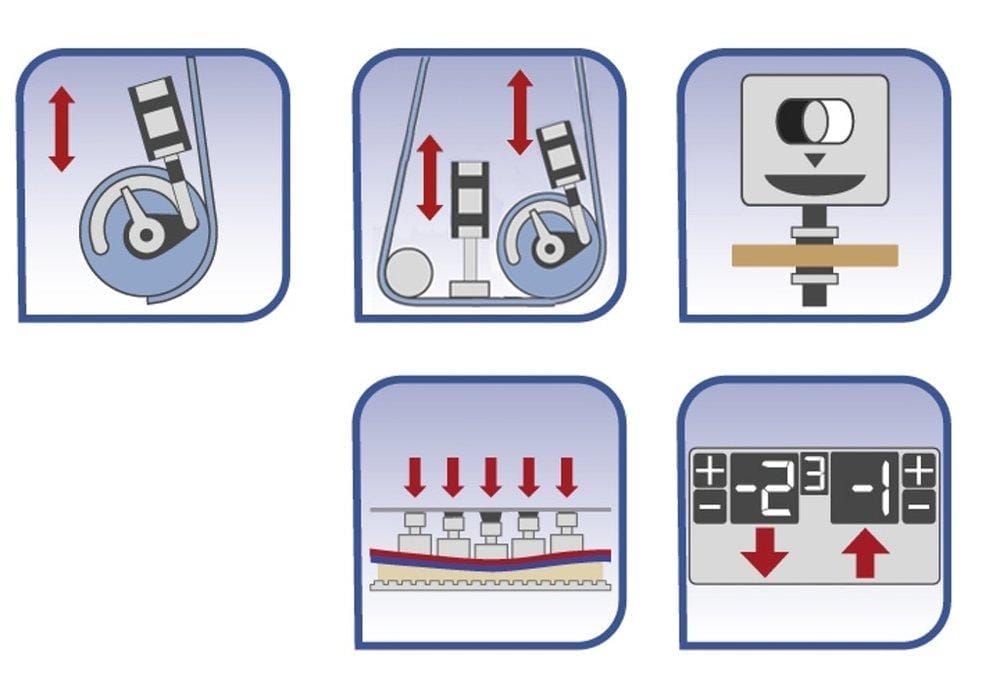

  • Diagram of the SCM DMC SD30 110 Twin Belt Roller - Combined Roller-Pad Sander
  • Component of the SCM DMC SD30 110 Twin Belt Roller - Combined Roller-Pad Sander
  • Component of the SCM DMC SD30 110 Twin Belt Roller - Combined Roller-Pad Sander

SCM DMC SD30 RCS110 Twin Belt Roller - Combined Roller-Pad Sanding Machine

For all of your calibration or fine sanding requirements, the SCM DMC SD30 110 Twin Belt Roller – Combined Roller-Pad Sanding Machine should prove the perfect solution to your needs.

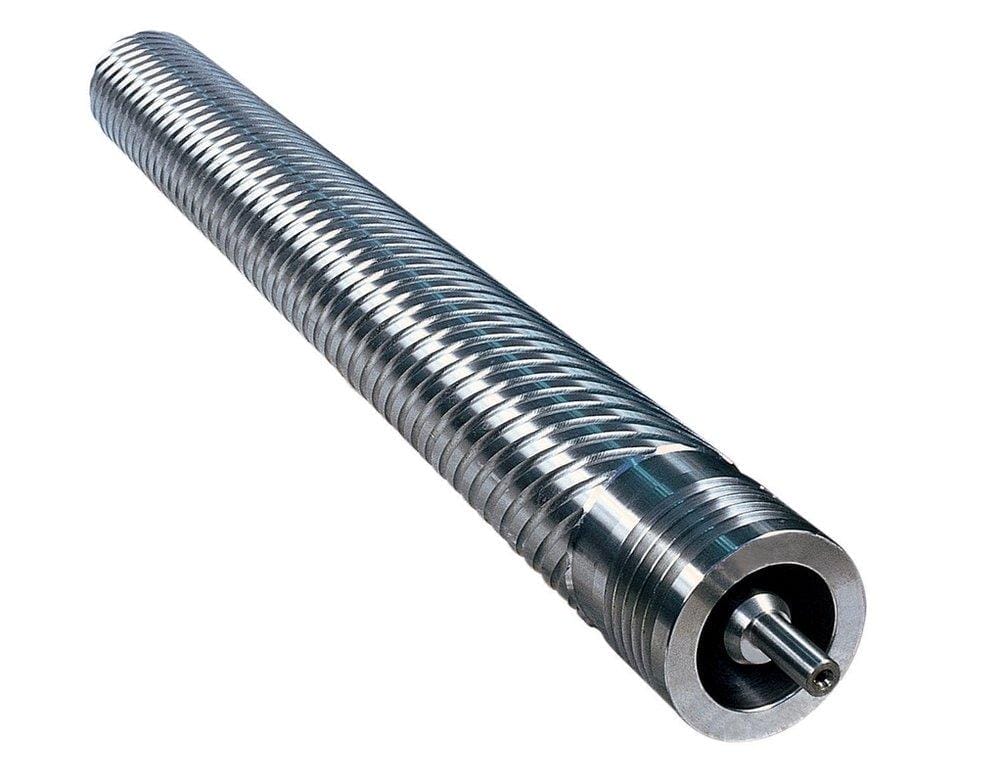

Featuring a large, heavy frame, a steel calibrating roller and a long sanding belt length – both the performance of the machine and the quality of the product it produces will be greatly elevated. The demands of high production machines can be satisfied by the compact wide belt whilst eliminating the need for such costs.

SKU New SCM DMC SD30 110 Twin Belt Roller Categories ,

POA

+VAT

Request Quote

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

For all of your calibration or fine sanding requirements, the SCM DMC SD30 110 Twin Belt Roller – Combined Roller-Pad Sanding Machine should prove the perfect solution to your needs.

Featuring a large, heavy frame, a steel calibrating roller and a long sanding belt length – both the performance of the machine and the quality of the product it produces will be greatly elevated. The demands of high production machines can be satisfied by the compact wide belt whilst eliminating the need for such costs.

For all of your calibration or fine sanding requirements, the SCM DMC SD30 110 Twin Belt Roller – Combined Roller-Pad Sanding Machine should prove the perfect solution to your needs.

Featuring a large, heavy frame, a steel calibrating roller and a long sanding belt length – both the performance of the machine and the quality of the product it produces will be greatly elevated. The demands of high production machines can be satisfied by the compact wide belt whilst eliminating the need for such costs.

Specifications

1st Group ‘R’ Roller

2nd Group ‘CS’ Roller / Pad

Working Width 1100mm

Min working thickness 4mm

Max working thickness 170mm

Sanding belt width 1115mm

Sanding belt length 1900mm

Main Motor Power 25Hp

Feed belt speed 4,5/9 m/min

‘B’ Version for RCS 110

With on/off group selectors

‘Mesar’ Elastic sectional pad

‘Logic 50K’ electronic programmer

Electronic positioning for the worktable



Base and working table

* steel structure with electric cabinet on the machine front

* access to change sanding belts introduction from the machine left side

* powered adjustment of working thickness

* main motor positioned inside the base



Electrical equipment

* electromechanical keyboard positioned on the machine front side

* automatic star-delta start of the main motor

* overload protections on the motors

* motors in isolation class IP54



Emergency and safety devices

* automatic brake for rapid shutdown of the operating group

* hand-safety emergency device in the infeed panel area

* front and rear emergency push button

* pad-lockable main switch

* safety micro for over thickness



* automatic emergency stop machine for:

– sanding belt breaking

– not-tensioned sanding belt

– lateral outplacement of sanding belt

– absence of compressed air

– overload on the main motor

Specifications

1st Group ‘R’ Roller

2nd Group ‘CS’ Roller / Pad

Working Width 1100mm

Min working thickness 4mm

Max working thickness 170mm

Sanding belt width 1115mm

Sanding belt length 1900mm

Main Motor Power 25Hp

Feed belt speed 4,5/9 m/min

‘B’ Version for RCS 110

With on/off group selectors

‘Mesar’ Elastic sectional pad

‘Logic 50K’ electronic programmer

Electronic positioning for the worktable



Base and working table

* steel structure with electric cabinet on the machine front

* access to change sanding belts introduction from the machine left side

* powered adjustment of working thickness

* main motor positioned inside the base



Electrical equipment

* electromechanical keyboard positioned on the machine front side

* automatic star-delta start of the main motor

* overload protections on the motors

* motors in isolation class IP54



Emergency and safety devices

* automatic brake for rapid shutdown of the operating group

* hand-safety emergency device in the infeed panel area

* front and rear emergency push button

* pad-lockable main switch

* safety micro for over thickness



* automatic emergency stop machine for:

– sanding belt breaking

– not-tensioned sanding belt

– lateral outplacement of sanding belt

– absence of compressed air

– overload on the main motor
