SCM Minimax Model CU300 Classic Combined Universal

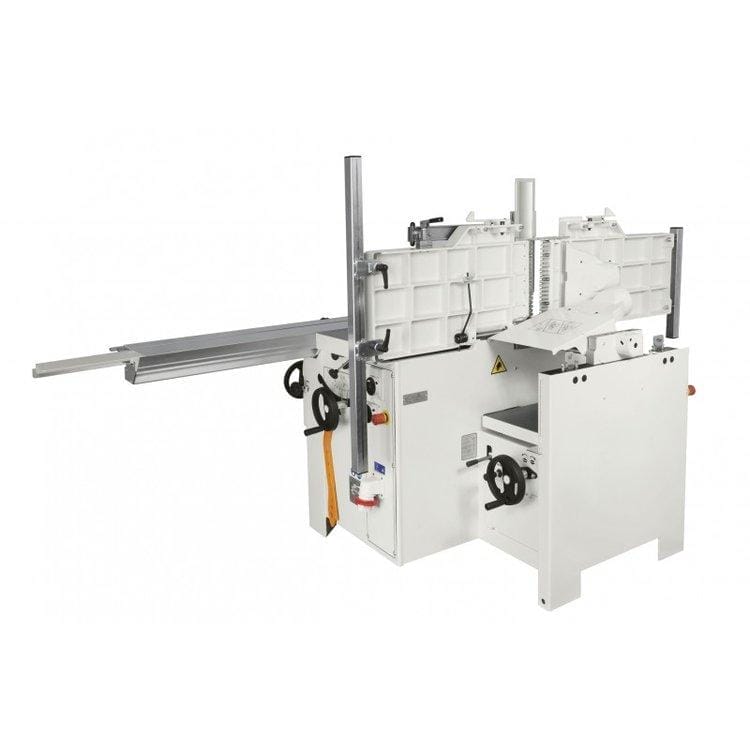

This SCM Minimax Model CU300 Classic Combined Universal combines the functions of a spindle moulder, a 300m surface planer, thicknesser and a sliding table saw into one neatly structured, ergonomic, compact workstation. The alloy sliding table has a 1660mm travel as standard – but can be upgraded to 2250, 2600 or 2800mm to suit your requirements.

With the high standard of Minimax quality combined with an affordable, value-for-money price, this workstation should be an excellent choice for both hobbyists and woodworkers alike. The ease-of-use factor is greatly enhanced thanks to some useful additions: the anodized-extruded guides with support plus rapid locking and an effective, efficient feeding system for the planer. A new scoring unit has also been added which can be adjusted from outside the machine.


  • Incredible cutting of both thick solid wood and panels, even those veneered thanks to the new saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade fitted
  • A new scoring unit that can easily be adjusted from outside the machine, supplied on request.
  • Easier, more precise cutting. Perfectly stable support is guaranteed, even for large workpieces via the 270 mm wide sliding table and the large squaring frame (960 x 600 mm) provided as standard
  • More comfortable thicknessing during the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine with a 90° angle
  • Extraordinary power – the 5kW 6,6hp 50Hz (6kW 8hp 60Hz) three-phase motors are also provided as standard

Out of stock

In Stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.


Technical Specifications

Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Dust Outlet Size


Machines Features



  • 3 PHASE 5kw motors.
  • 2660MM Sliding table stroke (OPTION)
  • Max cut height 90deg. 300mm blade 92mm

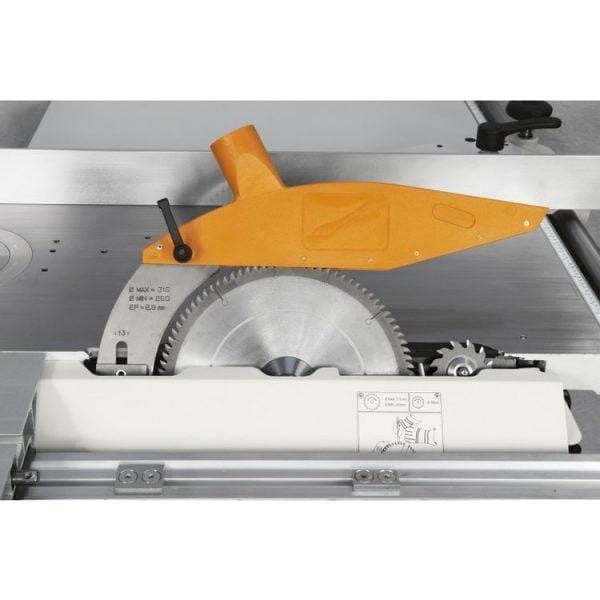

  • Belt driven scorer unit
  • Additional table on sliding table

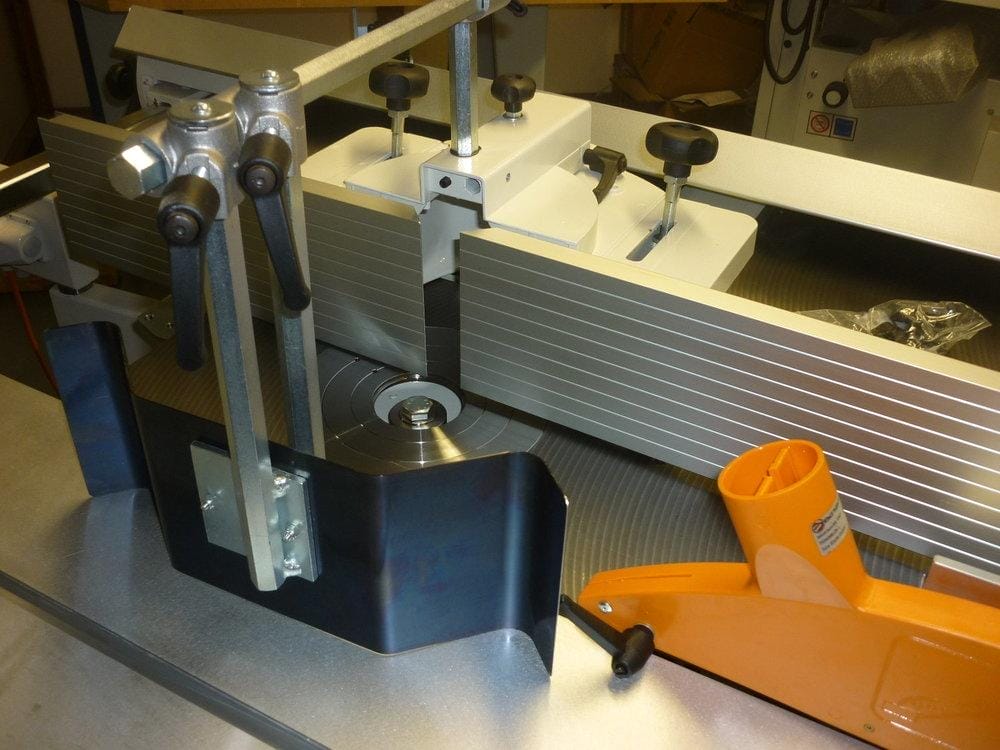

  • Spindle moulder professional fences in Aluminium
  • Reverse rotation
  • 3 speeds 3500/7000, 10,000 rpm
  • Max tool dia 210mm
  • 30mm spindle
  • Tersa cutterblock to planer (OPTION)
  • Planer capacity 300 x 230mm
  • Feed speed p[laner 7 m/min
  • Surfacer table max length 1510mm
  • Surface Planer unit
  • Working width of surface tables 300mm
  • Total length of surface tables 1510mm
  • Cutterblock diameter 72mm
  • No of knives 3
  • Tiltable planing fence 90 degrees-45 degrees
  • Thicknessing unit
  • thicknessing table dimensions 585 x 300mm
  • feeding speed on thicknesser 7m/min
  • Maximum stock removal 4mm
  • Min./max. working height
  • on thicknesser 3 / 230mm
  • Circular saw
  • Saw – spindle moulder table
  • dimensions (fixed spindle) 335 x 1115mm
  • Saw blade tilting 90 degrees – 45 degrees
  • Max. saw blade diameter with
  • installed scoring unit 315mm
  • Max. saw blade projection at 90 degrees
  • from table with blade diameter 315mm 100mm
  • Max. squaring stroke 1600mm
  • (optional 2250, 2600, 2800mm)
  • Cutting width at rip fence 820mm
  • Spindle moulder
  • Max. spindle useful length 100mm
  • Spindle moulder speeds 3500-7000-10000rpm
  • Max tool dia lowered under table 180mm
  • Max tool dia when tenoning 210mm
  • Motor power 3 x 2.5hp single phase
  • Net weight basic machine 525kg
  • Price machine specification to include:
  • 58.10.17 Belt driven scoring unit
  • 58.02.24 Aluminium fence plates to spindle moulder
  • 58.03.56 3 x single-phase motors
  • Tersa or XYLENT cutter head, and a range of options are also available
