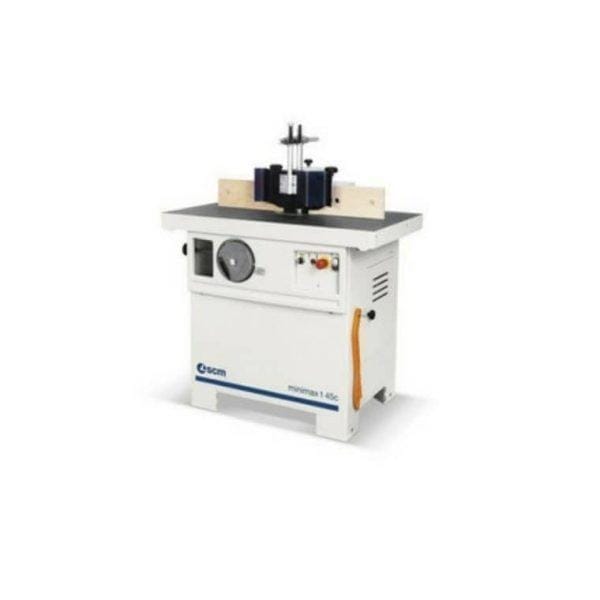

Minimax Model T45C Spindle Moulder
The Minimax Model T45C Spindle Moulder is a straightforward, no-hassle machine with a space-conserving design making it a sufficient size for small workshops as well as large ones. The compact size and reasonable price also make this spindle moulder an excellent choice for hobbyists. Durability is to the SCM standard you may expect with a solid, cast iron table and cast horseshoe fence. Versatile and easy to use, the T45C has a sliding table and a fixed/tilting spindle. The sliding table provides great support which also proves useful for tenoning.
Optional features include:
- Aluminium spindle fences
- Reverse rotation
- Infeed and outfeed table extensions
- Spindle moulder fences with three controlled adjustments
- Interchangeable spindle
£2,205.00
+VAT
Out of stock
Call 0845 274 3600
for more information
Part Exchange
If you are looking to swap out our older machine for a brand new model? Fill in this short form.
The Minimax Model T45C Spindle Moulder is a straightforward, no-hassle machine with a space-conserving design making it a sufficient size for small workshops as well as large ones. The compact size and reasonable price also make this spindle moulder an excellent choice for hobbyists. Durability is to the SCM standard you may expect with a solid, cast iron table and cast horseshoe fence. Versatile and easy to use, the T45C has a sliding table and a fixed/tilting spindle. The sliding table provides great support which also proves useful for tenoning.
Optional features include:
- Aluminium spindle fences
- Reverse rotation
- Infeed and outfeed table extensions
- Spindle moulder fences with three controlled adjustments
- Interchangeable spindle
The Minimax Model T45C Spindle Moulder is a straightforward, no-hassle machine with a space-conserving design making it a sufficient size for small workshops as well as large ones. The compact size and reasonable price also make this spindle moulder an excellent choice for hobbyists. Durability is to the SCM standard you may expect with a solid, cast iron table and cast horseshoe fence. Versatile and easy to use, the T45C has a sliding table and a fixed/tilting spindle. The sliding table provides great support which also proves useful for tenoning.
Optional features include:
- Aluminium spindle fences
- Reverse rotation
- Infeed and outfeed table extensions
- Spindle moulder fences with three controlled adjustments
- Interchangeable spindle
Specifications
Max. useful spindle lengthmm100
Spindle moulder speed (a 50 Hz)giri/min3500/7000/10.000
Max. tool diameter when profilingmm210
Max. tool diameter lowered under the table at 90°mm180
Max. tool diameter when tenoning mm275
Three-phase motors starting from kW/Hz5 (6) / 50 (60)
| FUNCTION | MEASUREMENT |
| Max. Useful Spindle Length | 100mm |
| Max. Tool Diameter When Profiling | 210mm |
| Max. Dimensions Of Tool Lowered Under Table At 90° | 180mm |
| Three-Phase Motor Power | 5 (6)kW – 50 (60)Hz |
Specifications
Max. useful spindle lengthmm100
Spindle moulder speed (a 50 Hz)giri/min3500/7000/10.000
Max. tool diameter when profilingmm210
Max. tool diameter lowered under the table at 90°mm180
Max. tool diameter when tenoning mm275
Three-phase motors starting from kW/Hz5 (6) / 50 (60)
| FUNCTION | MEASUREMENT |
| Max. Useful Spindle Length | 100mm |
| Max. Tool Diameter When Profiling | 210mm |
| Max. Dimensions Of Tool Lowered Under Table At 90° | 180mm |
| Three-Phase Motor Power | 5 (6)kW – 50 (60)Hz |
