SCM Model Class TF130 Spindle Moulder

Designed for full production workloads that require optimum finish quality – the SCM Model Class TF130 Spindle Moulder is a heavy-duty, industrial spindle moulder that is able to stack large diameter tooling and run heavy profiles consistently throughout the day.

Whilst capable of handling demanding workloads, no ease-of-use is lost as movements and adjustments can be operated via the conveniently placed handwheel. Mechanical decimal readouts at the front of the machine also allow for much easier, more efficient operation.

The material being processed will also be greatly supported by the “FAST” sectional worktable, adding to both safety and precision. Additionally, the need for test runs has been eliminated thanks to the mechanical programming of the spindle moulder fence.

Optional features:

• LL Extension Tables available – £1,100
• Bolt-on sliding table – £925
• Power feed units – from £550

Specifications

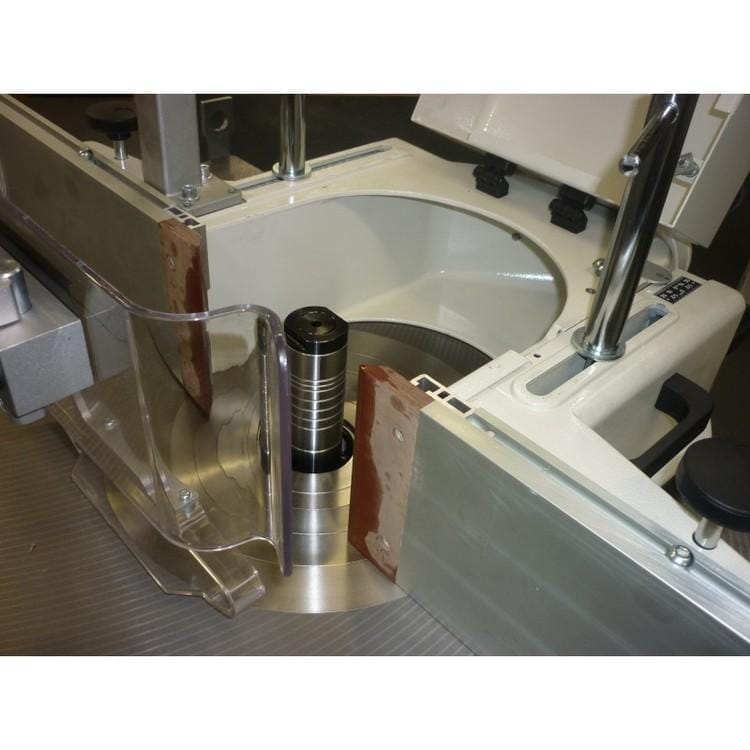

Heavy Duty Spindle Moulder
Up-rated fences with handwheel adjustment and digital indicators
7.5hp Motor
Aluminium Fences
MK5 Interchangeable Spindle Shaft 30mm- 11/4” AVAILABLE
5 Spindle Speeds
Reverse Spindle Rotation
Digital read-out of spindle height.

• Worktable dimensions 1200 x 730mm
• Working height of spindle 140mm
• Spindle speeds (no.5) 3000/4500/6000/7000/10000 rpm
• Max diameter tool in hood 250 mm
• Max. dimension of tool under table 320 x 85mm
• [300mm with Fast Section]
• Main motor power 7.0 kw 50hz
• Approx. weight 520kg
• Exhaust hoods 2 x 120mm
• Extraction requirement 1700 cmh @ 20ms
• Optional equipment on request:
• 26.01.08 MK5 interchangeable Spindle Shaft
• 57.02.92 “T-SET” rapid tool change [req 26.01.08]
• 24.01.54 Aluminium instead of wooden fences
• 57.02.21 Fences with mechanical adjustment
• 57.02.12 “Flex” Fences with mechanical adjustment
• 29.13.21 FAST section table insert system
• 11.02.93 LL version with 2 long tables 2500mm complete with front support rail for large workpieces;
• 57.00.00 TL version for tenoning-profiling with manual tenoning carriage,
• Infeed table extension complete with adjustable front support bar for large workpieces & tenoning hood
• *with spindle from 30-35mm, max. tool diameter 300mm
• *with spindle from 40-50mm, max. tool diameter 350mm
• 11.02.05 Small tenon Carriage on fixed table complete with +/- 60 deg. swivelling fence with stops, telescopic extension and eccentric clamp. 250mm max. tool diameter, using the standard profiling fence.
• 13.02.09 Spare spindle (for interchangeable spindle)
• 57.00.64 9kW 12hp 50Hz motor upgrade
• SCM TF130 CLASS
• Worktable dimensions mm 1.200 x 730
• Ø 30 – 35 (Ø 40 – 50) spindle height fixed spindle / interchangeable spindle mm 140 (180)
• Spindle base projection from table fixed spindle interchangeable spindle mm 3040
• Max. tool diameter retractable under worktable mm 300 x 85
• Spindle speed r.p.m. 3.000/4.500/6.000/7.000/10.000
• Main motor power / electrospindle standard available on request kW (HP) 5,57,5
• External diameter of extractor outlet on the spindle moulder hood mm 120
• External diameter of extractor outlet on base(HE-ME versions from 7,5kW) mm 120
• Extractor system air speed air consumption
