SCM Model TF130-PS Class Spindle Moulder with Integrated Sliding Table

POA

With a great focus on flexibility and an easy machining process, the SCM Model TF130-PS Class Spindle Moulder with Integrated Sliding Table is an ergonomic spindle moulder that is compactly designed, making it suitable for small, but professional workshops.

The TF130-PS is a heavy-duty spindle moulder and will sustain many years of constant usage while requiring minimal maintenance thanks to the sturdy construction from SCM. The heavy-duty functions of the machine have been professionally packed into the space-conserving structure without sacrificing any functionality.

As the fences can be adjusted ergonomically with the handwheel on the fence, the operation process is made to be both easy and flexible. The digital readouts add to the ease of operation and give clear signals regarding any adjustments. The digital readouts add to the ease of operation and give clear signals regarding any adjustments.

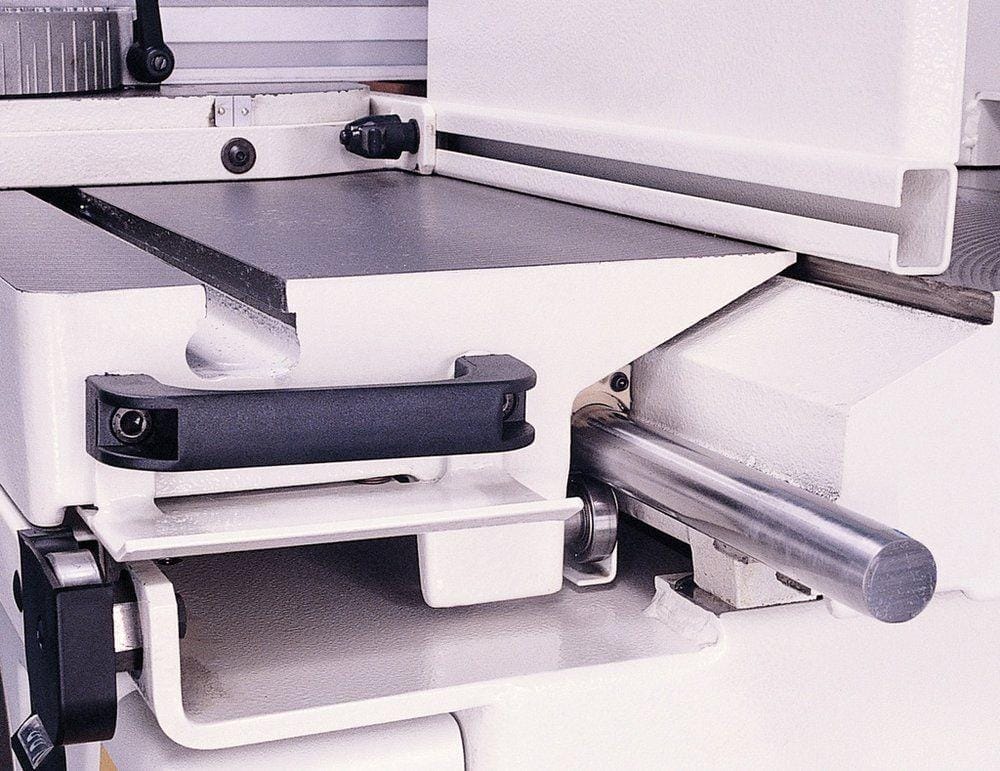

Due to the integrated front sliding carriage that is built into the table, both tenoning procedures, as well as profiling operations, can be carried out with ease. This ease of use is further enhanced by the ergonomic design of the table itself, which makes the operation of the table much more efficient and allows for greater efficiency for the operator.

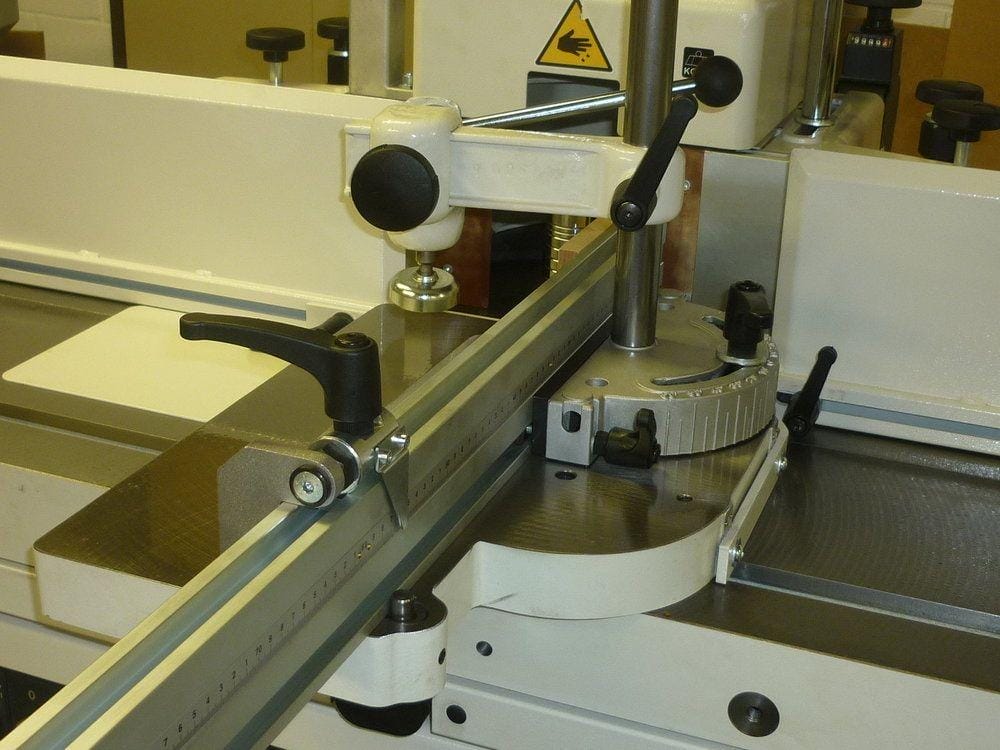

The spindle moulder fence incorporates mechanical programming which allows for a fast and efficient setup speed with simple, straightforward usage. The addition of digital readouts eliminates the need for test runs and ensures great precision to a tenth of a millimetre when positioning the two worktables.

With an array of additional features, the TF130E-PS has exceptional functionality and versatility. These features include:

  • A powerful 7kw motor
  • Manual tool holder shaft lifting with mechanical readout
  • Aluminium fences with mechanical adjustment by hand wheels with readout
  • 5 spindle speeds
  • MK5 interchangeable spindle 30mm
  • Electrical pre-setting for feed unit
  • Reverse rotation
  • Auto star-delta start
  • Integrated sliding table
  • Tenoning table and hood

Out of stock

In Stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Max. useful spindle lengthmm / inches180 / 7
Spindle speedrpm3000/4500/6000/7000/10000
Max. diameter of the profiling toolmm / inches250 / 9.8
Max. tool diameter retractable under the table at 90°mm / inches320 / 12.6
Max. diameter of the tenoning toolmm / inches300 (350) 11.8/13.78
Three-phase motor powerkw7.0
Max. squaring stroke of sliding table sawmm / inches1000/39.25
