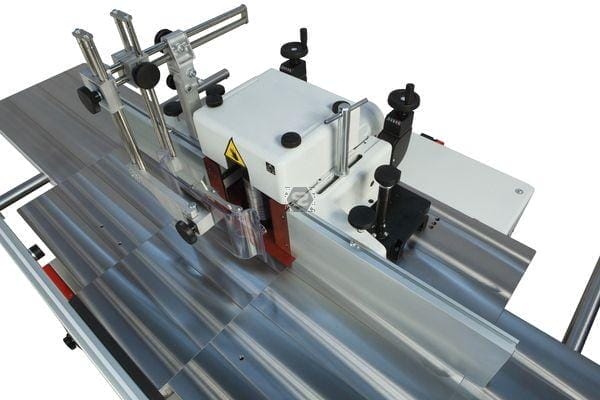

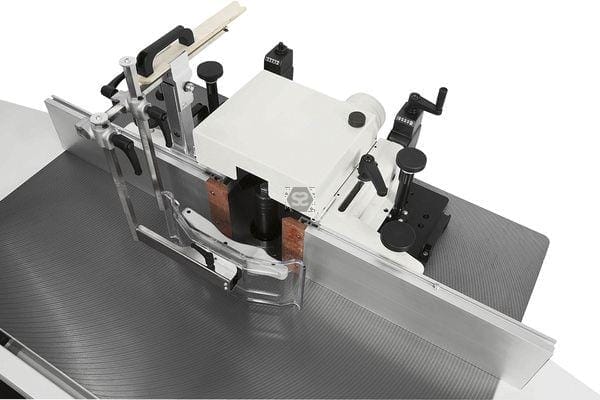

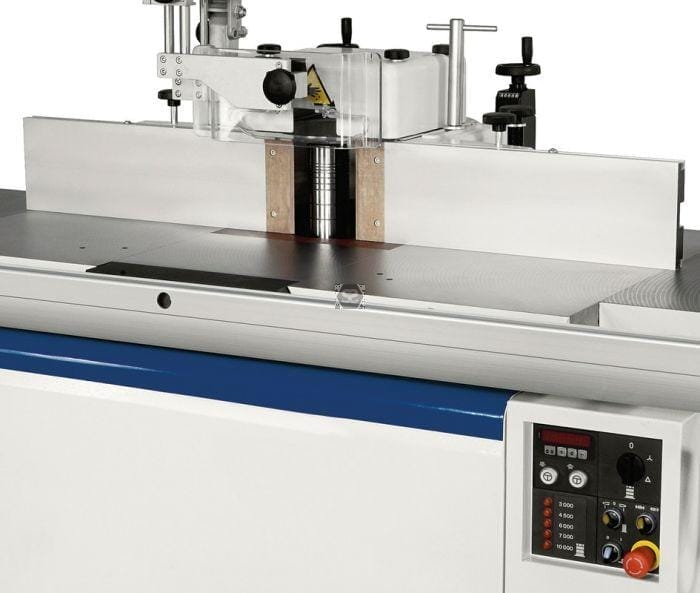

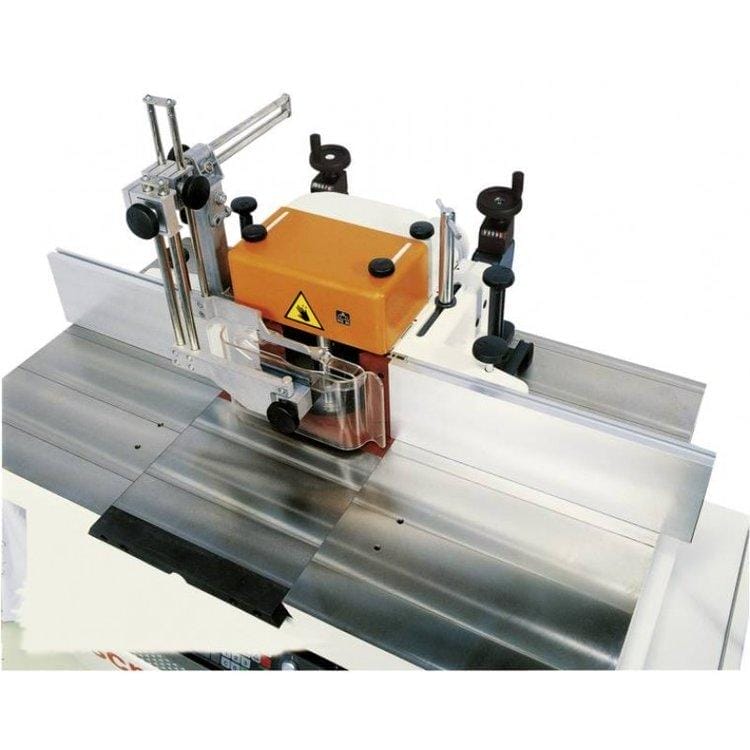

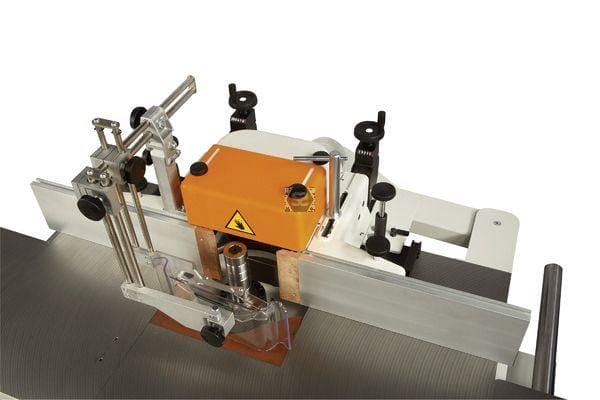

SCM Model TF130E-LL Class Spindle Moulder

POA

Expertly constructed by SCM and their unparalleled engineering, the SCM Model TF130E-LL Class Spindle Moulder is an ergonomic spindle moulder that is compactly designed, making it suitable for small, but professional workshops.

The TF130E-LL is a heavy-duty spindle moulder and will sustain many years of constant usage while requiring minimal maintenance thanks to the sturdy construction from SCM. The heavy-duty functions of the machine have been professionally packed into the space-conserving structure without sacrificing any functionality.

With ergonomic handwheel adjustments for the fences, the operating process comes with great ease and flexibility. The digital readouts add to the ease of operation and give clear signals regarding any adjustments.

With an array of additional features, the TF130E-LL has exceptional functionality and versatility. These features include:

  • A powerful 7.0kw motor
  • A top-quality spindle moulder
  • Fast table insert (no table rings)
  • Aluminium fences
  • Long tables and front support bar

Out of stock

In Stock

Expected 28/05/2023

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

  • Work Table dimensions 1200 x 730mm
  • Working height of spindle 140mm
  • Spindle speeds (no.5) 3000/4500/6000/7000/10000 rpm
  • Max diameter tool in hood 250 mm
  • Max. dimension of tool under table 320 x 85mm
  • [300mm with Fast Section]
  • Main motor power 7.0 kW 50hz
  • Approx. weight 520kg
  • Exhaust hoods 2 x 120mm
  • Extraction requirement 1700 cmh @ 20ms
  • 24.01.54 Aluminium instead of wooden fence
  • 29.13.21 FAST section table insert system
  • Infeed table extension complete with adj. front
  • support bar for large workpieces
  • *with a spindle from 30-35mm, max. tool diameter 300mm
  • worktable with side extensions (2500mm total length)
