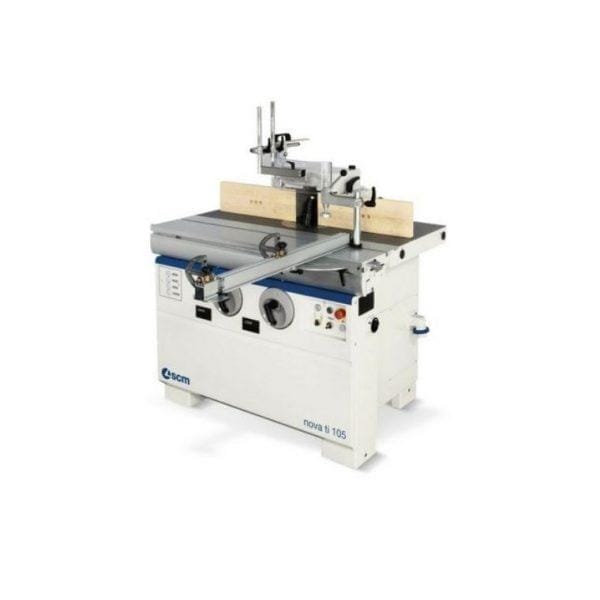

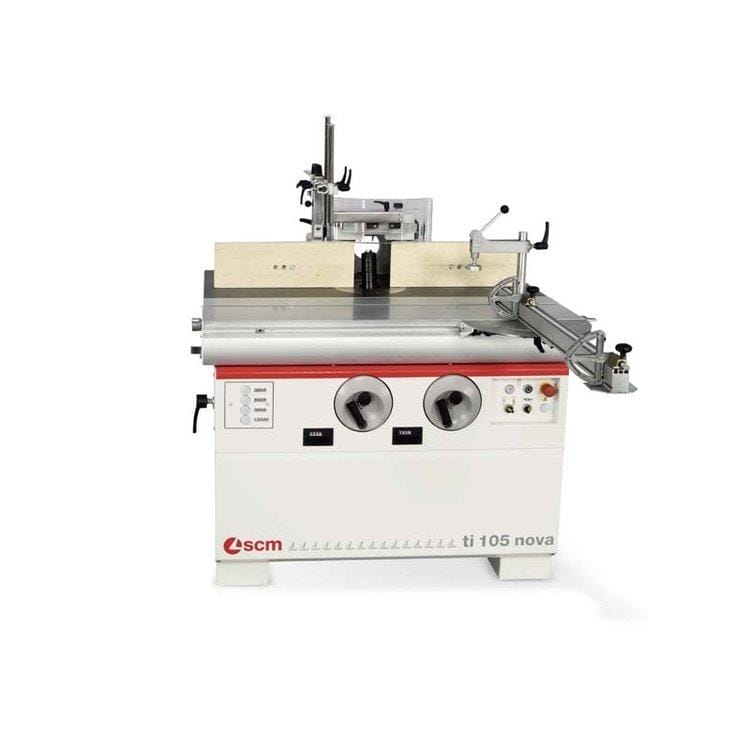

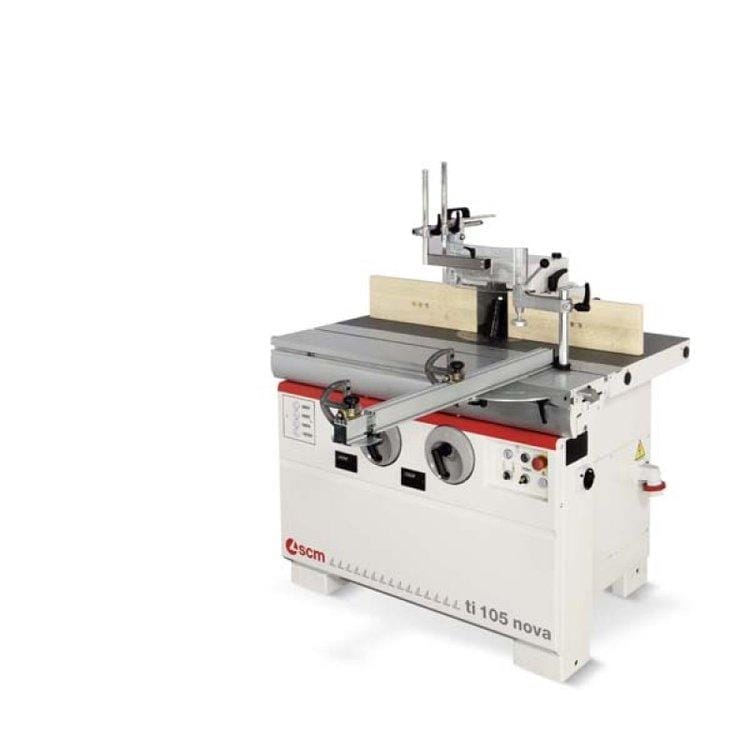

SCM Ti105 Nova Tilting Spindle Moulder With PS Plus Sliding Table

The SCM Ti105 Nova Tilting Spindle Moulder With PS Plus Sliding Table is a backwards tilting spindle moulder with the standard, high-level of SCM quality. Whether it be used for moulding work or for high precision slot and tenoning work, the Ti105 has a great emphasis on ease-of-use and has various optional features such as a flush sliding table, an interchangeable spindle and a triple wall. The backwards tilting shaft can be adjusted between 0 – 45 degrees allowing for flexible, customised machining. Adjustments are conveniently located on the front of the machine making it simple and safe to operate.

Other standard features include:

• 4 speeds up to 10,000 rpm
• 2x 120mm exhaust hoods
• Padlockable main switch
• Reverse rotation
• Manual rise and fall with a digital readout of working height with 0.1mm resolution
• Optimum safety features

Specifications

7.5HP MAIN MOTOR ( INCLUDED IN “PS PLUS” VERSION)
BACKWARD TILT – 45 DEGREES
DIGITAL READOUT OF SPINDLE HEIGHT
30MM DIAMETER SHAFT
ALUMINIUM FENCES

Work Table dimensions 1200 x 855 mm
Working height of spindle 125 mm
Spindle Tilts Backwards 0 degrees ÷ +45 degrees
Spindle speeds (no.4) 3500/6000/8000/10000 rpm
Max diameter tool in hood 240 mm
Max. dimension of tool under table 240 x 80mm
Main motor power 4.0 kW 50hz
Approx. weight 320 kg
Dust Connection 2 x 120 mm
Optional equipment on request:
55.50.63 “PS” version with front aluminium carriage, 1200 mm
57.03.55 “PS Plus” version with front aluminium carriage, 2250mm
57.02.66 Tenoning hood Complete with microswitches [320mm]
57.02.64 MK4 interchangeable Spindle Shaft
57.03.38 Spare spindle for router bits
57.01.45 Aluminium instead of wooden fence
57.00.76 Spindle moulder fence with mechanical adjustment
57.02.68 “LL” version with 2 profiling extensions
11.02.05 Small tenon Carriage on fixed table complete with +/- 60 deg. swivelling fence
55.52.00 “READY 3 UP” version
57.03.30 Powered vertical movement and tilting of operating unit
58.03.35 Three-phase motor 7kW motor upgrade
Work Table dimensions : 1200 530 mm
Spindle moulder tilting shaft : 0° ÷ 45°
Spindle moulder shaft height diameter 30-35 : 125 mm
Spindle base projection from work table : 2 mm
Spindle base projection from worktable with interchangeable spindle : 38 mm
Max. tool diameter retractable under work table : 240 x 80 mm
Max. tool diameter retractable under work table at 45° : 150 x 80 mm
External diameter of exhaust outlet (spindle moulder hood) : 120 mm
External diameter of exhaust outlet on base : 120 mm
Extractor system air speed : 20 m/s
Extractor system air consumption : 1550 m3/h
Operating air pressure : 6 bar
Basic machine weight : 425 kg

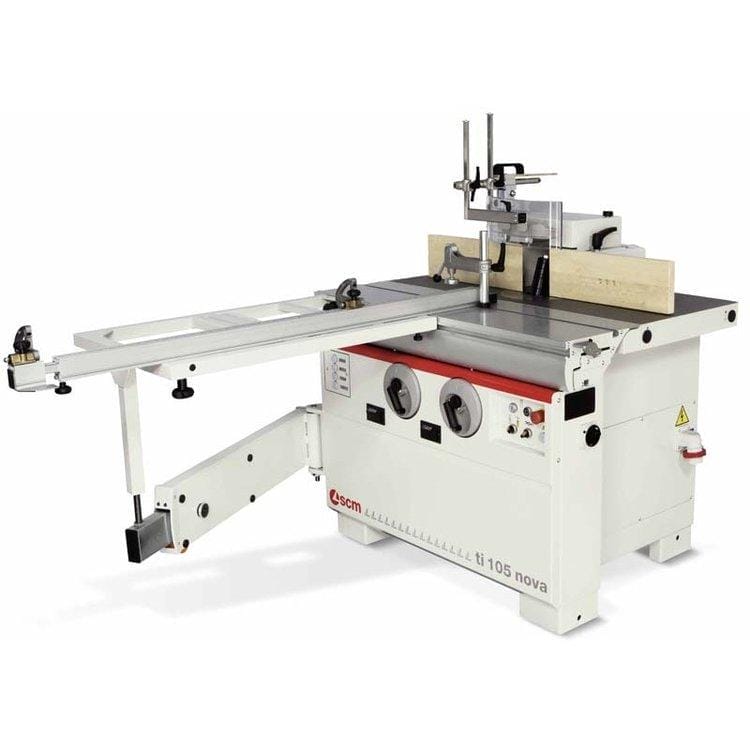

55.50.64 : PS Plus version with front aluminium carriage complete with lamp, telescopic tilting fence with 2 stops on support frame with swinging arm. Motor power with automatic star-delta starter 5.5kW 7.5hp 50Hz (6.6kW 9hp 60Hz) S1, 7kW 9.5hp 50Hz (8kW 11hp 60Hz) S6 – 40%
57.00.76 : Spindle moulder fence with mechanical adjustment with continuous linear adjustment by handwheels accessible from the front of the machine, mechanical readout for the adjustment, wooden tables and connecting plate

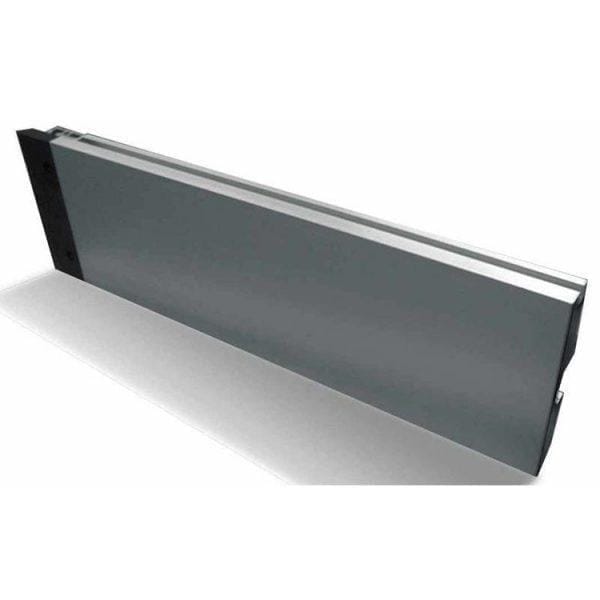

57.01.45 : Aluminium tables instead of wooden tables for fence with connecting bars between the two tables

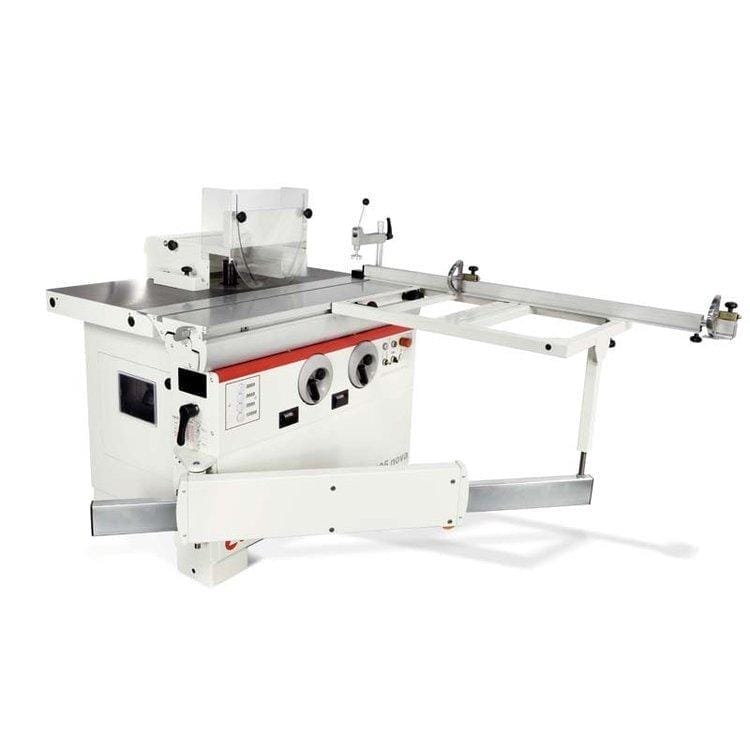

57.02.70 : Tenoning hood complete with microswitches for limit of 3500rpm at 50Hz and 4000rpm at 60Hz, max. tool diameter 275 mm with spindle from 30 and 35 mm

Optional Extras:
57.02.64 : Interchangeable spindle (90 mm spindle height)
57.02.65 : Spare spindle
08.06.58 : Triple wall
