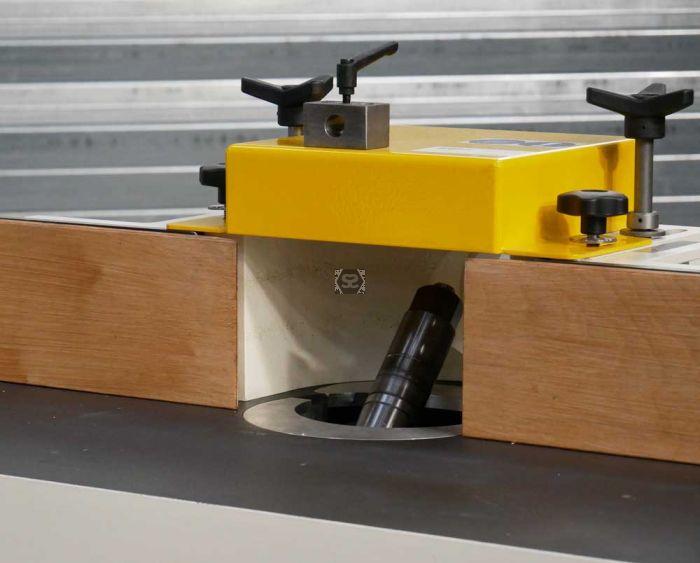

  • Component of the Sedgwick SM255T Tilting Spindle Moulder

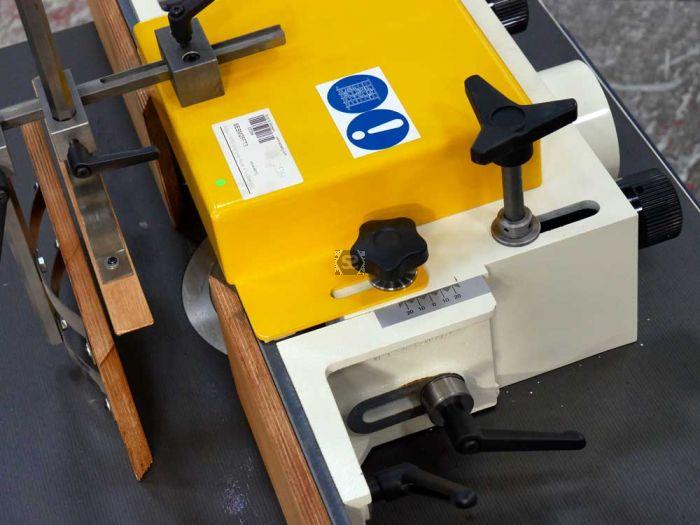

  • Component of the Sedgwick SM255T Tilting Spindle Moulder

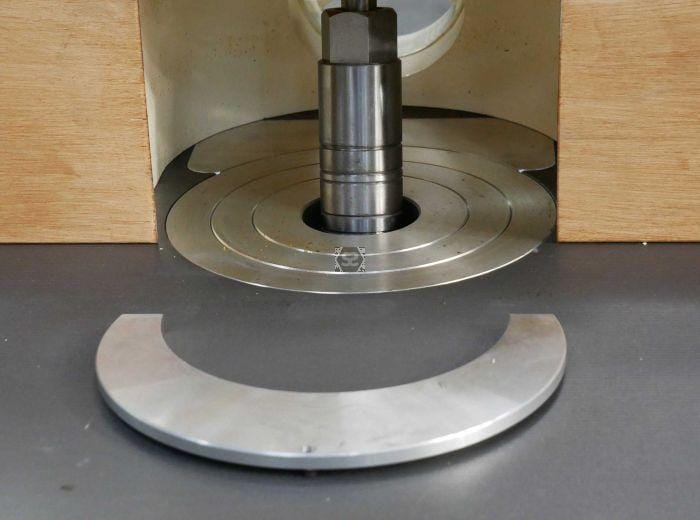

  • Component of the Sedgwick SM255T Tilting Spindle Moulder
  • Side shot of the Sedgwick SM255T Tilting Spindle Moulder

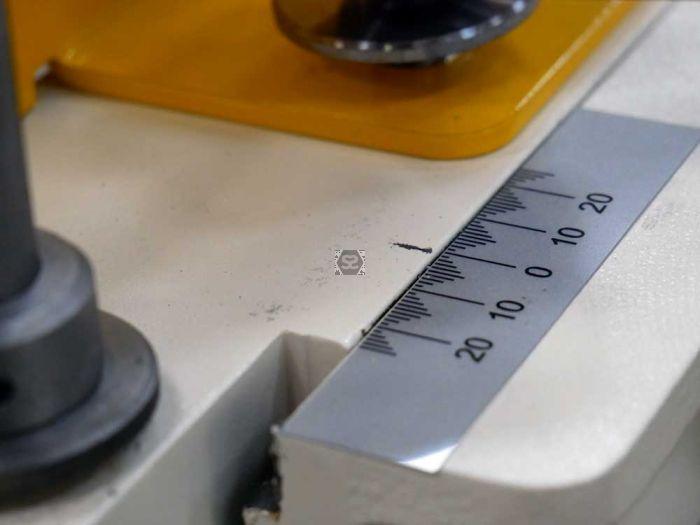

  • Component of the Sedgwick SM255T Tilting Spindle Moulder
  • Component of the Sedgwick SM255T Tilting Spindle Moulder
  • Component of the Sedgwick SM255T Tilting Spindle Moulder

Sedgwick SM255T Tilting Spindle Moulder

The Sedgwick SM255T Tilting Spindle Moulder is a highly durable, robust spindle moulder that has ‘True-Tilt’ – a unique rise-and-fall system allowing for vertical adjustment of the spindle, independent of the tilting function. When adjusted up or down, the angled tool keeps the same position relative to the fence assembly, making setups and adjustments much easier. It is capable of tilting 5 degrees forwards and 45 degrees backwards.

The Sedgwick SM255T Tilting Spindle Moulder is built on a super-tough cast iron table which is mounted on a steel cabinet. The cast iron table has an anti-friction, planed finish so that your material can be fed smoothly past the cutter head. Also made of robust cast iron are the bearing housing, rise & fall assembly and motor mountings.

For ease-of-use, the spindle rise, fall and tilt mechanisms are operated via a handle located at the front of the machine. Each adjustment has a digital readout for greater accuracy. Changing speeds is simplified with an easy-access belt system. The spindle speed is displayed on the viewing panel. Additionally, the machine has a loose top, removable spindle which allows you to easily switch between 30mm and 1 1/4 “ spindles.

Category

£4,450.00

+VAT

Out of stock

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The Sedgwick SM255T Tilting Spindle Moulder is a highly durable, robust spindle moulder that has ‘True-Tilt’ – a unique rise-and-fall system allowing for vertical adjustment of the spindle, independent of the tilting function. When adjusted up or down, the angled tool keeps the same position relative to the fence assembly, making setups and adjustments much easier. It is capable of tilting 5 degrees forwards and 45 degrees backwards.

The Sedgwick SM255T Tilting Spindle Moulder is built on a super-tough cast iron table which is mounted on a steel cabinet. The cast iron table has an anti-friction, planed finish so that your material can be fed smoothly past the cutter head. Also made of robust cast iron are the bearing housing, rise & fall assembly and motor mountings.

For ease-of-use, the spindle rise, fall and tilt mechanisms are operated via a handle located at the front of the machine. Each adjustment has a digital readout for greater accuracy. Changing speeds is simplified with an easy-access belt system. The spindle speed is displayed on the viewing panel. Additionally, the machine has a loose top, removable spindle which allows you to easily switch between 30mm and 1 1/4 “ spindles.

The Sedgwick SM255T Tilting Spindle Moulder is a highly durable, robust spindle moulder that has ‘True-Tilt’ – a unique rise-and-fall system allowing for vertical adjustment of the spindle, independent of the tilting function. When adjusted up or down, the angled tool keeps the same position relative to the fence assembly, making setups and adjustments much easier. It is capable of tilting 5 degrees forwards and 45 degrees backwards.

The Sedgwick SM255T Tilting Spindle Moulder is built on a super-tough cast iron table which is mounted on a steel cabinet. The cast iron table has an anti-friction, planed finish so that your material can be fed smoothly past the cutter head. Also made of robust cast iron are the bearing housing, rise & fall assembly and motor mountings.

For ease-of-use, the spindle rise, fall and tilt mechanisms are operated via a handle located at the front of the machine. Each adjustment has a digital readout for greater accuracy. Changing speeds is simplified with an easy-access belt system. The spindle speed is displayed on the viewing panel. Additionally, the machine has a loose top, removable spindle which allows you to easily switch between 30mm and 1 1/4 “ spindles.

Specifications

New Sedgwick SM255T Tilting Spindle Moulder
CE Conformity
Available In Single Phase
3ph
Worktable Dimensions 1000mm x 750mm
Spindle Moulder Shaft Tilting +5 – -45 °
Spindle Moulder Shaft Height 125mm
Spindle Motor Power 4Kw (5.5hp)
Spindle Speeds 3000/4500/7500/10000 RPM
Spindle Diameter 30mm 1¼

TABLE SIZE (LxW) 1000x750mm
TABLE HEIGHT 880mm
MAX. CUTTERBLOCK DIA. 150mm
MAX. PROFILING CUTTER DIA. 255mm
MAX. CUTTER WEIGHT 7Kg
MAX. RETRACTABLE TOOL SIZE 180x65mm
SPINDLE DIA. 30mm (Optional 11/4”)
SPINDLE LENGTH 140mm
SPINDLE SPEEDS (rpm) 3000, 4500, 6000, 8000
TILT +5 to –45 degrees
EXTRACTION OUTLETS 1870cmh
AIR VOLUME REQUIRED 310mm
VOLTAGE / FREQUENCY 3 PHASE + EARTH; 400/230v – 50/60 Hz
1 PHASE + N + EARTH; 230V – 50/60 Hz
MOTOR RATING 3 PHASE 5.5Kw (S1)
1 PHASE 3.8Kw
MOTOR FULL LOAD CURRENT IN AMPS 3 PHASE 11.5A
1 PHASE 16.5A
STARTING CURRENT IN AMPS 3 PHASE 69A
1 PHASE 99A
REQUIRED FUSE SIZE IN AMPS 3 PHASE 25A/ph
1 PHASE 40A
REQUIRED CABLE SIZE 3 PHASE 4.0mm
1 PHASE 4.0mm
NETT WEIGHT 425Kg
DIMENSIONS 1120x760x1440mm

Specifications

New Sedgwick SM255T Tilting Spindle Moulder
CE Conformity
Available In Single Phase
3ph
Worktable Dimensions 1000mm x 750mm
Spindle Moulder Shaft Tilting +5 – -45 °
Spindle Moulder Shaft Height 125mm
Spindle Motor Power 4Kw (5.5hp)
Spindle Speeds 3000/4500/7500/10000 RPM
Spindle Diameter 30mm 1¼

TABLE SIZE (LxW) 1000x750mm
TABLE HEIGHT 880mm
MAX. CUTTERBLOCK DIA. 150mm
MAX. PROFILING CUTTER DIA. 255mm
MAX. CUTTER WEIGHT 7Kg
MAX. RETRACTABLE TOOL SIZE 180x65mm
SPINDLE DIA. 30mm (Optional 11/4”)
SPINDLE LENGTH 140mm
SPINDLE SPEEDS (rpm) 3000, 4500, 6000, 8000
TILT +5 to –45 degrees
EXTRACTION OUTLETS 1870cmh
AIR VOLUME REQUIRED 310mm
VOLTAGE / FREQUENCY 3 PHASE + EARTH; 400/230v – 50/60 Hz
1 PHASE + N + EARTH; 230V – 50/60 Hz
MOTOR RATING 3 PHASE 5.5Kw (S1)
1 PHASE 3.8Kw
MOTOR FULL LOAD CURRENT IN AMPS 3 PHASE 11.5A
1 PHASE 16.5A
STARTING CURRENT IN AMPS 3 PHASE 69A
1 PHASE 99A
REQUIRED FUSE SIZE IN AMPS 3 PHASE 25A/ph
1 PHASE 40A
REQUIRED CABLE SIZE 3 PHASE 4.0mm
1 PHASE 4.0mm
NETT WEIGHT 425Kg
DIMENSIONS 1120x760x1440mm
