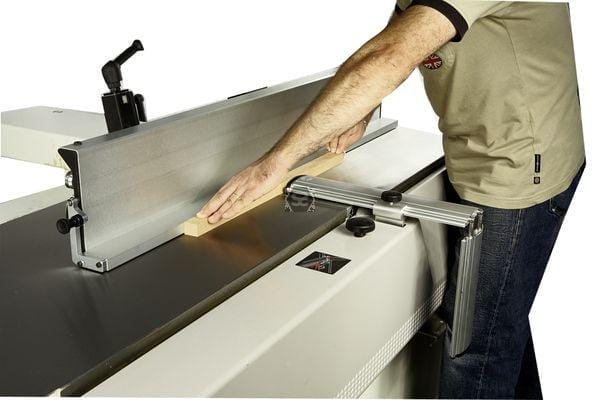

  • Front shot of the SCM Model F520E Class Surface Planer
  • Diagram of the SCM Model F520E Class Surface Planer
  • Machining process of the SCM Model F520E Class Surface Planer
  • Component of the SCM Model F520E Class Surface Planer

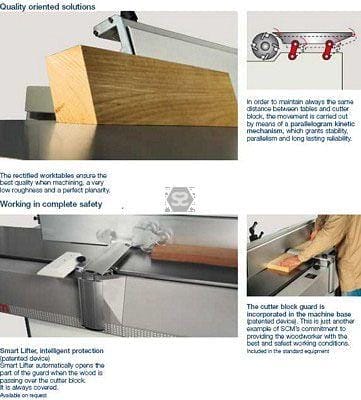

  • SCM Model F520E Class Surface Planer Machining Leaflet
  • Xylent Cutterblock

SCM Model F520E Class Surface Planer

The SCM Model F520E Class Surface Planer is a heavy-duty surface planer built to last for years on end whilst remaining accurate and capable of producing perfect finishes. The cutter blocks can be altered to suit your needs via the ability to swap between different options – standard resharpenable, TERSA or Xylent systems.

The rugged, durable build will give you many years of service and the induction motor has been designed for full industrial use. All vibrations are totally absent thanks to the massive, cast ironwork table and maximum stability, reliability and ergonomics are guaranteed with the connecting rods.

The ribbed, cast ironwork table includes a parallelogram adjusting system combined with a CNC-machined steel base. For ease-of-use, all controls are situated on the panel above the worktable, in easy reach of the operator.

Category

£7,995.00

+VAT

Out of stock

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

The SCM Model F520E Class Surface Planer is a heavy-duty surface planer built to last for years on end whilst remaining accurate and capable of producing perfect finishes. The cutter blocks can be altered to suit your needs via the ability to swap between different options – standard resharpenable, TERSA or Xylent systems.

The rugged, durable build will give you many years of service and the induction motor has been designed for full industrial use. All vibrations are totally absent thanks to the massive, cast ironwork table and maximum stability, reliability and ergonomics are guaranteed with the connecting rods.

The ribbed, cast ironwork table includes a parallelogram adjusting system combined with a CNC-machined steel base. For ease-of-use, all controls are situated on the panel above the worktable, in easy reach of the operator.

The SCM Model F520E Class Surface Planer is a heavy-duty surface planer built to last for years on end whilst remaining accurate and capable of producing perfect finishes. The cutter blocks can be altered to suit your needs via the ability to swap between different options – standard resharpenable, TERSA or Xylent systems.

The rugged, durable build will give you many years of service and the induction motor has been designed for full industrial use. All vibrations are totally absent thanks to the massive, cast ironwork table and maximum stability, reliability and ergonomics are guaranteed with the connecting rods.

The ribbed, cast ironwork table includes a parallelogram adjusting system combined with a CNC-machined steel base. For ease-of-use, all controls are situated on the panel above the worktable, in easy reach of the operator.

Specifications

Heavy-duty Surface Planer

2750mm long tables

Tersa cutter block

Additional overturning fence

  • Planing width 520mm
  • Table length 2750mm
  • Cutter block dia 120mm
  • Cutter block type Z=2 Knife
  • Cutter block speed 5000rpm
  • Motor 7hp
  • Fence size 1200x190mm
  • Dust Connection dia 120mm
  • Weight 500kgs
  • Overall Dimensions 2750x1200mm
  • Max stock removal 8mm



Working width mm 520
Cutterblock diameter/standard knives mm/no. 120/4
The total length of surface work tables mm 2750
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)



Specifications

Heavy-duty Surface Planer

2750mm long tables

Tersa cutter block

Additional overturning fence

  • Planing width 520mm
  • Table length 2750mm
  • Cutter block dia 120mm
  • Cutter block type Z=2 Knife
  • Cutter block speed 5000rpm
  • Motor 7hp
  • Fence size 1200x190mm
  • Dust Connection dia 120mm
  • Weight 500kgs
  • Overall Dimensions 2750x1200mm
  • Max stock removal 8mm



Working width mm 520
Cutterblock diameter/standard knives mm/no. 120/4
The total length of surface work tables mm 2750
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)
