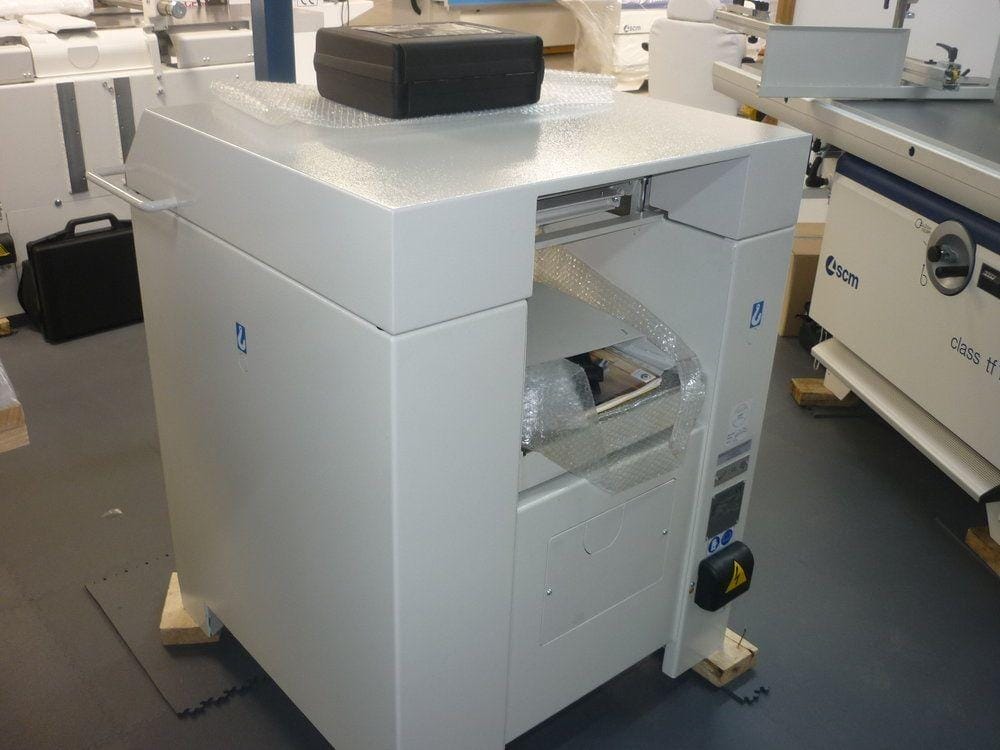

Minimax S41 ES Thicknesser

£6,495.00

With competitive, value-for-money pricing – the Minimax S41 ES Thicknesser brings advanced technology suitable for the most demanding craftsmen and woodworkers.

Thanks to the 95mm diameter cutting block, high rigid fence and the optional “Xilent” spiral knife cutter block with 3 series of knives, the S41 ES is capable of a flawless, defect-free, market-worthy finish. The pressure of the thicknesser feed roller is able to be adjusted according to the type of material being processed. The roller infeed has a helicoidal profile to ensure firm, constant workpiece feed whilst the outfeed roller (in sandblasted steel) sustains the perfect post-processing finishing.

Outputting an exceptional finish, the “Xilent” spiral knife also has reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.

Other features include:

  • Movement by means of 4 vertical screws

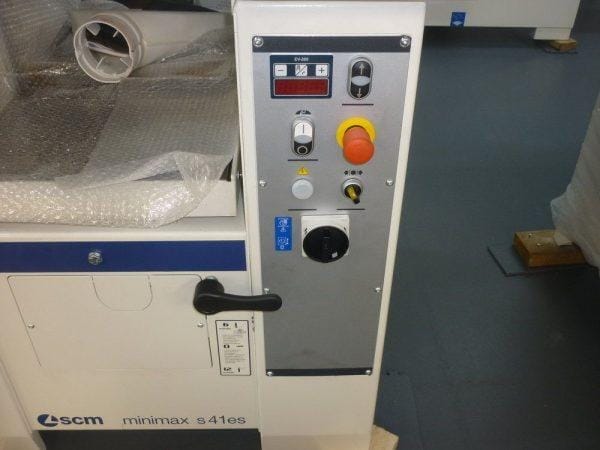

  • Numerical readout of working height
  • Powered lifting of the thicknessing table
  • Tersa cutterblock
  • 410m working width
  • 7kw – motor
  • Feed speeds 6 + 12 m/min

Out of stock

In Stock

Expected 26/10/2023

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Working widthmm410
Cutterblock diameter / no. of standard knivesmm/n.95 / 4
Dimension of standard knivesmm410 x 30 x 3
Max. stock removalmm5
Thicknessing table dimensionsmm410 x 775
Feed speed on thicknesserm/min6 / 12
Min. ÷ max. working height on thicknessermm3 ÷ 240
Three-phase motors starting fromkW/Hz5 (6) / 50 (60)
  • Planer working width 410 mm
  • Cutter block diameter (mm)/n. of knives standard 95/4 TERSA
  • Min. ÷ max. working height on thicknesser 3 ÷ 240 mm
  • Uprated Three-phase motor power (standard) 7kW  50 Hz S6
  • Powered rise /fall with led read-out
