SCM Model Class S630 Thickness Planer

The SCM Model Class S630 Thickness Planer is a heavy-duty thickness planer that features a stylish, practical design whilst combining ergonomics with powerful, flexible functionality.

With 4 adjustable feed speeds, a sectional steel feed roller and a 630 x 300mm capacity, the S630 is an ideal machine for professional craftsmen and workshops of different sizes. The ability to plane materials up to 300mm thick makes the S630 suitable for site construction carpentry as well as joinery. The two outfeed rollers are rubber coated and ensure efficient, stable feeding.

For safe and easy operation, the ergonomic design of the thicknesser includes all controls situated at the front of the machine – within easy, comfortable reach of the operator.

Specifications

Heavy-duty Thickness planer
Capacity 630 x 300mm
Minimum working length 260mm
Minimum working width 10mm
Adjustable feed speed 4 – 20m/min
Xylent spiral cutterblock
Xylent maintenance kit

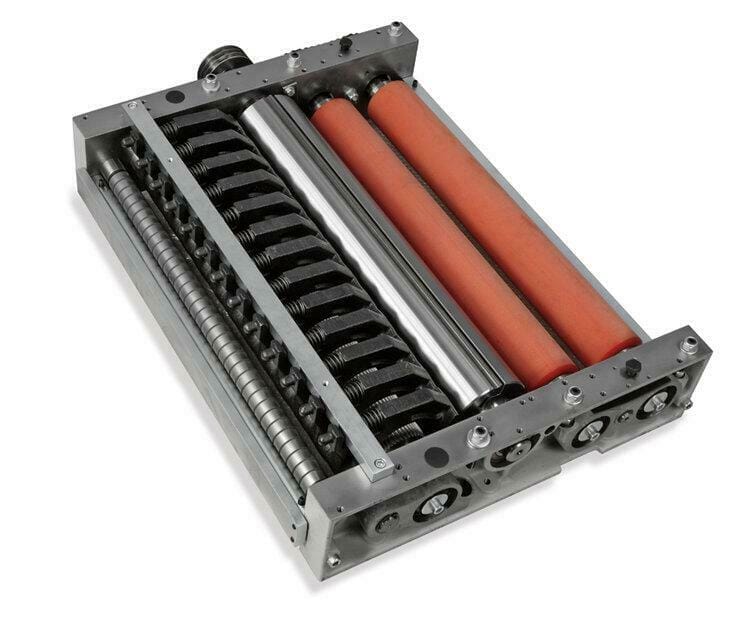

Sectional steel feed roller
2 x Rollers in thickness table
Increased HP 9KW

• Max working width 630mm
• Working height (min / max) 3.5 / 300mm
• Worktable dimensions 640 x 1000mm
• Cutterblock diameter 120mm
• No of knives 4
• Dimensions of standard knives 630 x 35 x 3mm (standard resharpenable)
• Maximum stock removal 8mm
• Minimum working length 260mm
• Minimum working width 10mm
• Cutterblock speed 4500rpm
• Variable Feed speeds 4 – 20 m/min
• Main motor power 9.5hp
• Dust exhaust diameter 150mm
• Prices reflect a basic machine, please call or email for a quotation for the various options offered
