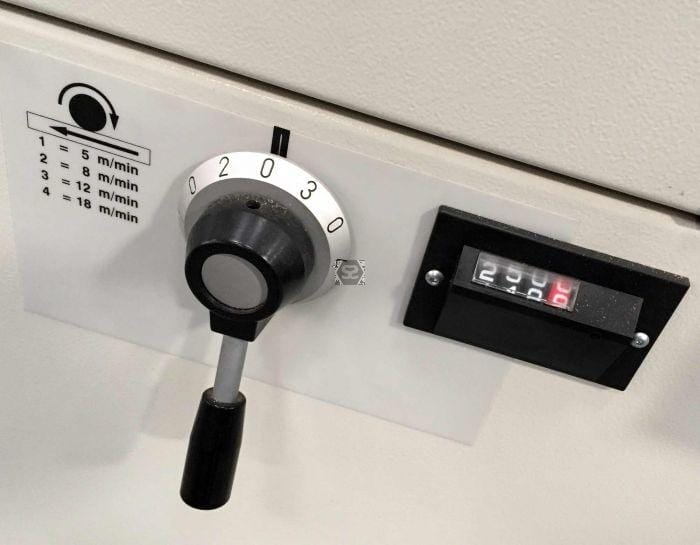

  • Component of the SCM S520 Nova Thicknesser
  • Component of the SCM S520 Nova Thicknesser

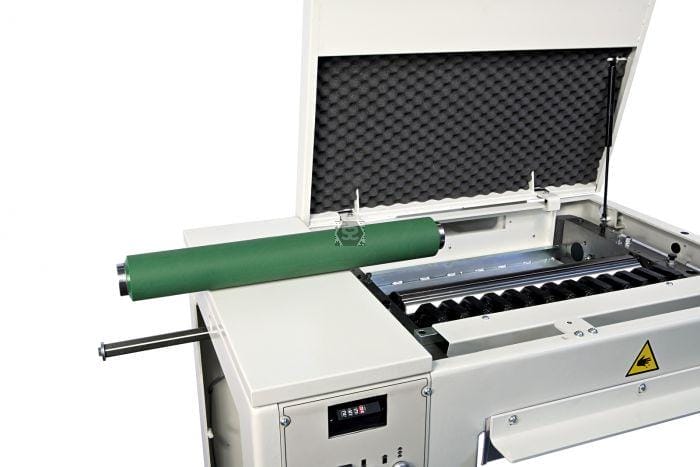

  • Open case shot of the SCM S520 Nova Thicknesser

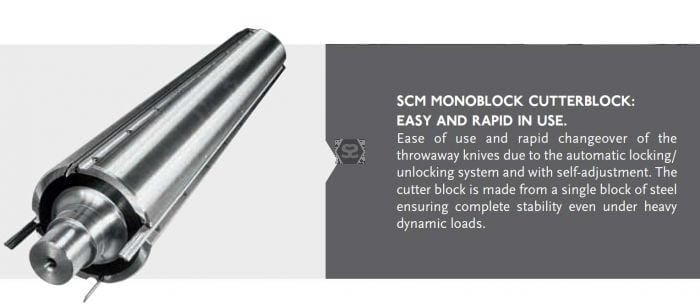

  • Description of the monoblock feature
  • Xylent Cutterblock

SCM S520 Nova Thicknesser

With a practical yet robust design, the SCM S520 Nova Thicknesser provides simple and precise operation with flexibility in the range of applications that can be used with it.

Featuring interchangeable rollers that have quick and easy changeover procedures that allow for the operator to have a greater degree of control and more flexibility when it comes to handling special or more complex requirements. The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of these features combines to give a significant stability boost to the worktable.

Outputting an exceptional finish, the “Xilent” spiral knife also has reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.

Category

£9,890.00

+VAT

Out of stock

Part Exchange

If you are looking to swap out our older machine for a brand new model? Fill in this short form.

Finance Option

With a practical yet robust design, the SCM S520 Nova Thicknesser provides simple and precise operation with flexibility in the range of applications that can be used with it.

Featuring interchangeable rollers that have quick and easy changeover procedures that allow for the operator to have a greater degree of control and more flexibility when it comes to handling special or more complex requirements. The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of these features combines to give a significant stability boost to the worktable.

Outputting an exceptional finish, the “Xilent” spiral knife also has reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.

With a practical yet robust design, the SCM S520 Nova Thicknesser provides simple and precise operation with flexibility in the range of applications that can be used with it.

Featuring interchangeable rollers that have quick and easy changeover procedures that allow for the operator to have a greater degree of control and more flexibility when it comes to handling special or more complex requirements. The need for locking in position has been eliminated thanks to the 4 screws with a large diameter combined with the 2 side linear guides. Each of these features combines to give a significant stability boost to the worktable.

Outputting an exceptional finish, the “Xilent” spiral knife also has reduced noise – making for a more comfortable, less obtrusive working environment. Also adding to a more environmentally friendly, less pollutive and healthier workplace is the improved dust extraction via the small chips.

Specifications

  • Powered Lifting of thicknessing table
  • Numerical readout of working height
  • Movement by means of 4 vertical screws
  • 2 x Rollers in table
  • Sectional steel feed roller
  • 1 rubber-coated steel roller on outfeed
  • Interchangeable Rollers
  • 5.5Kw (7.5hp) Motor
  • Tersa Knives
  • chine, please call or email for a quotation for the various options offered
Cutterhead working width mm / inches 520 / inches
With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives
mm/n°
mm
120/4
520 x 30 x 3
With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of knives
Dimension of standard knives
mm/n°
mm
120/84
15 x 15 x 2.5
Min. ÷ max. working height on thicknesser mm / inches 3.5 – 300
Feed speed on thicknesser m/min 5/8/12/18
Three-phase motor Hp 11
Max. stock removal mm 8
  • Worktable dimension mm 530×900
  • Working width mm 520
  • Max. (min.) working height mm 250 (3,5)
  • Min. working length mm 220
  • Max. stock removal mm 8
  • Cutterblock diameter (No. of knives) mm 120 (4)
  • Cutterblock speed r.p.m. 4500
  • Feed speed m/min 5-8-12-18
  • Motor power KW (HP) 7
  • Extraction outlet diameter mm 150
  • Extraction flow rate m3/h 1300
  • Machine net weight Kg 680

Specifications

  • Powered Lifting of thicknessing table
  • Numerical readout of working height
  • Movement by means of 4 vertical screws
  • 2 x Rollers in table
  • Sectional steel feed roller
  • 1 rubber-coated steel roller on outfeed
  • Interchangeable Rollers
  • 5.5Kw (7.5hp) Motor
  • Tersa Knives
  • chine, please call or email for a quotation for the various options offered
Cutterhead working width mm / inches 520 / inches
With TERSA Straight-knife Cutterhead:
Cutterblock diameter / n° of standard knives
Dimensions of standard knives
mm/n°
mm
120/4
520 x 30 x 3
With XYLENT Spiral Helical Cutterhead:
Cutterblock diameter / n° of knives
Dimension of standard knives
mm/n°
mm
120/84
15 x 15 x 2.5
Min. ÷ max. working height on thicknesser mm / inches 3.5 – 300
Feed speed on thicknesser m/min 5/8/12/18
Three-phase motor Hp 11
Max. stock removal mm 8
  • Worktable dimension mm 530×900
  • Working width mm 520
  • Max. (min.) working height mm 250 (3,5)
  • Min. working length mm 220
  • Max. stock removal mm 8
  • Cutterblock diameter (No. of knives) mm 120 (4)
  • Cutterblock speed r.p.m. 4500
  • Feed speed m/min 5-8-12-18
  • Motor power KW (HP) 7
  • Extraction outlet diameter mm 150
  • Extraction flow rate m3/h 1300
  • Machine net weight Kg 680
