New SCM Formula TEN 400 Tenoner

POA

Out of stock

In Stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Description

The automatic tenoning machine which allows very high working rapidity and accuracy.

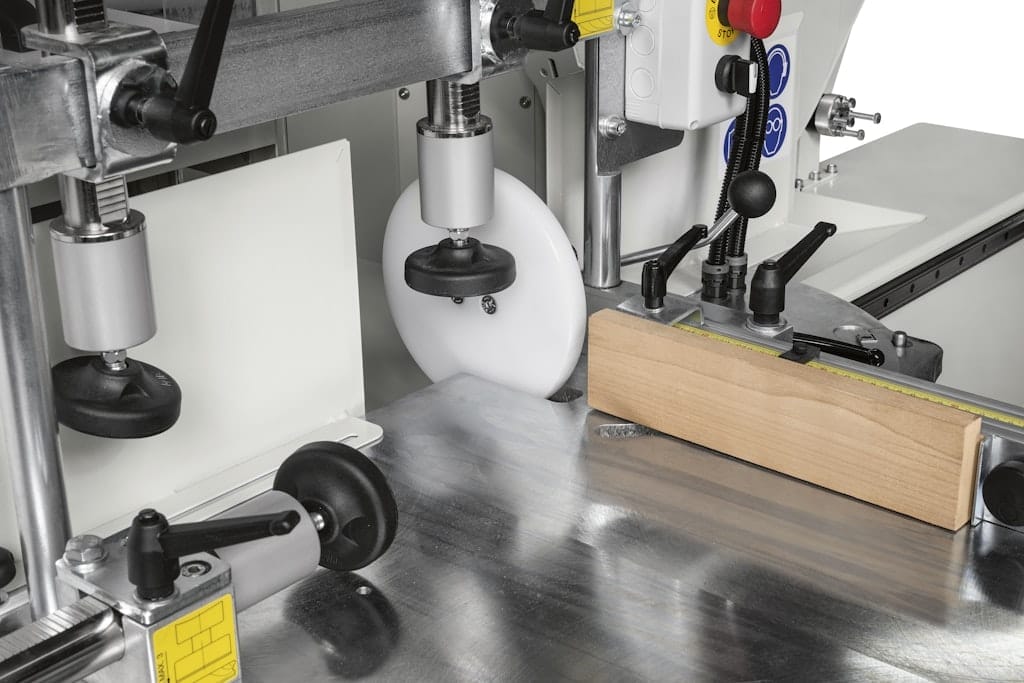

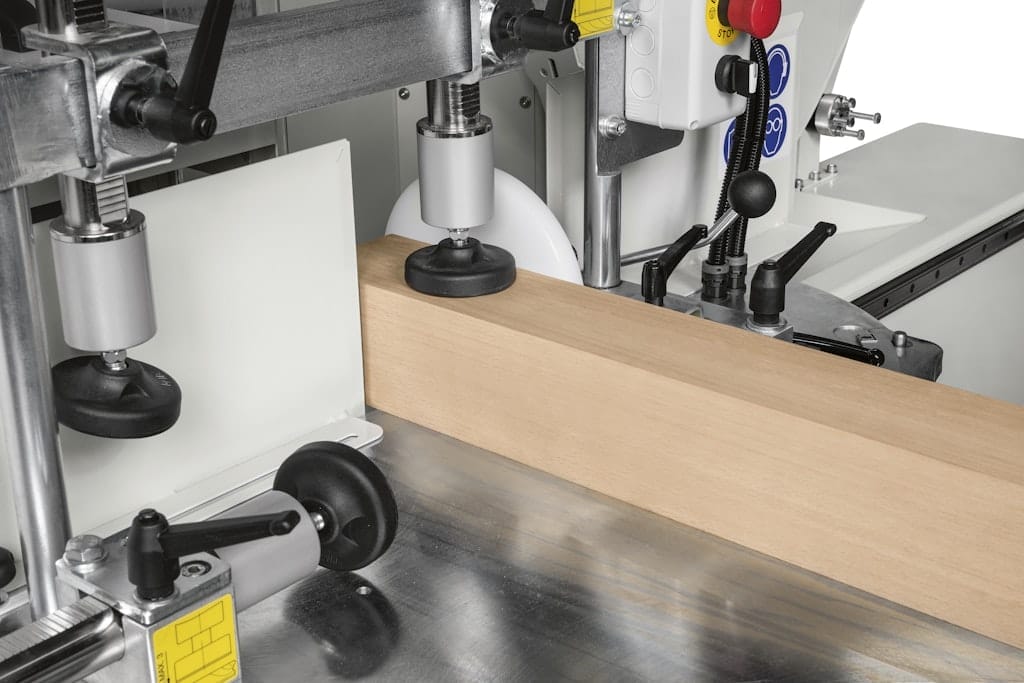

The tenoning unit is equipped with two vertical and one horizontal pressure cylinders for the work-pieces locking and the machining even of large elements.

Advantages

Accurate positioning

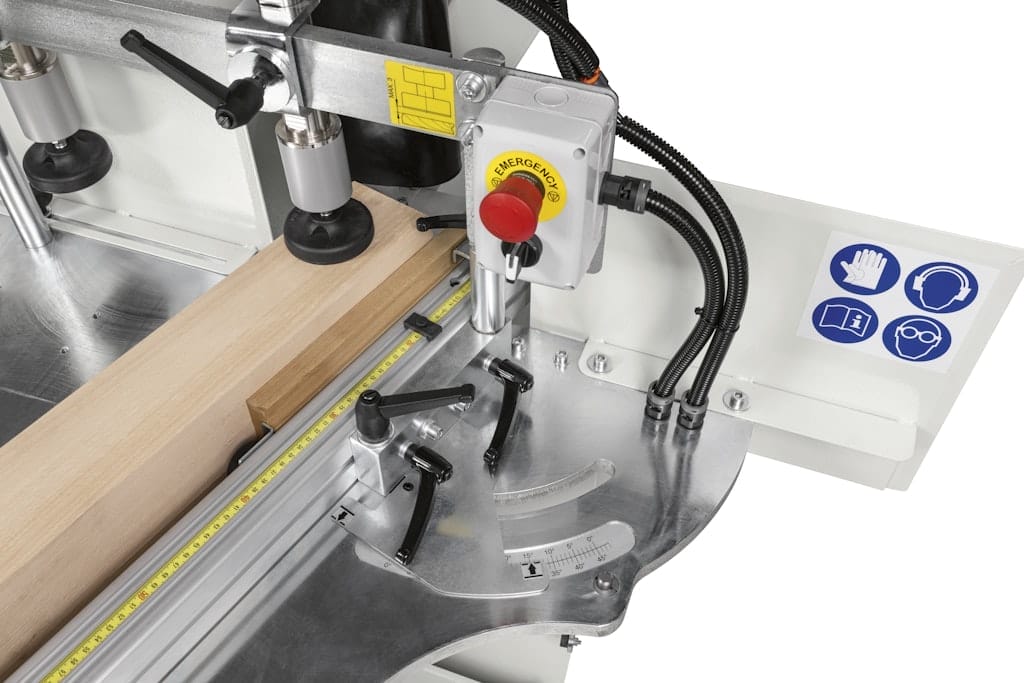

The worktable is fitted with a tiltable fence up to ± 45°.

High efficiency
Carriage movement on ball bushing linear guides and positioning by means of 5-position revolver.

Perfect tenoning operations
Revolver with 4 mechanical stops for the work-piece positioning during tenoning machining, without needing cutting-off operation.

Maximum performances as standard
The formula ten 400e machine version is fitted with spindle moulder unit including an electrospindle with HSK 63B rapid tool change.

SPECIFICATION

Technical data

formulaten 400ten 400e

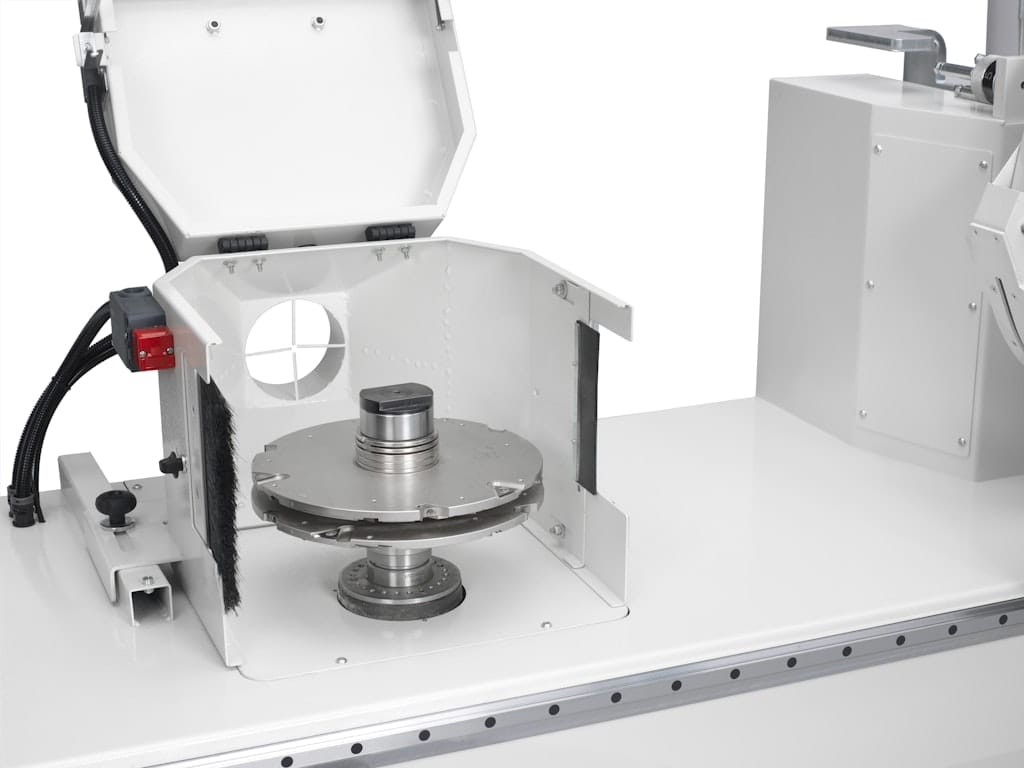

Spindle moulder unit
Max. tool diametermm360360
Spindle diametermm40 or 5040 or 50
Tool rotating speedrpm3600 fixedup to 3600
Tool change systemmanual ringHSK 63B
Motor powerkW7,57,5

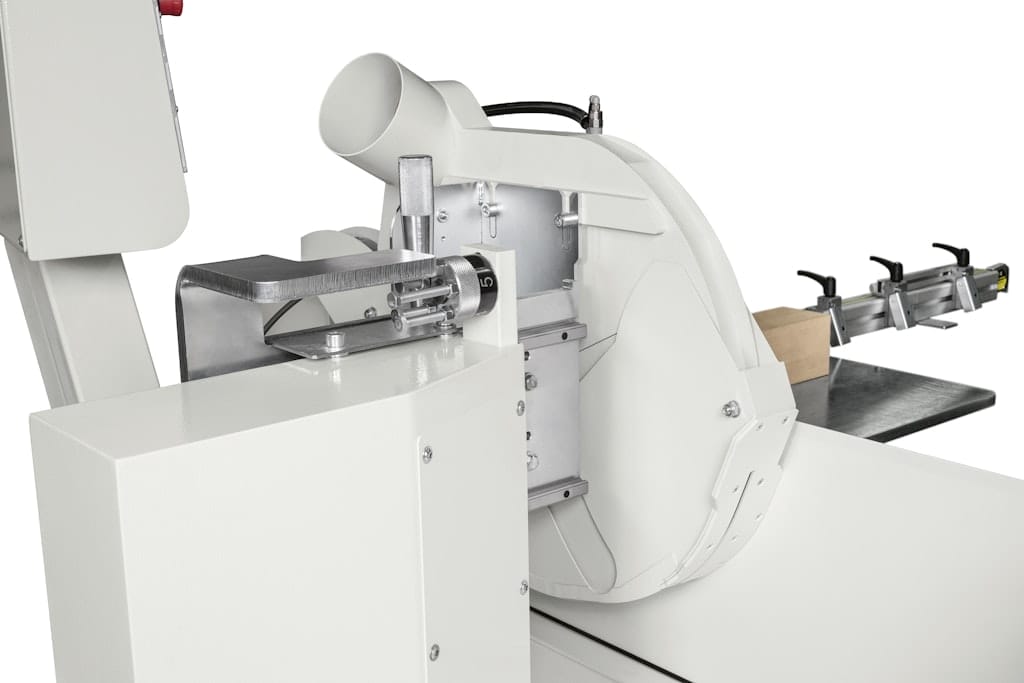

Circular saw unit
Max. blade diametermm400400
Max. cutting heightmm120120
Blade rotating speedrpm28002800
Number of stops on revolvern.44
Selfbraking motor powerkW33
Work-piece support table
Worktable stroke towards the toolmm105105
Worktable widthmm400400
Vertical pressers for pneumatic clampingn.22
Horizontal presser for pneumatic clampingn.11
Number of stops on revolvern.55
