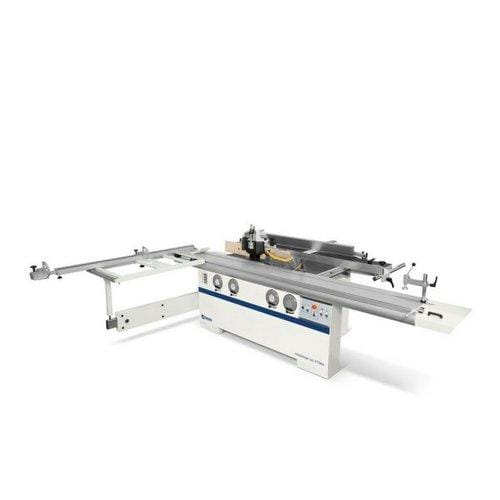

Minimax CU 410 ES Universal Combined Machine (Planer, Saw & Spindle Moulder)

£17,450.00

The unrivalled Minimax CU 410 ES Universal Combined Machine (Planer, Saw & Spindle Moulder) is the apex of 4-in-1 combined machines with unbeatable performance and unparalleled technology. This advanced combination machine includes a 10.5” sliding table, industrial component groups and the longest jointer bed in the industry.

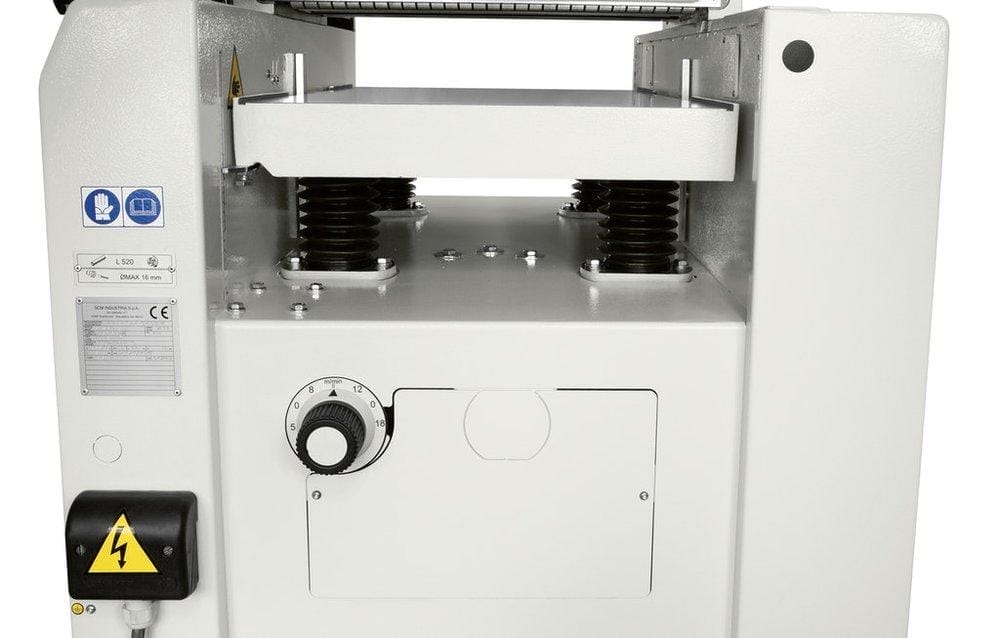

With upgrades to the surface planer and thickness planer, the two features now include an exclusive parallelogram worktable movement system and simultaneous table raising. The thicknesser table is raised on four columns to ensure full precision over the width of the table.

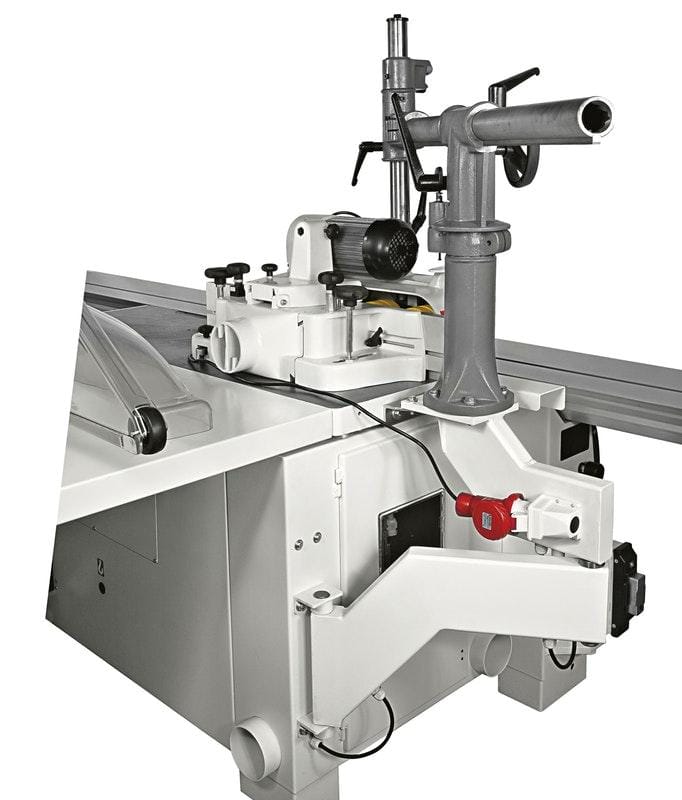

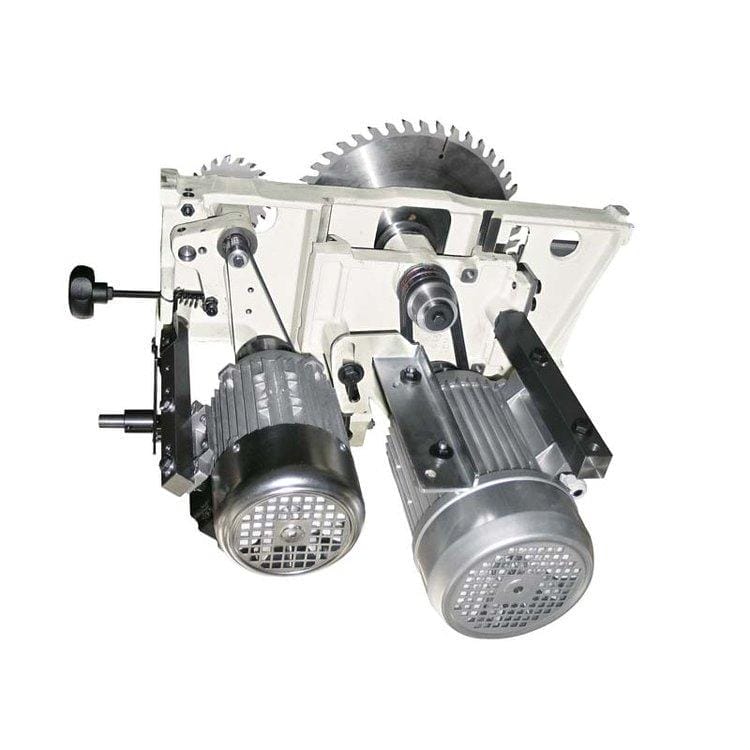

With a cutting height of 118mm, the CU 410 ES is totally unique throughout the world. Perfect, defect-free cutting of veneer panels and thick, solid wood is guaranteed as the cast iron saw unit with its rigid, closed-loop structure can accommodate for a blade of 315 and 350mm diameter with the scoring blade mounted. The saw blade utilizes the full, absolute power of the motor thanks to the scoring blade with an independent motor as standard. The robustness of the machine will sustain any and all working conditions via the large spindle moulder column – composed entirely of solid, cast iron. Also, with the flexibility of 4 standard speeds – any type of machining, from moulding and routing to tenoning can be processed effectively with ease.

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Working width (thicknessing planer) mm410
Surfacing tables total length mm2200
Max. saw blade diameter with scoring blade installed mm350
Max. saw blade projection from table at 90°/45° mm 118/84
Cutting width on parallel fence mm1000
Max. useful spindle length mm125
Max. tool diameter when profiling mm240
Spindle moulder speed (a 50 Hz) rpm3500/6000/8000/10.000
Three-phase motors starting from kW/Hz5 (6) / 50 (60)

Version with stroke 3200mm

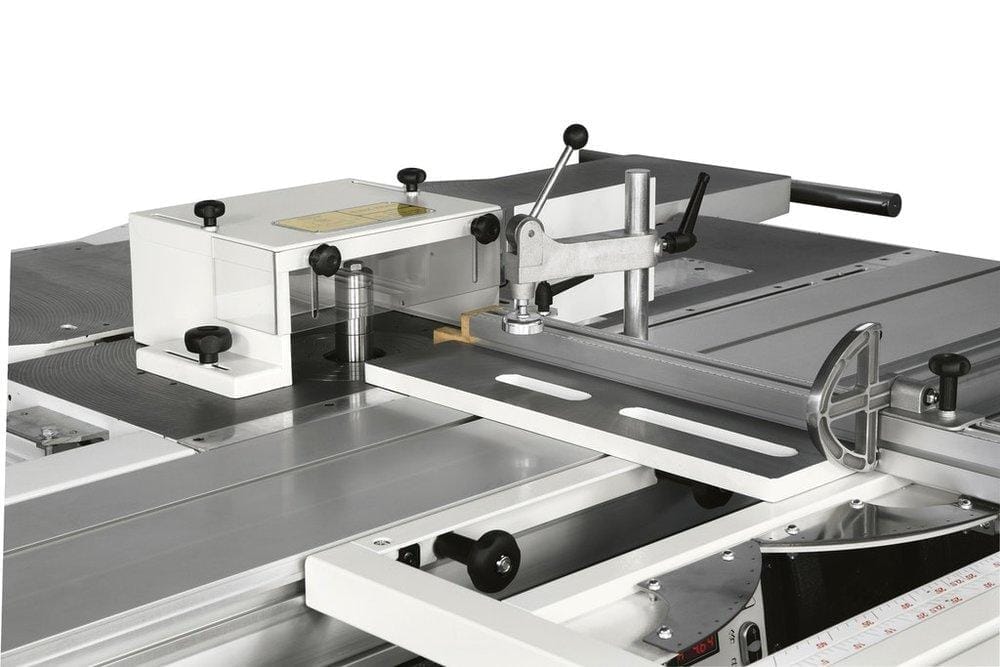

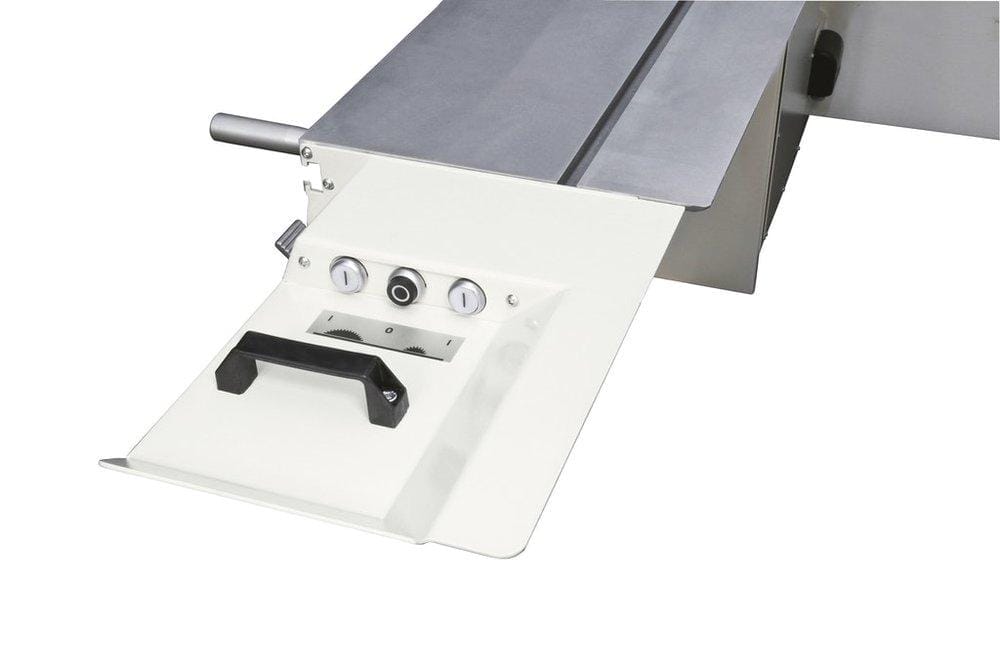

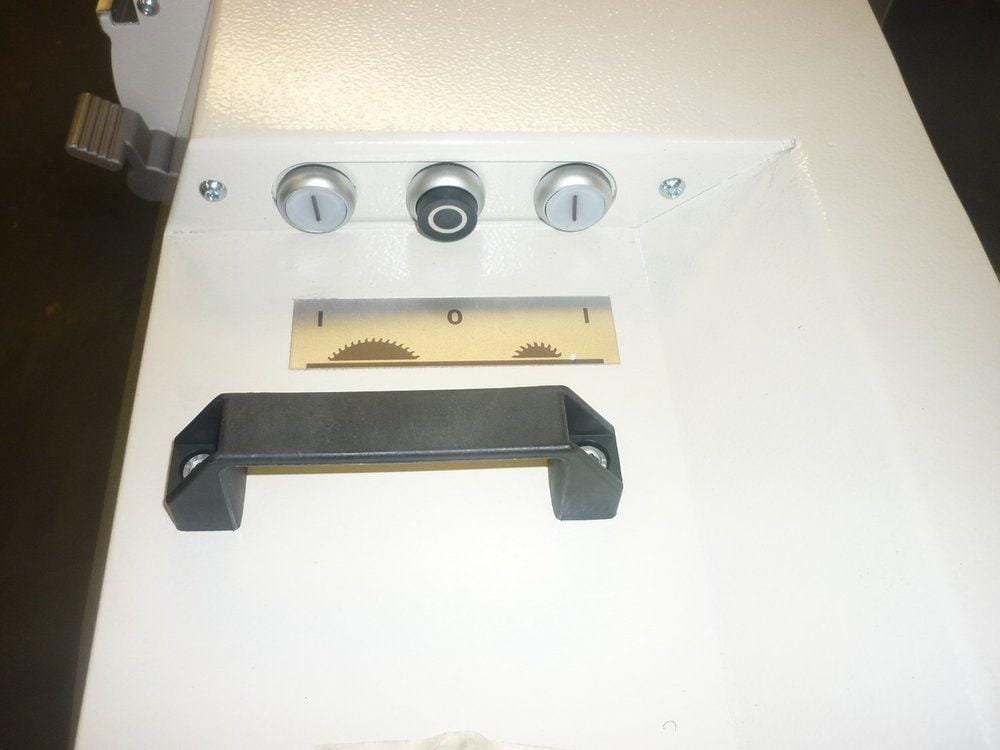

Start /Stop push buttons integrated in-carriage
Additional table on sliding table

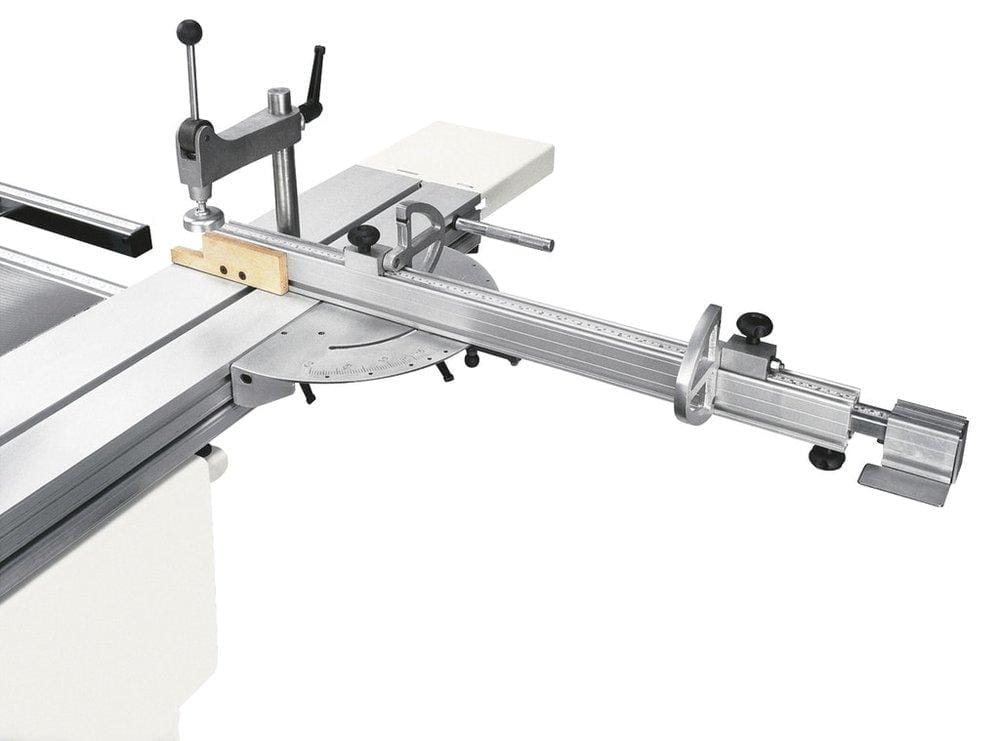

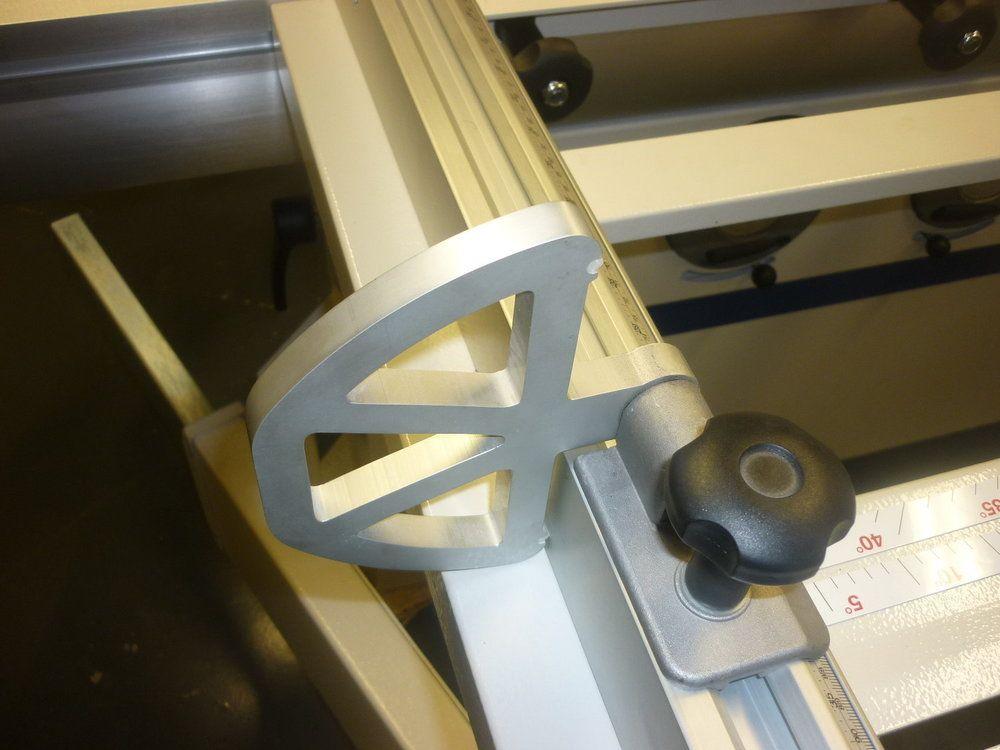

Angular cut device with flip over stop
Spindle moulder tilting 90-45 deg
Dia spindle shaft 30mm
Aluminium fence plates
Tenoning table with protection hood
Electrical pre-setting and flip over support for mounting a feeder
3 x 3 phase motors 7kw



  • Surfacer Planer Unit
  • Working width 410mm
  • Total length of worktables 2200mm
  • Surfacer fence tilt angle 90 degrees/45 degrees
  • No. of cutterblock knives 3
  • Thicknesser
  • Thicknesser table dimensions 775 x 410mm
  • Feeding speed 7 + 14m/min
  • Work height min/max 3/240mm
  • Maximum stock removal 5mm
  • Circular saw
  • Max. blade diameter with scoring
  • saw mounted 350mm
  • Max. blade projection 118mm
  • Cutting width at parallel fence 1000mm
  • Carriage stroke 2320mm
  • Spindle moulder
  • Speeds 1400-3500-6000-8000-rpm
  • Max. tool diameter, moulding/
  • tenoning 230/275mm
  • 3 dust outlets 120mm each
  • Motor powers 3 x 5.5hp
  • Priced machine is for a basic specification machine

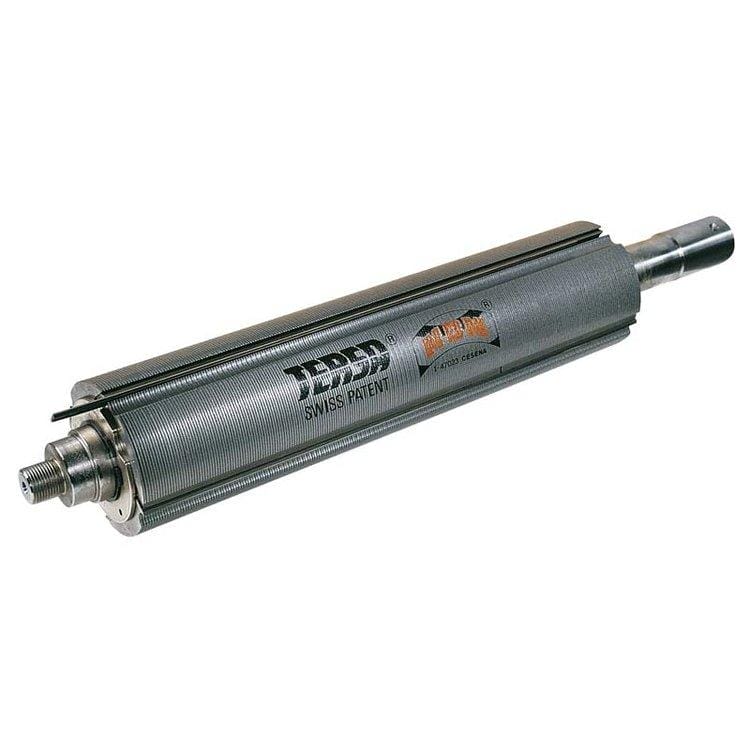

  • Tersa or XYLENT cutter head, and a range of options are also available
