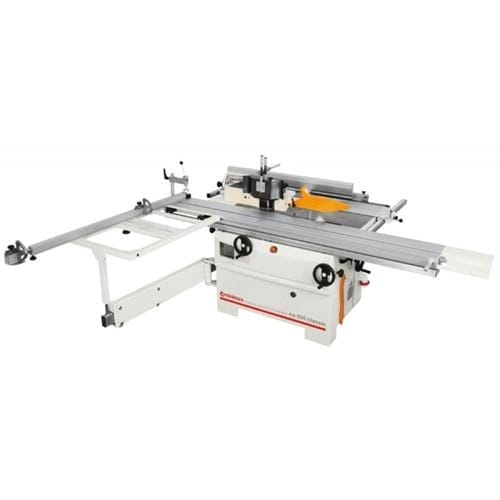

SCM Minimax Model C30 Genius Combined Universal

£4,519.00

Proving a great choice for smaller joinery shops and D.I.Y woodworkers alike, the SCM Minimax Model C30 Genius Combined Universal brings the standard, solid SCM quality in a compact yet rigid design.

As a focus on ease of use, the saw unit can be raised and tilted via the comfortable and conveniently located handwheel. Versatility is greatly enhanced with a few features: the spindle moulder unit has 2 speeds, the spindle moulder fence has micrometric adjustment and the 2 dedicated special fences are used for tenoning and shaping. The sliding table is made of anodised aluminium and has a 1200mm stroke. It slides next to the saw blade to ensure higher precision when cutting.

Out of stock

In Stock

Out of stock

Part Exchange

If you are looking to swap out your older machine for a brand new model, fill in this short form.

Finance Enquiry

Finance available on this machine working alongside our partner Close Brothers Asset Finance.

IMPORTANT

Technical Specifications

Specifications
Make
Model
Pre Milling Unit
Minimum Panel Length
Edge Thickness
Minimum Panel Thickess
End Trim
Motor Power
Corner Rounded
Scraping
Specifications
Bander Type
Feed Speed
Maximum Edge Thickness
Minimum Edge Thickness
Top/bottom Trim
Buffing
Dust Outlet Size
Voltage/Phase
Weight
Dimensions

FEATURES

Machines Features

Loading...

Specifications

Planer working width 300mm
Surfacing tables total length 1200mm
Min. ÷ max. working height on thicknesser 3 ÷ 200mm
Saw blade tilting 90° ÷ 45°
Max. saw blade projection from table at 90°-80mm
Squaring stroke 1200mm
2 spindle moulder speeds 5000/7500rpm
Tersa cutter block
Wheel kit
1 Phase electrics

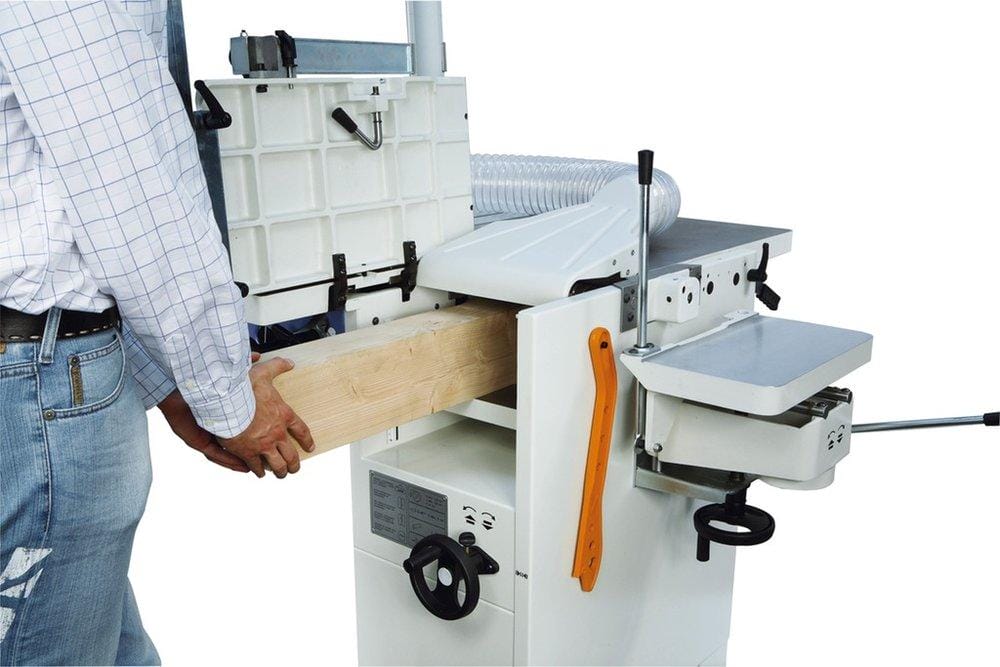

  • Standard knife dimensions : 300 x 25 x 3 mm
  • Max. stock removal: 3
  • Surfacing tables total length: 1200 mm
  • Thicknessing table dimensions: 300 x 450 mm
  • Feed speed on thicknesser: 6 m/min
  • Min. ÷ max. working height on thicknesser: 3 ÷ 200 mm

Technical Features (Circular Saw):

  • Cast iron saw-spindle moulder work table dimensions: 1024 x 224 mm
  • Saw blade tilting: 90° ÷ 45°
  • Max. saw blade diameter: 250 mm
  • Max. saw blade projection from table at 90° / 45° : 80 / 64 mm
  • Squaring stroke: 1200 mm
  • Cutting width on parallel fence: 540 mm

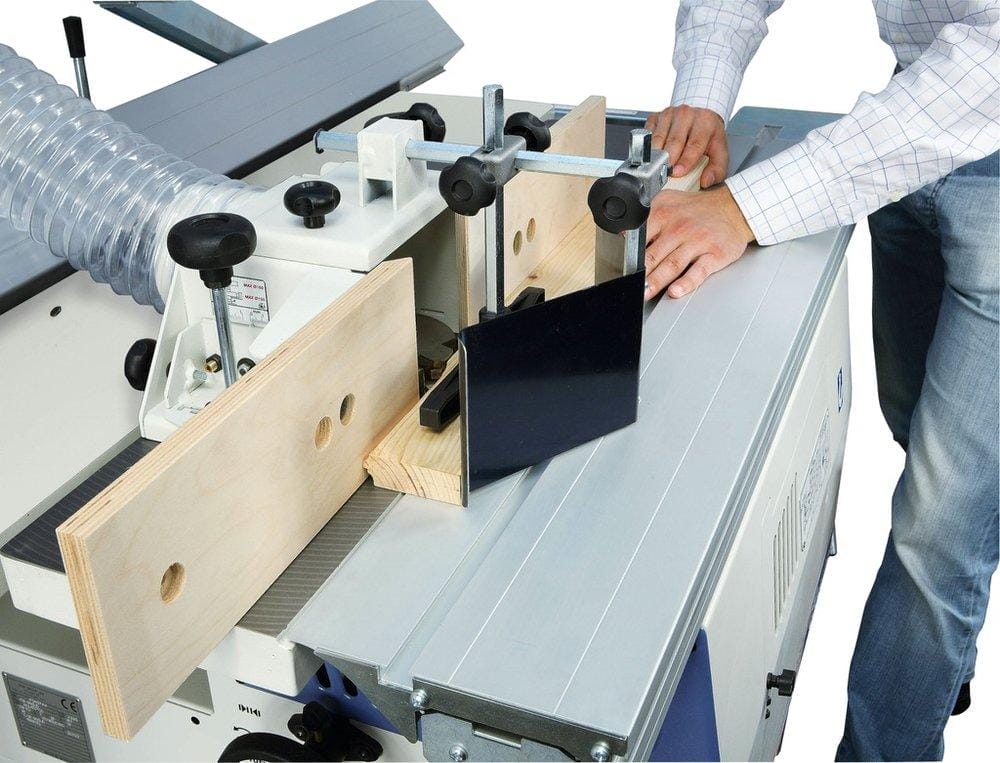

Technical Features (Spindle Moulder):

  • Max. useful spindle length: 75 mm
  • Spindle moulder speeds at 50Hz: 5000/7500 rpm
  • Max. tool diameter when profiling: 160 mm
  • Max. diameter of tool lowered under the table at 90°: 145 mm
