AES SAF MODEL STK 3500 Fine Dust Cabinet Extractor
£2,995.00
AES SAF STK 3500 cabinet-style dust extractor delivers 3500 m³/hr airflow for a cleaner, safer workshop. High-efficiency IE3 motor, robust metal propeller, and unique part separator prevent large debris and reduce fire risk. CE-certified and mobile, it combines durability, performance, and safety in one unit.
Product Features
- Airflow capacity of 3500 m³/h
- Mobile cabinet-style dust extractor
- IE3 high-efficiency motor (IP55 rated)
- Robust metal propeller construction
- Dynamically and statically balanced fan
- Heavy-duty steel body (1.2 mm thickness)
- Electrostatic powder-coated finish
- Integrated part separator system
- Prevents debris larger than 25 x 25 mm entering propeller
- Reduced fire risk through debris control
- Extended propeller lifespan and protection
- CE-certified construction and compliance
Description
AES SAF STK 3500 cabinet-style dust extractor delivers 3500 m³/hr airflow for a cleaner, safer workshop. High-efficiency IE3 motor, robust metal propeller, and unique part separator prevent large debris and reduce fire risk. CE-certified and mobile, it combines durability, performance, and safety in one unit.
Features include:
- Mobile dust collector with a flow capacity of 3500 m3 per hour.
- The body sheet thickness is 1.2 mm. The propeller and blades are at least 3 mm according to the fan size. The propeller is dynamically and statically balanced.
- Painted with two colours of electrostatic powder paint.
- In IP55 standards, an IE3 high-efficiency motor is used. There is a part separator that protects the propeller against balancing and reduces the risk of fire.
- We are different; We put an end to propeller breakages with the part separator feature.
- The part separator prevents parts larger than 25x25mm from entering the propeller. This protects the propeller against balancing and ensures it lasts longer.
- Preventing parts of 25x25mm and above from entering the propeller reduces the risk of fire.
- Metal propeller is used in all product groups.
- All products are produced by CE standards.
- All products are design registered.
- Utility model registration of the part holder has been made. And it is a product unique only to our company.
Specifications
| Product Code | STK-3500 |
| Capacity | 3500 m3/h |
| Motor Power | 3 kw 4 hp 3000 RPM |
| Vacuum Velecity | 30 m/sec |
| Filter Quantity | 15 Pcs |
| Filter Sizes | Q160 x 1030 mm |
| Filtration Area | 7.75 m2 |
| Waste Storage | 1 Pc Metal Container |
| Vacuum Diameter | Q200 mm |
| Motor Drive Type | Direct Drive |

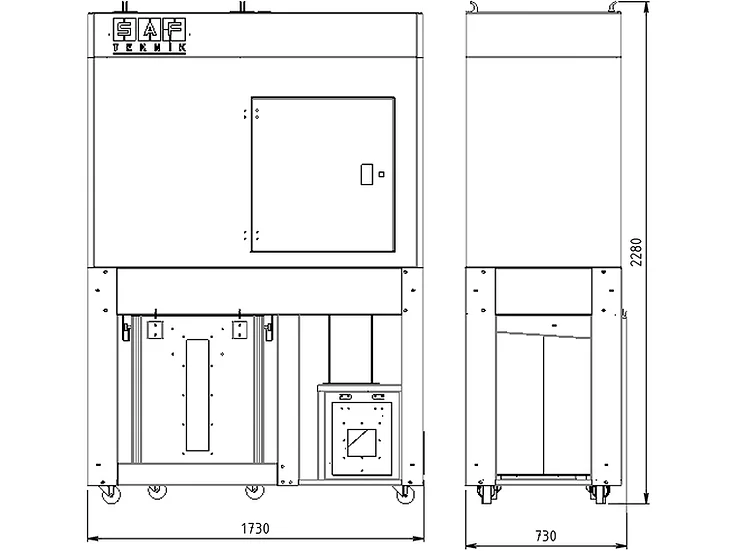

| Unit Sizes | 730*1730*2280 mm |
| Unit Weight | 300 kg |
| Electrical Panel | Star-Delta Starter |
Additional Information

Nationwide Delivery

Installation & Commisioning
Finance Available

Service & Support
