AES SAF MODEL STK 6500 Fine Dust Cabinet Extractor
£4,400.00
AES SAF STK 6500 multi-filter dust extractor delivers 6,500 m³/hr airflow, ideal for CNC nesting machines and high-dust applications. Auto-shaker, metal dust bins, and part holder protect the fan and reduce fire risk. CE-certified, mobile, and robust, it combines powerful performance with safety and durability.
Product Features
- Airflow capacity of 6500 m³/h
- Multi-filter design with large filtration area
- Steel enclosure for reduced dust emissions
- Automatic filter shaker system
- Metal dust collection bins
- Integrated filter box with 25 mm mesh
- IE2 high-efficiency motor (IP55 rated)
- Dynamically and statically balanced fan
- Heavy-duty steel body (1.2 mm thickness)
- Adjustable vibration damping pads
- Part separator system for debris control
Description
The AES SAF STK 6500 is the perfect choice for anyone looking for a strong yet compact fully featured dust unit and would be typically well suited when connected to a CNC nesting machine. The machine is of multi filter design giving a large filtration area and coupled with the steel enclosure helps contain any emissions of dust compared to open filter dust units.
These machines also have an auto shaker to help clean the filters along with metal dust bins which help contain the dust especially during bag changing.
The filter box is a necessity for CNC nesting machines where small pieces could be extracted and would ordinarily hit the impellor. The filter box has a gauze having 25mm square mesh design which collects any larger pieces, therefore protecting the fan from damage.
- It is a mobile dust collection system with a vacuum capacity of 6.500 m3 per hour.
- Body sheet thickness 1.2 mm. Propeller sheet and blades are at least 3 mm according to fan size. The propeller is dynamically and statically balanced.
- An aesthetic appearance is given by painting with 2 colors with electrostatic powder paint. Temporary vibrations are dampened with the adjustable vibration pad.
- E2 high efficiency motor is used in Ip55 standards. There is a part holder that protects the propeller against balance and reduces the risk of fire.
- We are different; We end fan Breakage with Part Holder Feature.
- Thanks to the Part Holder, parts larger than 25x25mm cannot go to the propeller. This protects the propeller against balance and makes it last longer.
- Preventing metal parts of 25x25mm from entering the system reduces the risk of fire.
- Metal propellers are used in all product groups.
- All products are produced in CE standards.
Specifications
| Product code | STK-6500 |
| Its capacity | 6500 m3 / h |
| Motor power | 7.5 kw 10 hp 3000 dd |
| Dust Absorption Rate | 32 m/sn |
| Number of Filters | 45 Piece |
| Filter Sizes | Q160 x 940 mm |
| Filter Surface Area | 21.25 m2 |
| Waste Storage | 2 Metal Buckets |
| Suction Diameter | Q300 mm |
| Motor Transfer Type | Coupled |

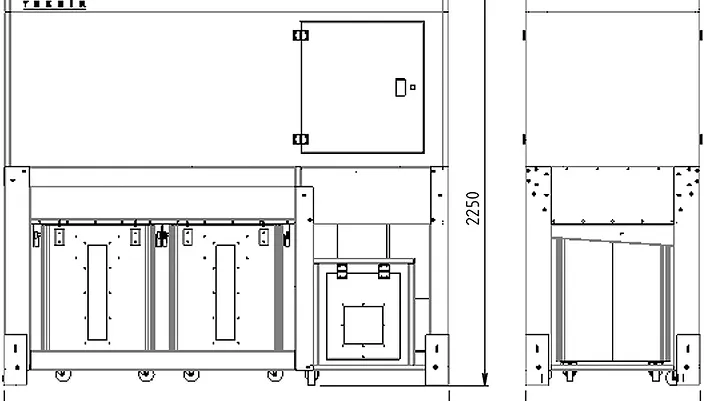

| Unit Dimensions | 1170*2400*2200 mm |
| Unit Weight | 460 kg |
| Electric panel | Star Triangle Board |
