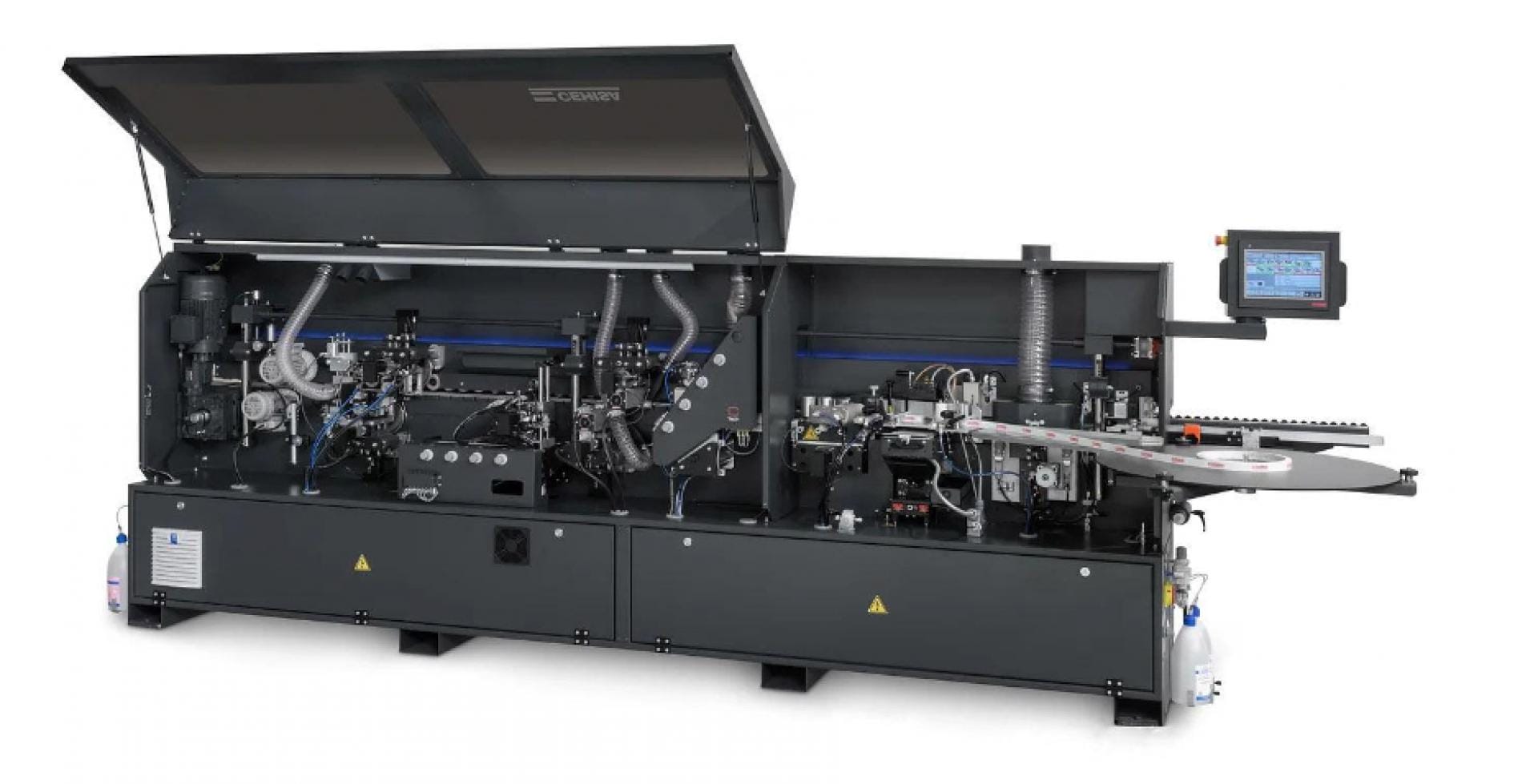

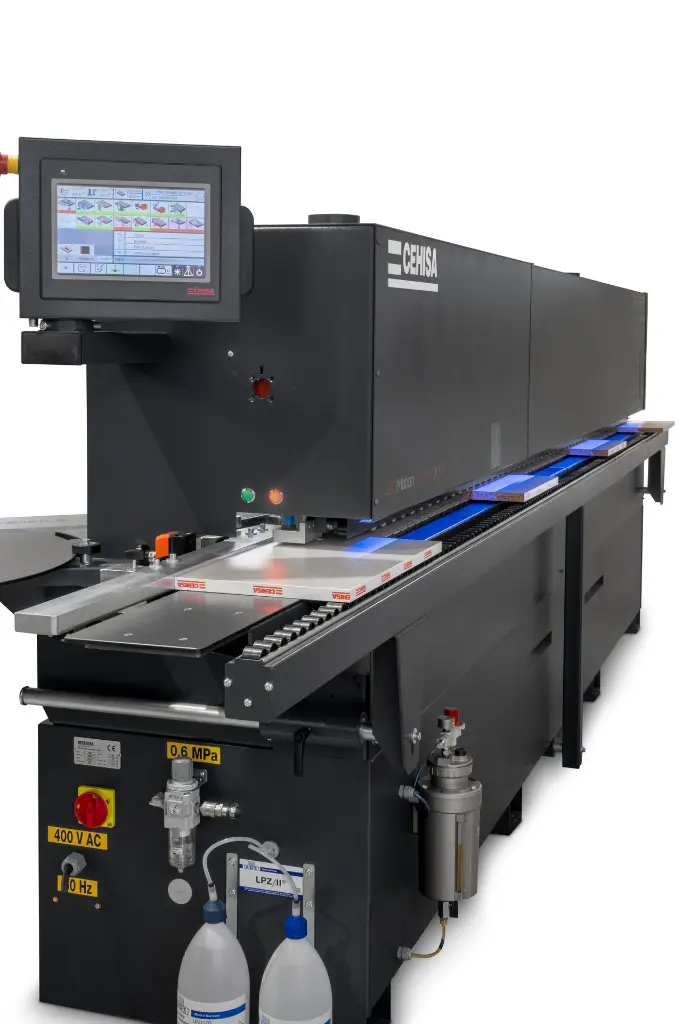

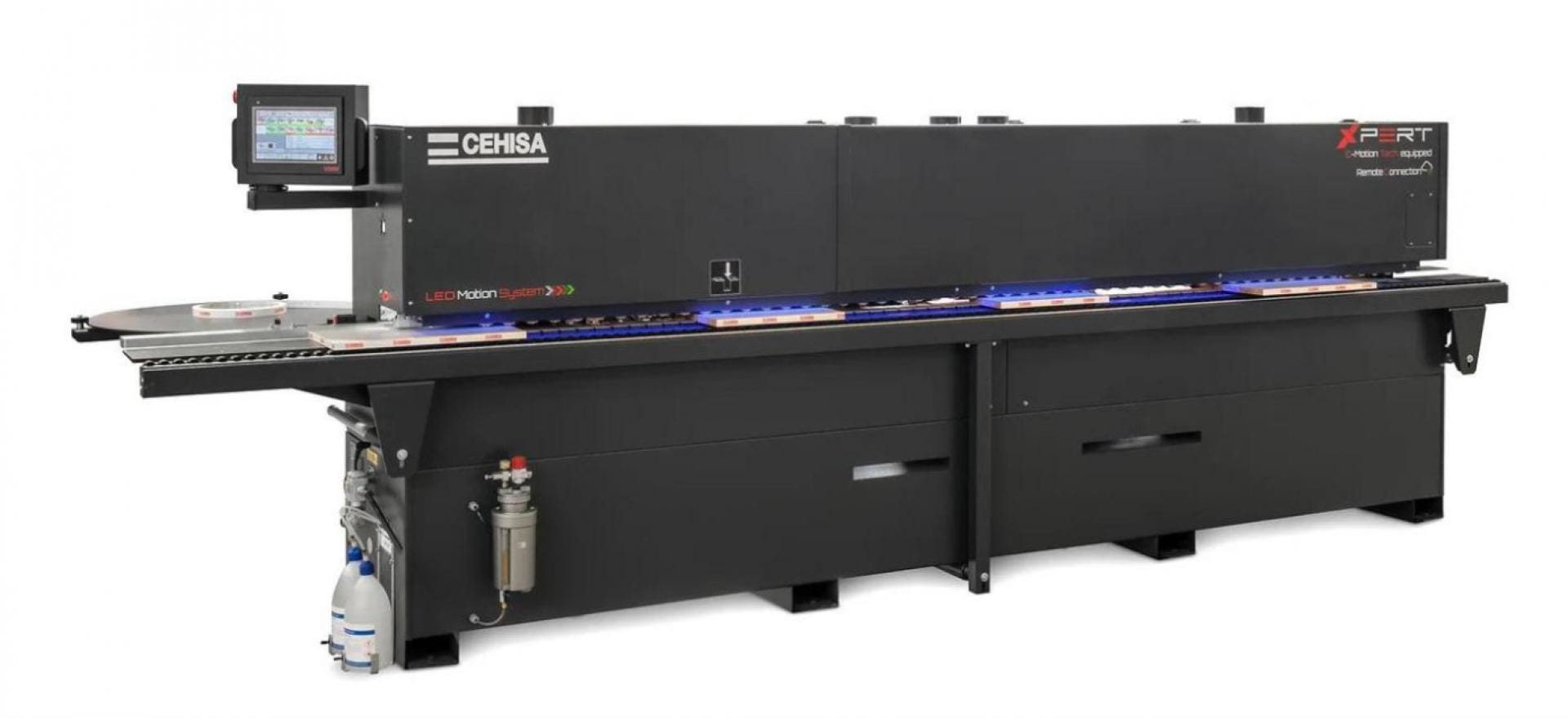

New Cehisa XPERT Plus Advanced Edgebander
Original price was: £63,995.00.£54,995.00Current price is: £54,995.00.
Expected: February 15, 2026
The Cehisa XPERT Series Edgebander combines precision and versatility with up to 11 motorized axes, double-blade radius scrapers, and C-motion technology for flawless edge finishing. With a working speed up to 11 m/min and support for 0.4–3 mm edging and 8–60 mm panels, it delivers high productivity in a compact footprint. Optional features include DUOMELT glue, infrared pre-heating, buffing unit, pneumatic scrapers, and an 18.5″ touchscreen with remote connectivity.
Product Features
- C-motion technology for precision adjustment
- Up to 11 motorised axes
- Double blade radius scraper system
- Corner rounding unit with 2 HF motors
- Pre-milling unit with DIA cutters (H65)
- DUOMELT glue system (EVA/PUR)
- Glue scraper with pneumatic control
- Buffing unit
- 18.5″ touchscreen with C-motion software
- Non-stick and cleaning spray systems
Description
The XPERT Series combines versatility and compactness with the integration of C-motion technology that provides the highest end finish and maximum accuracy of adjustment.
Up to 11 motorized axes that grants a full control of the edgebander and double blade system on the radius scraper for a perfect finish
Technical Specifications
Edge band thickness (Rolls / Wood strips) : 0,4 – 3 / 5 mm
Panel thickness: 8 – 60 mm
Working speed: 11m/min
Motorized axis: Up to 11
Radius scraper station: Double blade system
Compressed air connection: 6 – 7 BAR
Installed power: 8,5 kW
Dimensions (installed)* : 4700 x 680 x 1500 mm.
Weight*: 1.300 kg
*Depending on machine configuration
OPTIONS INCLUDED IN STOCK MACHINE
RR-8N Glue scraper with pneumatic
positioning (On/Off)
PC-5 Buffing unit
DUOMELT® pack dual use EVA/PUR¹
Cutters DIA H65 instead of H30 for pre
milling cut
Pre-heating at entrance (infrared
lamp)
Non-stick spray agent station at
entrance
Cleaning spray agent station at exit
Cabin light (LED TYPE)
LED motion System
New glue tank quick change
Connectivity kit (remote connection)
Nesting vertical tracers
Extra-large infeed fence
Working speed at 14m/min
Motorized control of infeed fence
NEW PC touchscreen 18,5″ with NEW
C-motion Software
Panel width reduced to 60 mm XPERT Plus
Motorized control (11 axis)
Double blade system in Radius Scraper
(R1 and R2mm)
Corner Rounding unit with 2 x HF Motors
Barcode reader added
Manual squaring device added
