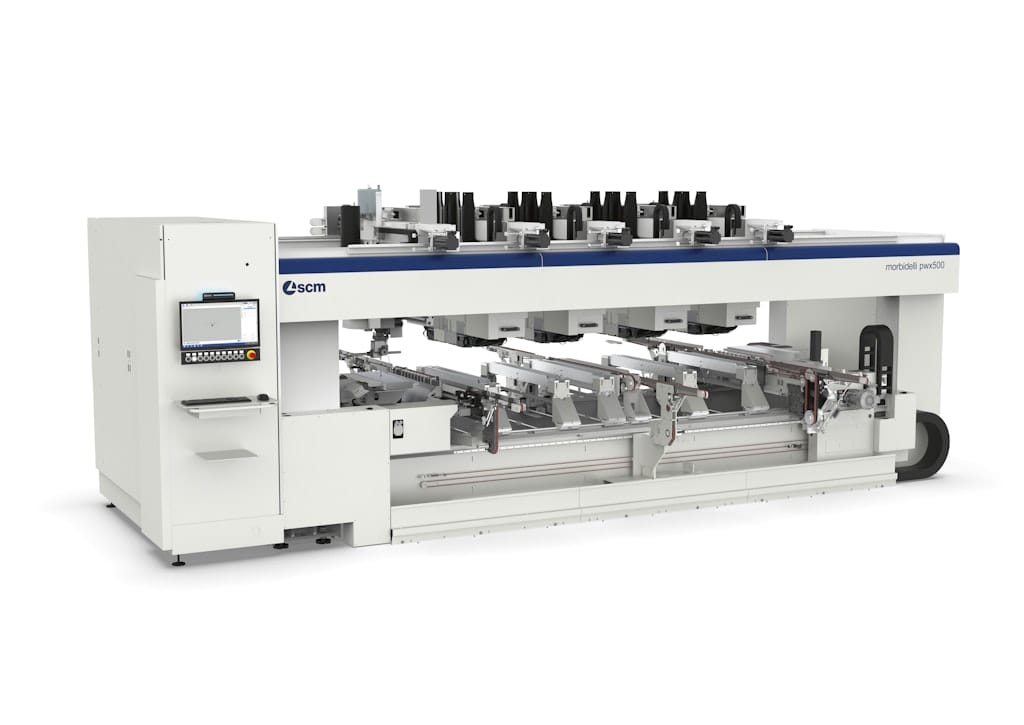

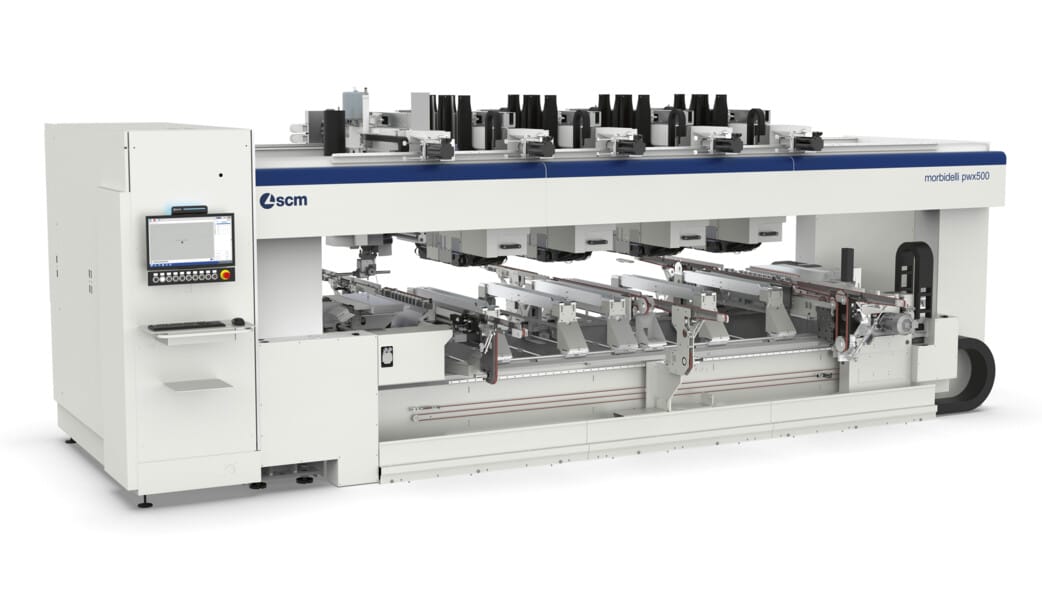

morbidelli pwx500
POA
Product Features
Specifications
Technical data
| Min. / max. panel length | mm | 250 / 3000 |
| Min. / max. panel width (single positioning) | mm | 100 / 900 |
| Min. / max. panel width (double positioning) | mm | 100 / 1200 |

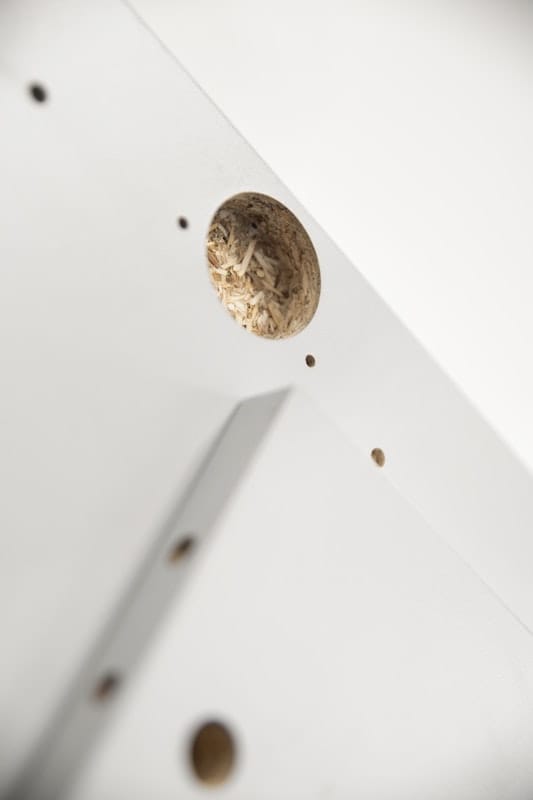

| Min. / max. drilled panel thickness | mm | 10 / 60 |
| Min. / max. panel with dowels thickness | mm | 12 / 60 |
| Max panel weight | kg | 50 |

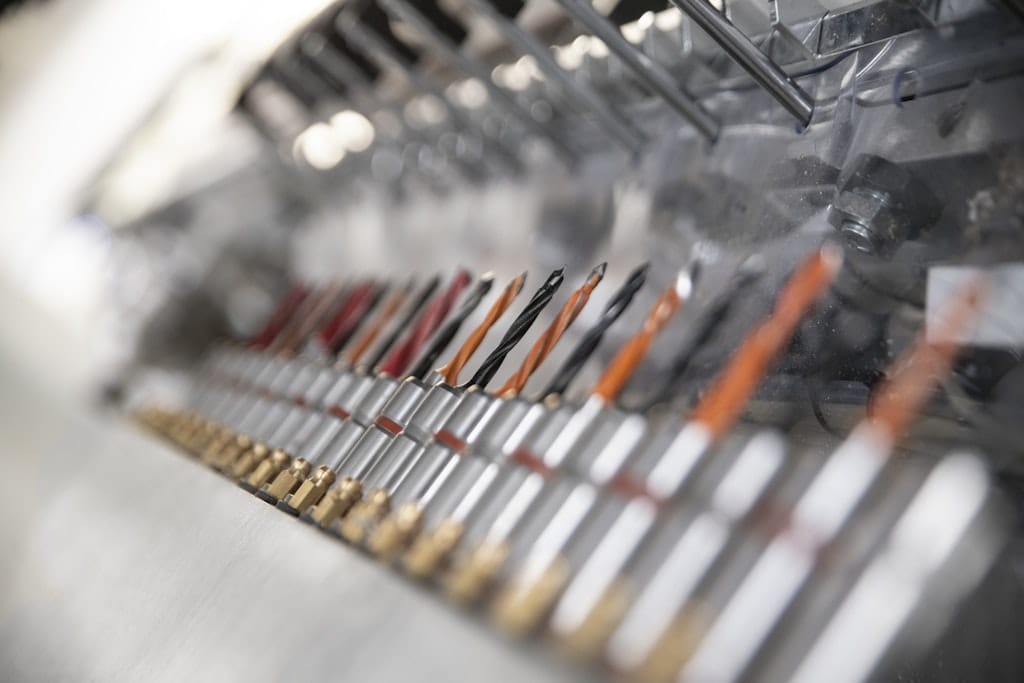

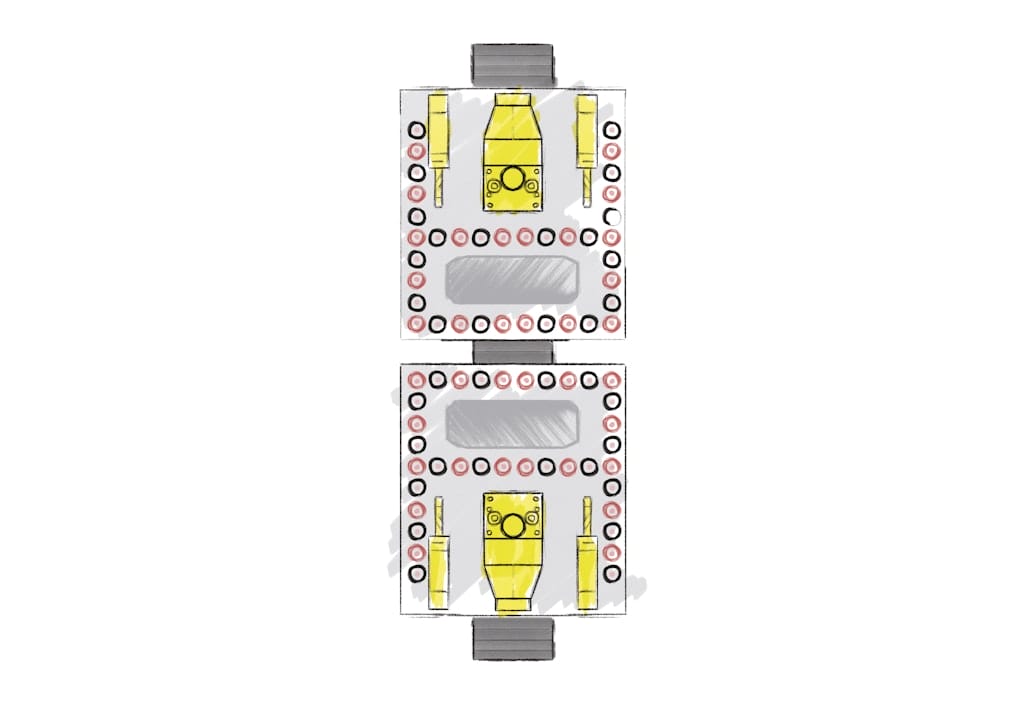

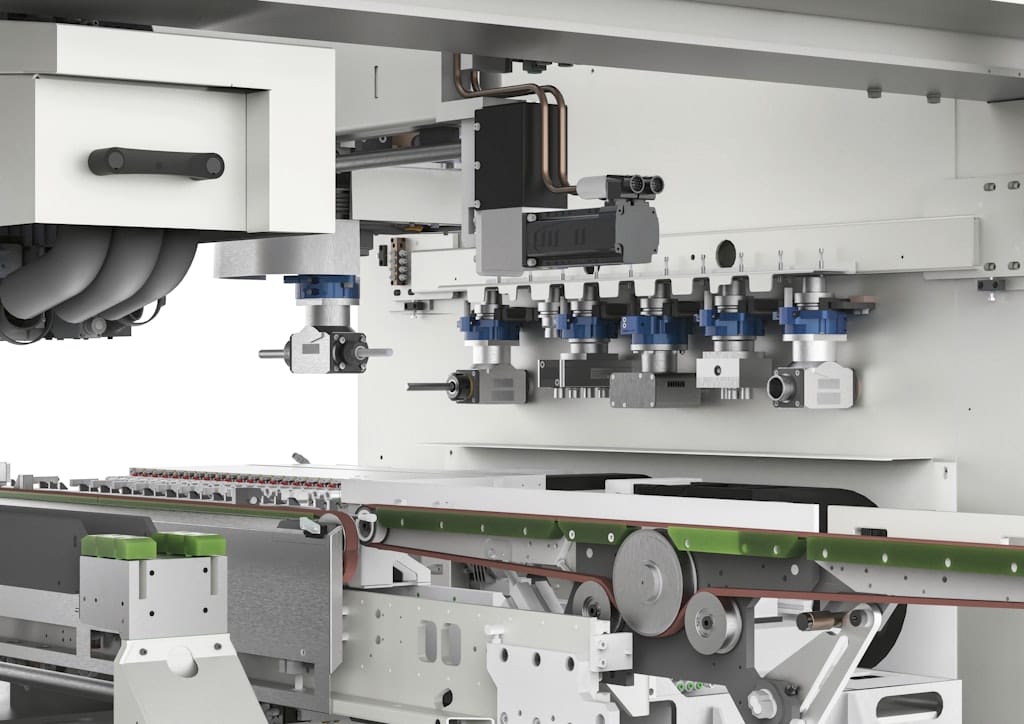

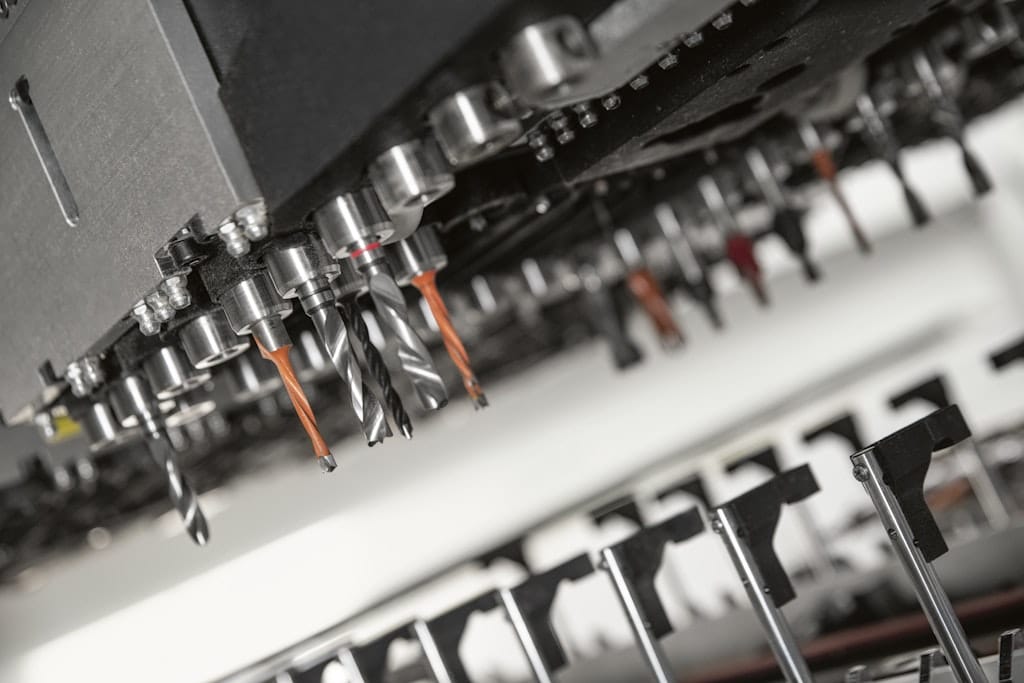

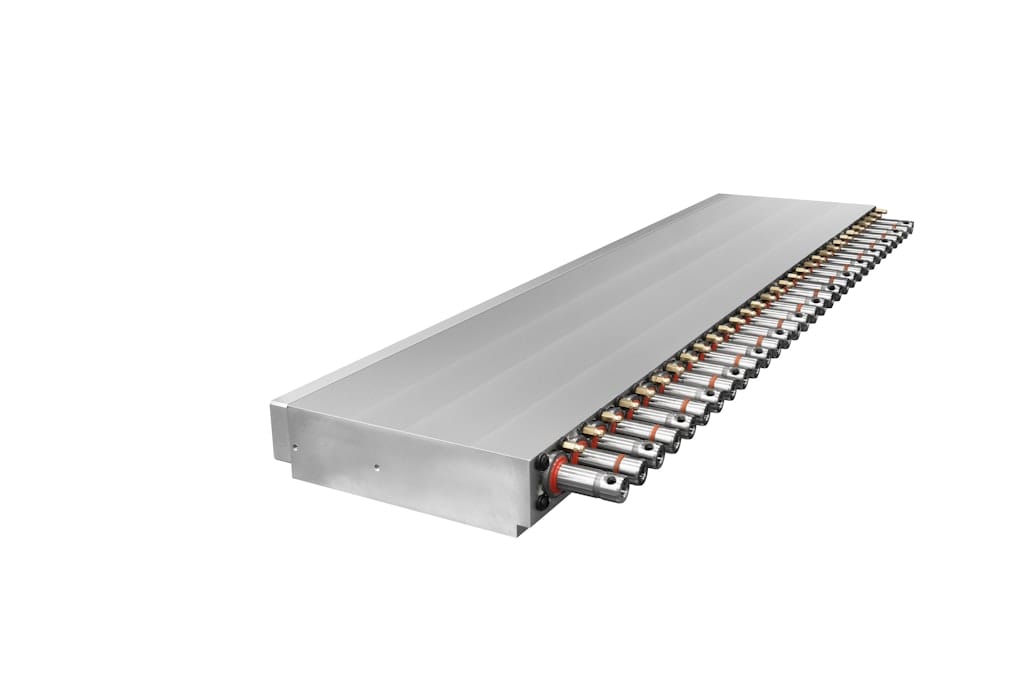

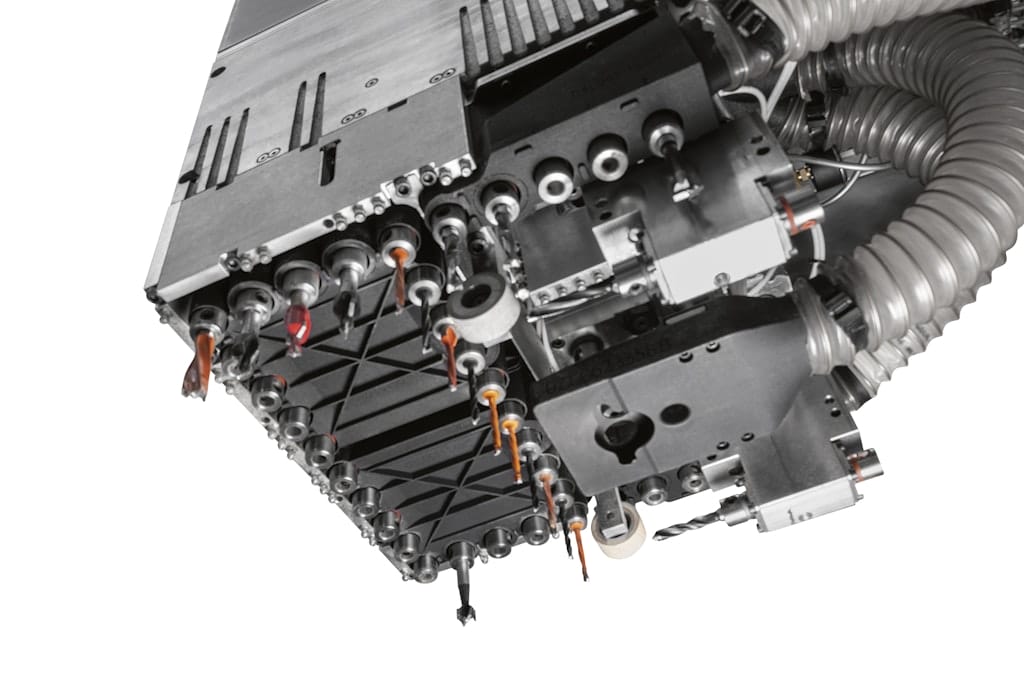

| Vertical drilling heads (max.) | no. | 10 |

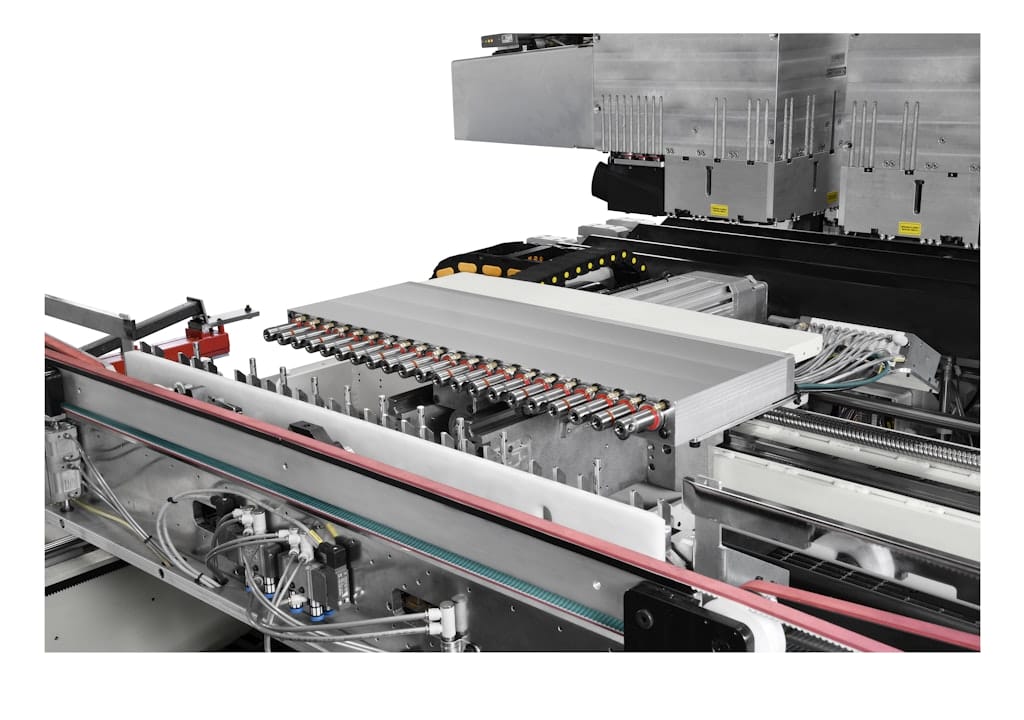

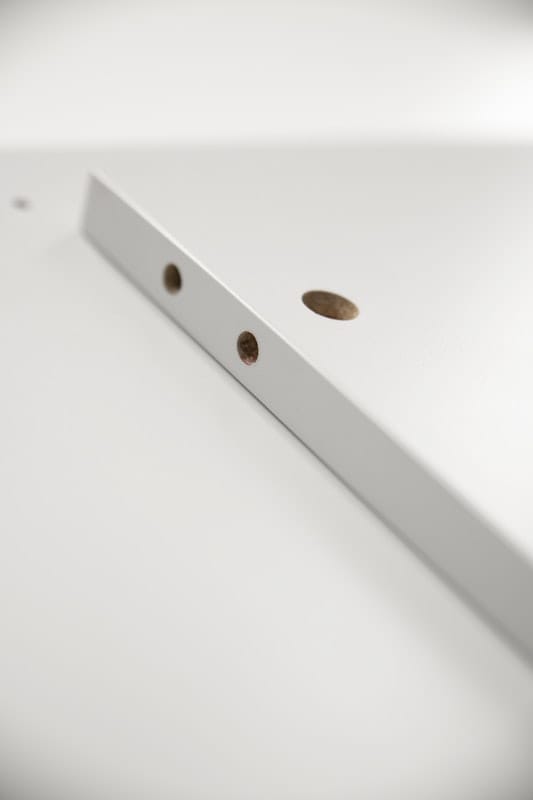

| Horizontal drilling heads (max.) | no. | 4 |
| Drilling rotation speed | rpm | 3.000 – 6.000 |

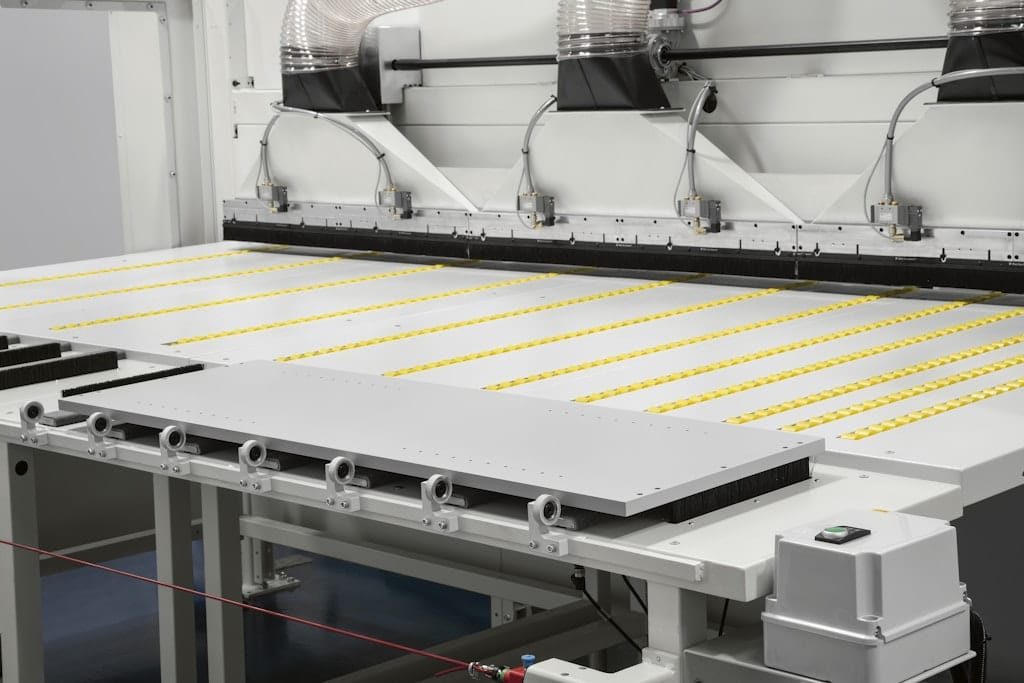

| Automatic work tables | no. | 5 (std) – 1 (opt) |
| Work table height | mm | 1070 |
| HSK 63 electrospindle with tool changer (opt.) | / | |

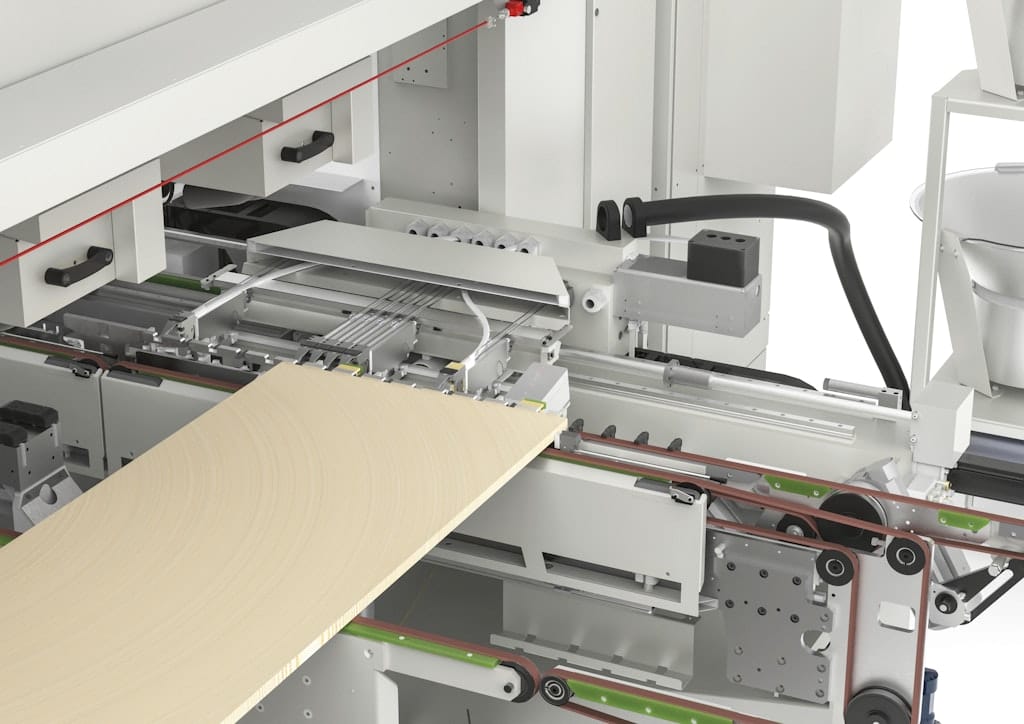

| Side dowelling unit (opt.) | / |
Brochure
