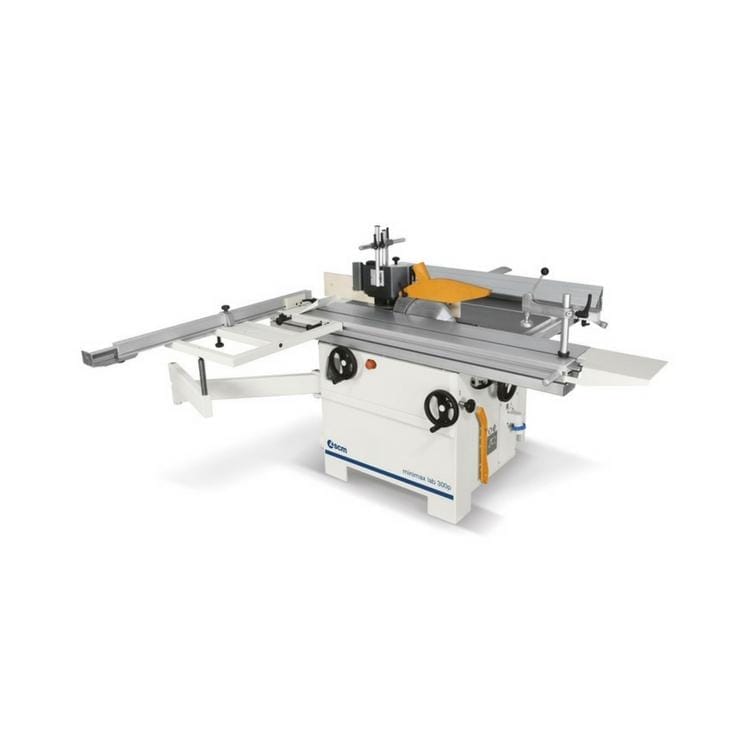

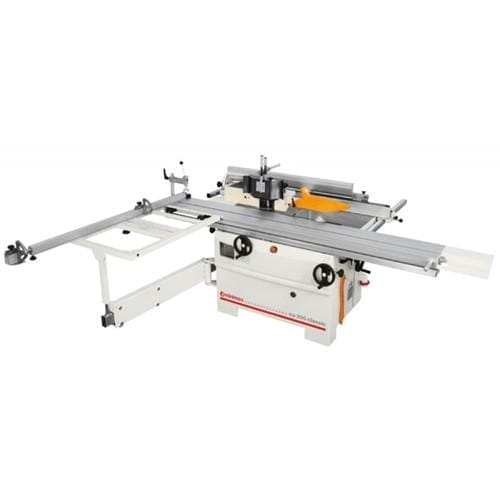

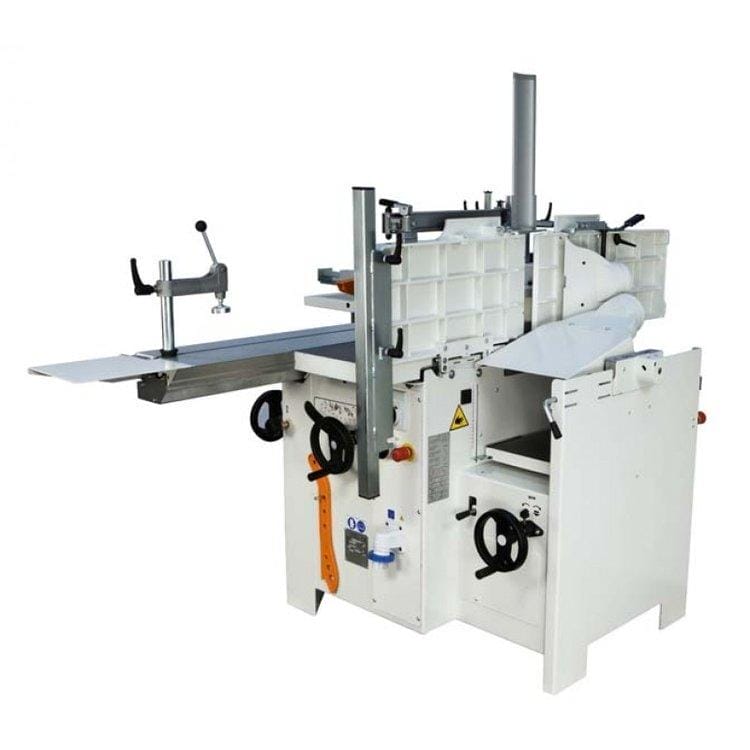

Minimax LAB 300 P Universal Combined Machine (Planer, Saw & Spindle Moulder)
Encompassing a great degree of all: ease-of-use; flexibility; precision and safety, the Minimax LAB 300 P Universal Combined Machine (Planer, Saw & Spindle Moulder) brings the standard, solid SCM quality that guarantees an excellent output alongside outstanding durability.

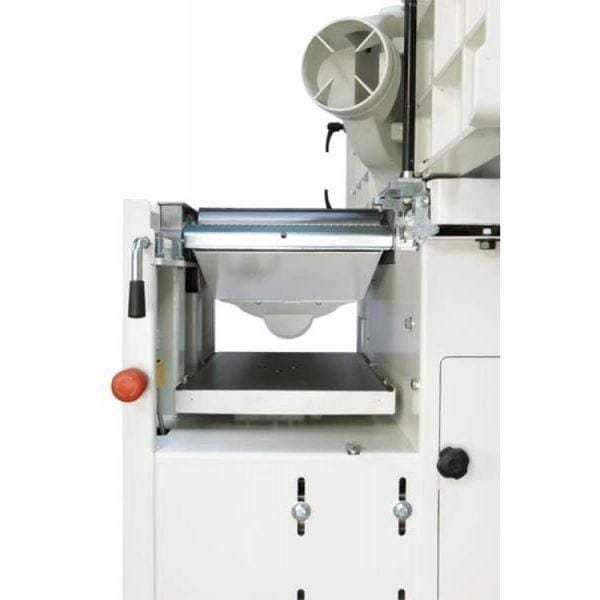

Any type of machining will be straightforward and free of complications thanks to the anodised-extruded guides with support and rapid locking. The feeding planer has both optimum effectiveness and a great focus on easy-use.

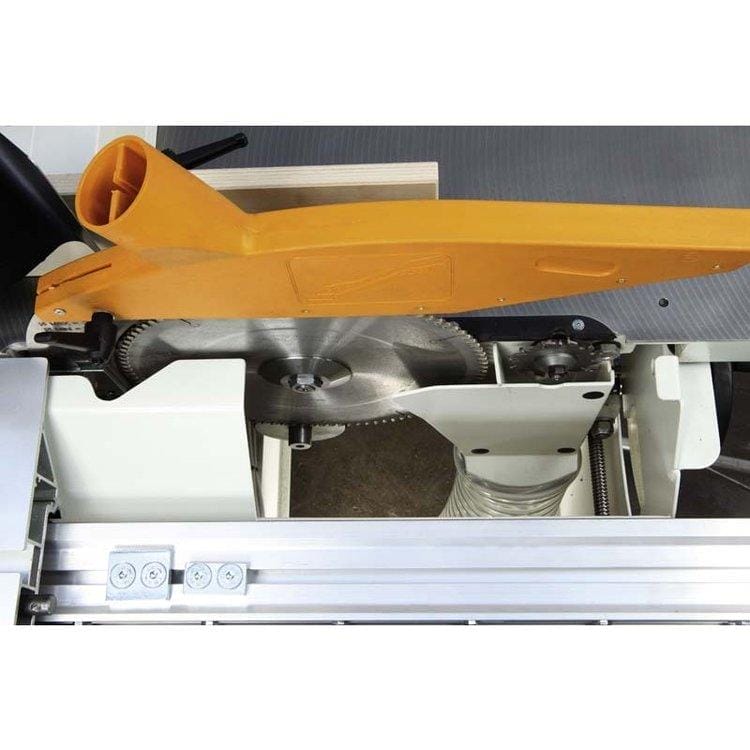

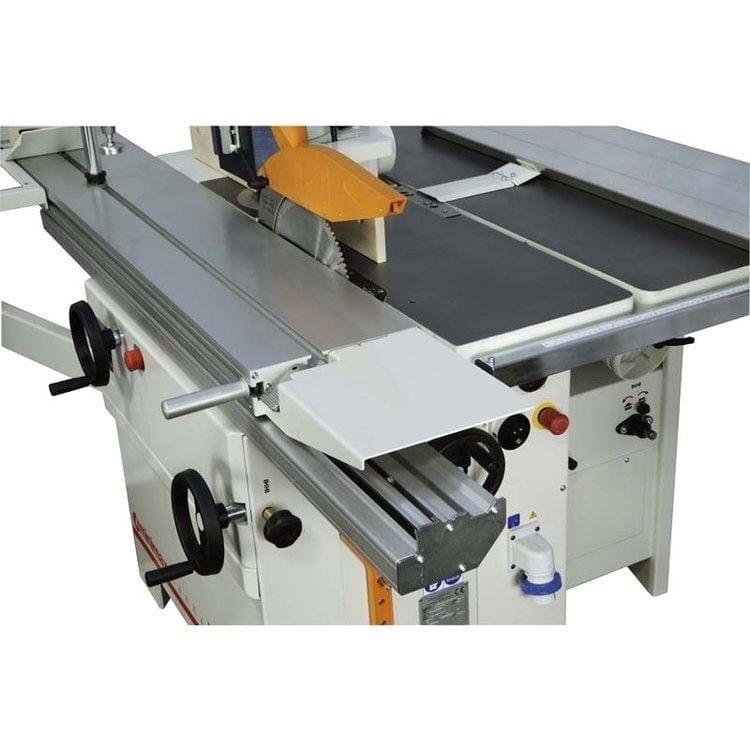

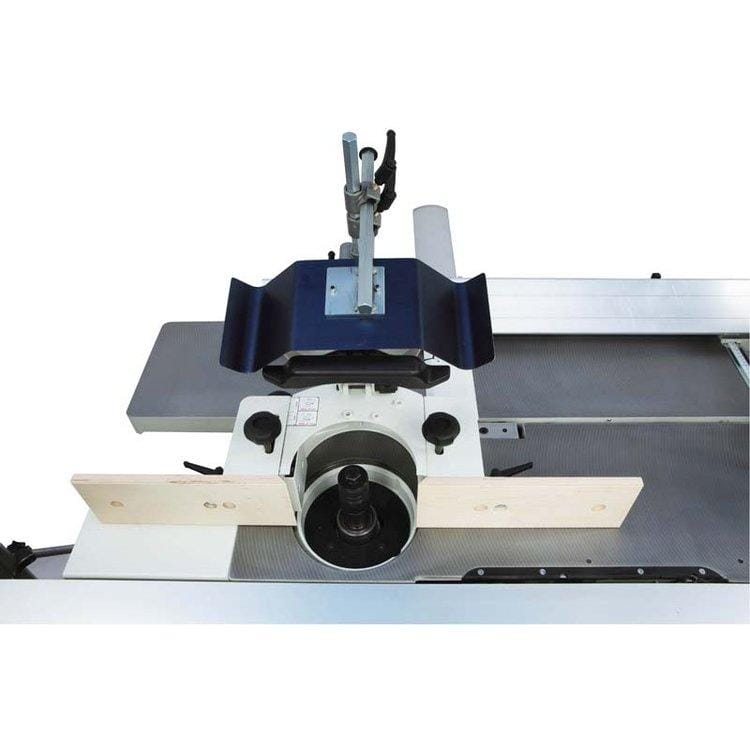

The spindle moulder unit can be equipped with various speeds, allowing for flexible and effective cutting and the spindle moulder hood with micrometric adjustment makes for excellent moulding work. With the sliding, anodised-aluminium carriage next to the blade, cutting precision is greatly enhanced and will ensure an excellent finished product. Conveniently placed handwheels guarantee easy adjustment of settings and simple altering of the lifting and tilting functions.
POA
+VAT
Call 0845 274 3600
for more information
Part Exchange
If you are looking to swap out our older machine for a brand new model? Fill in this short form.
Encompassing a great degree of all: ease-of-use; flexibility; precision and safety, the Minimax LAB 300 P Universal Combined Machine (Planer, Saw & Spindle Moulder) brings the standard, solid SCM quality that guarantees an excellent output alongside outstanding durability.
Any type of machining will be straightforward and free of complications thanks to the anodised-extruded guides with support and rapid locking. The feeding planer has both optimum effectiveness and a great focus on easy-use.
The spindle moulder unit can be equipped with various speeds, allowing for flexible and effective cutting and the spindle moulder hood with micrometric adjustment makes for excellent moulding work. With the sliding, anodised-aluminium carriage next to the blade, cutting precision is greatly enhanced and will ensure an excellent finished product. Conveniently placed handwheels guarantee easy adjustment of settings and simple altering of the lifting and tilting functions.
Encompassing a great degree of all: ease-of-use; flexibility; precision and safety, the Minimax LAB 300 P Universal Combined Machine (Planer, Saw & Spindle Moulder) brings the standard, solid SCM quality that guarantees an excellent output alongside outstanding durability.
Any type of machining will be straightforward and free of complications thanks to the anodised-extruded guides with support and rapid locking. The feeding planer has both optimum effectiveness and a great focus on easy-use.
The spindle moulder unit can be equipped with various speeds, allowing for flexible and effective cutting and the spindle moulder hood with micrometric adjustment makes for excellent moulding work. With the sliding, anodised-aluminium carriage next to the blade, cutting precision is greatly enhanced and will ensure an excellent finished product. Conveniently placed handwheels guarantee easy adjustment of settings and simple altering of the lifting and tilting functions.
Specifications
- Saw Unit with 315mm max blade diameter with scoring blade
- Squaring frame complete with: Fence with 1 stop, Eccentric Clamp & Support
- Integrated fence for parallel cuts & surface planing
- Pre-Setting for morticer
- Tersa Knives
- Bridge Planer Protection
- Wheel Kit
- Professional fences
- Available in single-phase add £179.00 + VAT
- Optional scoring unit add £216.00 + VAT
| Cutterhead working width | mm / inches | 300 / 12 |
| Jointer bed length | mm / inches | 1300 / 51 |
| Max. sawblade projection from table at 90°/45° | mm / inches | 100 / 78 3.94 / 3.07 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 800 / 31.5 |
| Max. useful spindle length/td> | mm / inches | 100 / 4 |
| Max. tool diameter when profiling | mm / inches | 210 / 8.27 |
| Spindle moulder speed | rpm | 4000 / 7000 / 9000 |
| (3x) Single-phase motors | Hp | 3.4 |
| Max. squaring stroke of sliding table saw | rpm | 1600 / 5.5 |
Specifications
- Saw Unit with 315mm max blade diameter with scoring blade
- Squaring frame complete with: Fence with 1 stop, Eccentric Clamp & Support
- Integrated fence for parallel cuts & surface planing
- Pre-Setting for morticer
- Tersa Knives
- Bridge Planer Protection
- Wheel Kit
- Professional fences
- Available in single-phase add £179.00 + VAT
- Optional scoring unit add £216.00 + VAT
| Cutterhead working width | mm / inches | 300 / 12 |
| Jointer bed length | mm / inches | 1300 / 51 |
| Max. sawblade projection from table at 90°/45° | mm / inches | 100 / 78 3.94 / 3.07 |
| Cutting width on parallel fence (Rip capacity) | mm / inches | 800 / 31.5 |
| Max. useful spindle length/td> | mm / inches | 100 / 4 |
| Max. tool diameter when profiling | mm / inches | 210 / 8.27 |
| Spindle moulder speed | rpm | 4000 / 7000 / 9000 |
| (3x) Single-phase motors | Hp | 3.4 |
| Max. squaring stroke of sliding table saw | rpm | 1600 / 5.5 |
