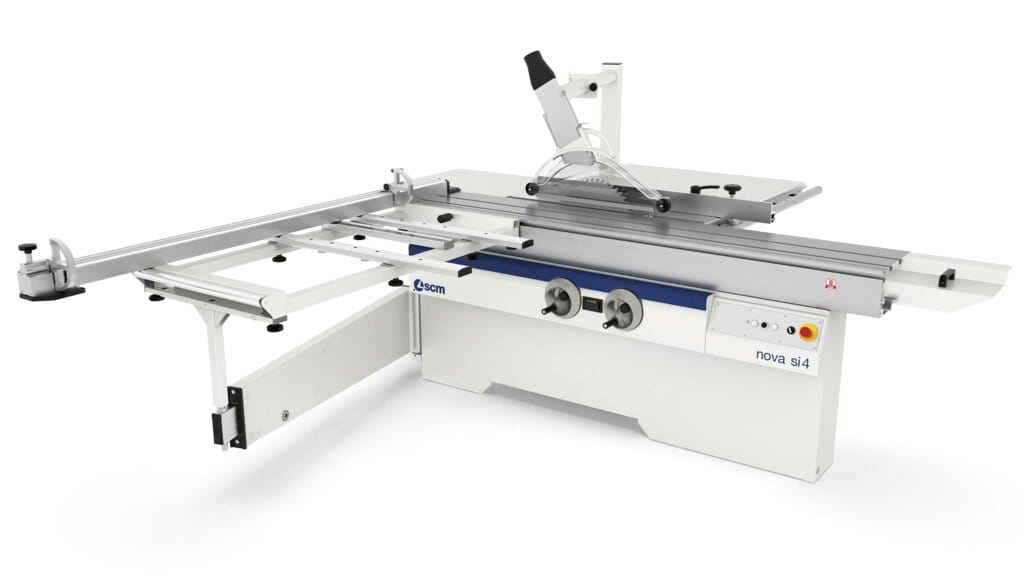

NEW SCM Nova Si4 3.2m Sliding Table Panel Saw
POA
The new circular saw combines accuracy, reliability, and sturdiness for consistently high-performance cutting. Its rigid sliding carriage, solid structure, and optional scoring unit ensure precise cuts on all panels. Ergonomic handwheels and versatile squaring frames provide optimal support and ease of use.
Product Features
- High-rigidity sliding carriage with closed geometry
- Carriage locking in any position
- Heavy-duty, stable machine structure
- Precision saw blade unit
- Optional scoring unit for veneered panels
- Squaring frame with mobile cross beams
- Adjustable handwheel controls for blade movement
- Saw blade diameter up to 400 mm
- Cutting height up to 140 mm (90°)
- Cutting width up to 1500 mm
Description
The new circular saw that combines accuracy, reliability and sturdiness to guarantee high performance standards.
MAXIMUM CUT QUALITY GUARANTEED OVER TIME

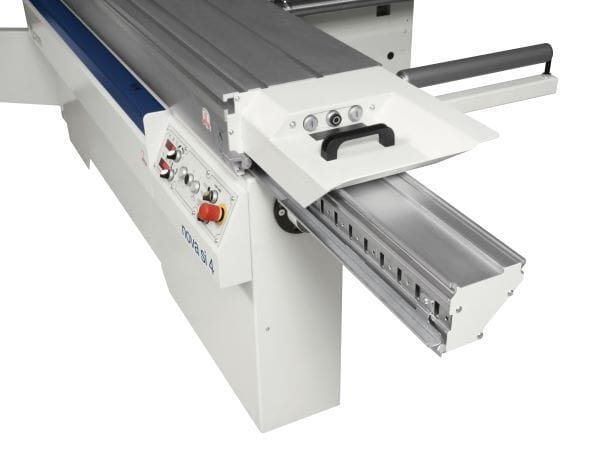

New highly reliable sliding carriage, guanranteed for 10 years and developed to enhance performance and customization. Its closed reticular geometry provides top rigidity and minimal flexing.
The carriage locking in any position makes the machine even more ergonomic and easy to use.
SOLID AND STURDY STUCTURE

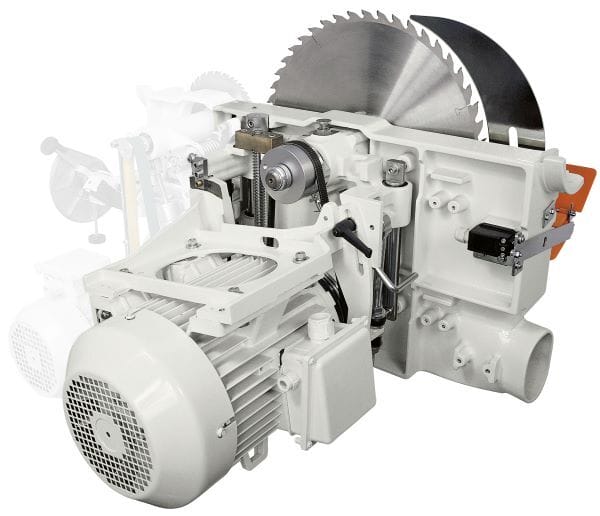

Made of a solid and sturdy structure, the saw blade unit enables an accurate cut.
On request, the scoring unit (option) is available for a perfect cut even on veneered panels.
OPTIMAL SUPPORT

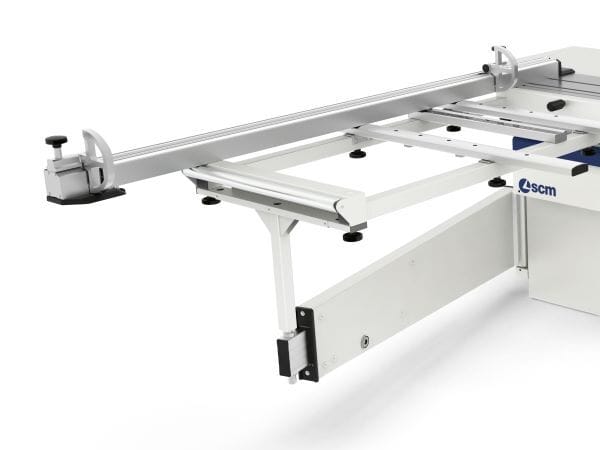

The squaring frame facilitates the panel loading and its mobile cross beams offer an optimal support also to smaller panels. Moreover, depending on customer’s demands, different optional squaring frame devices are available.
ALWAYS USER FRIENDLY

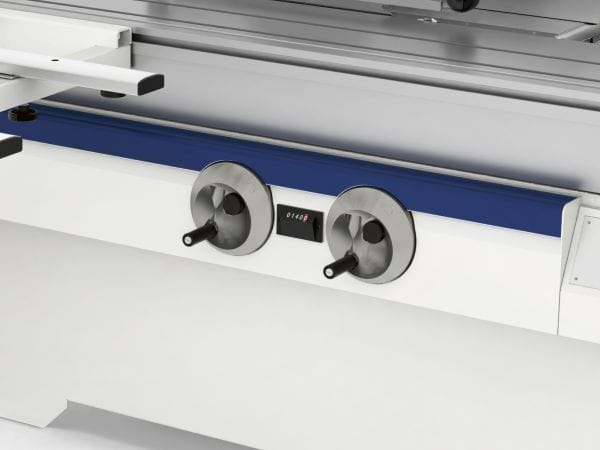

The hand-wheels on the machine front, for the saw blade unit moving, are easy to use; every minimum hand-wheel movement corresponds to an exact blade adjustment.
Technical data
| nova si 4 | ||
| Max. saw blade diameter with installed scoring unit (option) | mm | 315 ÷ 400 |
| Max. saw blade projection from the table at 90°/46° | mm | 140/99 |
| Squaring capacity | mm | 2250 ÷ 3800 |
| Cutting width on rip fence | mm | 1000 ÷ 1500 |
| Three-phase motors power starting from | kW/Hz | 5 (6) / 50 (60) |
Stock machine specification
Standard machine with options
SCM 10 Year Sliding Carriage component Warranty
3.2m sliding carriage stroke
Overhead saw protection guard
Max. 315mm dia main blade ( blade included)
Independent Scorer 120mm dia. (blade included)
Main motor 7.5hp
Rip fence opening 1270mm or (1500mm extra £300.00)
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
