Minimax Model SC4E 2.6m Panel Saw
£6,499.00
The Minimax SC4E 2.6 m Panel Saw combines a solid cast iron saw unit, double trunnions, and an independently adjustable scoring blade for precision and reliability in demanding woodworking. Its large squaring frame with idle roller and telescopic fence supports panels up to 3200×3200 mm for effortless loading and accurate squaring. The 360 mm-wide sliding table, secured with aluminium riveting, ensures smooth, precise cuts, while optional scoring blades enhance performance on veneered panels.
Product Features
- Cast iron saw unit with closed-loop structure
- Double trunnion support system
- Independent adjustable scoring unit
- Wide 360 mm sliding table
- Aluminium guide system for smooth movement
- Large squaring frame with idle roller
- Telescopic squaring fence with stops
- Handles panels up to 3200 × 3200 mm
- High-precision cutting performance
- Optional scoring blade with independent motor
Description
With a solid cast iron saw unit, double trunnions and an independently adjustable scoring unit, the Minimax Model SC4E 2.6m Panel saw is the ideal panel saw for demanding woodworkers, craftsmen and serious hobbyists.

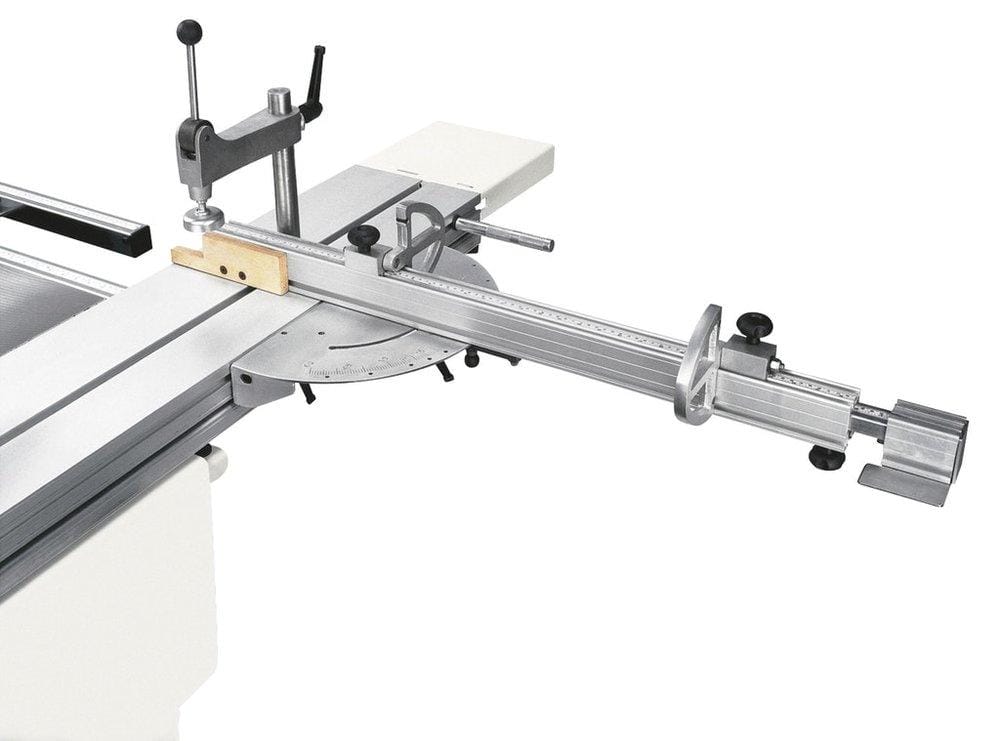

For easy use and a less labour-intensive operating process, the large squaring frame and idle roller make for the straightforward, simple loading of panels. Panels of up to 3200 x 3200 mm can be squared thanks to the telescopic squaring fence with two reversible stops.
Well supported by two lateral supports is the new saw unit closed loop structure which is made of heavy cast iron. The super-robust saw unit grants high levels of precision when cutting. With the optional scoring blade equipped, perfect cutting, even on veneered panels is guaranteed.

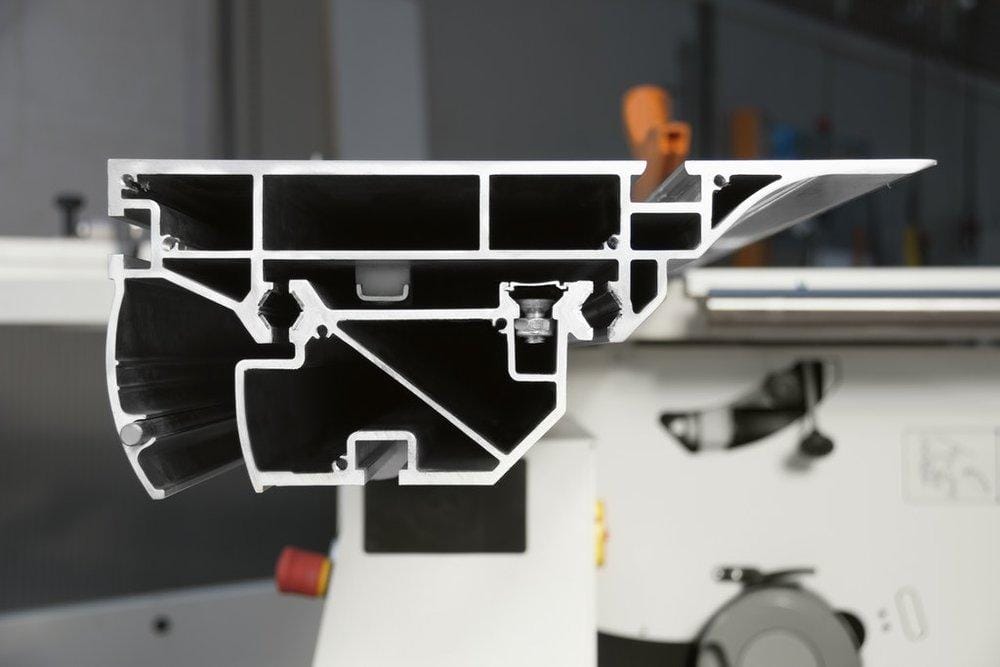

The 360mm wide sliding table delivers optimal support for larger workpieces. Instead of using glue to secure the guides, aluminium riveting is used for extra smoothness and precision.
Optional features:
- Scoring blade (either with belt transmission from the main motor or with a 0.75hp independent motor.
Specifications
R0.21.66 MINIMAX SC 4E CE VERSION
93.07.72 VOLTAGE 400 EU
93.12.05 FREQUENCY 50 Hz
58.04.73 VERSION WITH MAXIMUM SQUARING STROKE 2600 mm
58.02.60 BELT DRIVEN SCORING UNIT

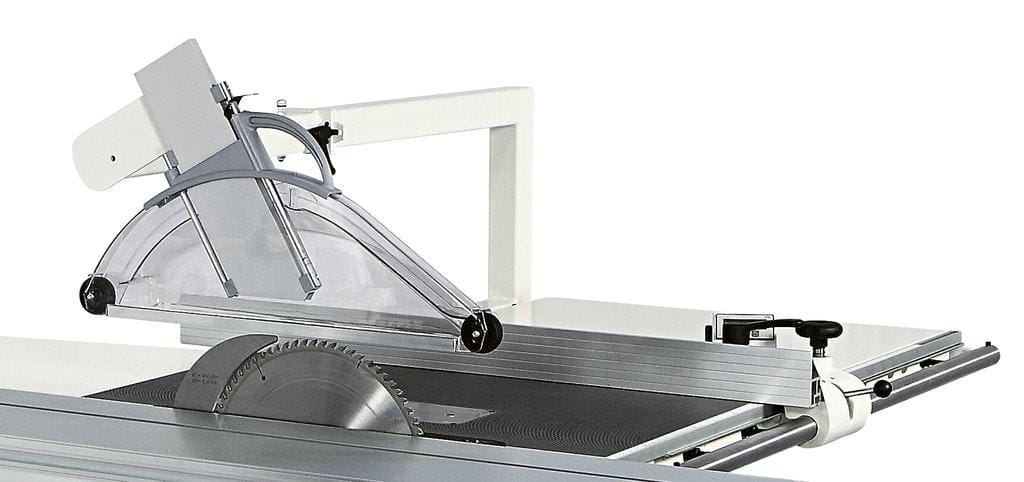

58.02.04 OVERHEAD BLADE PROTECTION (1270 mm CUTTING WIDTH)
28.01.43 CUTTING WIDTH WITH PARALLEL FENCE 1270 mm

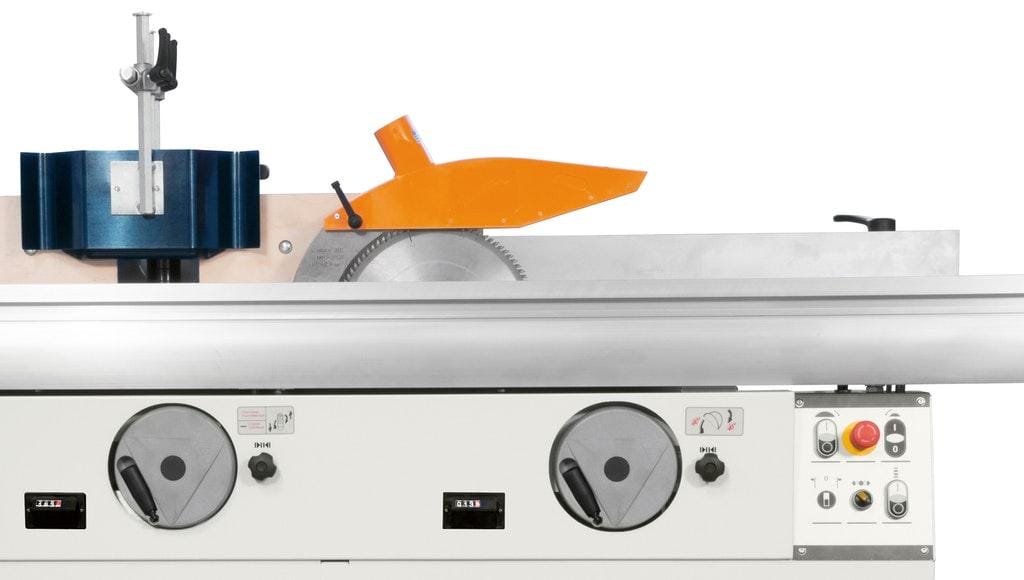

58.04.81 NUMERICAL READOUT FOR VISUALISATION OF THE SAW UNIT TILTING
58.02.63 THREE-PHASE MOTOR 7 KW (9,5HP) 50HZ
58.02.64 SELFBRAKING MOTOR ON SAW BLADE
