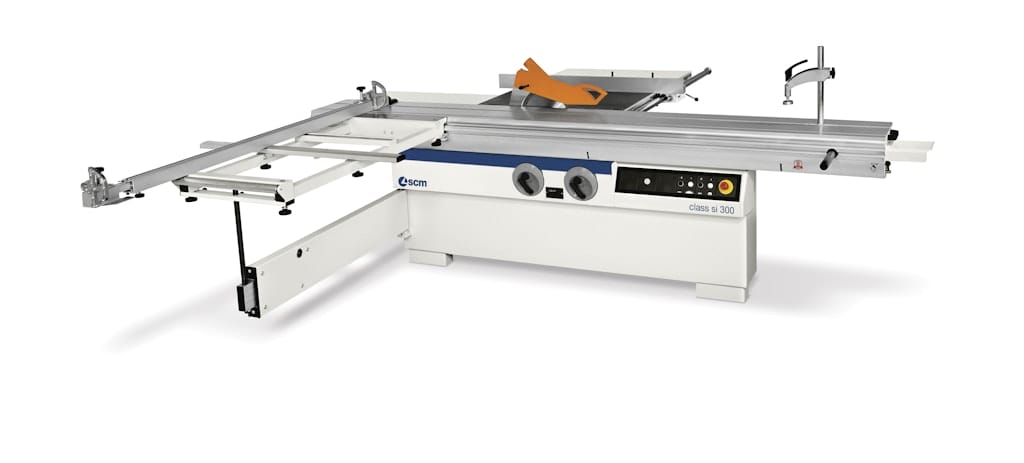

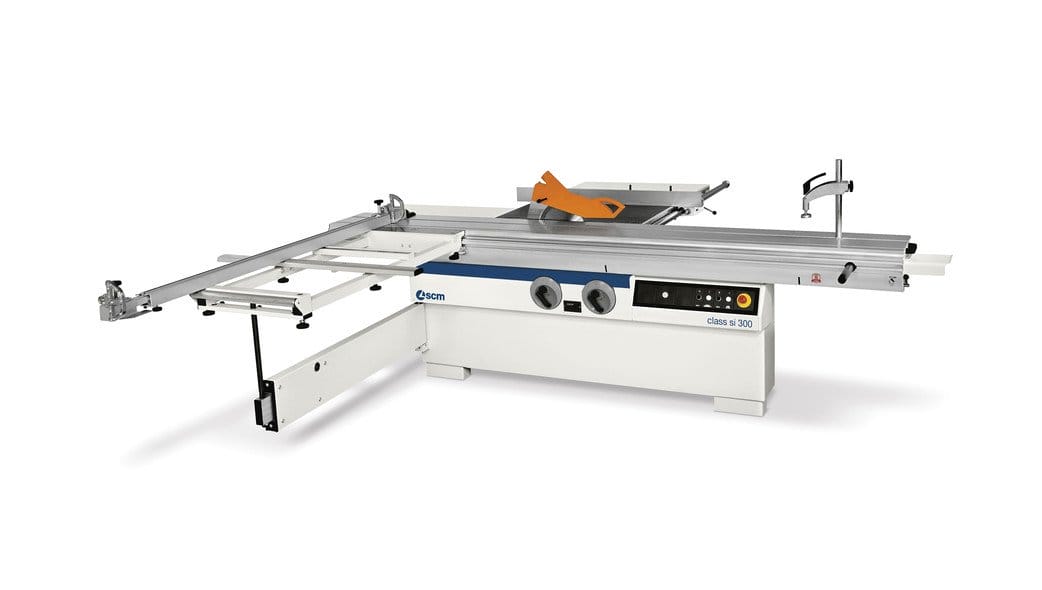

SCM Class SI 300 Sliding Table Panel Saw
POA
The SCM Class SI 300 is a professional sliding table saw delivering high-precision cuts on large panels. Its 1600 mm sliding table, 315 mm main blade, and adjustable 0°–45° tilt enable versatile and accurate cutting, while the integrated scoring unit ensures clean, chip-free edges. Built with a robust frame and 5 kW motor, it guarantees durability, stability, and reliable performance for demanding woodworking tasks.
Product Features
Specifications
Technical data
| Class si 300 | ||
| Max. saw blade diameter with mounted scorer | mm | 315 |
| Maximum saw blade projection from table to 90°/45° | mm | 100/70 |
| Cutting width on rip fence | mm | 1000 ÷ 1500 |
| Squaring capacity | mm | 3200 ÷ 3800 x 3200 |
| Three-phase motors starting from | kW/Hz | 5 (6) / 50 (60) |
Brochure
Description
The SCM Class SI 300 is a professional sliding table panel saw designed for high-precision woodworking. Engineered for accuracy, efficiency, and durability, it is ideal for workshops that require superior cutting performance.
Key Features:

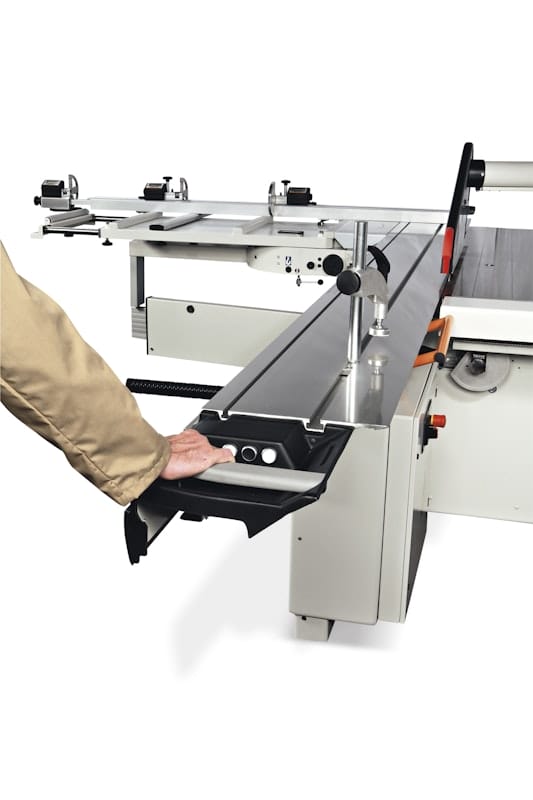

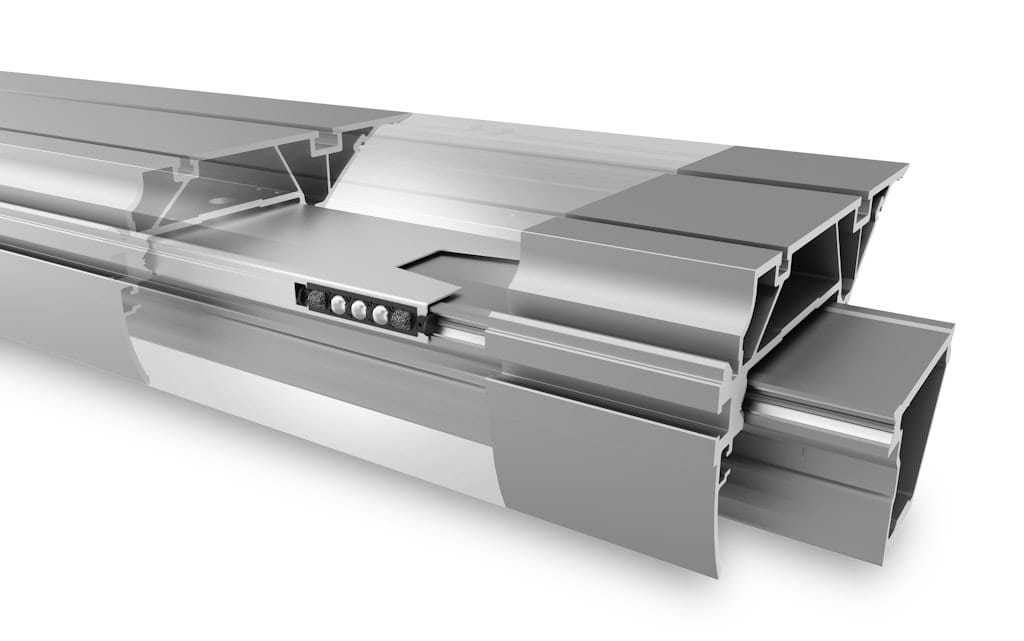

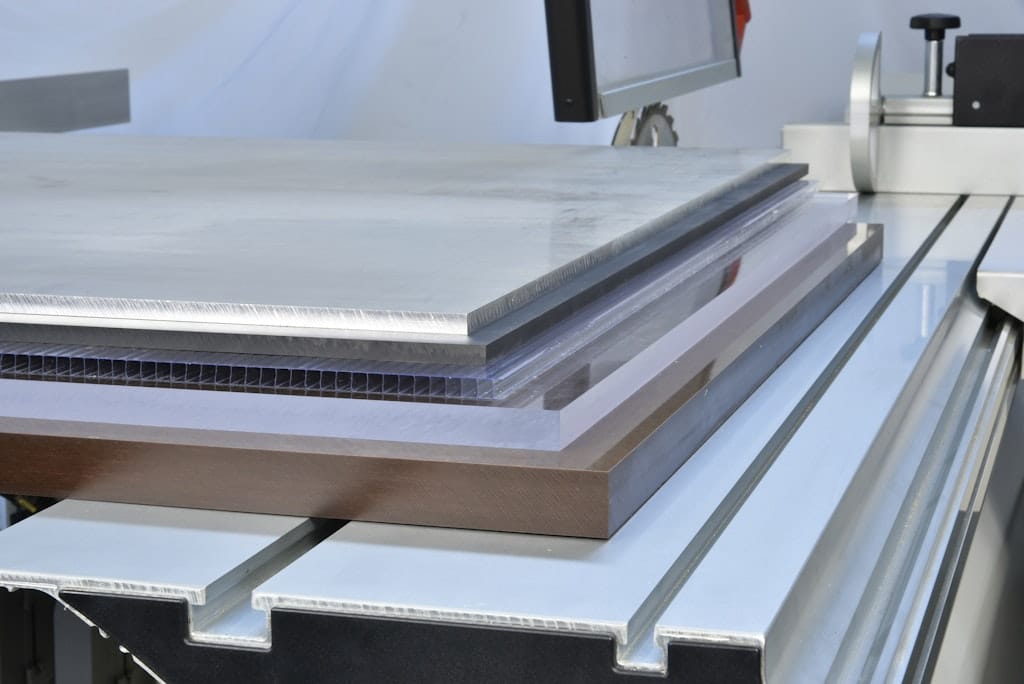

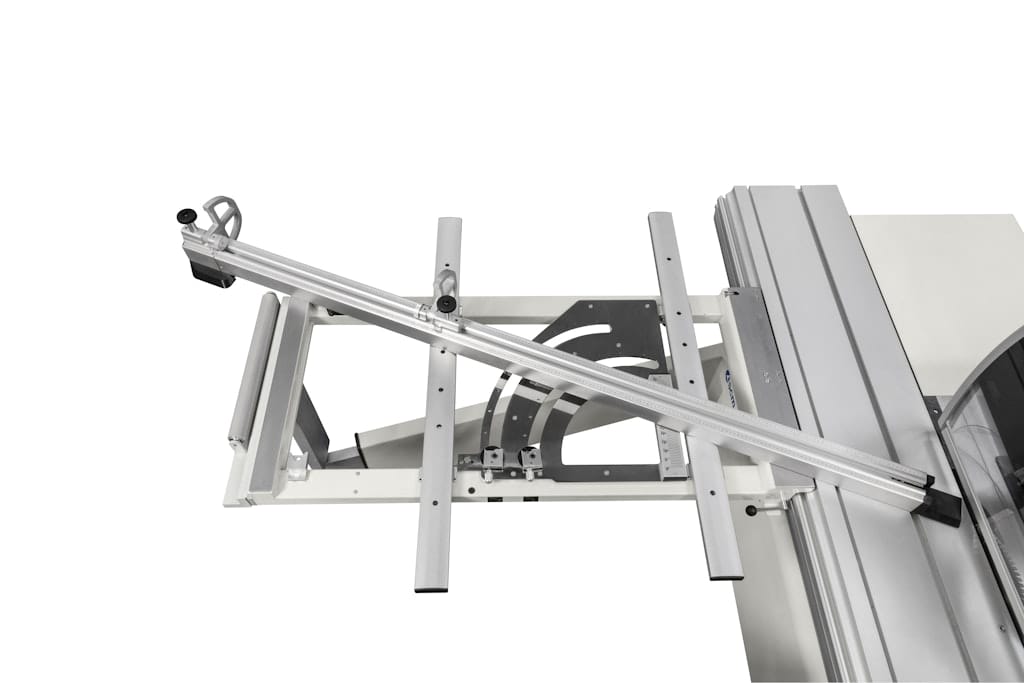

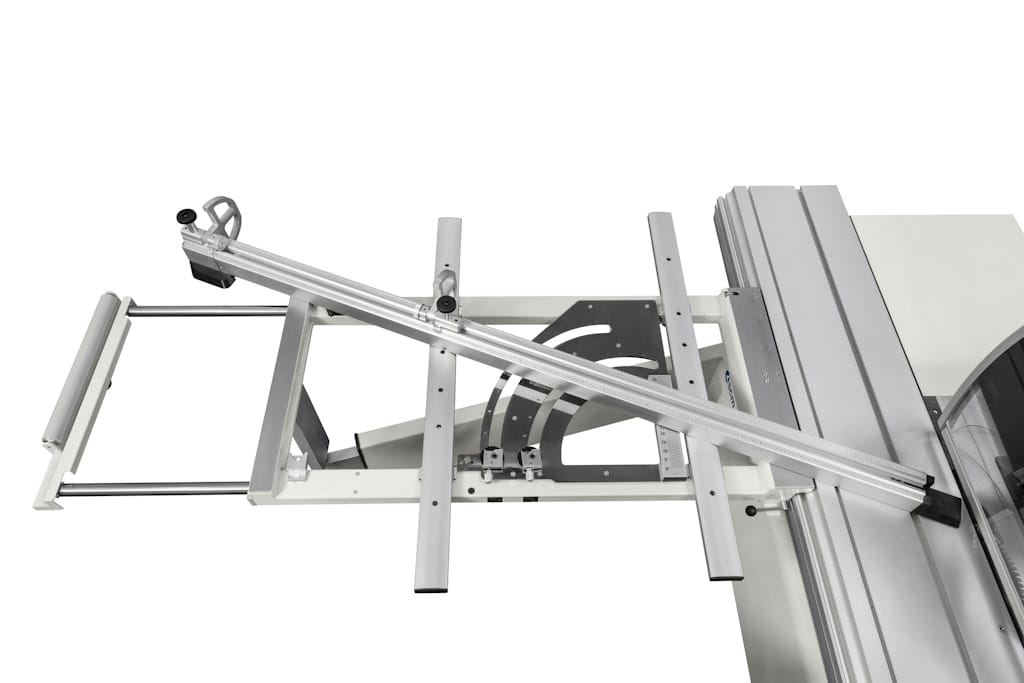

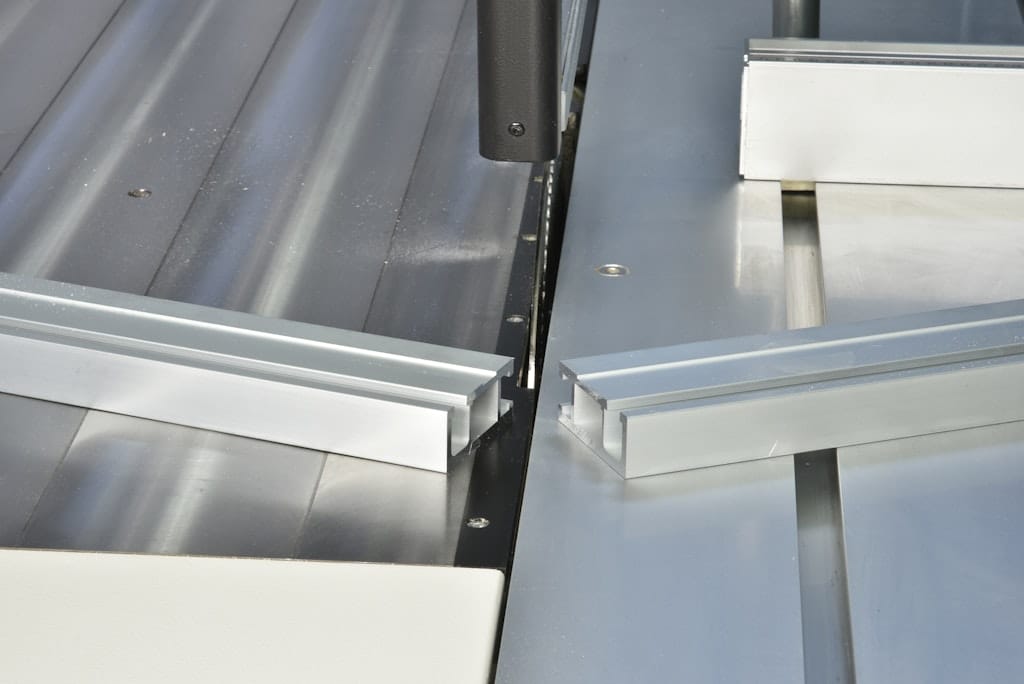

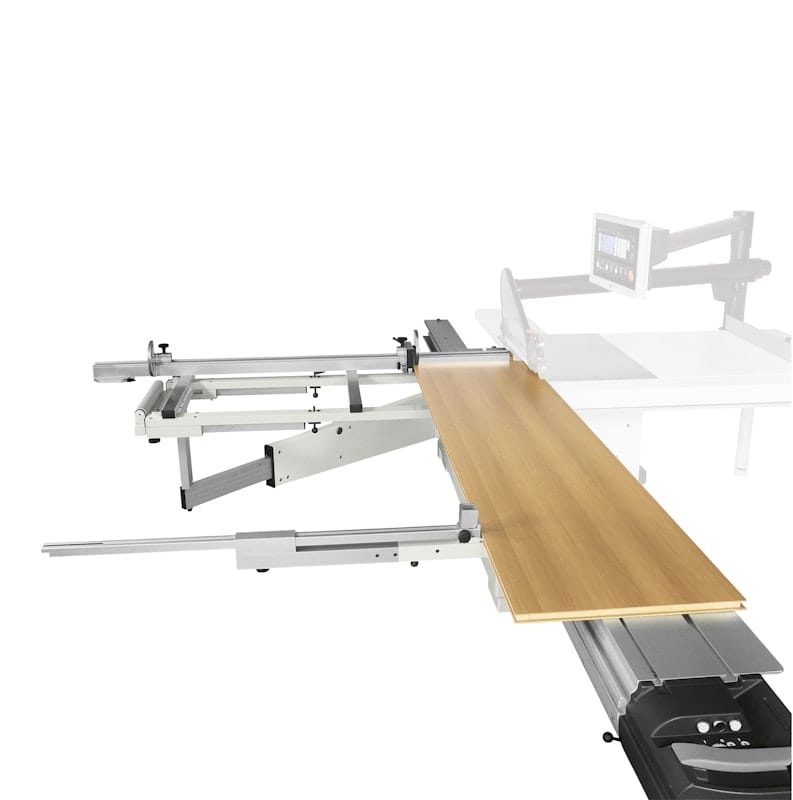

- Sliding Table System: Equipped with a 1600mm sliding table for effortless handling of large panels and smooth, precise cuts.

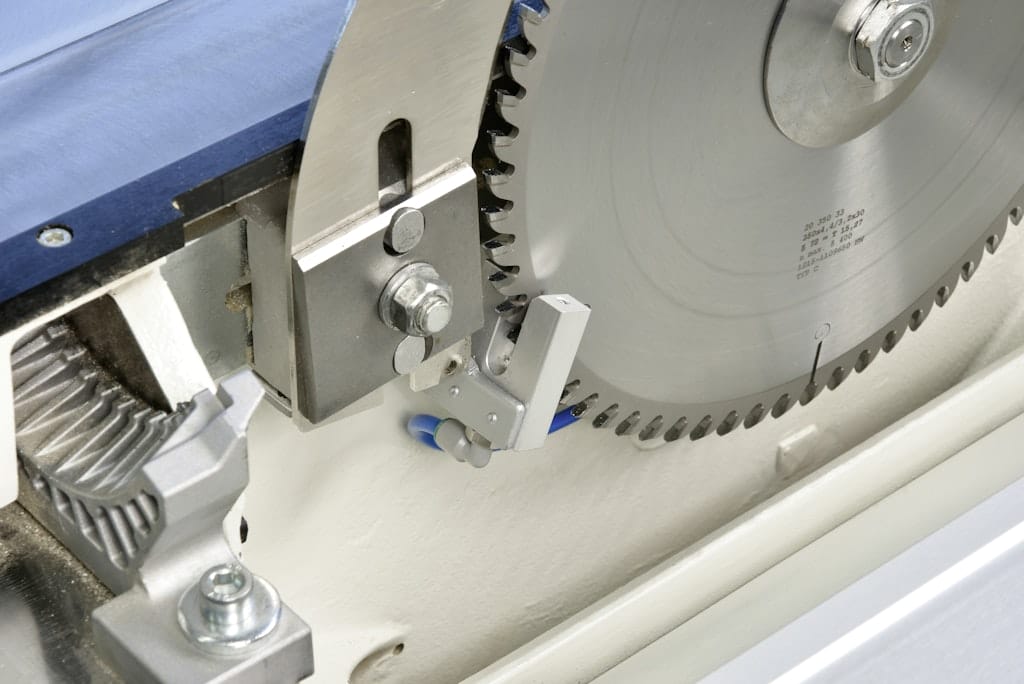

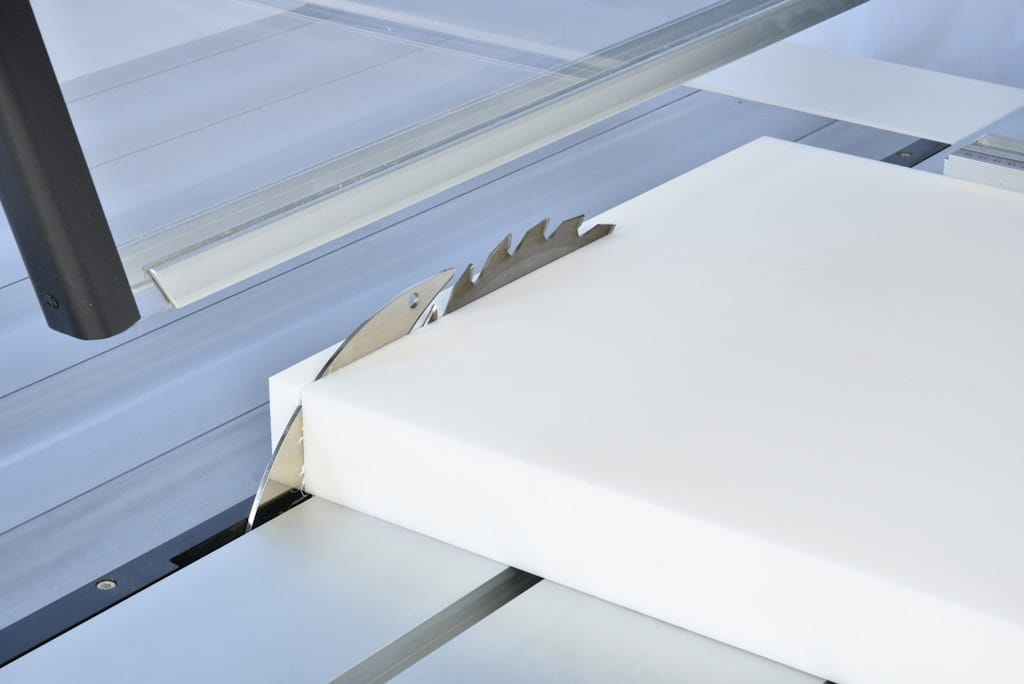

- Powerful Cutting Performance: Supports a maximum main blade diameter of 315mm, providing a cutting height of up to 100mm at 90° and 70mm at 45°.
- Adjustable Blade Tilt: The main saw blade tilts from 0° to 45°, enabling accurate angled cuts for greater versatility.

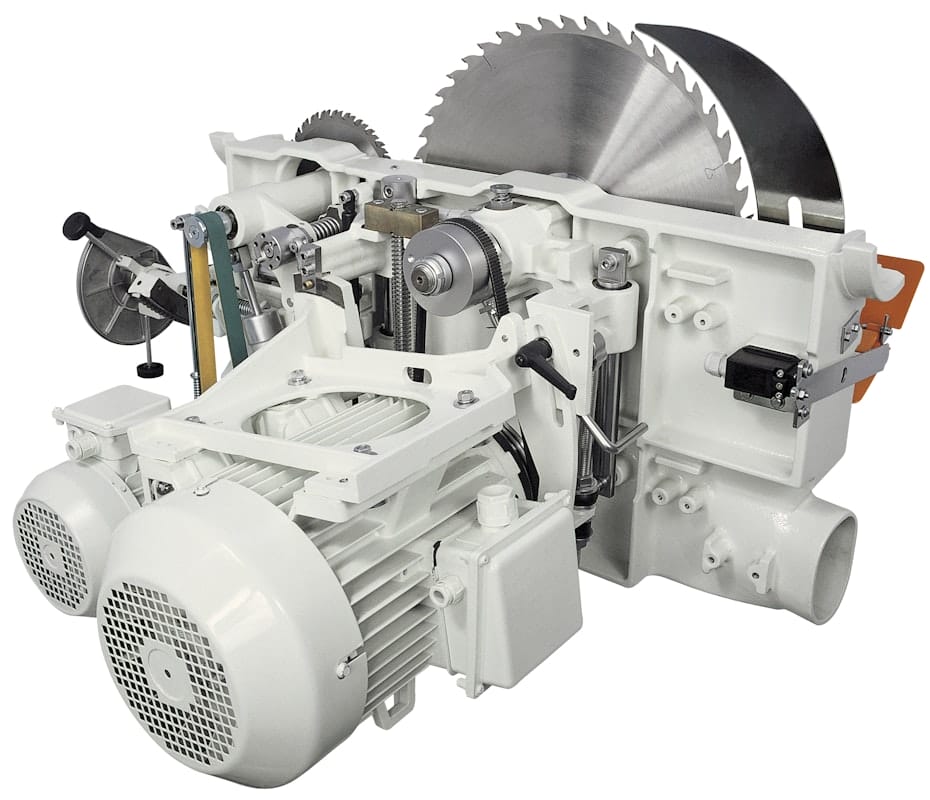

- Heavy-Duty Motor: Features a 5 kW (7 Hp) main motor, ensuring robust and reliable operation for demanding cutting tasks.

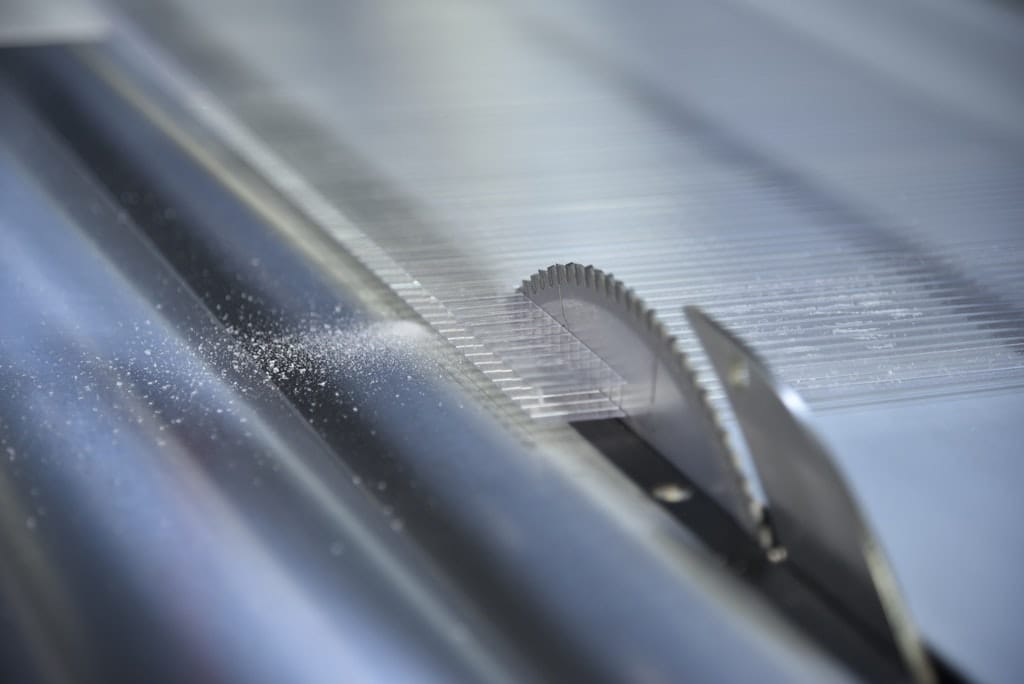

- Scoring Unit: Integrated scoring blade operating at 8500 rpm for clean, chip-free cuts on laminated panels and veneered surfaces.

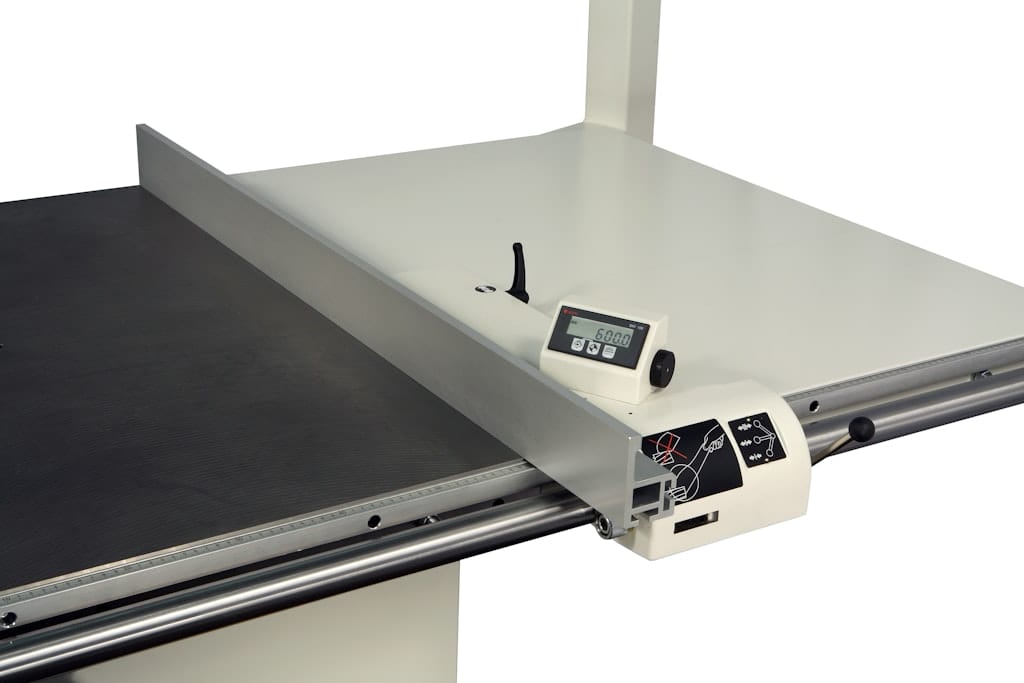

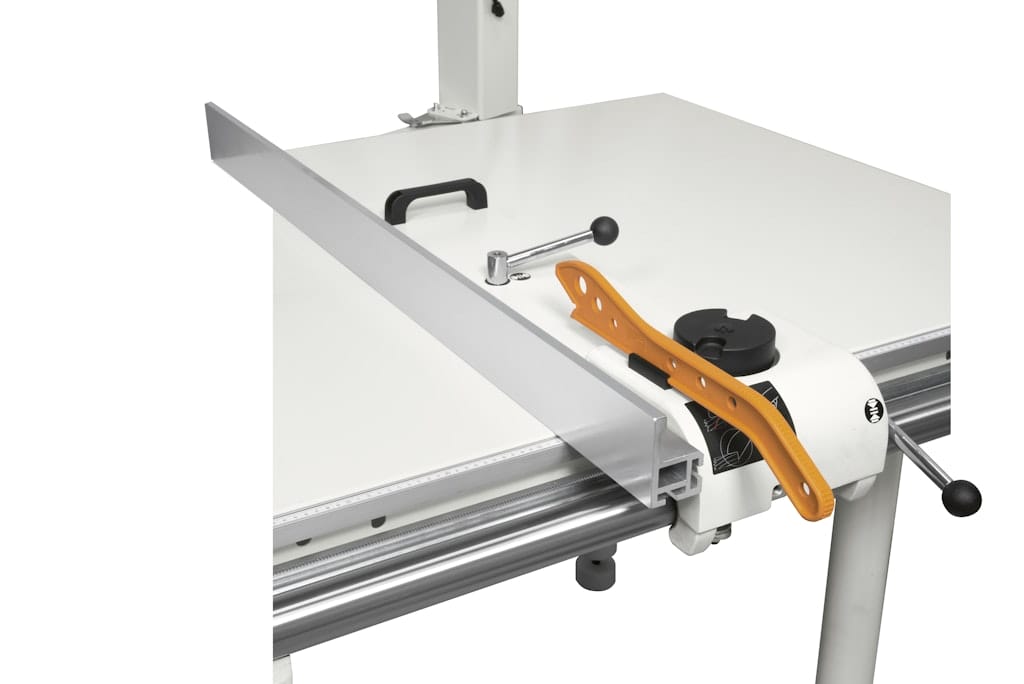

- Extended Rip Capacity: Offers a rip fence cutting width of 1270mm, accommodating a wide range of panel sizes.

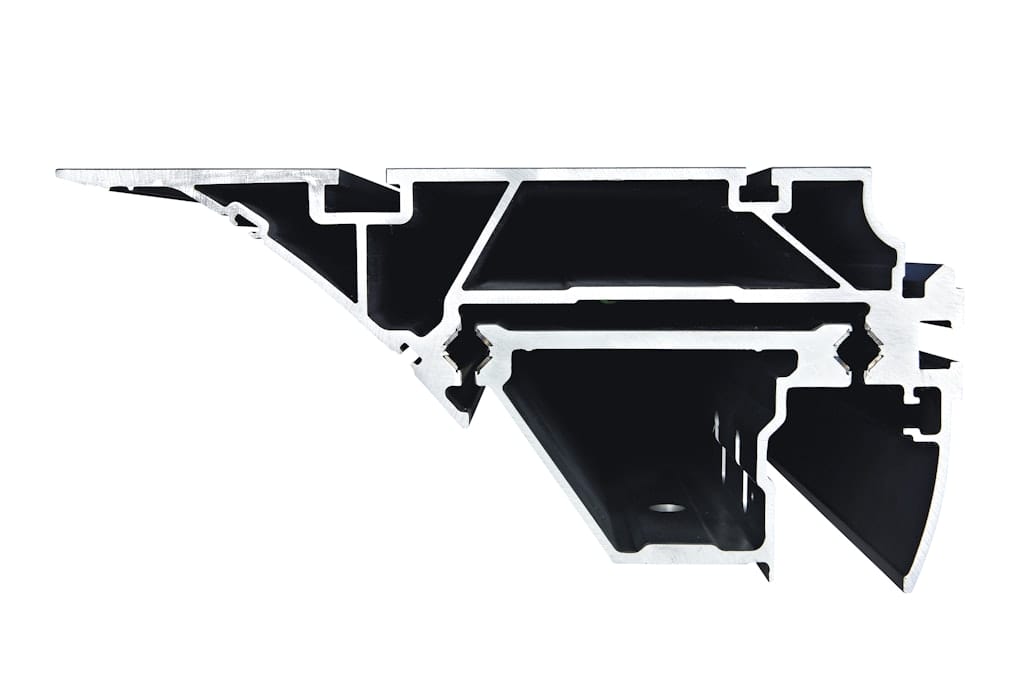

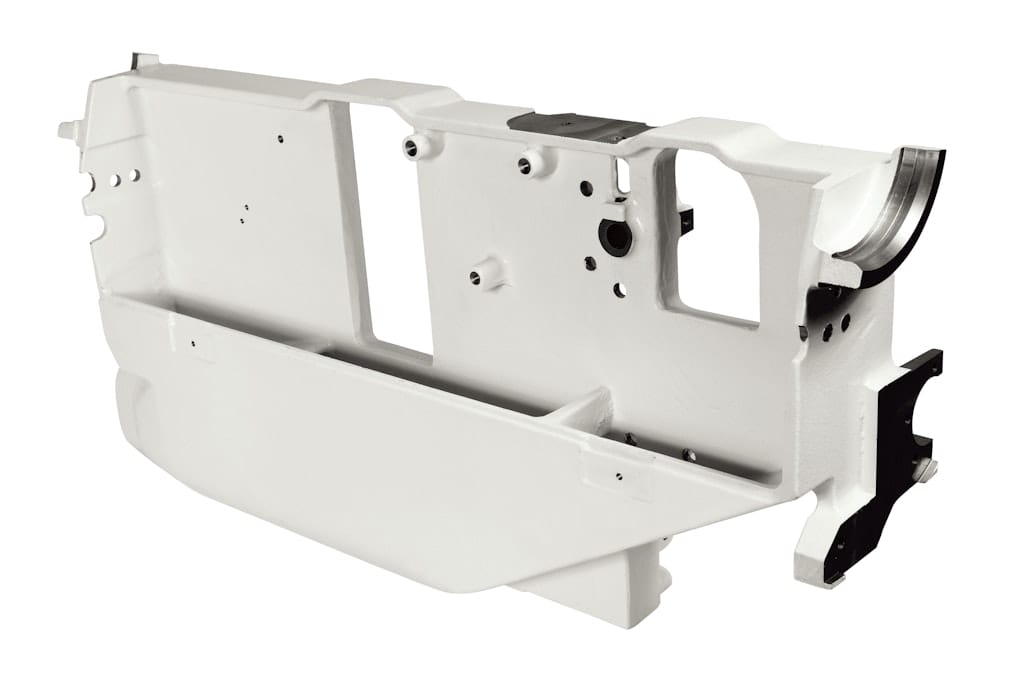

- Stable & Durable Construction: Built with a solid frame and reinforced support system for long-term accuracy and vibration-free operation.
