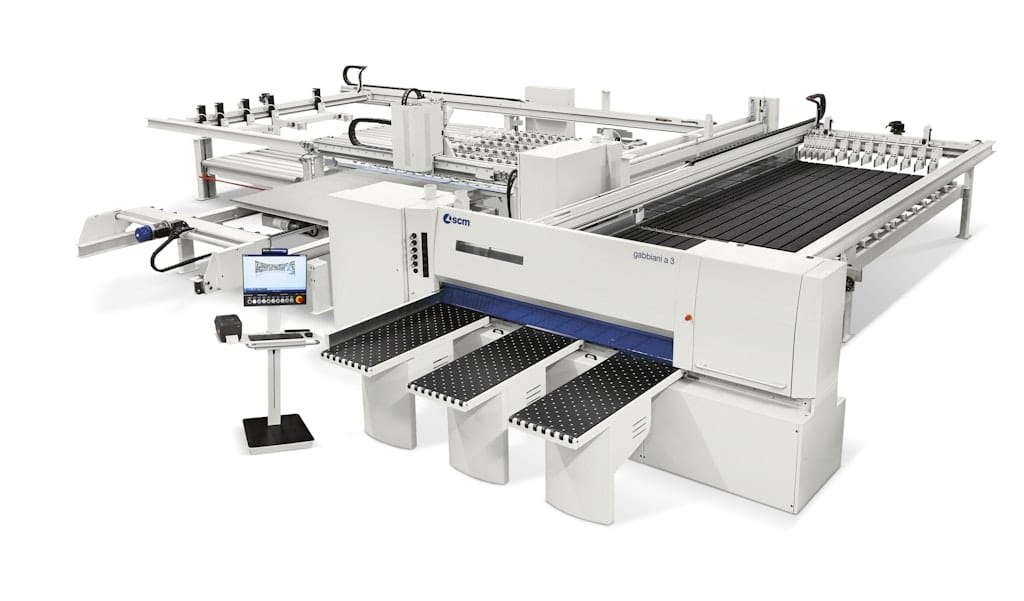

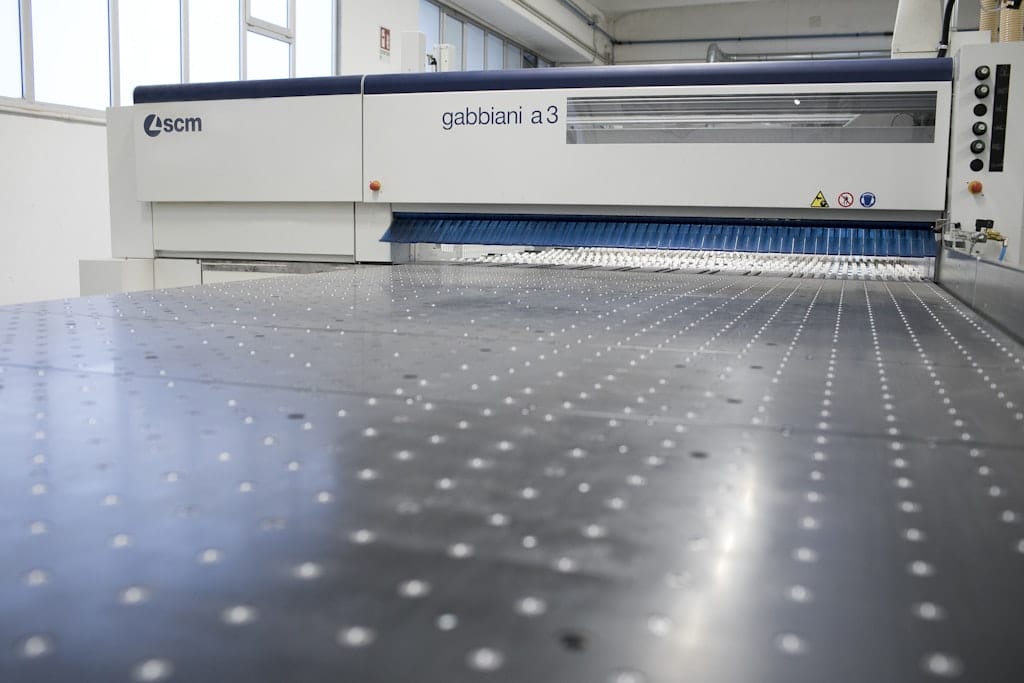

Gabbiani A3 Angular Panel Saw
POA

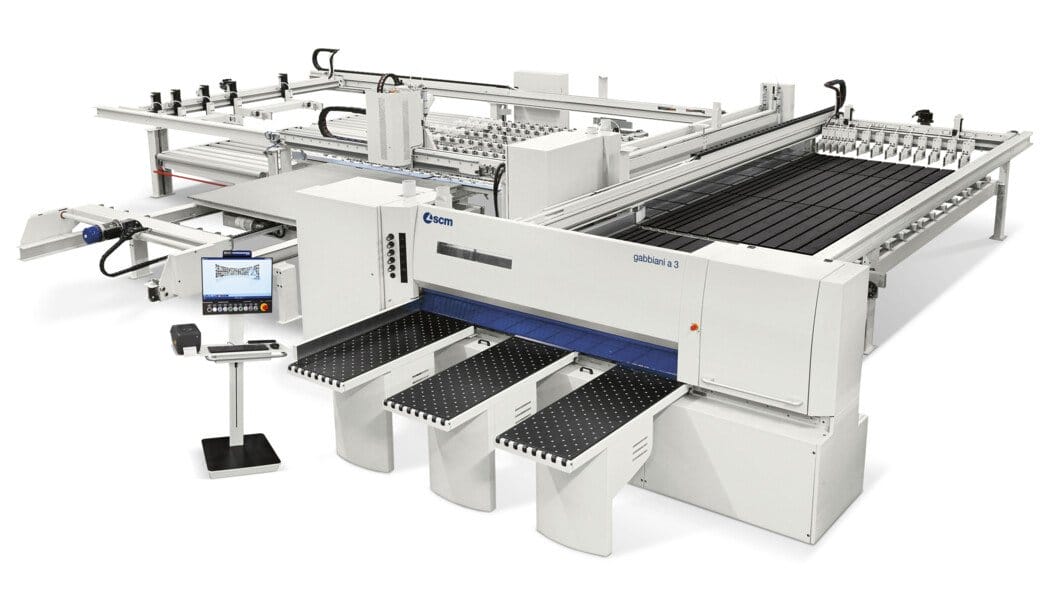

The Gabbiani A3 is a high-speed angular panel saw for medium to large companies, combining advanced automation with a vacuum cup system for delicate panel handling. Its powerful 37 kW saw carriage, high feed speeds, and precise prismatic guides ensure fast, accurate, and maintenance-free cutting. Fully integrated loading/unloading and customizable options maximize efficiency, flexibility, and production monitoring.
Product Features

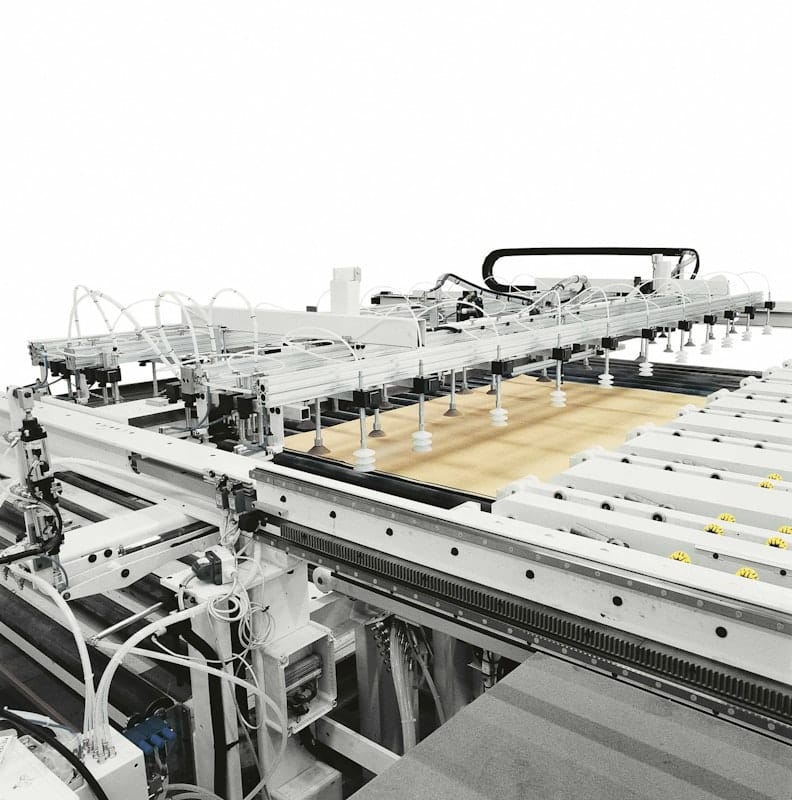

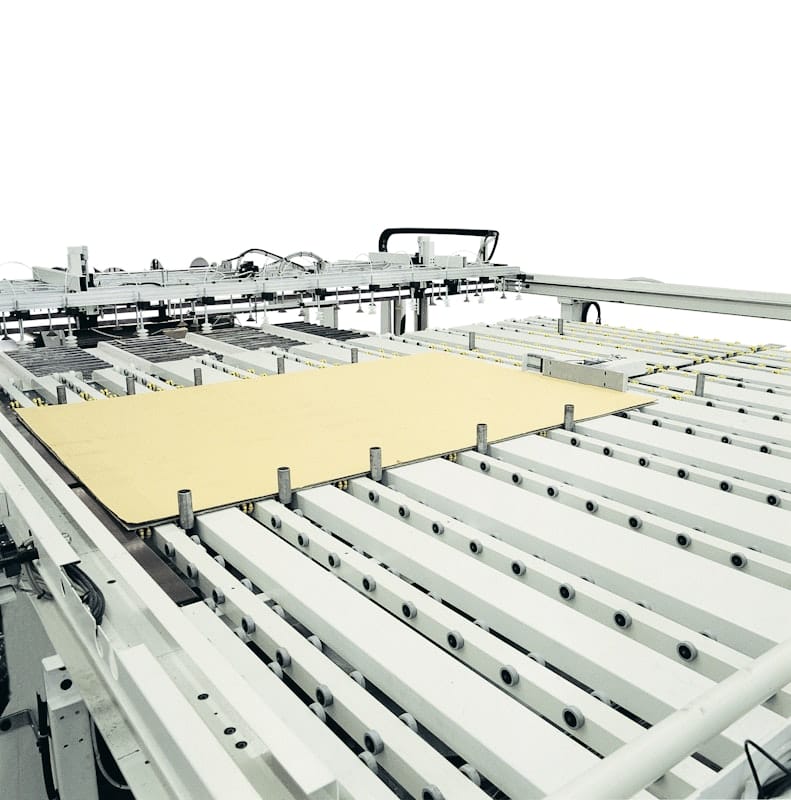

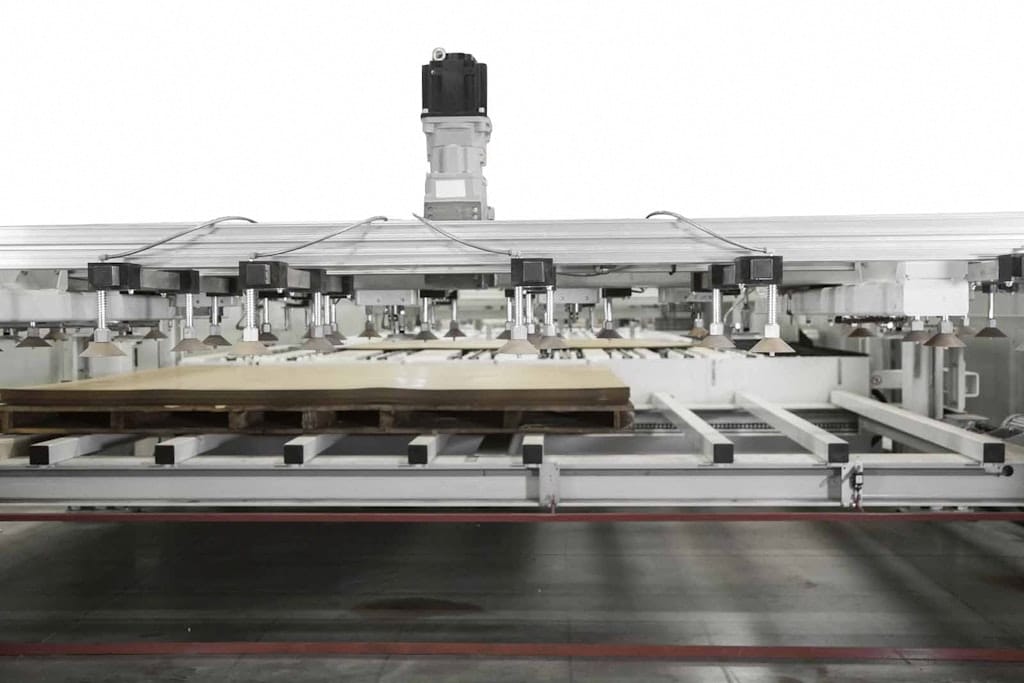

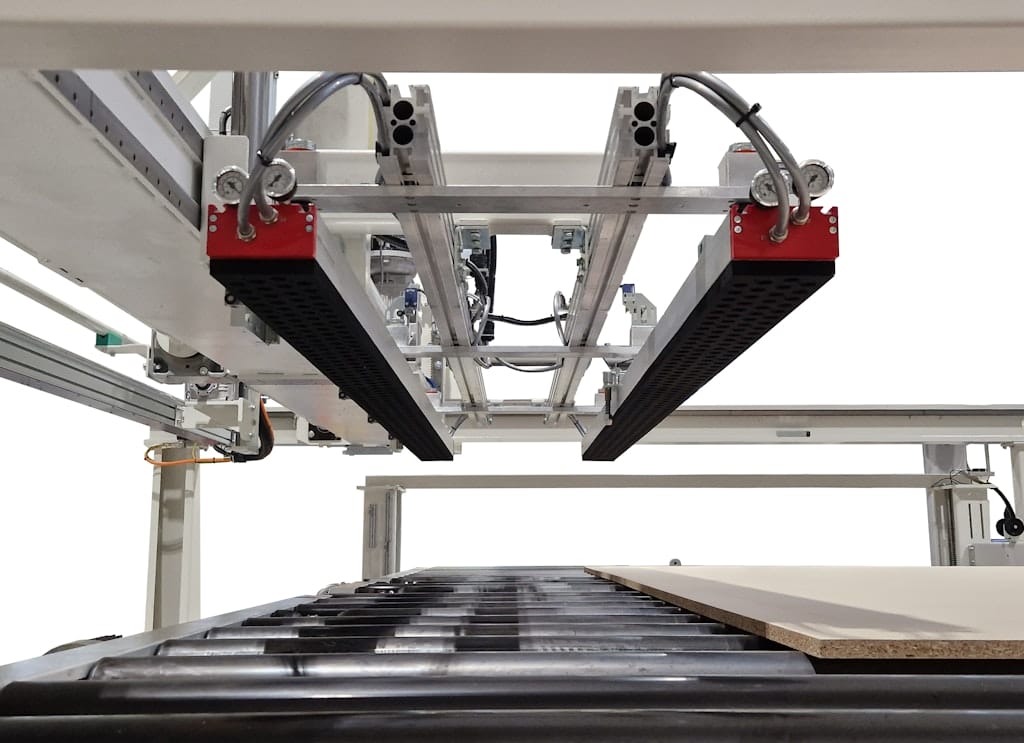

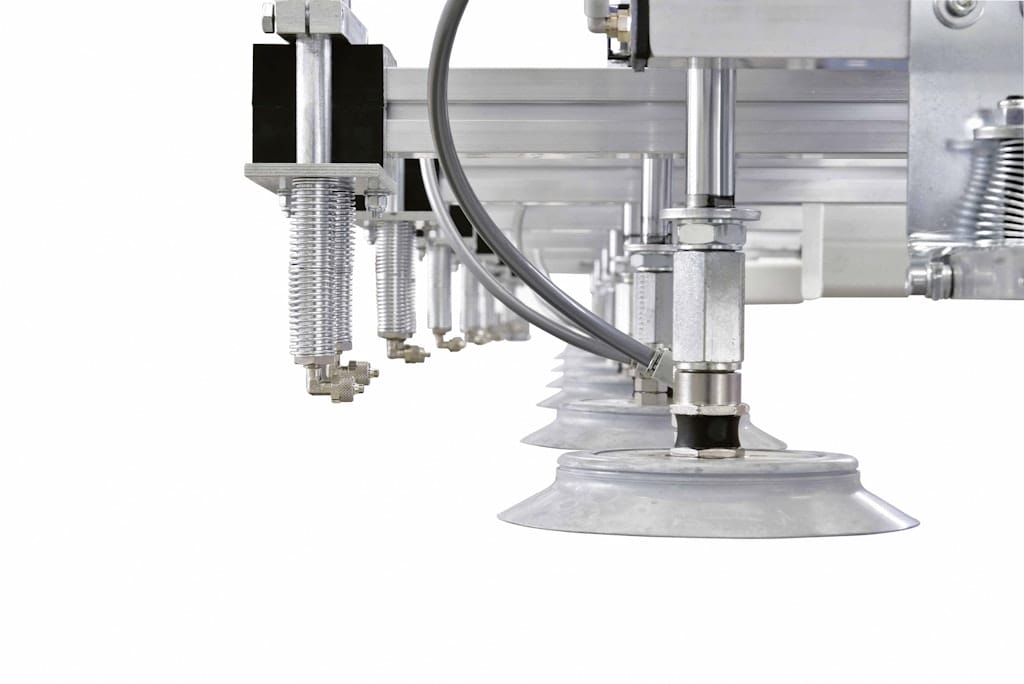

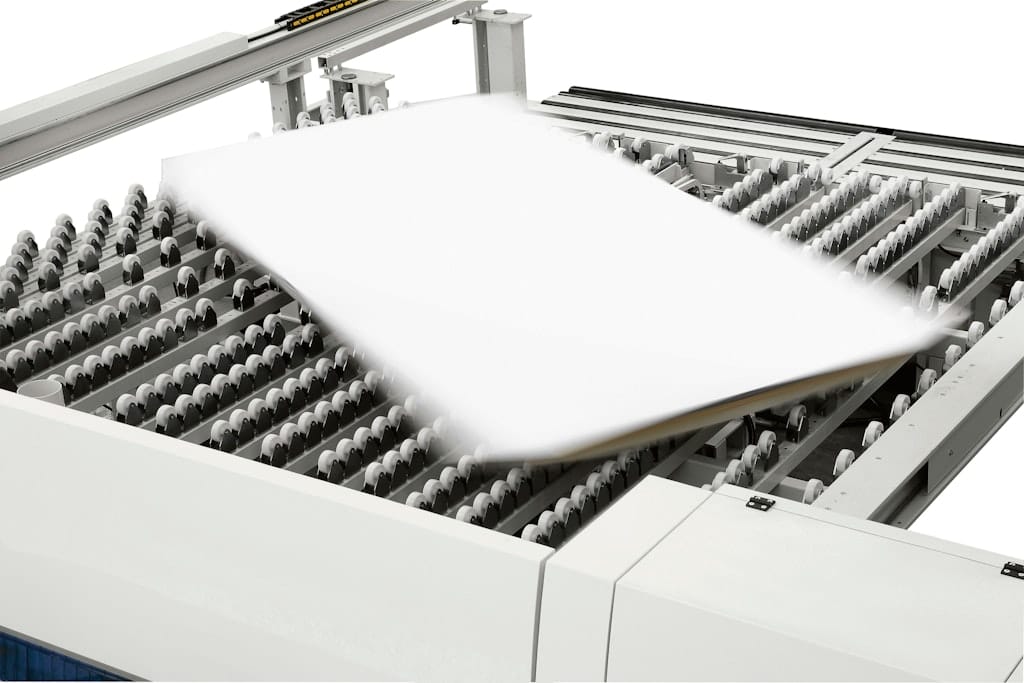

- Vacuum cup loading system for delicate panels

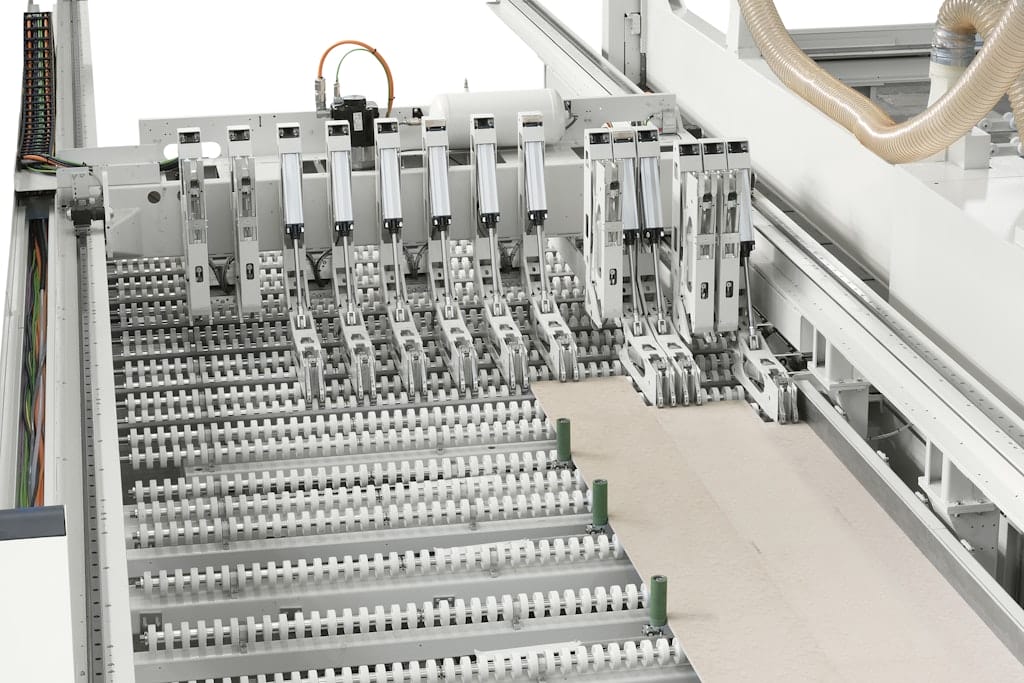

- High feed speeds (up to 170 m/min carriage, 120 m/min pusher)
- High-power saw carriage (up to 37 kW)
- Prismatic guides with recirculating ball bearings
- Precision, maintenance-free motion system
- Automatic loading and unloading integration
- Customisable configuration options

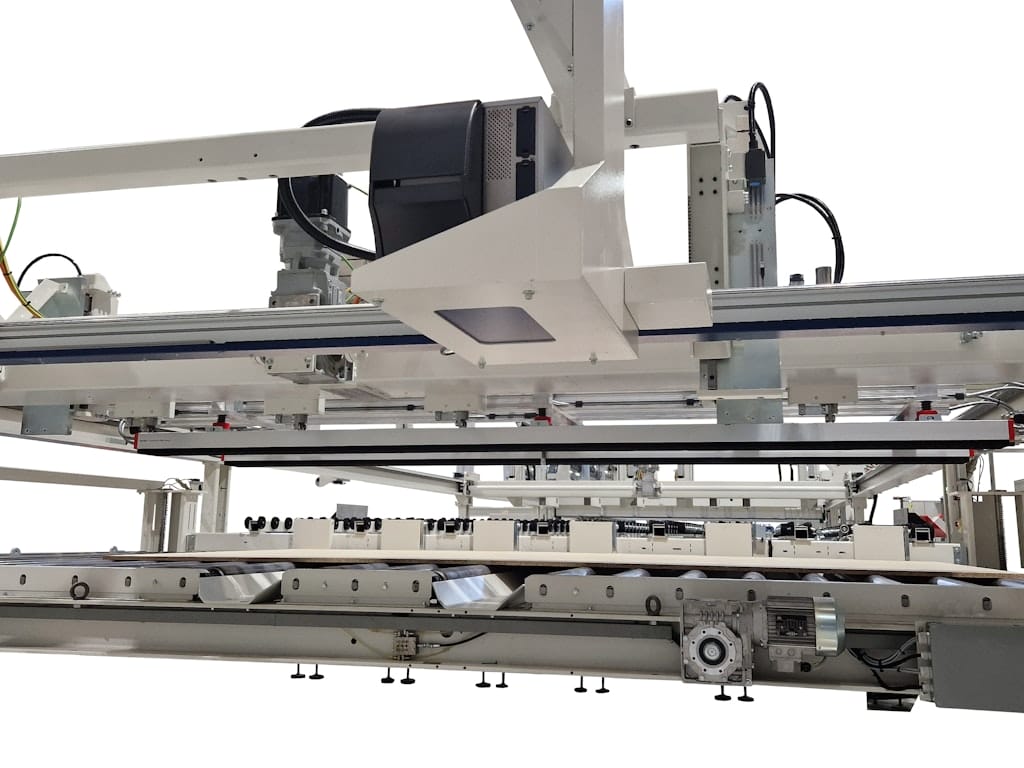

- Automatic precutting and labelling capability
- Centralised lubrication system

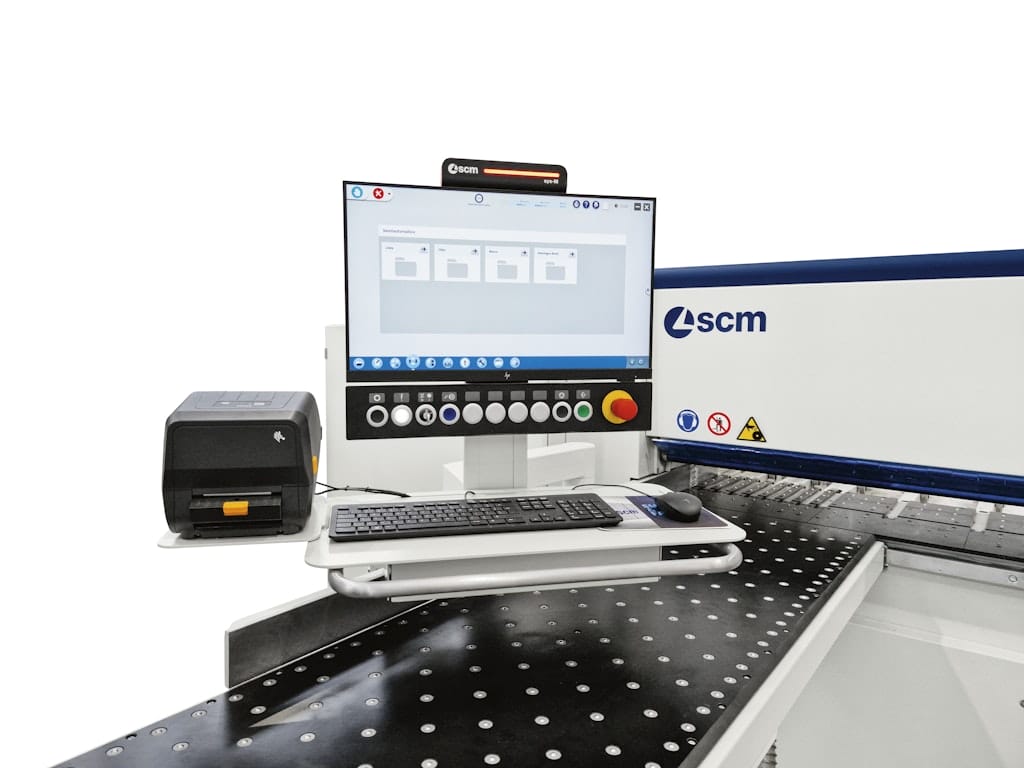

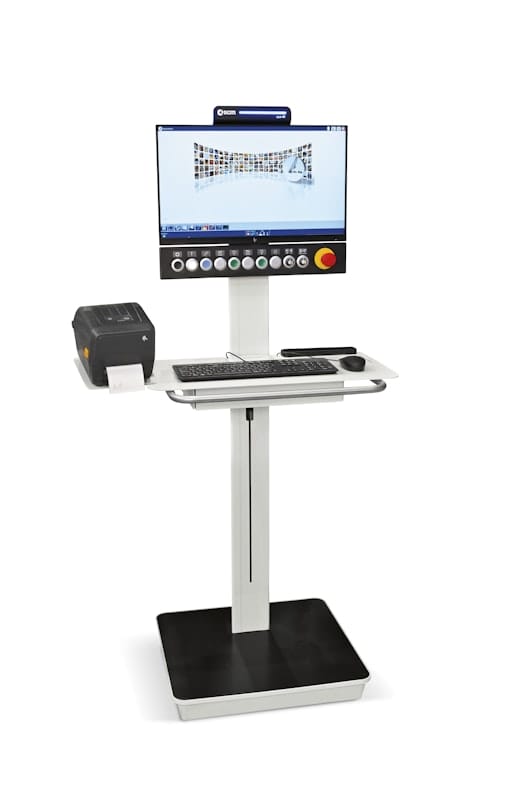

- Production monitoring and reporting system
Description
The Gabbiani A3 is designed for medium to large companies looking to achieve high production rates with advanced technology and automation. Equipped with a vacuum cup loading system, it handles thin panels and delicate surfaces with ease, even in compact spaces. Its short cycle times and efficient processes make it ideal for demanding production environments, and detailed daily production reports ensure continuous monitoring of the machine’s performance.
Key Features & Advantages:
Maximum Configuration Flexibility The Gabbiani A3 offers a wide range of options to customize the machine to your exact needs. Available solutions include automatic precutting, bars with differentiated cuts, and automatic labeling, all designed to enhance workflow and meet specific production requirements. This level of customization ensures that the machine adapts to a wide variety of tasks, increasing overall efficiency.

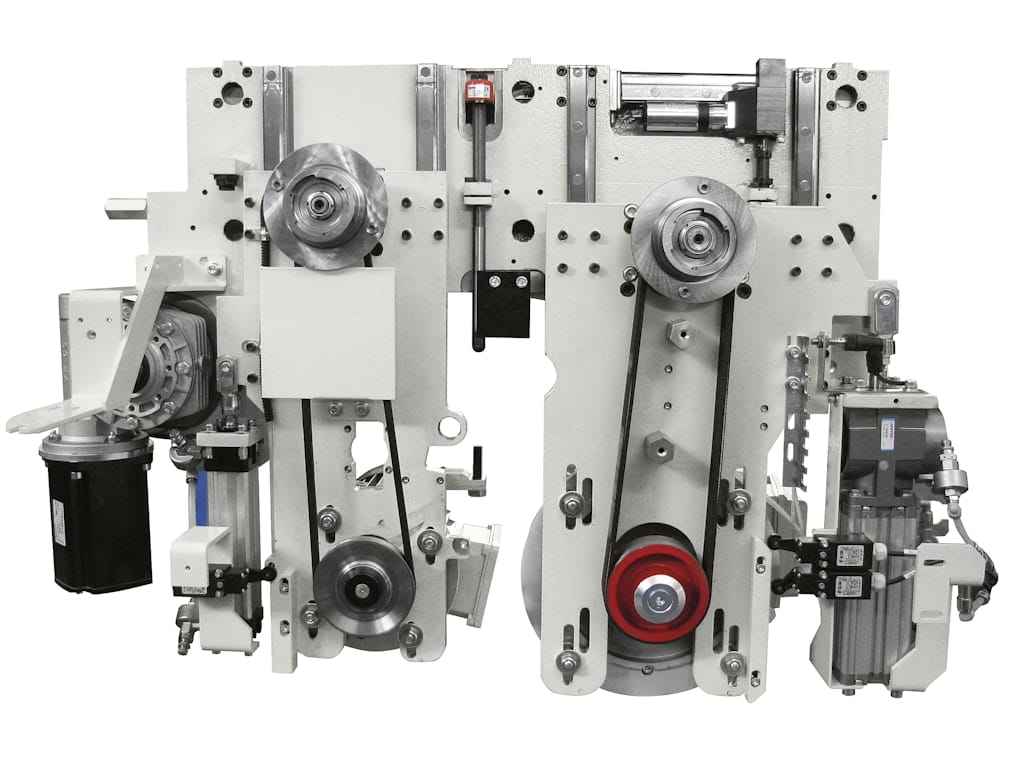

High-Speed Production Achieve maximum production levels with high feed speeds of up to 170 m/min on the carriages and 120 m/min on the pusher beam. Additionally, the machine is equipped with a high-power saw carriage (up to 37 kW), ensuring that large volumes of material can be processed quickly and accurately, making it ideal for large-scale operations.

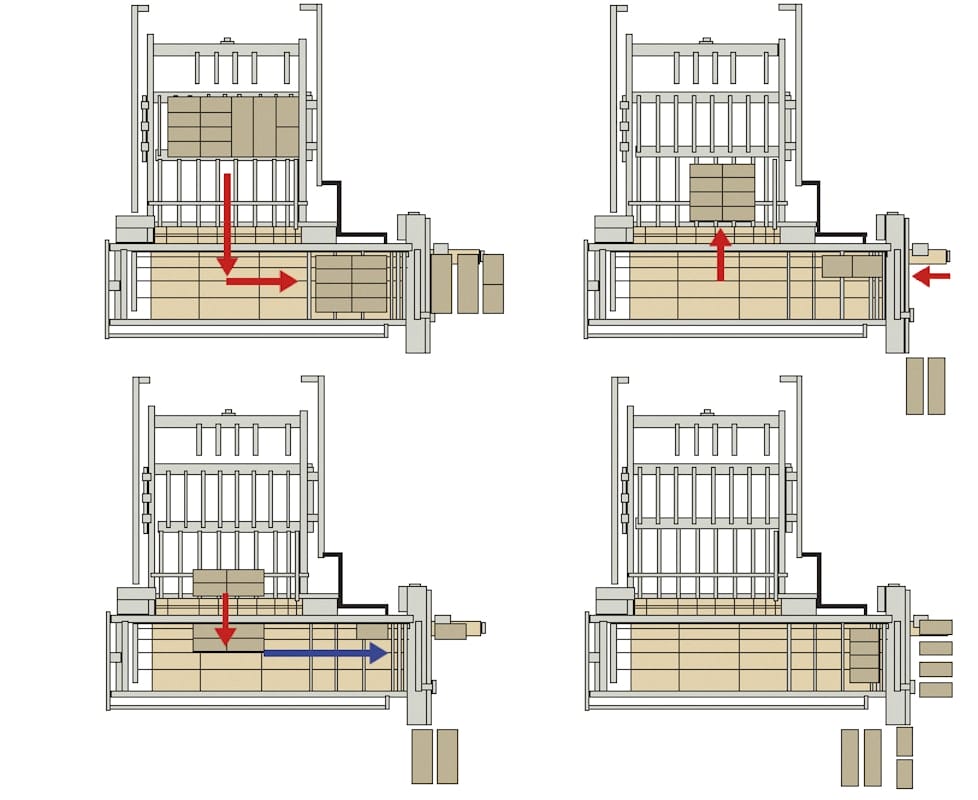

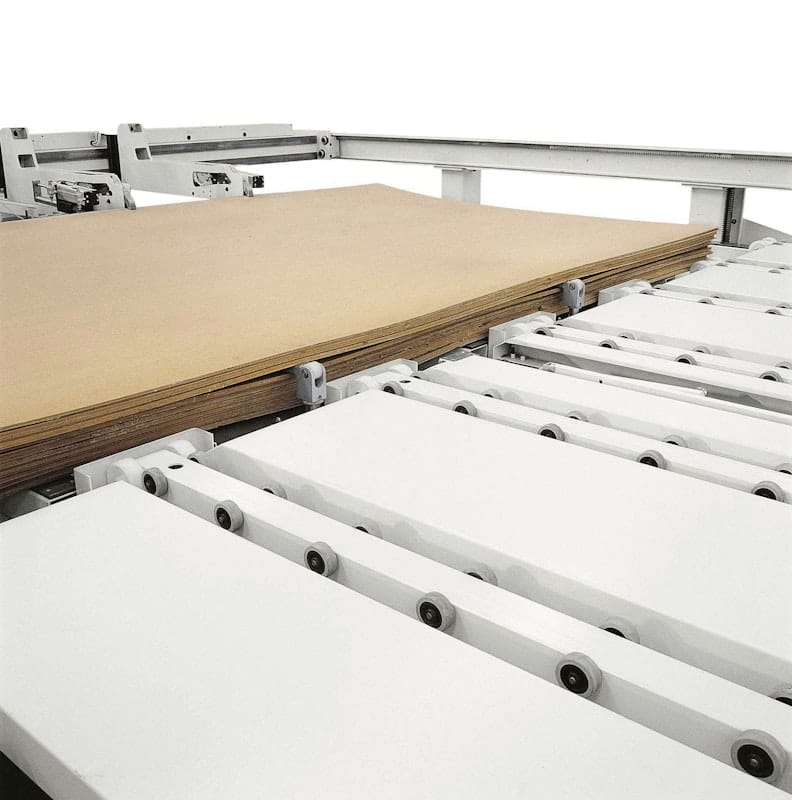

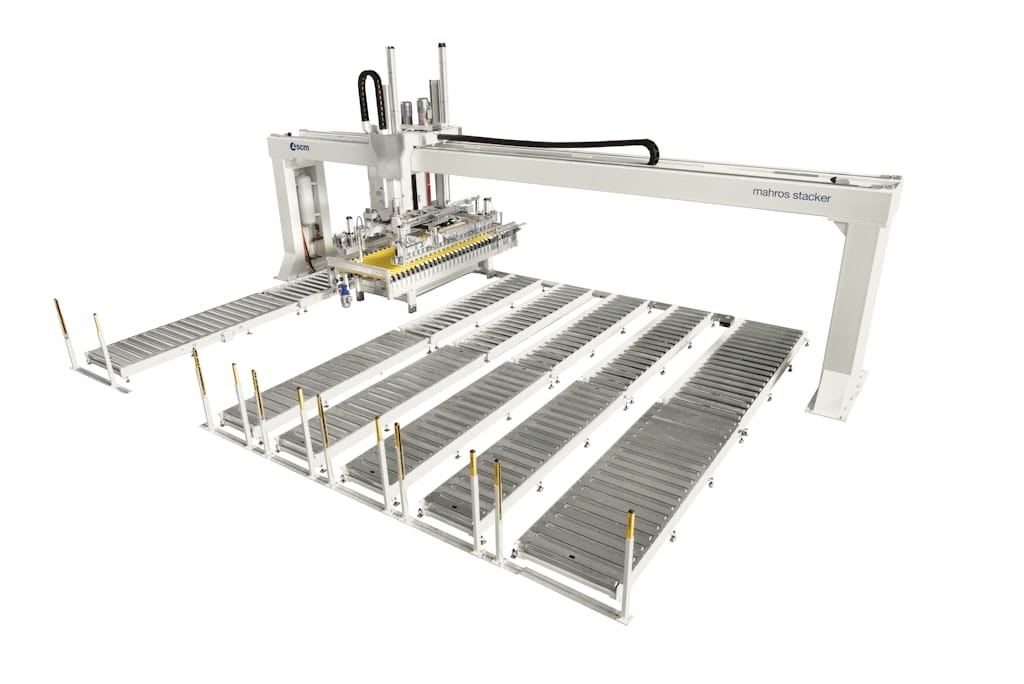

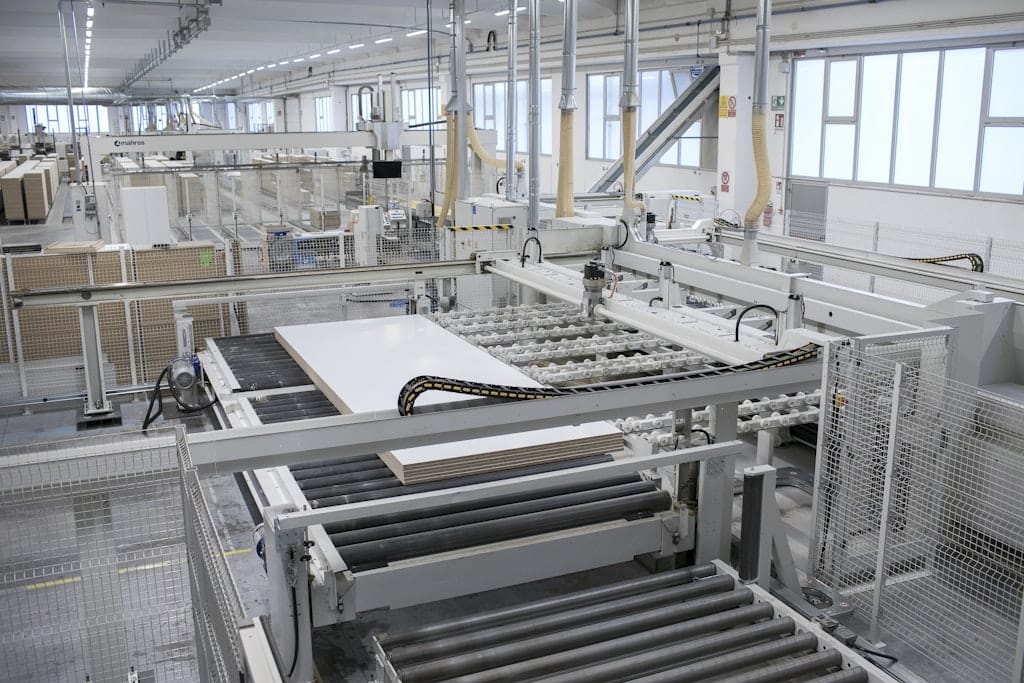

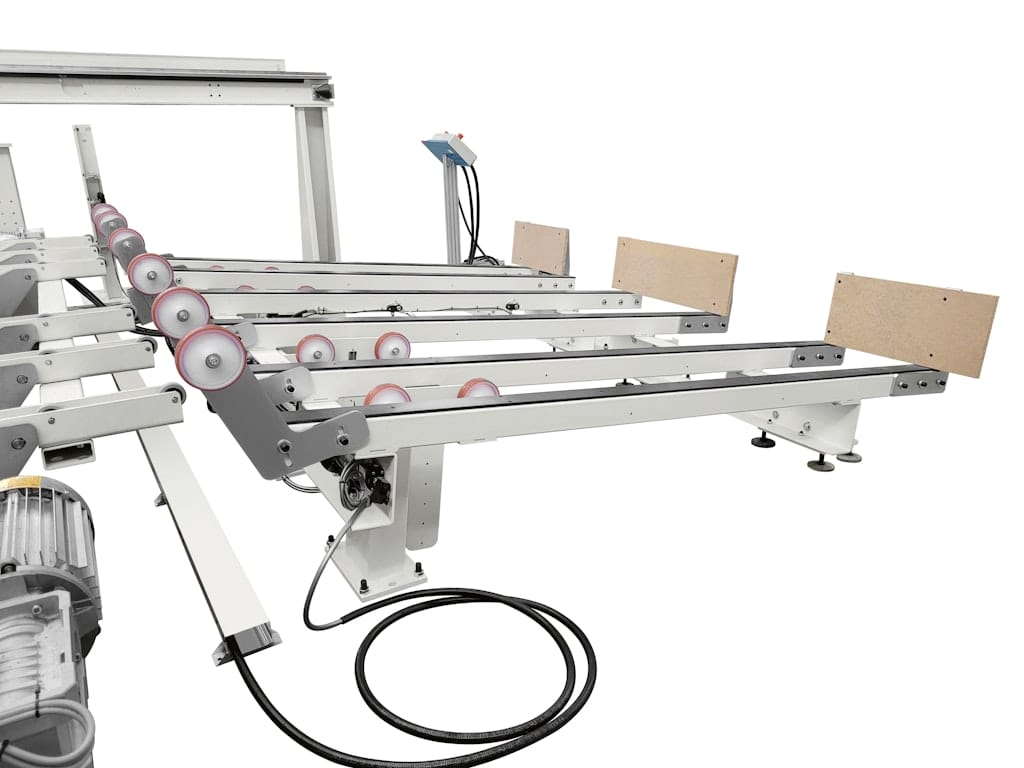

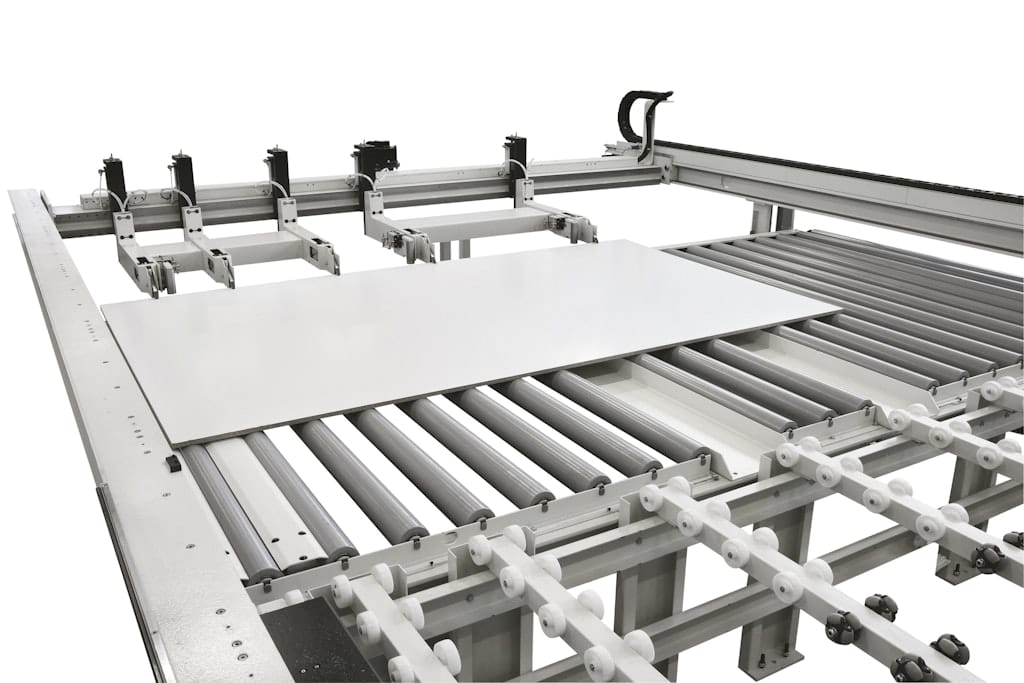

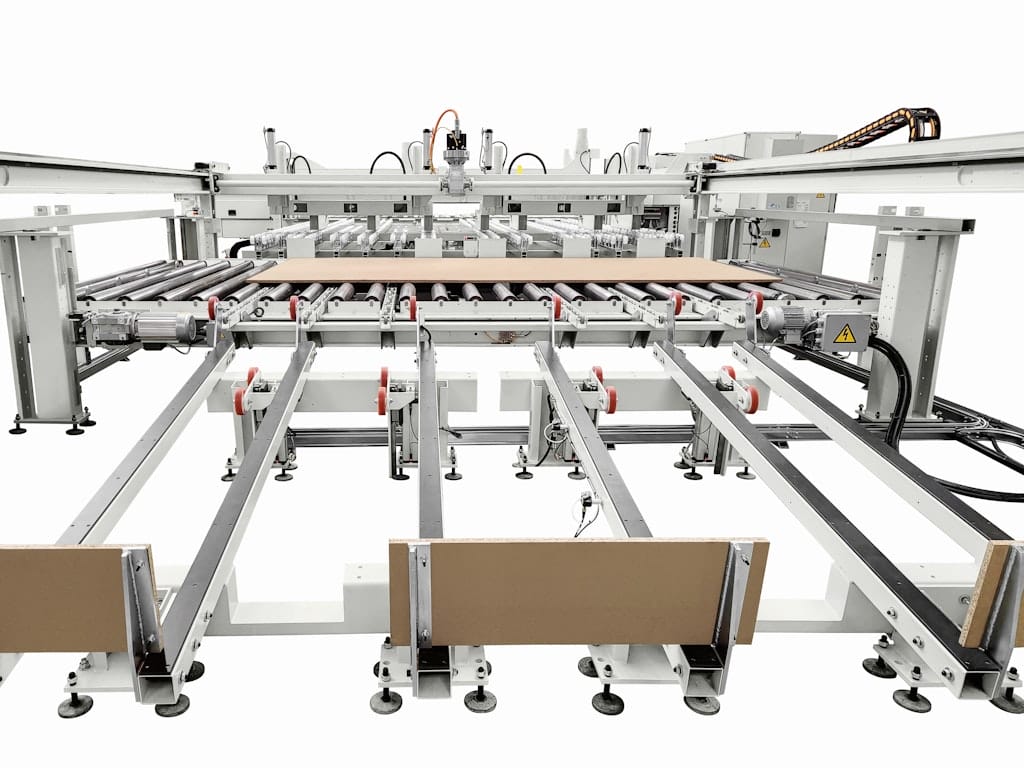

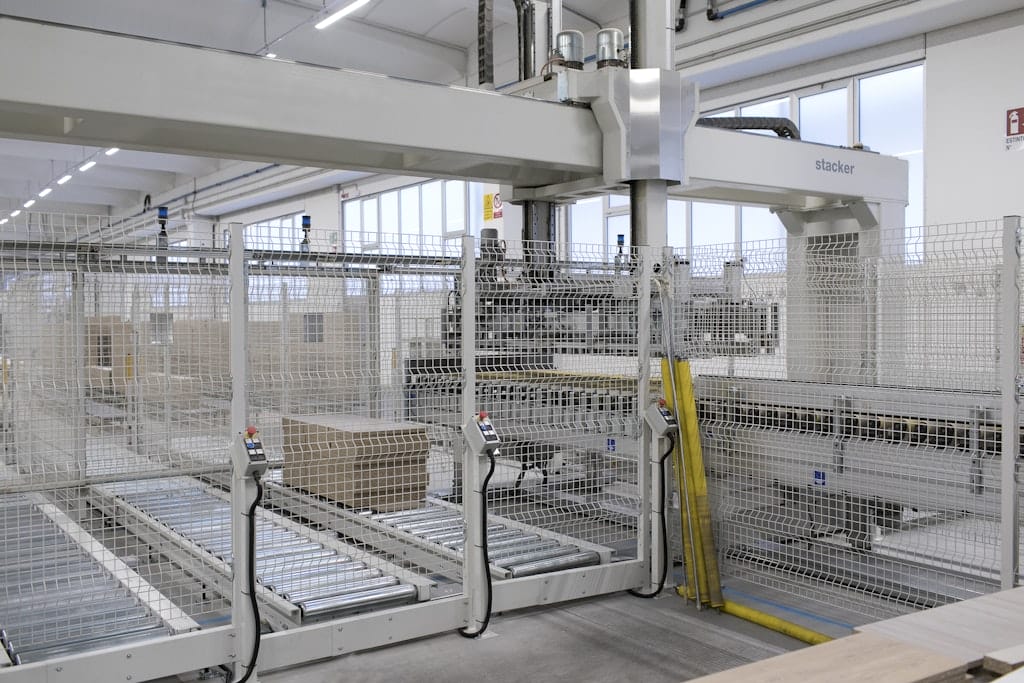

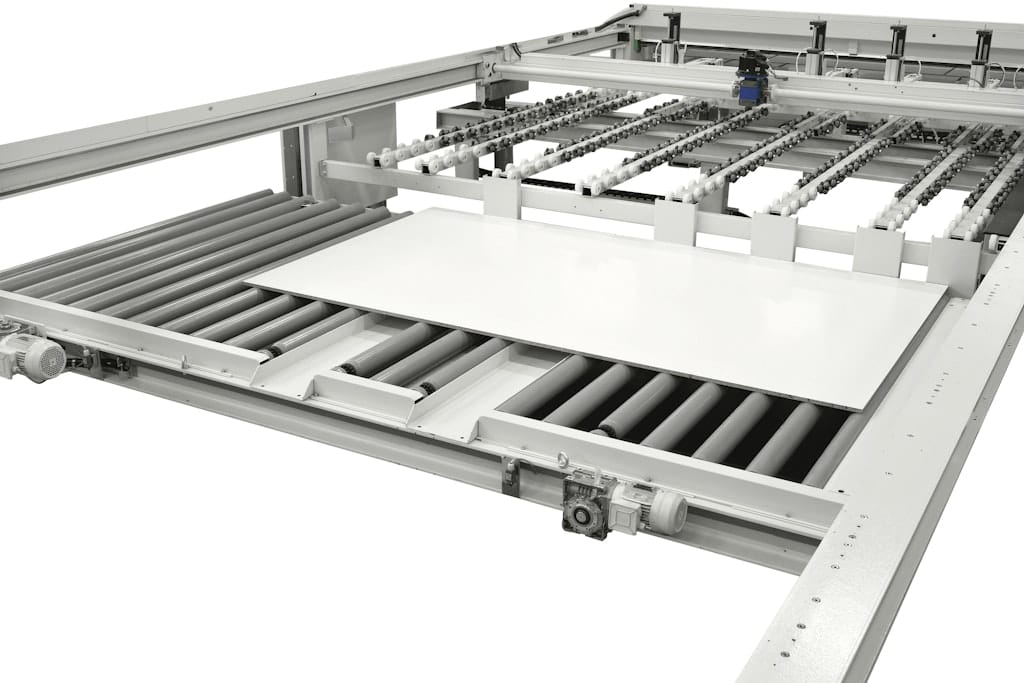

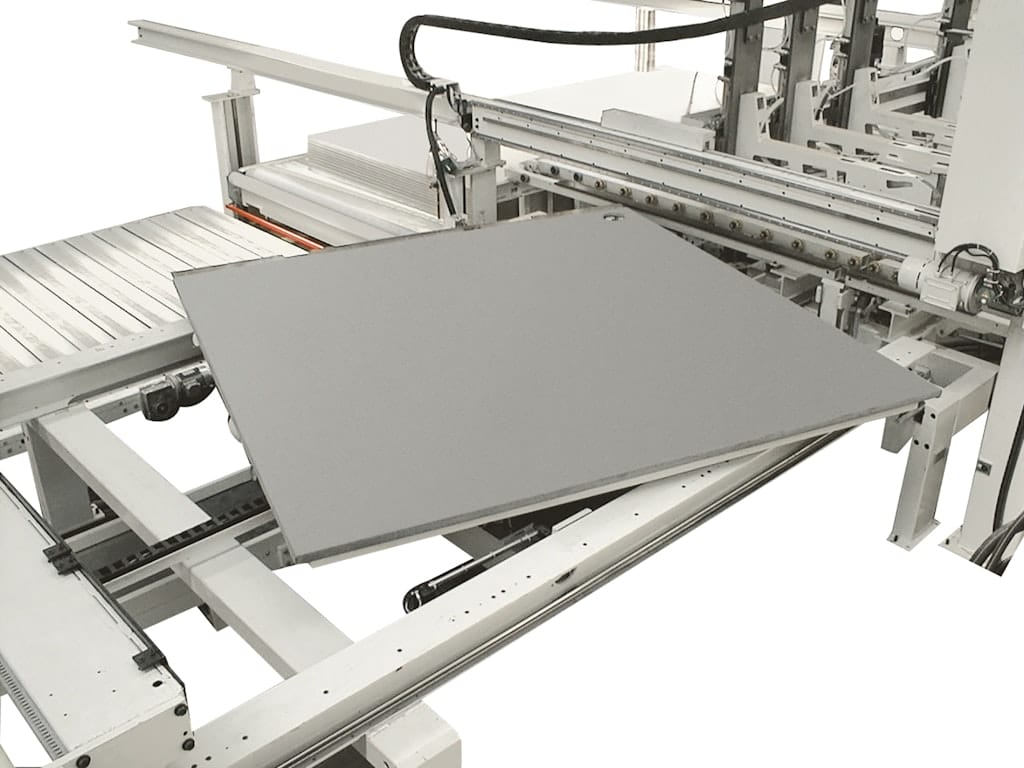

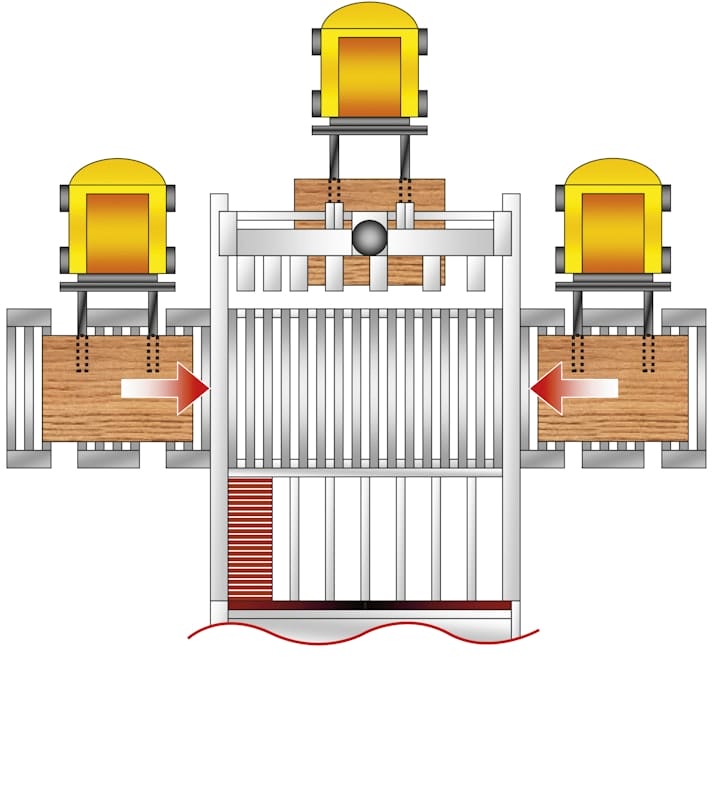

Fully Integrated and Flexible Solutions The Gabbiani A3 integrates seamlessly with automatic loading and unloading systems, ensuring fast and efficient material handling. This level of automation reduces manual labor, speeds up processing time, and boosts productivity, making the machine an excellent choice for companies looking to streamline their operations.

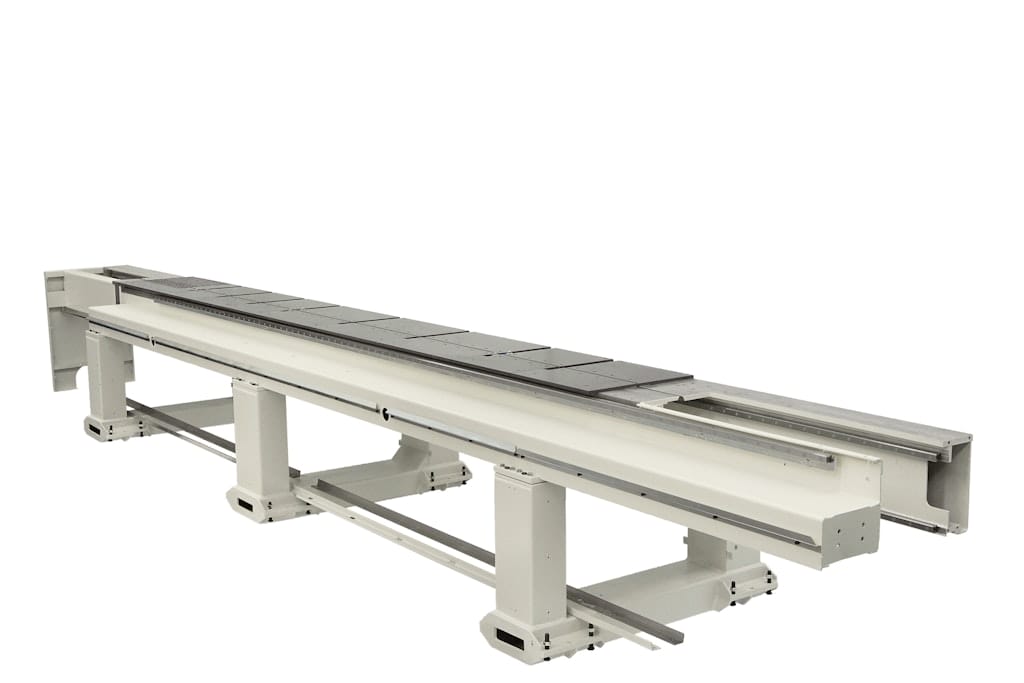

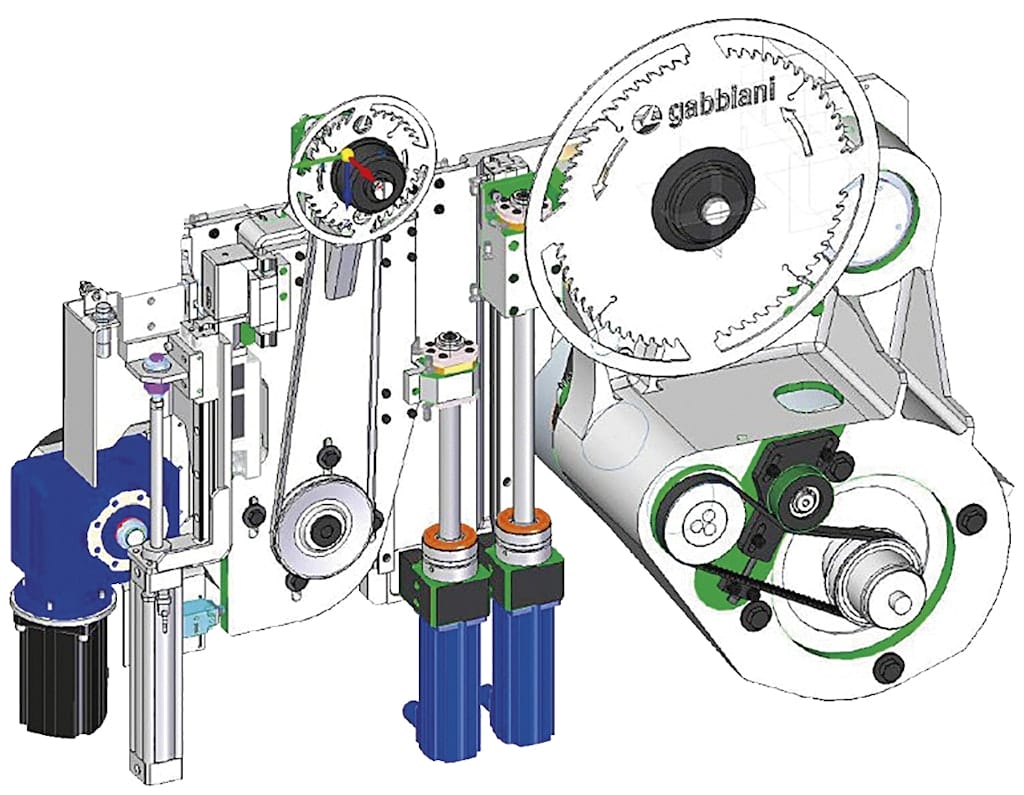

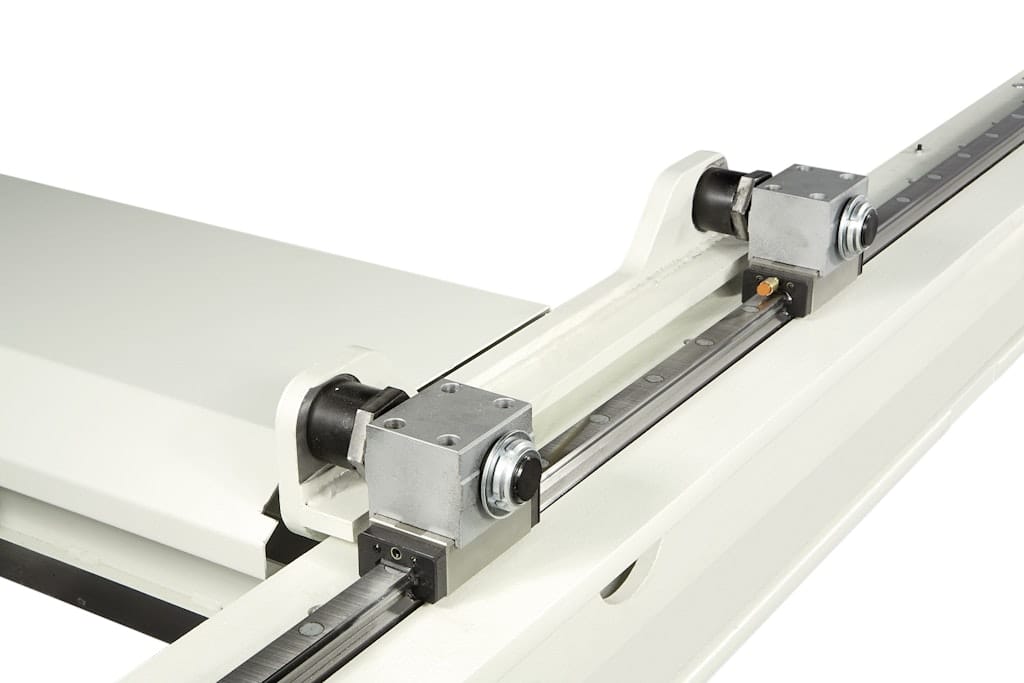

Advanced Technology and Precision The prismatic guides with recirculating ball bearings ensure that the saw carriage and vertical blade movements are precise, reliable, and maintenance-free. The design ensures high cutting precision, maximum reliability, and high resistance to mechanical stress, with the added benefit of centralised, control-monitored lubrication for minimal upkeep.
Specifications
Technical data
| gabbiani a 3 130 | gabbiani a 3 165 | ||||
| Rip cut section | Cross cut section | Rip cut section | Cross cut section | ||
| Cutting dimensions | mm | 3200 – 4500 – 5600 | 2440 | 4500 – 5600 | 2440 |
| Lifting table dimensions | mm | 3200 x 2440 – 4500 x 2400 | 4500 x 2440 – 5600 x 2400 | ||
| Blade projection | mm | 130 | 165 | ||
| Blade diameter | mm | 430 – 460* | 530 | ||
| Scoring diameter | mm | 200 | 200 – 300 | 200 | 200 – 300 |
| Saw carriage speed | m/min | 170 | 170 | ||
| Main blade motor | kW (opt.) | 15 (18,5) (30) (37) | 18,5 (30) (37) | ||
| Pusher speed | m/min | 135 | 135 | ||
