SPECIALOFFER PRICE. SCM Model SI300S-400 Nova 1.6m Sliding Table Panel Saw
Original price was: £10,050.00.£8,495.00Current price is: £8,495.00.

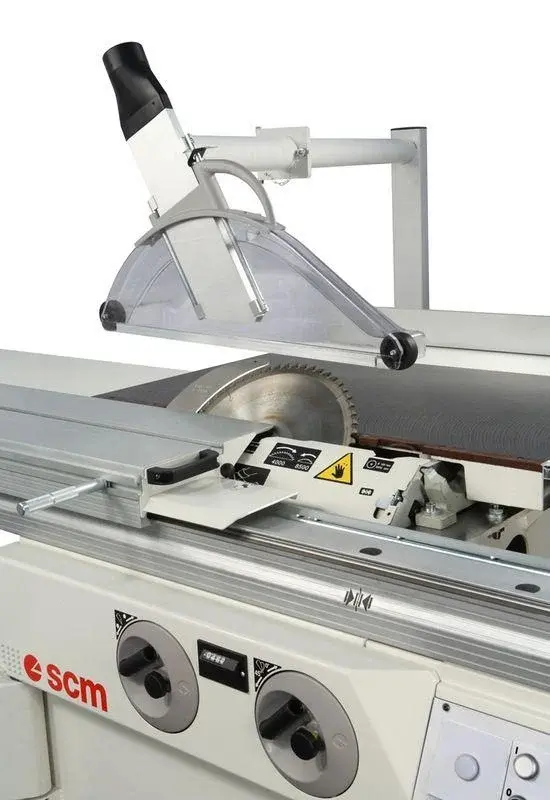

The SCM SI300S‑400 Nova 1.6 m Sliding Table Panel Saw is a powerful and precise machine built for professional workshops and demanding workloads. Its closed-loop saw unit eliminates vibrations, ensuring perfect blade alignment for tilted and complex cuts. With hardened steel guides, a rigid wide-section carriage, and an ergonomic handwheel, it provides smooth, accurate, and efficient operation.
Product Features
- Closed-loop saw unit for vibration-free cutting
- Precise blade alignment for angled cuts
- Sliding carriage on hardened steel guides
- High-rigidity carriage with minimal deflection
- Smooth and stable sliding system
- Dust-protected gearbox transmission
- Ergonomic handwheel blade adjustment
- Compact 1.6 m sliding table
- High stability during operation
- Accurate, high-precision cutting performance
Description
For professional workshops and demanding craftsmen, the SCM Model SI300S-400 Nova 1.6m Sliding Table Panel Saw is a powerful and robust machine capable of handling heavy workloads.
The closed-loop structure of the saw unit makes for the absence of disruptive vibrations which hinder efficiency and productivity. The closed-loop structure ensures that the blades are perfectly aligned during tilted and difficult cuts.
With sliding bearings running on hardened steel guides, smooth movement during operation is guaranteed. The wide section of the carriage and its closed reticular geometry provides additional rigidity and minimum deflection. Thanks to the dedicated gearbox, fully protected from dust – ease of use is inherent with smooth and direct transmission. Blade adjustments correspond accurately with the ergonomic handwheel.
Specifications
SCM 10 year sliding table Guarantee
Sliding table stroke 1.6m
Blade dia 400mm
Kit 140mm cut height including Overhead gantry guard
Motor power 7.5hp
Independent scorer 120mm 0.75 Kw
Rip fence capacity 1270mm
Heavy Duty overhead saw guard
| Max. saw blade diameter with mounted scorer | mm / inches | 315 / 12 |
| Saw Blade arbor size | mm / inches | 25 / 1 |
| Maximum saw blade projection from table to 90°/45° | mm / inches | 100/70 3.9/2.75 |
| Cutting width on rip fence (Rip capacity) | mm / | 1270 |
| Max. squaring stroke of sliding table saw | mm / inches | 1600 / 63 |
| Three-phase motor | Hp | 11 |
| Independent scoring motor | Hp | 1 |
Additional Information
Nationwide Delivery
We provide nationwide delivery for all machines and equipment, using flatbed or crane vehicles where required.
Installation & Commisioning
We offer installation, commissioning & training on all our machines & equipment.
Finance Available
We are FCA authorised and regulated, offering a range of flexible finance options for equipment.
Service & Support
We provide servicing, maintenance, breakdown support and repairs, plus a full range of spare parts.
