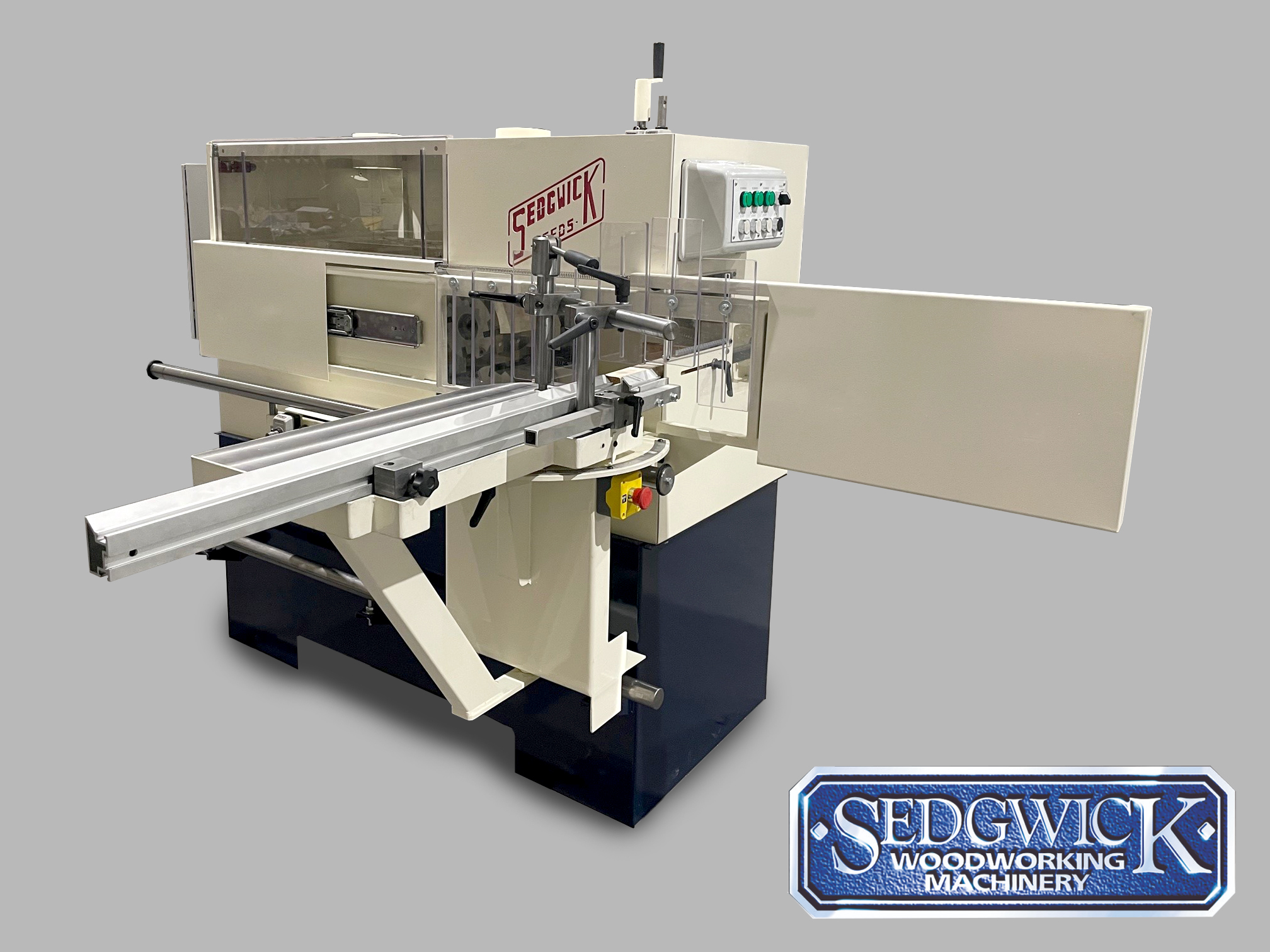

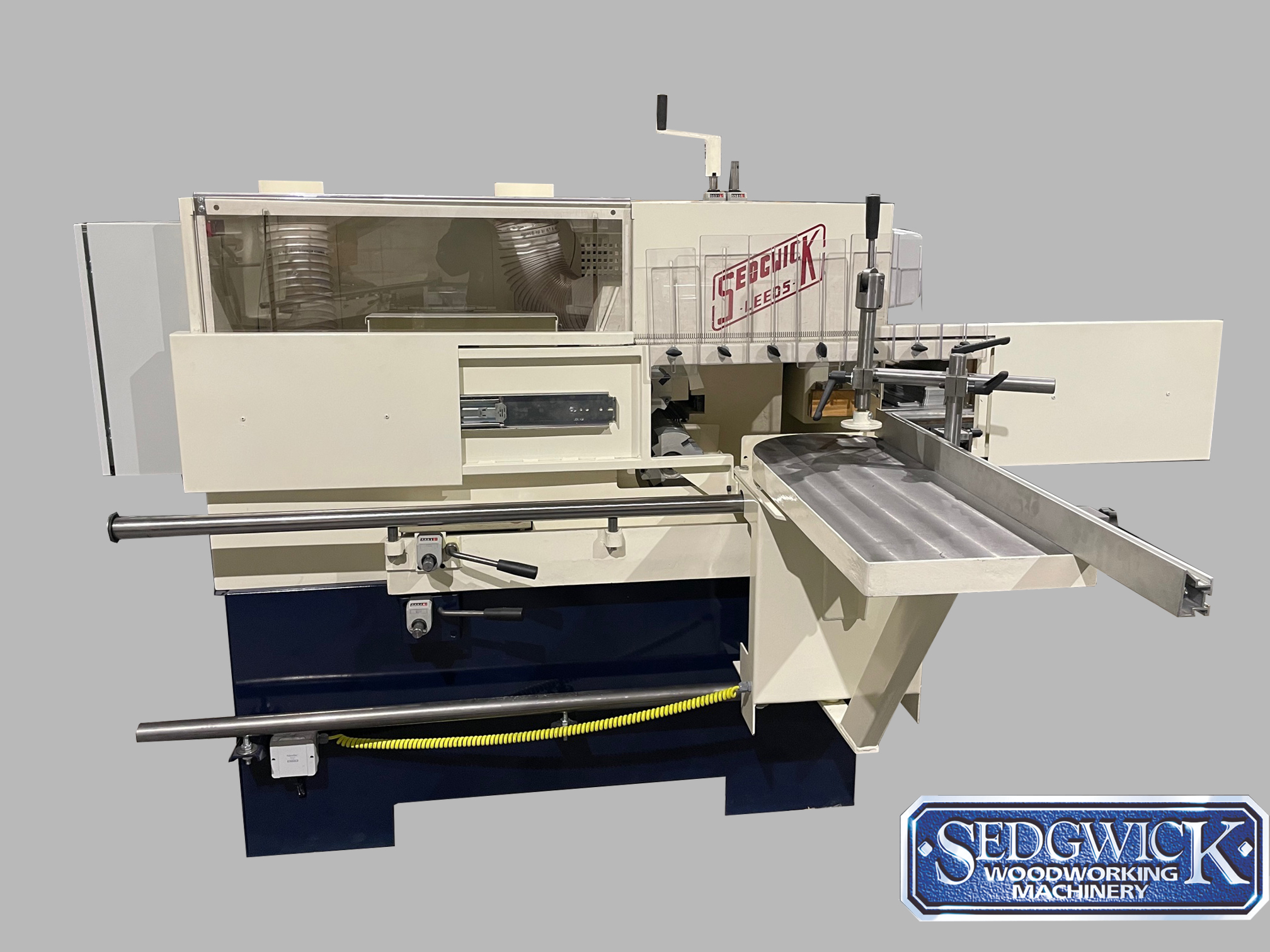

Sedgwick Single -End Tenoner Model TE350. 3 Phase
Original price was: £14,600.00.£12,950.00Current price is: £12,950.00.
Product Features
Ease of operation

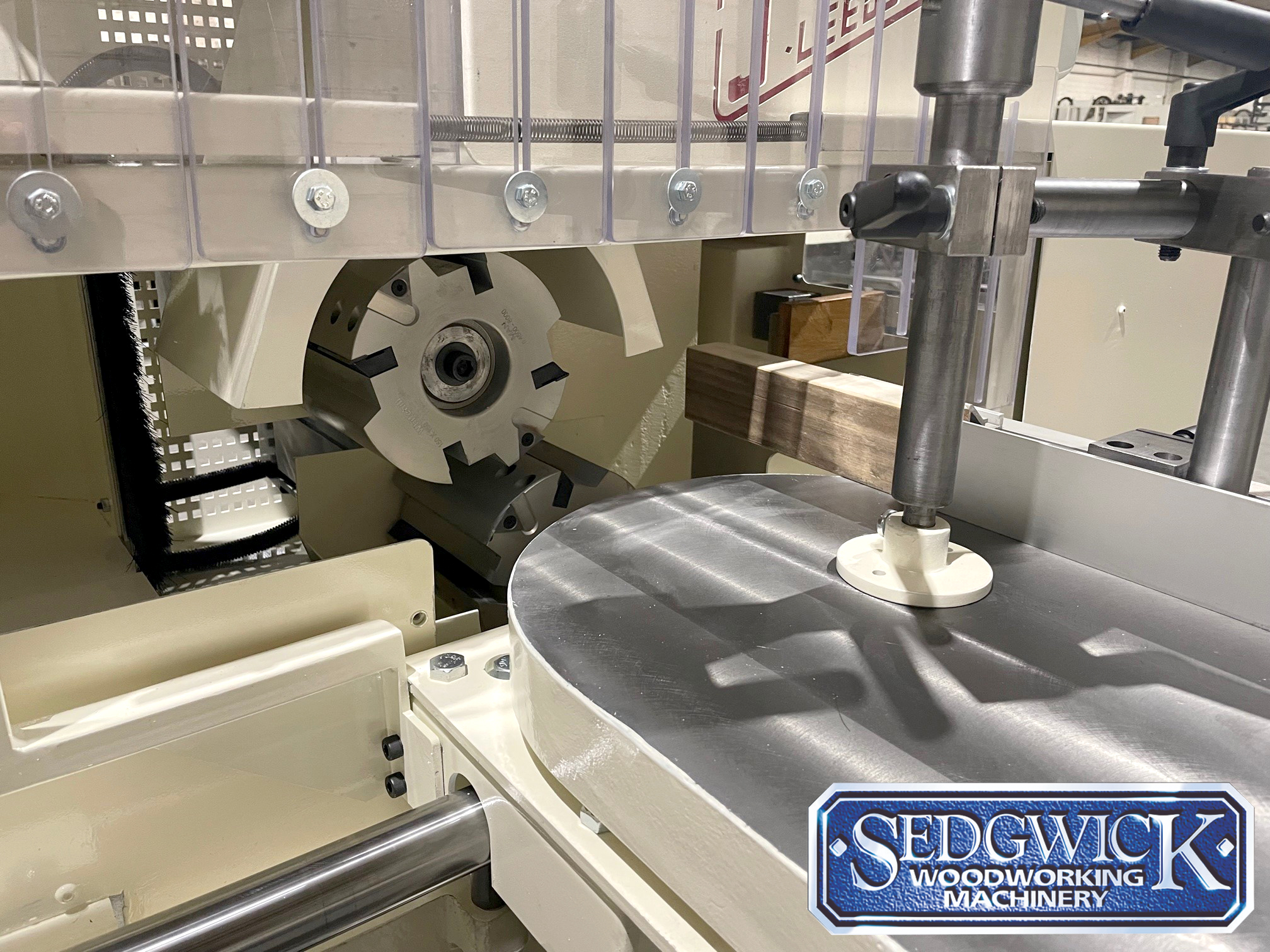

Taking only minutes to set up, the Sedgwick TESH is easy to use and accurate in operation. Work is positioned on the rolling table against a depth stop and a fence, and is secured by a cam action clamp. Its end is then passed between two horizontally mounted cutterheads which machine the top and bottom cheeks of the tenon. The tenon width is set by raising or lowering the top motor, and its position on the timber by raising/lowering the two motors in tandem. Variations in shoulder length are set using a multi-position depth stop, and staggered tenons are achieved by simple handwheel adjustment of the top motor.
Specifications
Machine Specification
| TIMBER CAPACITY | 150 x 300mm |
| MAXIMUM TENON LENGTH | 150mm |
| TABLE SIZE mm | 765 x 340 (765×300 useful) |
| TABLE WORKING HEIGHT | 890mm |

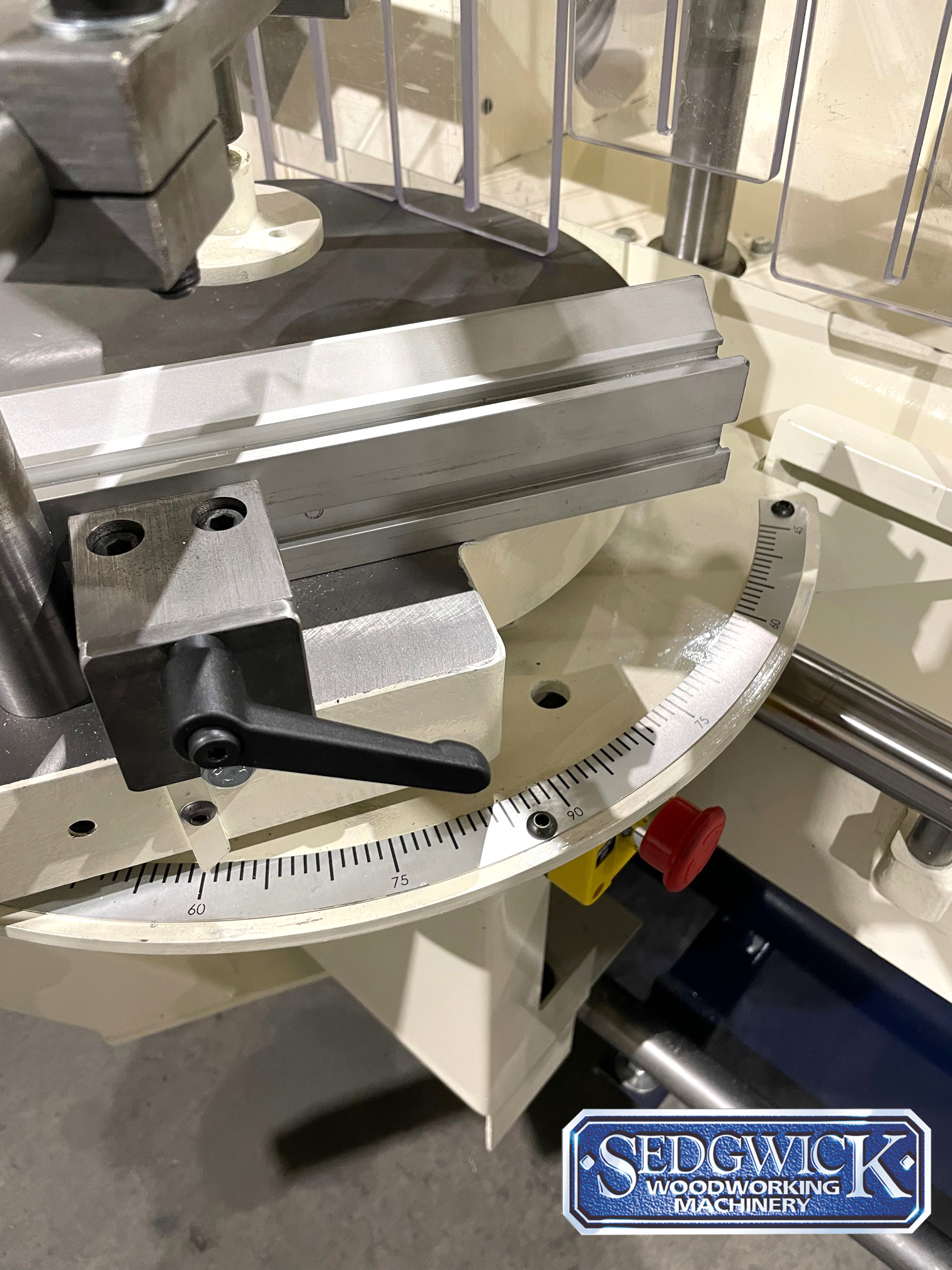

| TABLE QUADRANT ADJUSTMENT | +/- 0-60 degrees |
HORIZONTAL TENONING HEADS
| CUTTERBLOCKS | 150 x 150 x 30mm |
| MAX TOOLING DIAMETER | 155mm (BOTTOM) 200mm (TOP) |
| VERTICAL ADJUSTMENT OF BOTTOM CUTTERBLOCK | -2mm / + 77mm |
| VERTICAL ADJUSTMENT OF TOP CUTTERBLOCK | +4mm / + 150mm |
| HORIZONTAL ADJUSTMENT OF TOP CUTTERBLOCK | -50mm /+ 20mm |
| DUST EXTRACTION OUTLETS | 2 x 150mm |
| MOTOR RATING | 2 x 2.2 Kw (S6 40%) |
| FULL LOAD CURRENT | 4.75 AMPS |
| STARTING CURRENT | 35 AMPS |

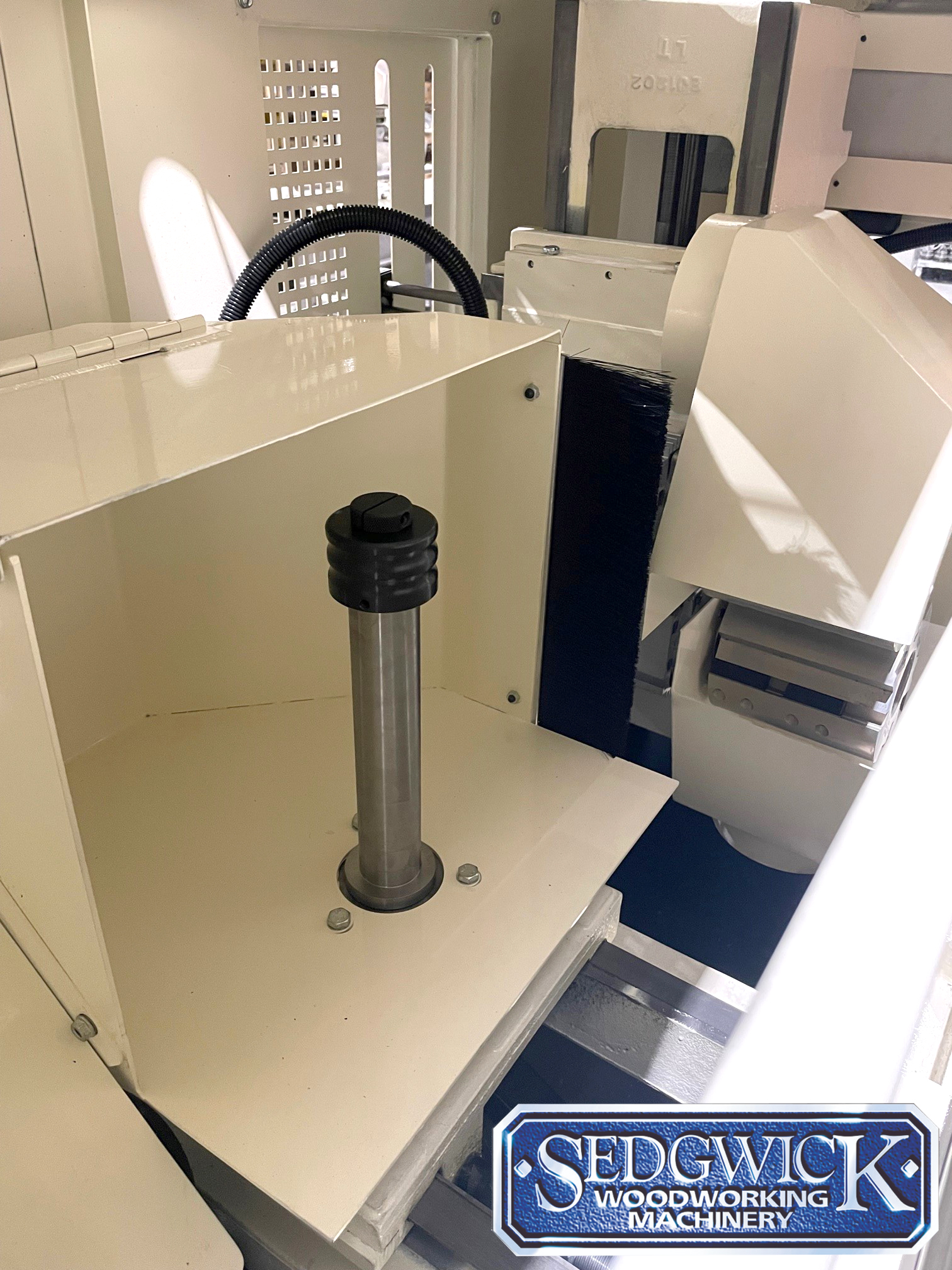

VERTICAL SPINDLE
| SHAFT DIAMETER | 40mm |
| EFFECTIVE LENGTH OF SHAFT | 205mm |
| VERTICAL MOVEMENT | 112mm |
| HORIZONTAL MOVEMENT | 150mm |
| MAXIMUM TOOLING DIAMETER | 350mm |
| SPINDLE SPEED | 4000 RPM |
| MOTOR RATING | 5.5Kw (S1) |
| FULL LOAD CURRENT | 11.5 AMPS |
| STARTING CURRENT | 69 AMPS |
ELECTRICAL
| VOLTAGE / FREQUENCY | 3 PHASE + EARTH; 400/230 V – 50/60 Hz |
| REQUIRED FUSE SIZE | 25A/ph |
| REQUIRED CABLE SIZE | 4mm2 |
